OLED дисплей с разрешением 128x64, 2,42 дюйма, с интерфейсом SPI/IIC, желтый, 3 5 в постоянного тока

Product Overview

Description

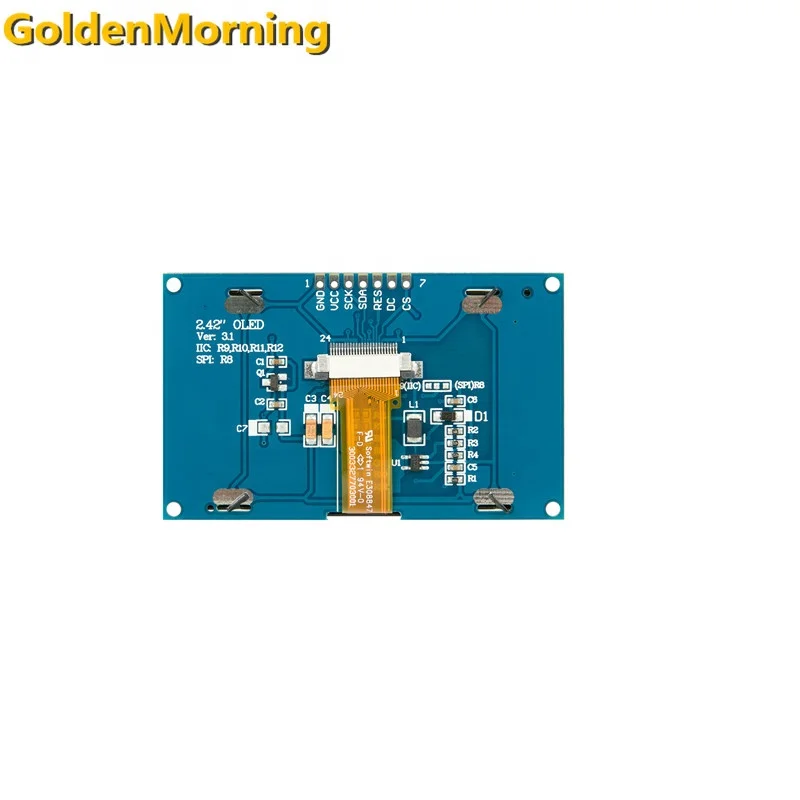

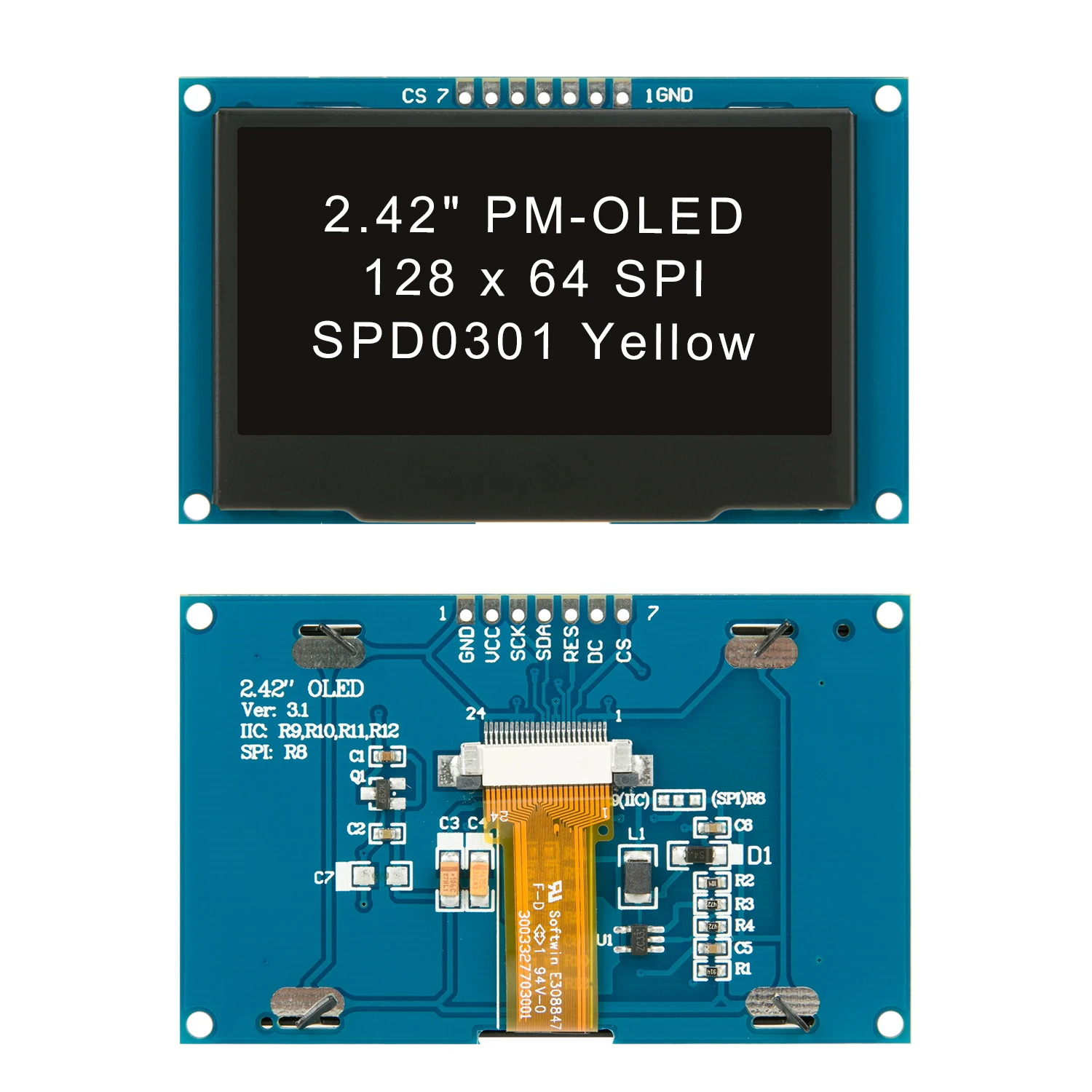

128x64 resolution 2.42 inch OLED display module with SPI/IIC interface,Yellow,DC 3-5V

2.42" yellow oled display module

Diagonal Screen Size	2.42inch
Color	Mono(Yellow)
Model number	GME12864-103
Resolutions	128x64
Outline dimension	62×39.8×3.8mm
Active area	55.01×27.49mm
Pixel pitch	0.23×0.23mm
Pixel size	0.21×0.21mm
Driver IC	SPD0301/
Voltage	3-5V
Interface	SPI
Operating temperature	-30~70℃
Storge Temperature	-40~80℃
Assemble	Soldering
Pins	7P

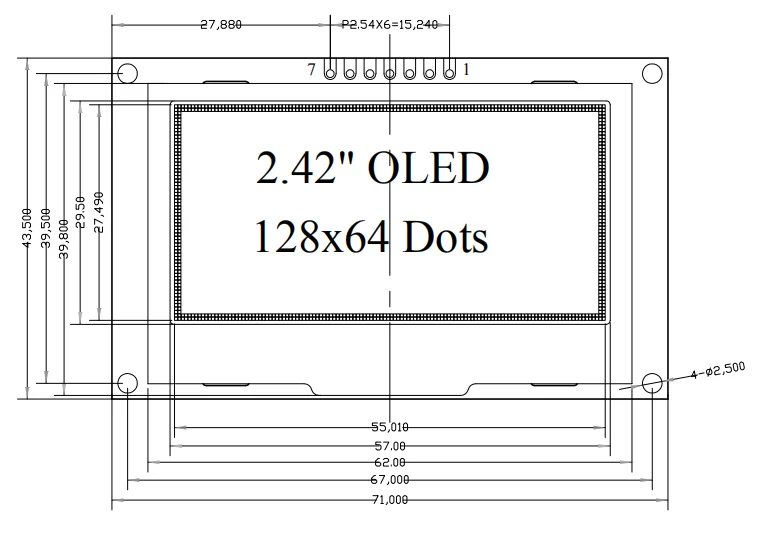

Drawing(2.4/2.42" oled display module)

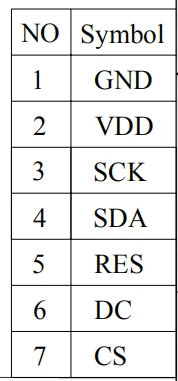

Pin Assignment(2.4/2.42" module,Pins:7P)
