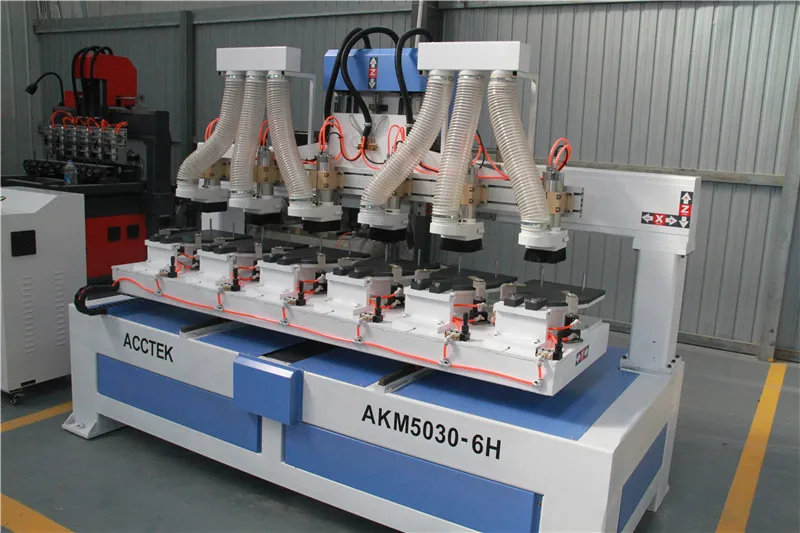

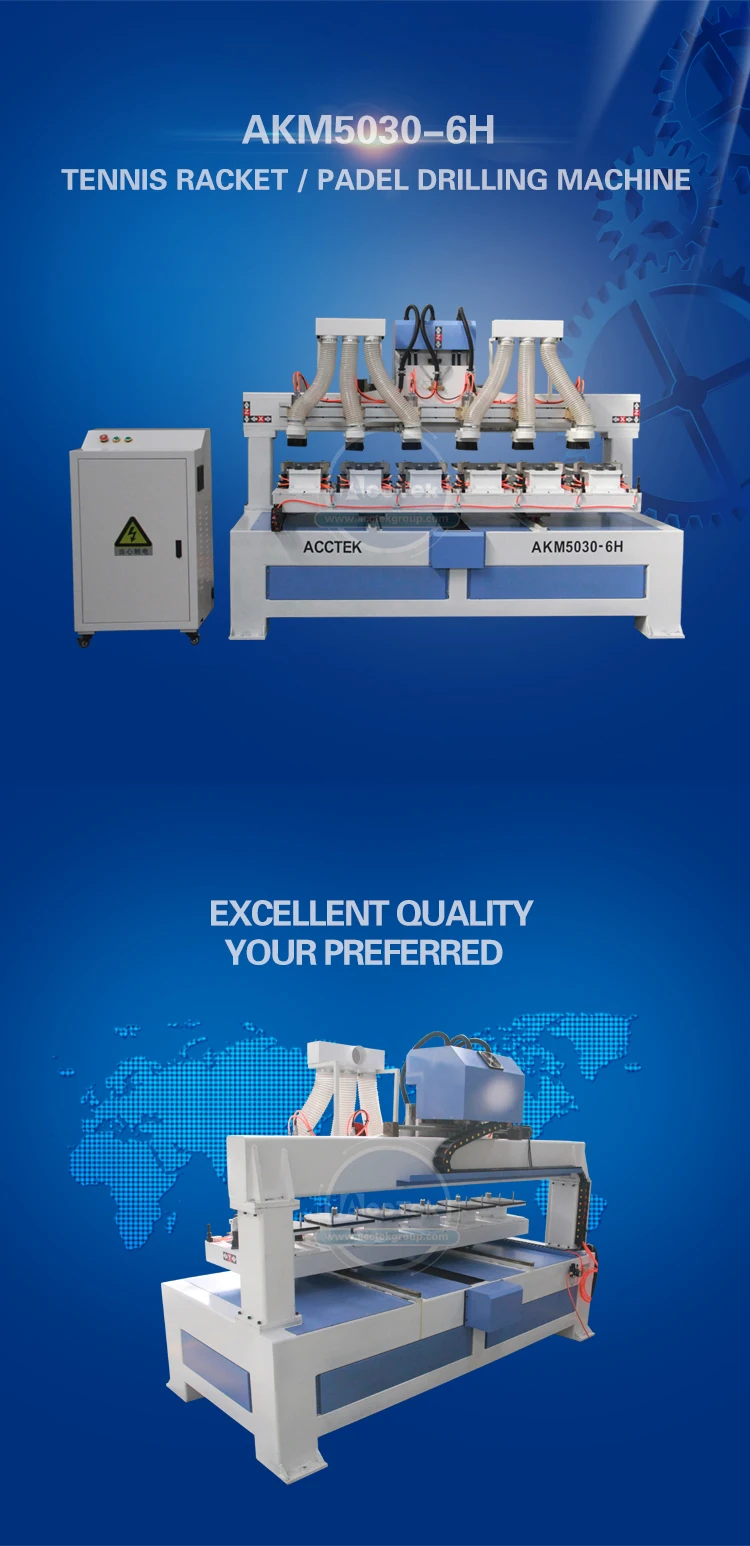

ACCTEK special cnc router engraving drilling machine for wood racket racquet AKM5030 6H
- Category: >>>
- Supplier: Jinan AccTek Machinery Co. Ltd.
Share on (62376331446):
Product Overview
Description

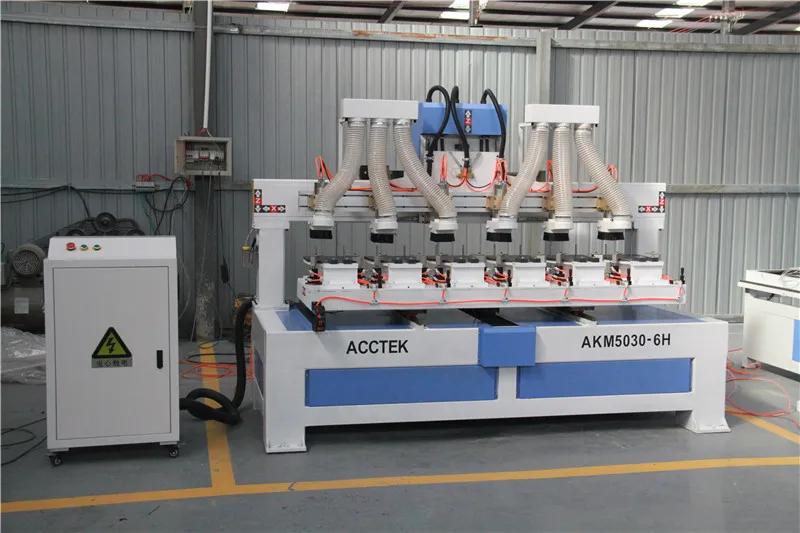

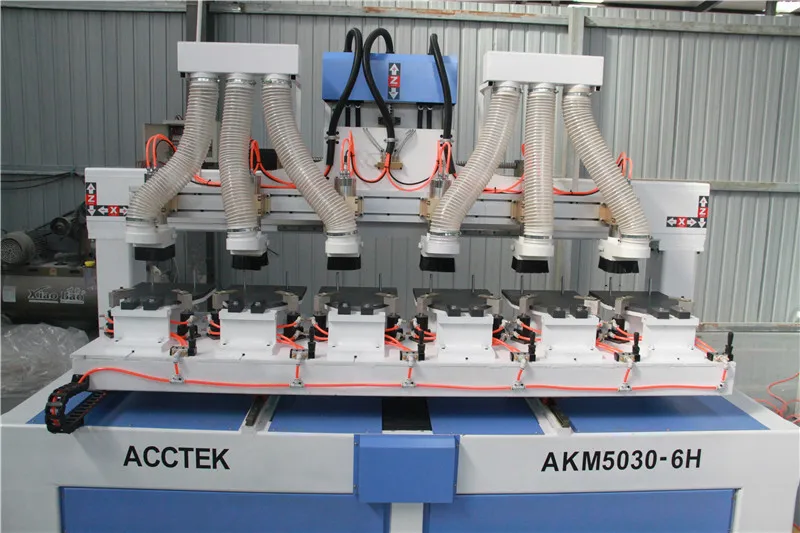

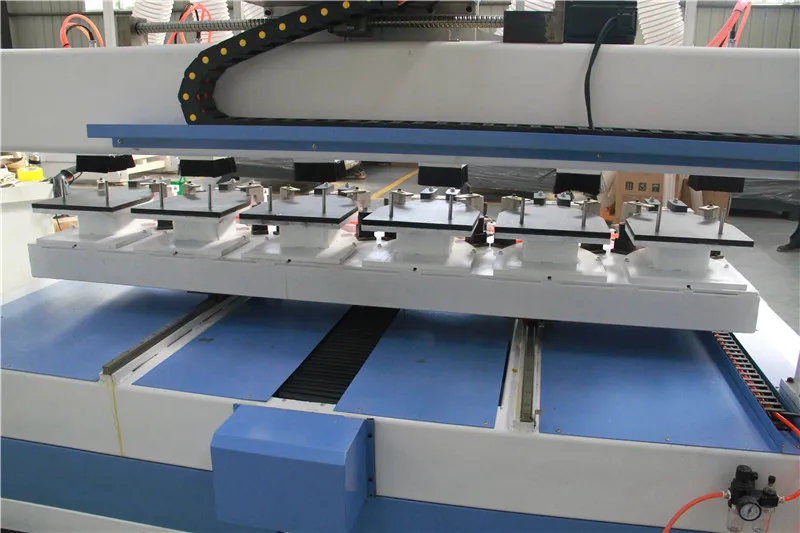

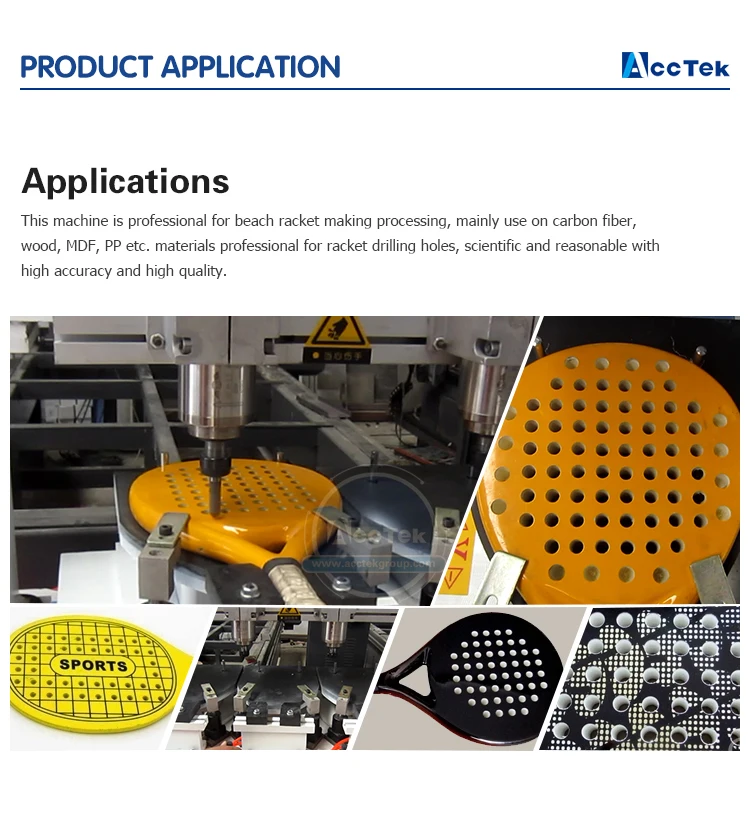

CNC router drilling machine for wood racket

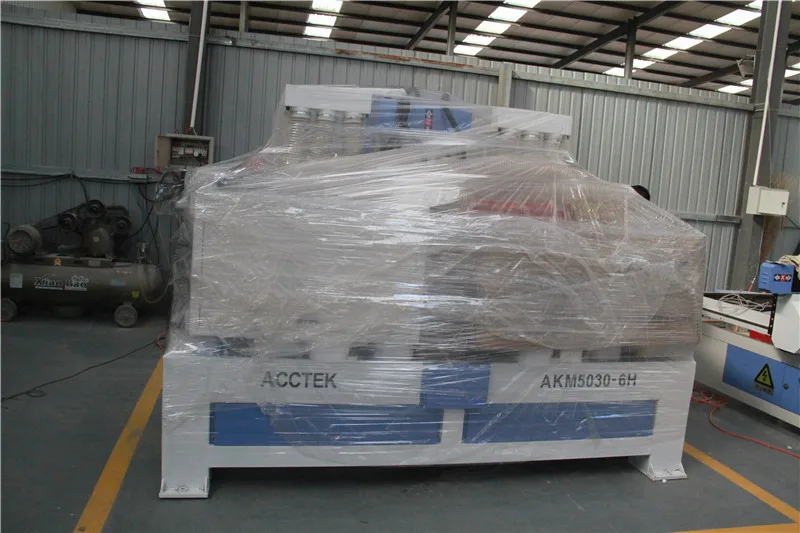

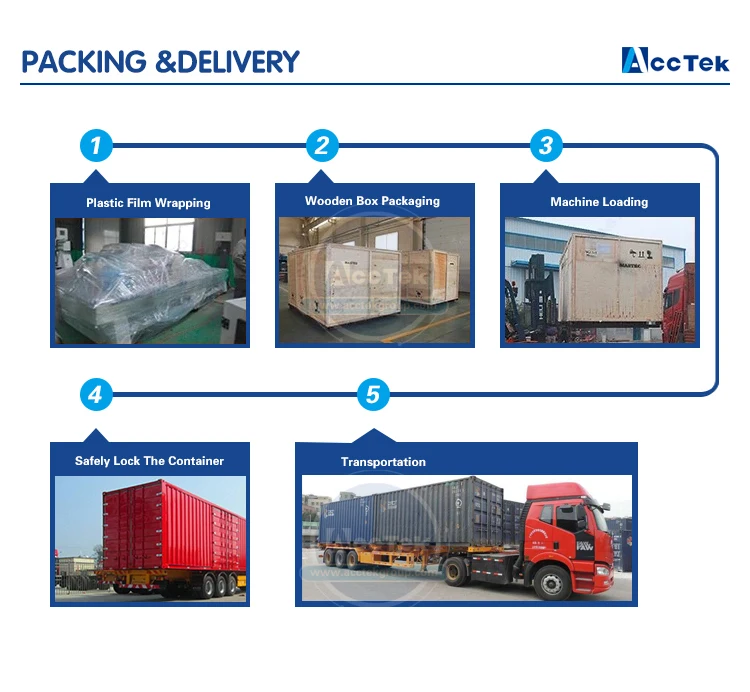

Packaging & Shipping
1). The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.then you pay 70% balance payment,we arrange shipping for you.
2). The package is tandard exporrt plywood box,customized for every size machine.
Parameter data of cnc wood carving machine for sale/ cnc router for racket and bat AKM5030-6H:
1 | Model Name | AKM5030-6H |
2 | X Y working area | 6*300x500mm |
3 | Whole structure | Heavy duty steel body |
4 | Table surface | Special custom-made table |
5 | Movement parts | X Y axis gear and rack transmission, Z axis Taiwan TBI Ball screw transmition |

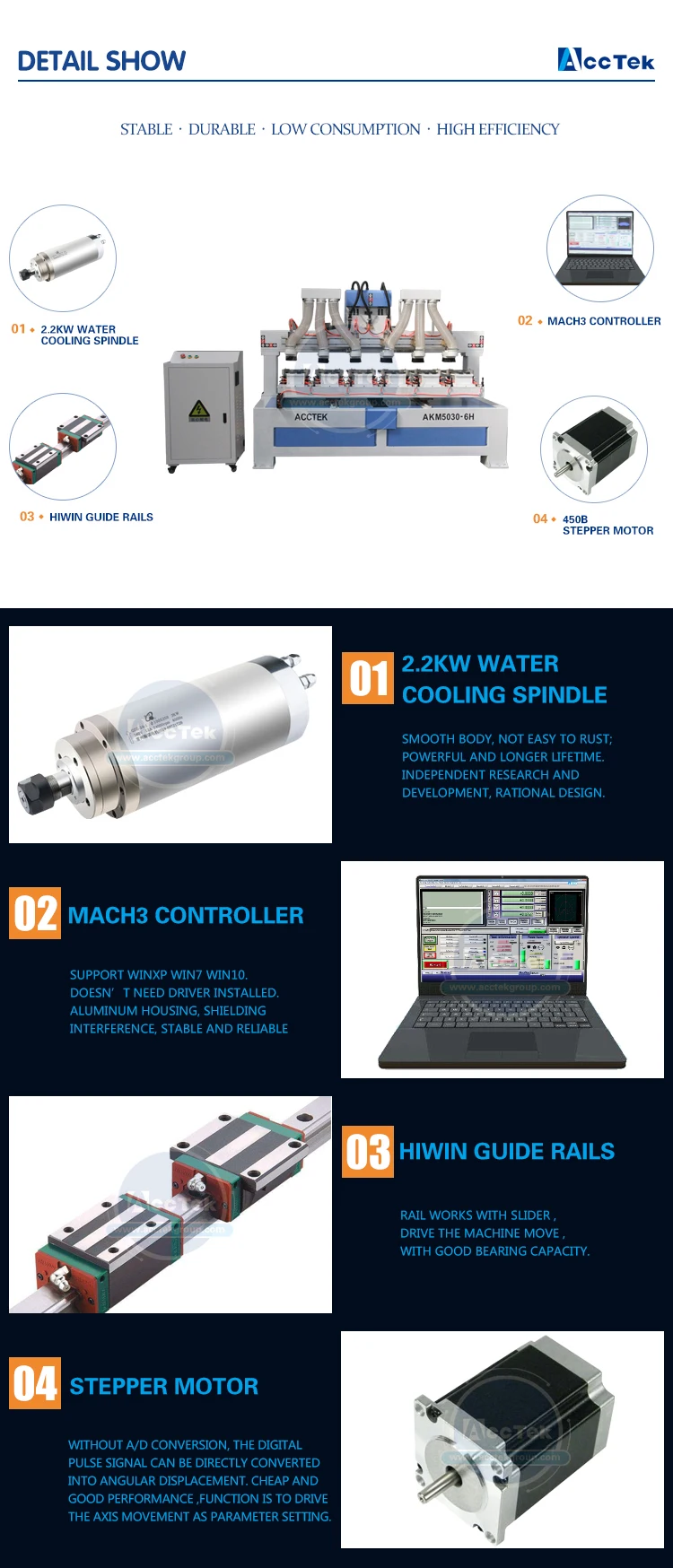

6 | Spindle | 2.2 kw water cooling spindle/optional |
7 | Spindle speed | 24000 RPM |
8 | Drive Motor | Stepper motor/Leadshine easy servo optional |
9 | Max. Rapid Travel Rate | 33000 mm/min |
10 | Max. Working speed | 25000mm/min |
11 | Control System | Nc studio controller/Mach3 controller/optional |
12 | Software | Type3/Artcam/Ucancam/optional |
13 | Machine precision | ±0.01mm |
14 | Repositioning precision | ±0.03mm |
15 | Command language | G code |
16 | Working Voltage | AC220v/380v |
17 | Package size | 1500x2950x2100mm |
18 | Weight | 1100kg/1300kg(net/gross) |
19 | Dust Collector | Optional |
20 | Color | Blue-white/Optional |
| 21 | Computer Interface | USB |
| 22 | Flash Memory | 8GB(U Disk) |
| 23 | Collet | ER16/20 |
| 24 | X,Y Resolution | <0.01mm |
| 25 | Software Compatibility | Type3/UcancameV9/Artcam |
| 26 | Running Environment Temperature | 0 - 45 Centigrade |
| 27 | Relative Humidity | 30% - 75% |
Company Information
Contact us for more details ,thanks in advance .
