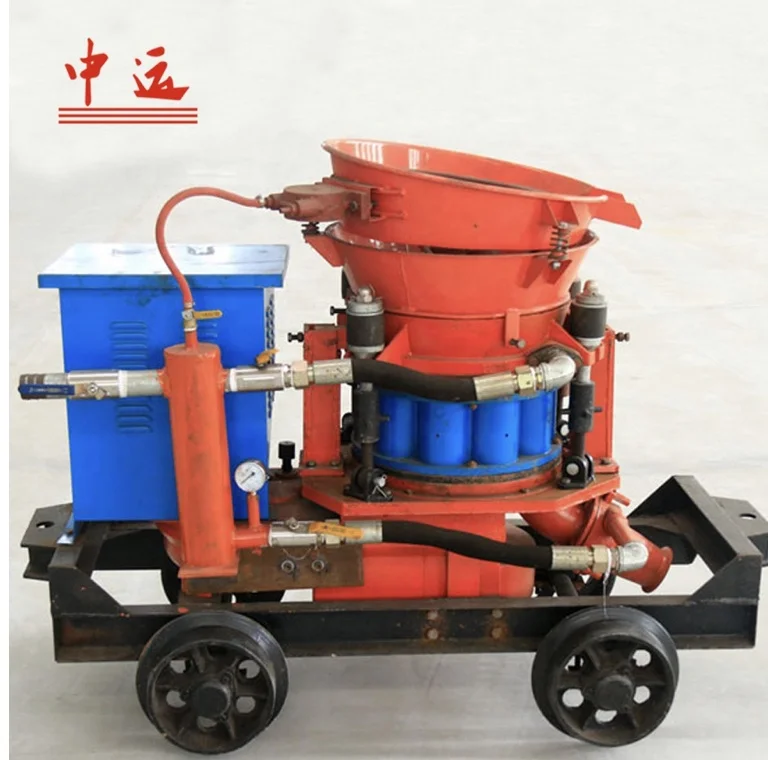

PZ 3 Dry Process Shotcrete Concrete Spray Gun Machine for sale

Product Overview

Description

Product Description

Introduction

High Quality Wet and Dry Shotcrete machine is concrete shotcrete machine. This kind shotcrete machine uses the compressed air to convey or high-speed jet concrete mix with a certain proportion to the surface through the pipelines. The concrete mix on the surface set and harden to form concrete support layer. In recent years, shotcrete technology with a simple process, an unique effect, the economic cost and fast construction speed, is widely used in construction, rail and road tunnel construction, mine development, slope reinforcement and other fields.

Main Parameter



Model	PZ-3
Capacity (m3/h)	3-3.5
Max. Conveying Distance (Horizontal,Vertical m)	200,20
Use material ratio(Cement/Sand)	2001-3-5
Use material water-cement ratio	≤0.4
Max. Aggregate Diameters (mm)	20
Feeding pipe inner diameters(mm)	38
Rotor Diameter(mm)	350
Working pressure (MPa)	0.4-0.6
Air consumption (m3/min)	3-4
Motor Model	Y112M-6-3KW
Voltage(V) (according to customer's special requirement)	380,660,etc
Overall size (mm)	1040*550*940
Overall weight (kg)	260

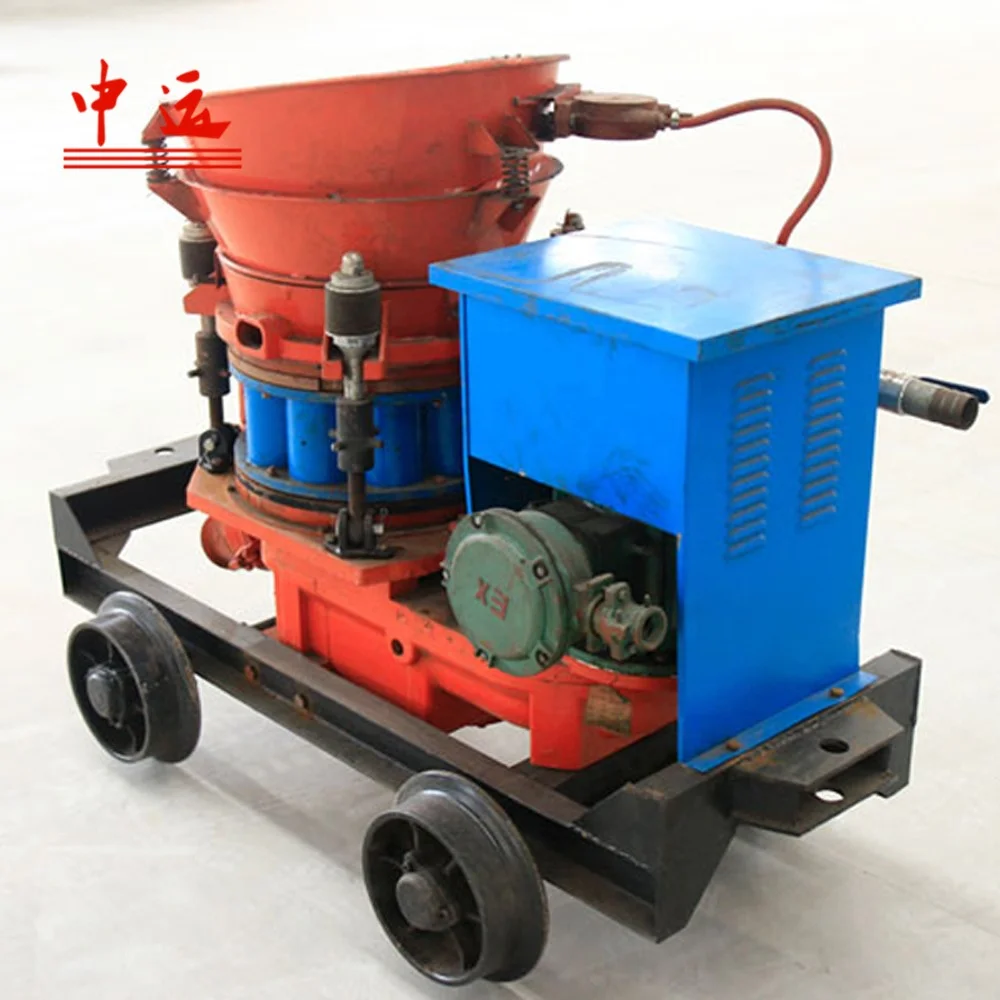

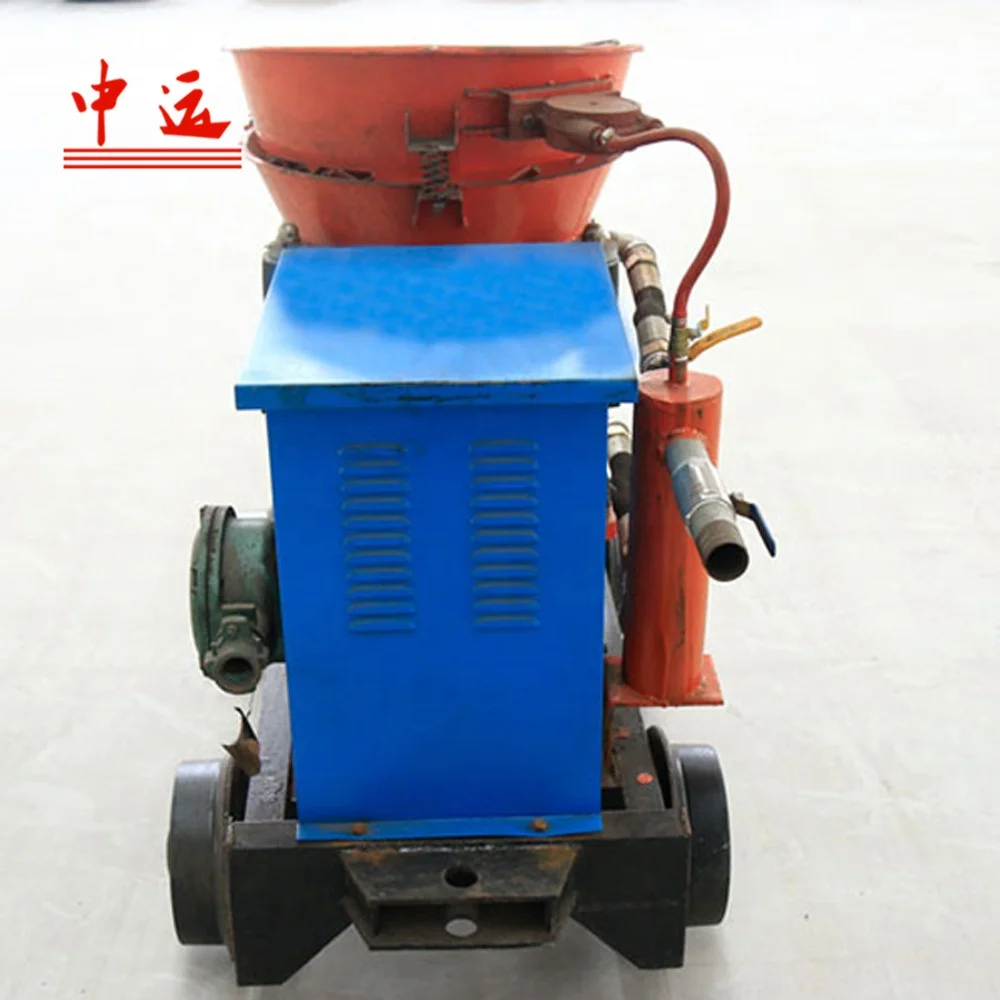

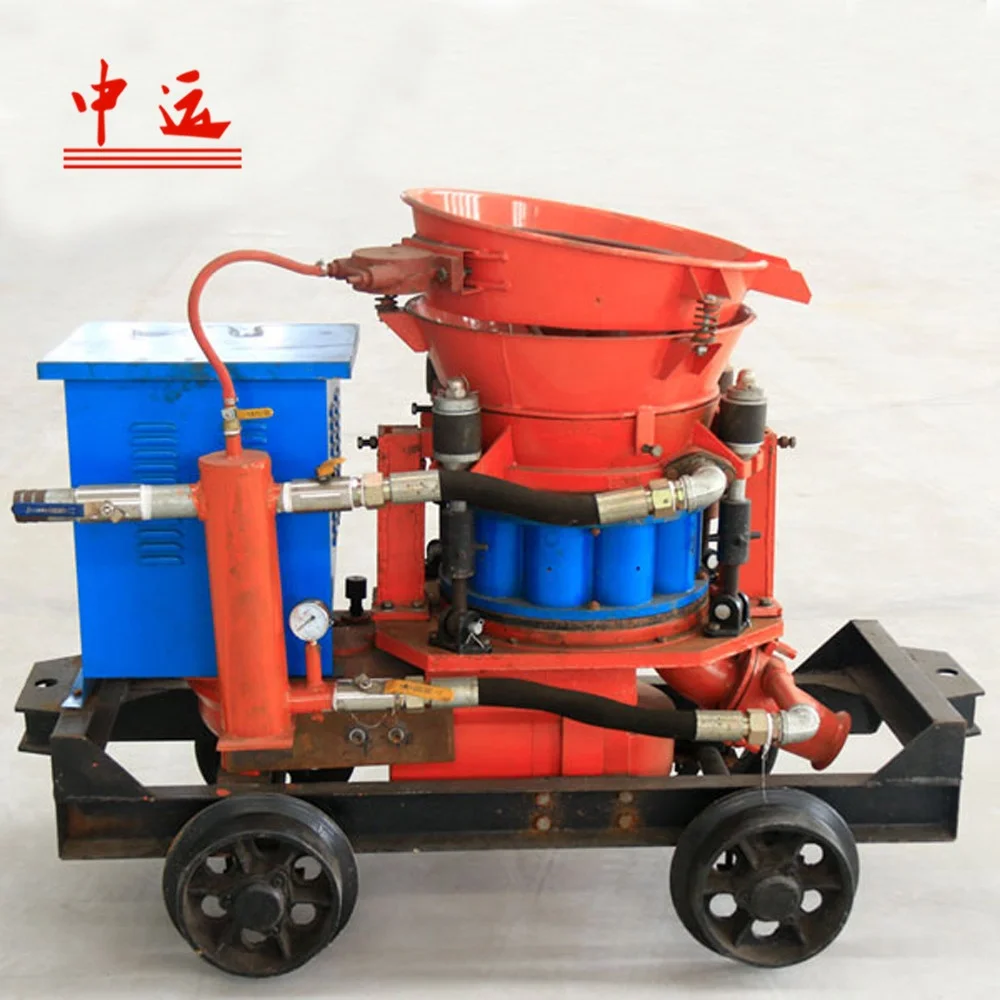

Figure Images
