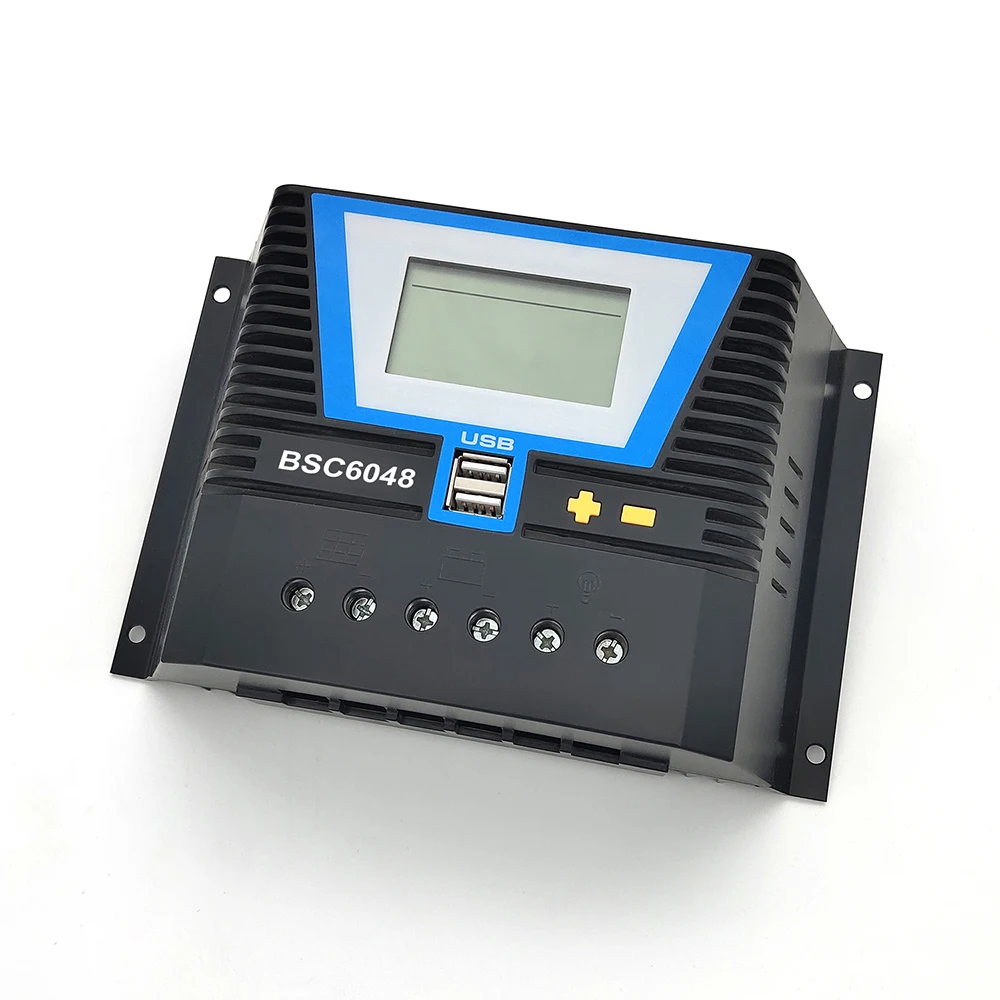

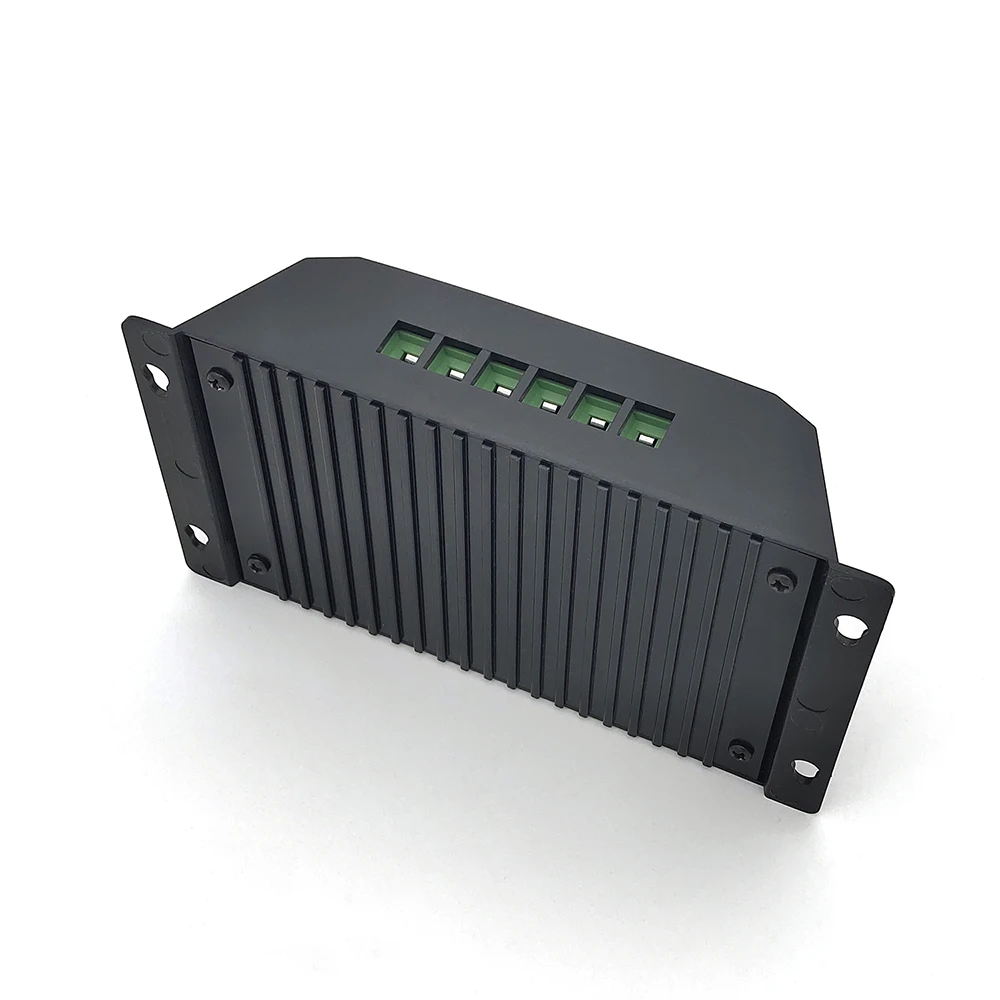

60A 12V 24V 36V 48V USB LCD PWM Solar Charge Controller Max PV 100V for Solar Home System BSC6048

 This series controller is a PWM charge controller with built in LCD that adopts the most advanced digital technique. The multiple load control modes enable it can be widely used on solar off grid system, traffic signal, solar street light, etc.

1) System voltage of battery 12V/24V or 12V/24V/36V/48V automatic recognition;

2) Intelligent 4 stages PWM charging: Bulk, Absorption, Equalize, Float;

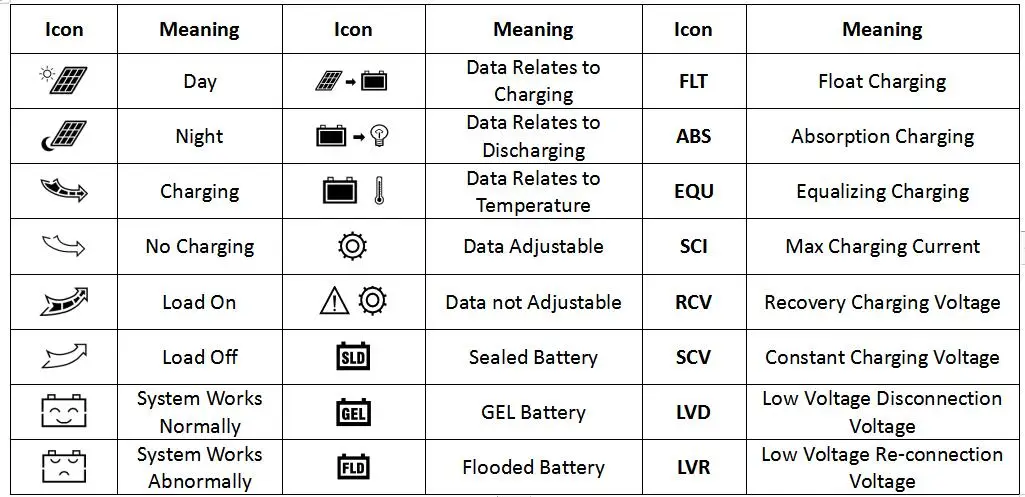

3)LCD display with Back-lighting shows device’s operating data and working condition;

4)Humanized simple button operation; Adjustable charge-discharge control parameters;

5)Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);

6)Multiple load control modes: 24Hours Working Control, Light Control, Light and Dual Time Control;

7)Automatic temperature compensation and accumulated function of charge and discharge KWH;

8)Double USB output 5V/2A;

9) Perfect electronic protections.

NOTE:

 1) After connected with Battery, LCD will go into an interface that automatically recognizes the battery voltage level, 3 seconds later, it will enter to the main interface of LCD;

2) Equalizing charge will be after every 90 times Floating charge, or one charge in three months;

3) Default maximum charging current of Lithium battery is 5A, but it can be adjusted by users within the rated current range.

4) Under the interface of Accumulated KWH, long press button “+” to clear the value;

5) When no operation 30S,the interface will be back to main interface,and back-light will be turned off.

Under the interface of battery types, long press button “+” into the type setting, then short press button “+” or “-” to choose battery type, and then long press “+” again to save and exit.

  3-5. Battery voltage automatic identification range:
