Filament Slub Air Textured Yarn machine

Product Overview

Description

Air Textured Yarn Winding Machine

Filament Slub  Air Textured Yarn  machine



Filament Slub  Air Textured Yarn  machine

Technical :



Model	JMATY-A	JMATY-B
Number of position	24spindles(can customized)
Distance of each unit	2550mm/4spindles
Yarn roller	2unit	5unit
Inner yarn roller	1set
Output roller	1set
Winding roller	1set
Yarn remove device	1set
Power	3.5kw/4spindles	5.85kw/4spindles
Main machine dimension	16480mm* 850mm* 1600mm

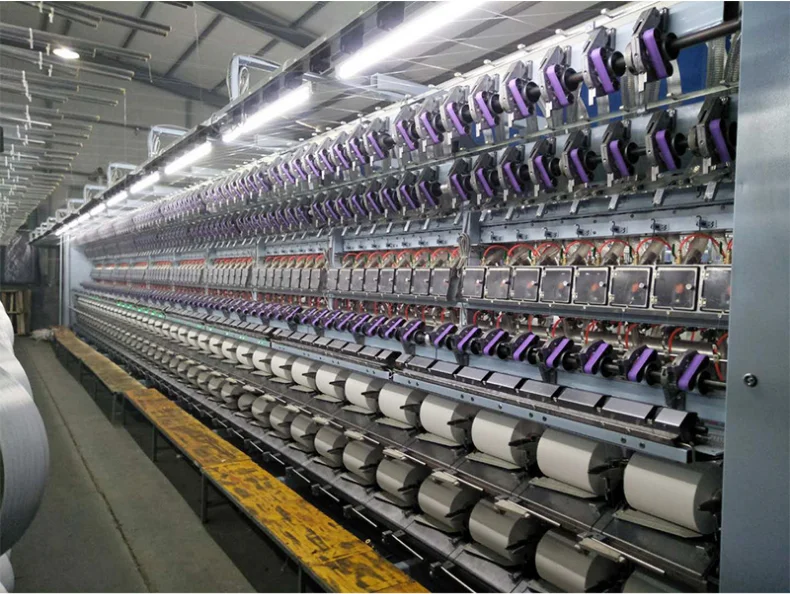

Main machine pic  :

1.The key part is an air-jet deformed nozzle for ATY MACHINE .



2.When the filament enters the nozzle at low overfeed rate, the running direction of the hot gas flows along the tow to disperse it.



3.The tow is fixed under the effect of deformation and heat setting in the nozzle. The design of the nozzle should reduce the gas consumption and improve the intertwining effect.



4.The Y type design can make the yarn knot stable and the length of the yarn is consistent. The jet deformed wire is not a yarn with loose ends of the fiber, but an irregular loop and a twisted filament produced by a mechanical method.



5.The filament is formed by winding its adjacent filament and fixing after heat treatment.

Filament Slub  Air Textured Yarn  machine

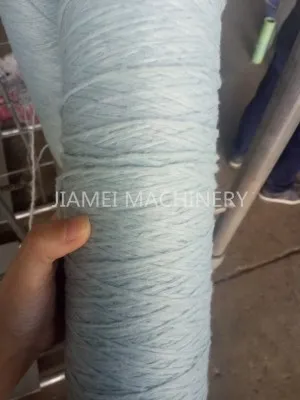

Yarn Photo :



Characteristics:

textured yarn processed with both filament and staple yarn has better performance and better hand feel and better coverage than short staple yarn.



Air Textured Yarn Winding Machine

pp Air Texturizing machine

PET PP Air textured yarn drawing machine / polyester  polypropylene ATY yarn drawing machine

Yarn Application:



PP PET ATY yarn machine make slub yarn

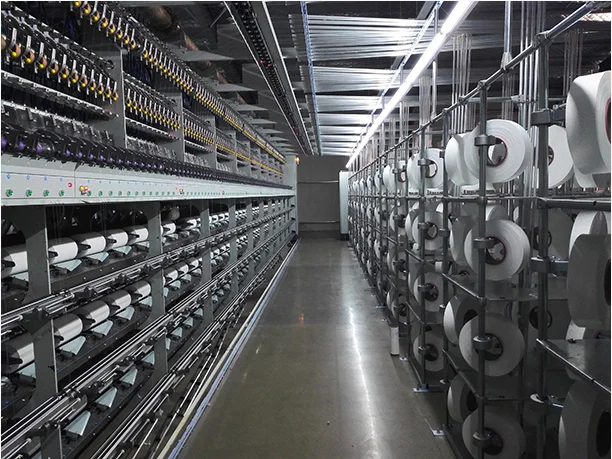

Workshop:

ATY can offer an entirely different look and hand to any fabric. It can be used in a very broad range of fabrics from simple lightweight scrim all the way to very heavy duty soft luggage fabrics,  from lightweight swim wear to heavy weight parkas.  Several filament yarns can be mixed to construct the ideal ATY for a certain endues.  ATY is a rather expensive yarn if the denier is low.  But higher deniers compare very favorable with competitive spun yarns.

pp Air Texturizing machine



Certificate:







 Service /Contact:



1.Come engineer for machine set up



2. support with operating training



3. spare parts supply immediately
