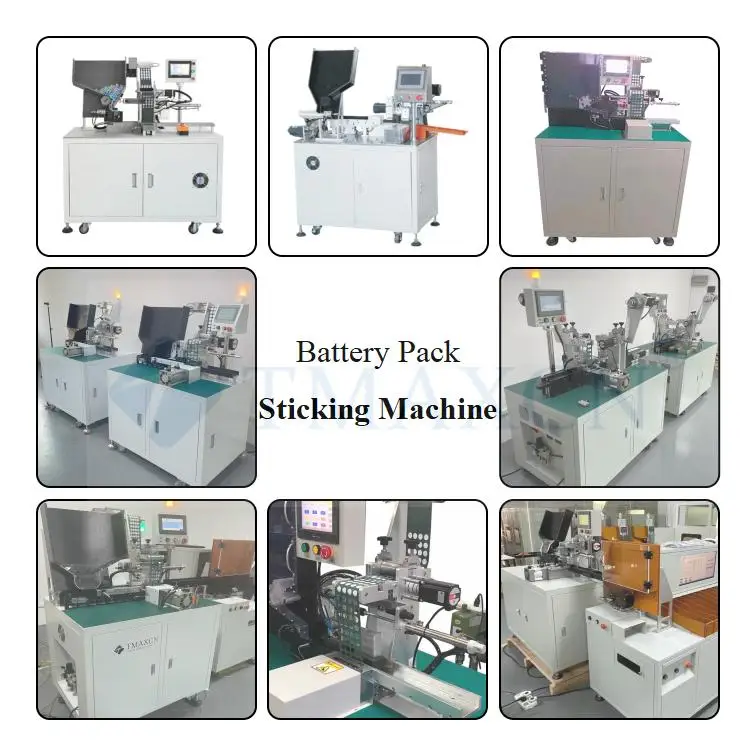

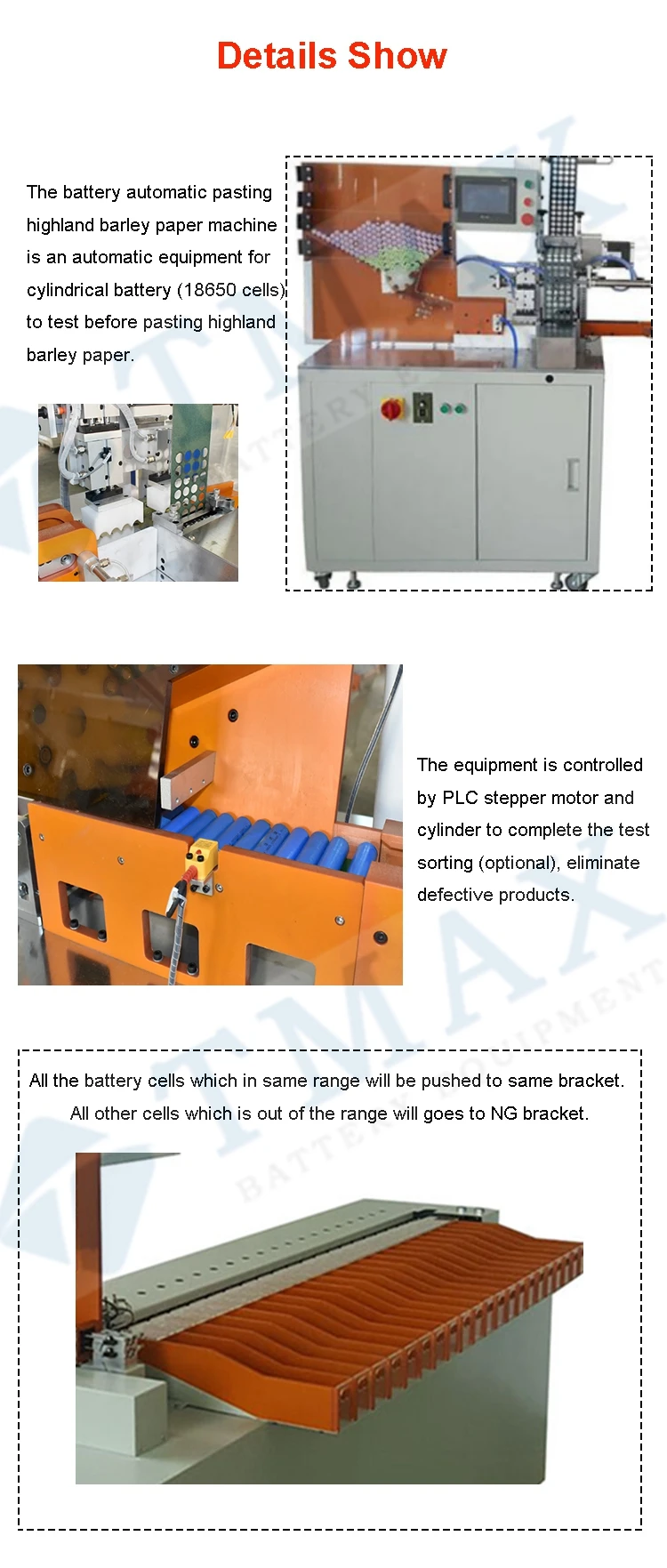

Donut Label Sticking Machine Connecting With Cylindrical Battery Sorting Machine for Battery Pack Assembly

Model

TMAX-FN-011

Power supply

AC220V ± 10% 50Hz

Voltage

900W

Sorting parameters

Open Circuit Voltage and AC Internal Resistance

Compressed Air Pressure

0.5 ~ 1.0Mpa

Sorting Speed

≥80PPM

Productivity

5000pcs/h

Dimension

1320x880x1450mm

Adaptation Battery

Cylindrical Battery

(18650,32650,18500,26650,14500,21700 etc.)

Receiving Channel

11 channels

Internal Resistance Tester

HIOKI3561 or HK3561

HIOKI3561:

Open circuit voltage accuracy:± 0.01% rdg;

Display Resolution: 0.1 millivolt;

Internal impedance accuracy:± 0.1% rdg;

Display Resolution: 0.01 mΩ

HK3561:

Open circuit voltage accuracy: ± 0.05% rdg;

Display Resolution: 0.1 millivolt;

Internal impedance accuracy:± 0.3% rdg;

Display Resolution: 0.01 mΩ

Total weight

280kg

Control component

7.5 inch touch screen, 3-axis PLC programmer

Motion device

Closed-loop stepper motor is used for shifting, accurate positioning and synchronous belt conveying the core to prevent the surface of the core from being damaged.

Feeding

Using hopper feeding mode, 500 PCS can be put in one time.

Data storage

Test data can be stored on a U disk

Scan code function

Can be customized

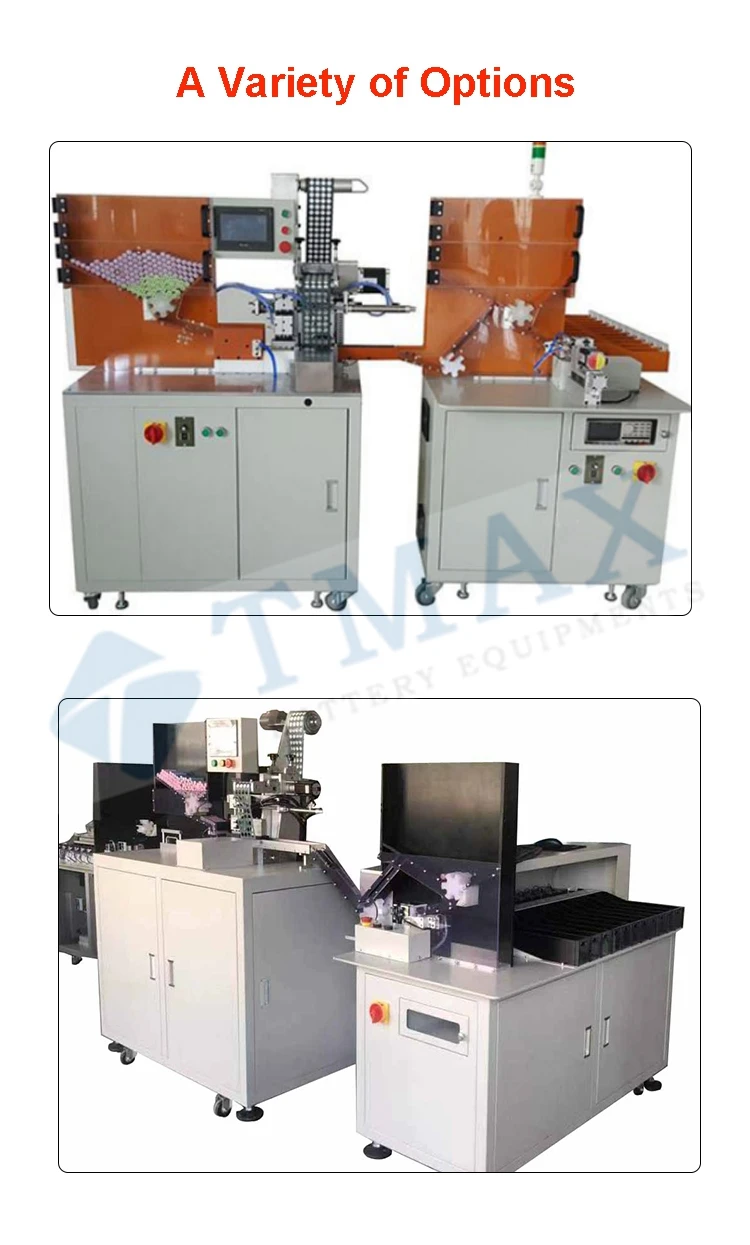

Automatic Online Interface

It can be customized to connect the outlet of the automatic surface cushion machine in the machine hopper to realize the automatic connection of the electric cores and save the labor cost.

Other

Customizable scanner and database data docking

Optional Distribution Core Dynamic Tester, reflecting the quality and load-carrying performance of the core

Customizable automatic connection automatic surface mattress machine (electric core poured into automatic surface mattress machine, pasted surface mattress automatically flowed into automatic sorter, sorting, saving manpower)

Automatic collection of production quantity to show current production efficiency

Power supply

Single phase 220V/50Hz; (10A connector)

Power

1000W

Gas source

0.5 ~ 0.8Mpa dry gas source

Equipment weight

200Kg

Overall size

1200*900*1430mm

Maximum speed

>5000PCS/H

PLC

Imported PLC from Japan to ensure long-term stability of the equipment

1.Continuous stamping design, reducing the cost of a single mat material from 1 cent to 3 cents

2. One equipment saves 3~4 labors

3. Man-machine interface, convenient for employees to operate and use, new employees only need 20 to 30 minutes of training to be proficient in operating and maintaining this equipment;

4. Exclusive unique tilting feeding design, effectively solve the shortcomings of the industry during the actual operation of employees, easy to lose the battery;

5. Fixed stroke design, effectively ensuring that the battery is not crushed;

6.Adopting the second-generation composite mold design, it is not necessary to spray the glue frequently in use; it is not necessary to clean the mold punch frequently;

7.Can save 29 sets of different production procedures to facilitate subsequent production calls

8. Unified online channel design, which can be connected to the front and rear equipment;
