Sucker leveling legs and level indicators make sure solid and stable ground support
The special process ensures that the offset angle of the mast is very small, running smoother and safer
Equipped with emergency stop device, users could stop lifting when the equipment is faulty
Equipped with an emergency down device, the platform could be down to the lowest position when the lift losing power
The maximum pressure capacity of the fuel pipe is greater than the maximum output pressure of the hydraulic system to prevent the oil pipe from bursting
The hydraulic system is equipped with the overload protection device to prevent excessive pressure and to avoid the danger of a sudden drop in the platform after the pipe bursts.
The electric control module is equipped with leakage protection to avoid the danger of leakage due to equipment leakage.
Specification
Model
Max Platform Height(m)
Max Working Height(m)
Rated Loading Capacity(kg)
Platform Size (l*w m)
Power Supply (v)
Power (kw)
Weight (kg)
Overall Dimensions (l*w*h m)
GTWYF14-200S
14
15.7
200
1.45*0.90
220/380
1.5
1700
3.00*1.45*1.99
GTWYF16-200S
16
17.7
200
1.45*0.90
220/380
2.2
1900
3.30*1.45*2.18
GTWYF18-200S
18
19.7
200
1.50*0.90
220/380
2.2
2400
3.30*1.45*2.20
GTWYF20-200S
20
21.7
200
1.50*0.90
220/380
2.2
2600
3.80*1.45*2.30
GTWYF22-150S
22
23.7
150
1.50*0.90
220/380
2.2
2800
4.10*1.45*2.40
Product details

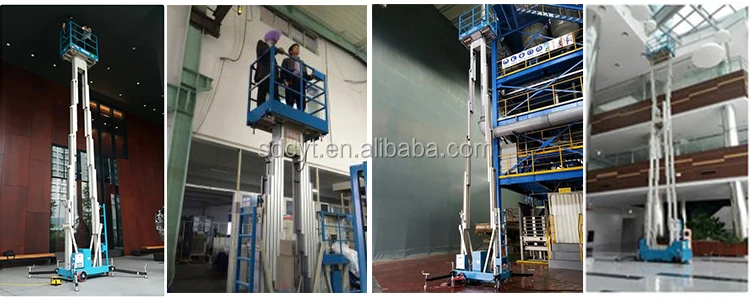

Application
Packaging & Shipping

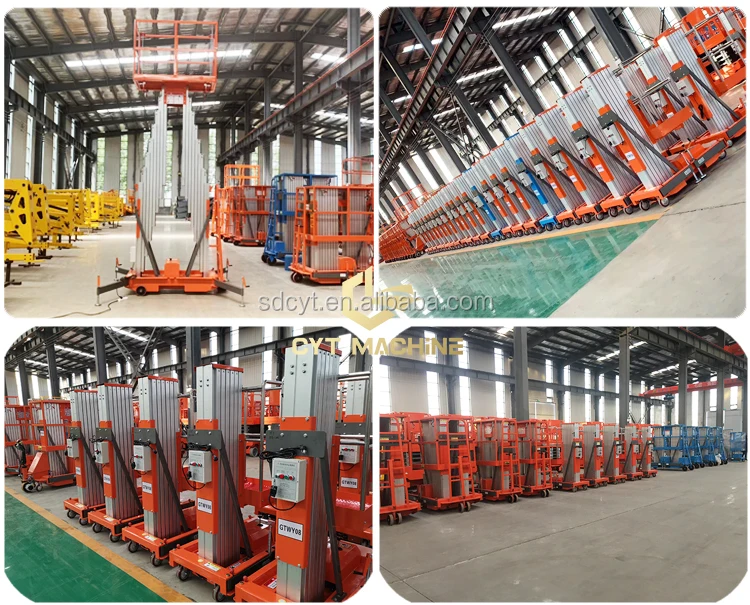

Production Workshop
Related Products

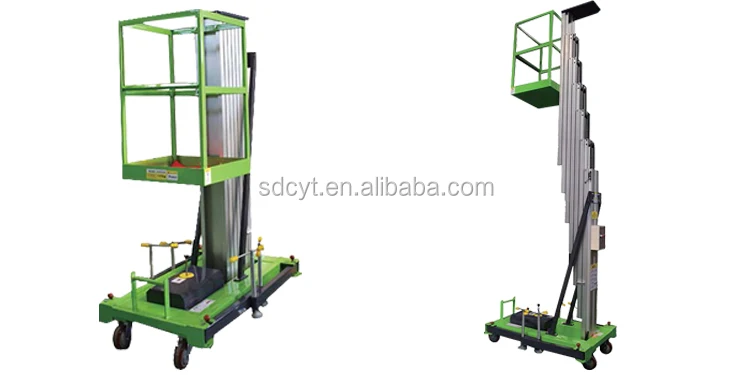

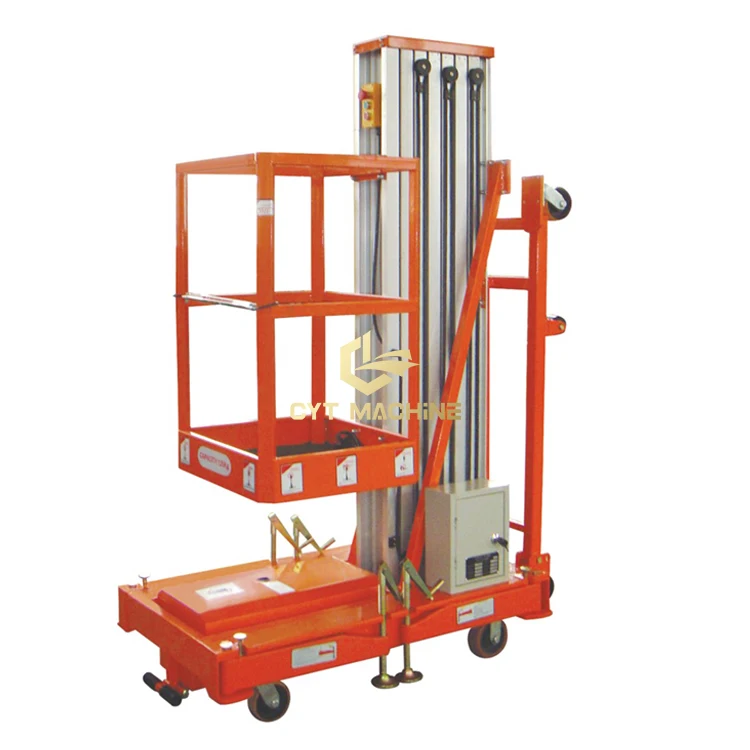

Single mast lift
Model
Max Platform Height(m)
Max Working Height(m)
Rated Loading Capacity(kg)
Platform Size (l*w m)
Power Supply (v)
Power (kw)
Weight (kg)
Overall Dimensions (l*w*h m)
GTWY4-100
4
5.7
100
0.6*0.6
220/380
0.75
250
1.28*0.8*1.75
GTWY6-100
6
7.7
100
0.6*0.6
220/380
0.75
280
1.28*0.8*1.90
GTWY8-100
8
9.7
100
0.6*0.6
220/380
0.75
300
1.28*0.8*1.98
GTWY9-100
9
10.7
100
0.6*0.6
220/380
1.1
320
1.36*0.85*2.00
GTWY10-100
10
11.7
100
0.6*0.6
220/380
1.1
340
1.36*0.90*2.10
Double mast lift
Model
Max Platform Height(m)
Max Working Height(m)
Rated Loading Capacity(kg)
Platform Size (l*w m)
Power Supply (v)
Power (kw)
Weight (kg)
Overall Dimensions (l*w*h m)
GTWY4-200
4
5.7
200
1.10 *0.6
220/380
1.5
380
1.3*0.90*1.75
GTWY6-200S
6
7.7
200
1.10 *0.6
220/380
1.5
420
1.3*0.90*1.90
GTWY8-200S
8
9.7
200
1.15*0.6
220/380
1.5
550
1.36*0.90*2.00
GTWY10-200S
10
11.7
200
1.35*0.6
220/380
1.5
600
1.56*0.97*1.90
GTWY12-200S
12
13.7
200
1.45*0.6
220/380
1.5
700
1.66*0.97*2.00
GTWY14-200S
14
15.7
200
1.45*0.6
220/380
1.5
800
1.66*1.10*2.35

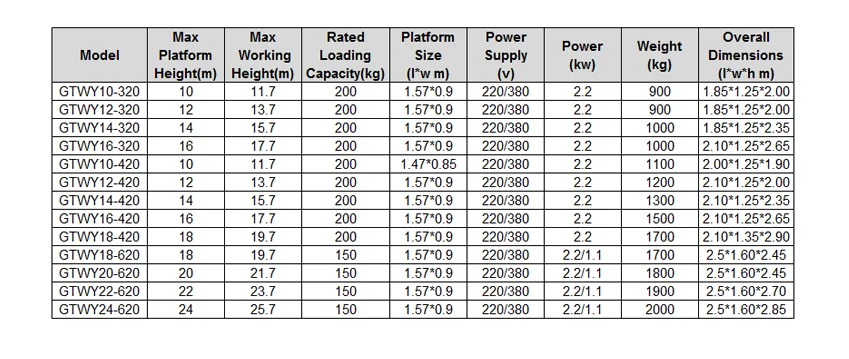

Three Four mast lift

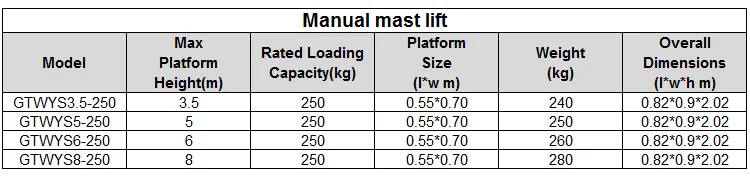

Other styles
Company Information
Since its establishment, Shandong CYT Machinery Co., Ltd. has been committed to the R&D, manufacturing and sales of lifting platforms. The main products include scissor lift platform, barrier-free lifting platform, cargo lifting platform, car lifting platform and aerial work platform.
The company has developed a number of standard products, with sufficient inventory to enable fast delivery. In addition, the company has a number of lifting platform design experts, can customize a variety of lifting platform products for domestic and foreign customers. At present, it has developed and produced lifting platform products for many well-known brand customers at home and abroad.
The company has always attached importance to the safety, stability and efficiency of the lifting platform. The lifting platform products developed by the company are selling well in mainland China and the global market. Received unanimous praise.
The company is located in Jinan City, the largest lifting platform manufacturing base in China. Technology and products have been updated with the development of the industry for more than 20 years. In cooperation with universities such as Shandong University, we have developed and manufactured a variety of new lifting platforms. Contribute to the development of the lifting platform industry.
