OPTO EDU A11.1007 27WT China Manufacturers Novel Compound Optical Price Trinocular Biological Microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62376593299):
Product Overview
Description

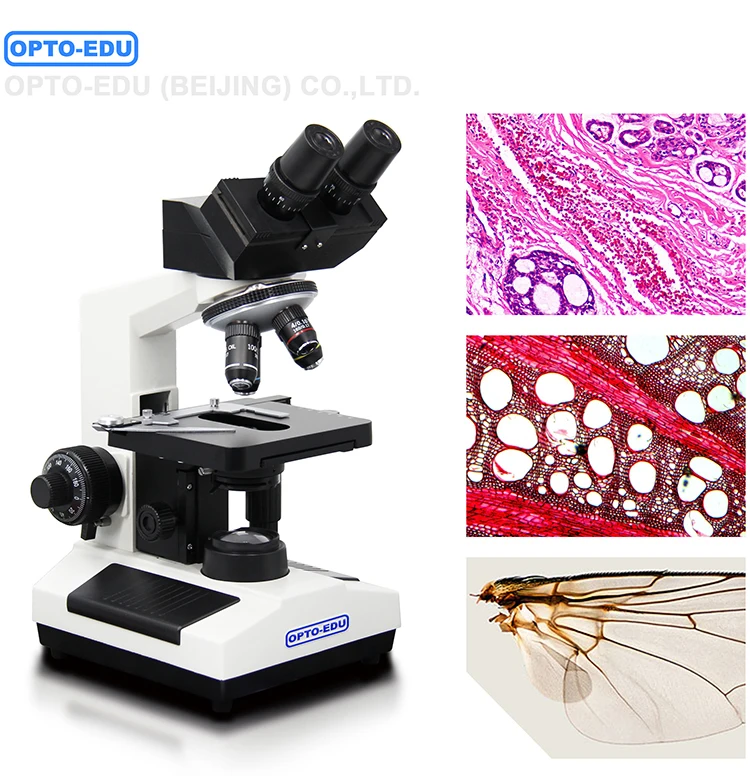

XSZ-107BN A11.1007 Student & Laboratory Biological Microscope
High-Definition Imaging
Classic, High-profile Biological Microscope With Beautiful Appearance, Excellent Performance And High-definition Imaging.
Wide Range Of Applications
It Is Suitable For Biological And Medical Fields, And Can Be Used For Health And Pathology Education And Professional Research, Clinical Experiments And Routine Medical Tests In Health Institutions, Laboratories, Research Institutes And Universities.

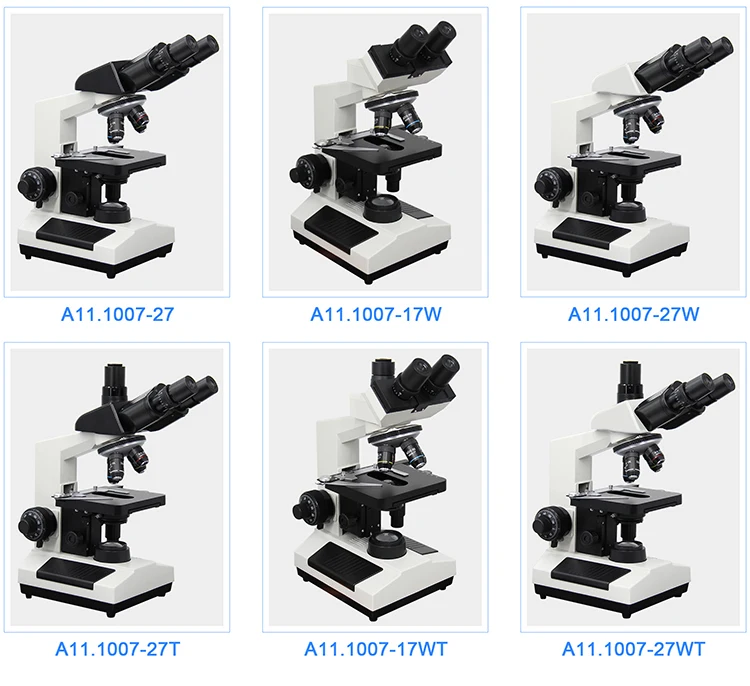

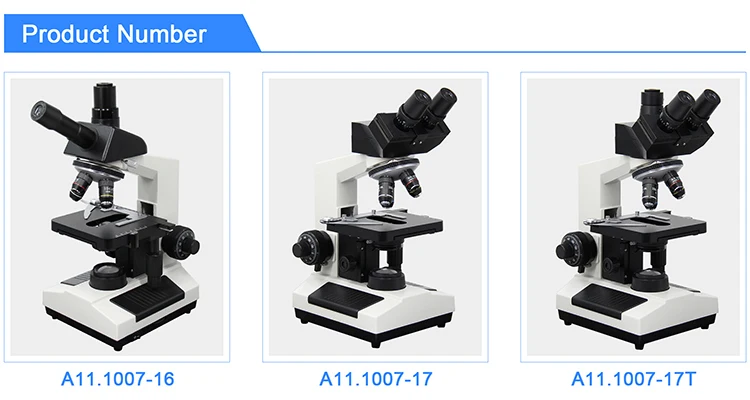

| A11.1007 Biological Microscope | 16 | 17 | 17T | 27 | 27T | 17W | 17WT | 27W | 27WT | |
| Magnification | 40x~1600x | |||||||||
| Head | Monocular Teaching Black Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | O | ||||||||
| Sliding Binocular Black Head, 45° Inclined, 360° Rotatable | O | |||||||||
| Sliding Trinocular Black Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | O | |||||||||
| Seidentopf Binocular Black Head, 30° Inclined, 360° Rotatable | O | |||||||||
| Seidentopf Trinocular Black Head, 30° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | O | |||||||||
| Sliding Binocular White Head, 30° Inclined, 360° Rotatable | O | |||||||||
| Sliding Trinocular White Head, 45° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | O | |||||||||
| Seidentopf Binocular White Head, 30° Inclined, 360° Rotatable | O | |||||||||
| Seidentopf Trinocular White Head, 30° Inclined, 360° Rotatable, With Eyepiece Adapter & 1.0x C-Mount | O | |||||||||
| Eyepiece | Wide Field WF10x/18mm | |||||||||
| Wide Field WF16x/11mm | ||||||||||

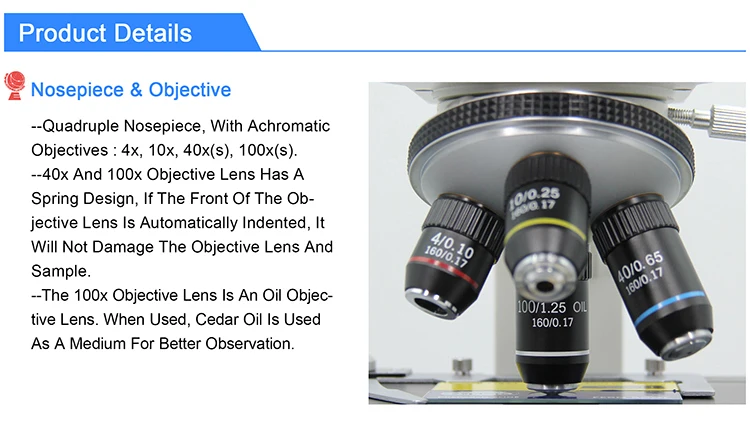

| Nosepiece | Quadruple Nosepiece | |||||||||
| Objective | Achromatic 4x/0.10, 10x/0.25, 40xs/0.65, 100xs/1.25(Oil) | |||||||||

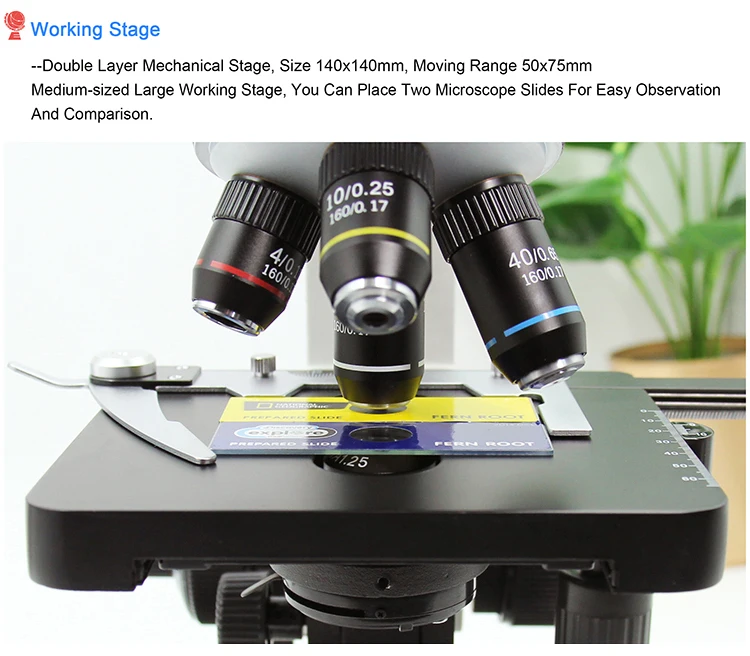

| Stage | Double Layer Mechanical Stage, 140*140mm, Mvoing Range 50*75mm | |||||||||

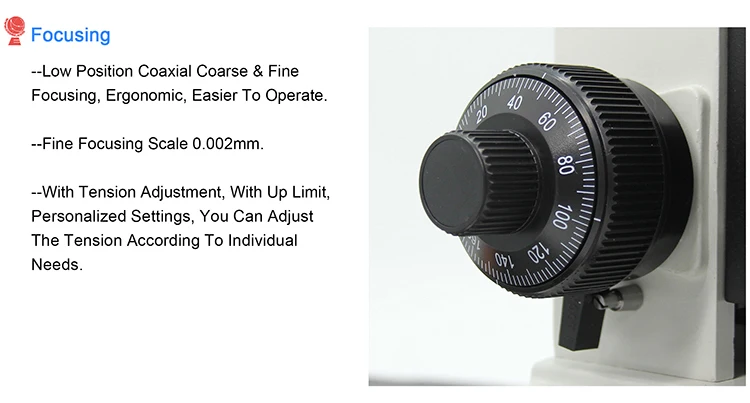

| Focusing | Low Position Coaxial Coarse & Fine Focusing. Fine Focusing Scale 0.002mm, With Tension Adjustment, With Up Limit | |||||||||

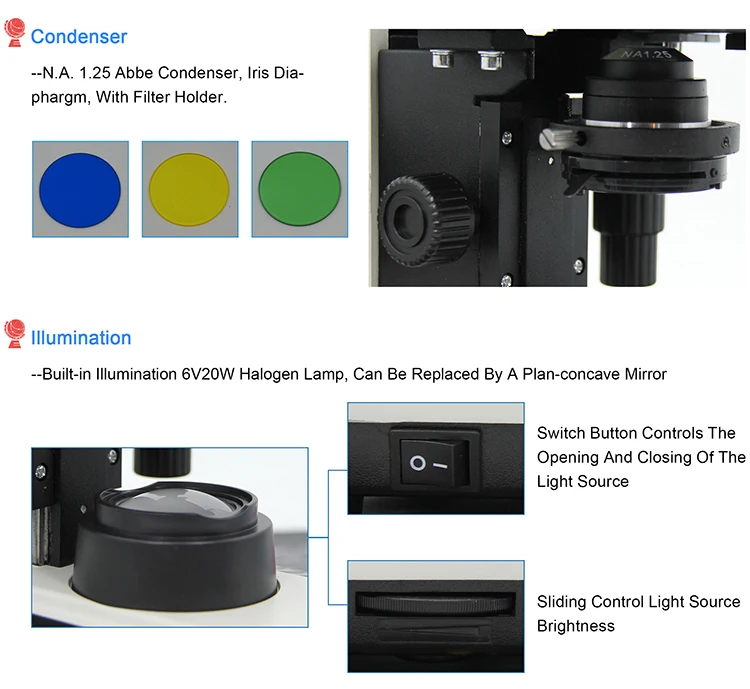

| Condenser | N.A.1.25 Abbe Condenser, Iris Diaphargm, With Filter Holder | |||||||||
| Filter | Blue, Yellow, Green | |||||||||
| Light Source | Plan-Concave Mirror | |||||||||
| Built-in Illumination 6V20W Halogen Lamp | ||||||||||

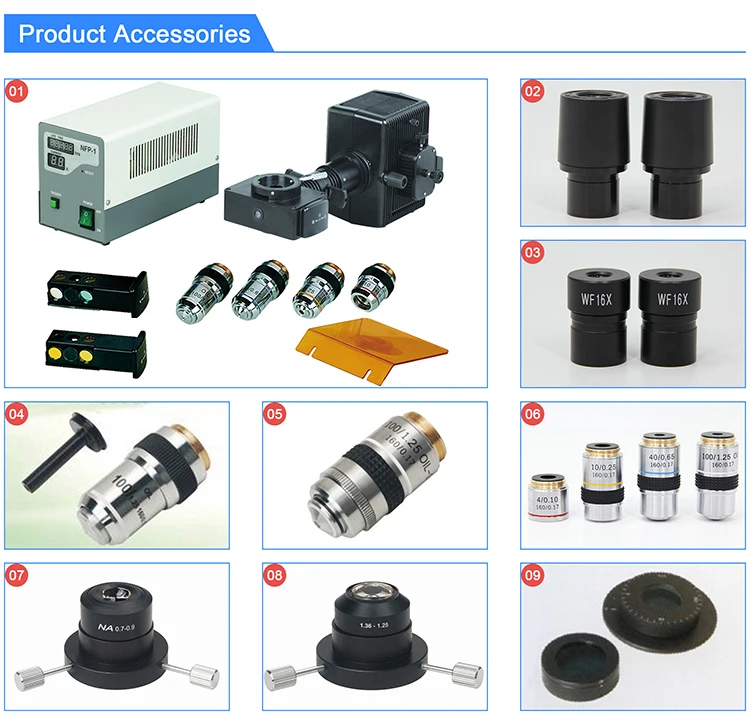

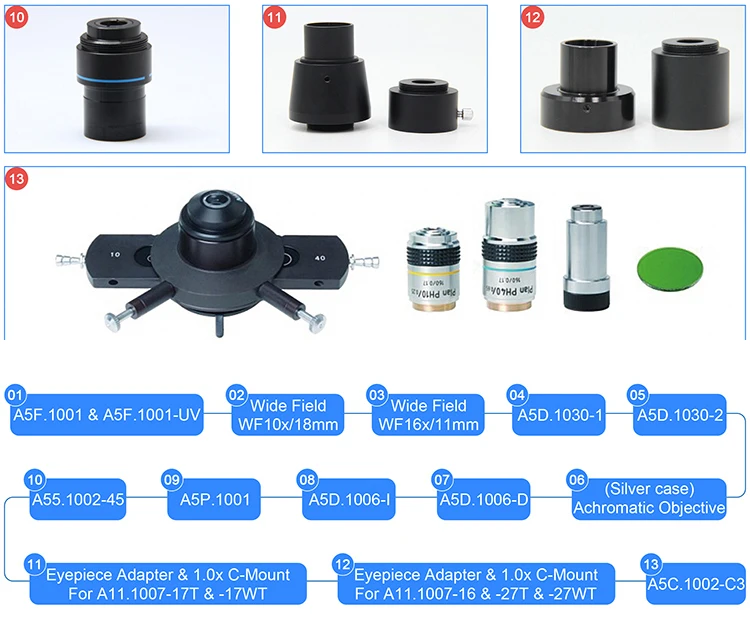

| A11.1007 Biological Microscope Optional Accessories | Cata. No. | |||||||||
| Adapter | 0.45x C-mount With Reduction | A55.1002-45 | ||||||||
| Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1006-D | ||||||||
| Dark Field Condenser, N.A. 1.25~1.35, Immersion | A5D.1006-I | |||||||||
| Objective | Achromatic 100X with Cone Diaphram for Oil Dark Field Observation | A5D.1030-1 | ||||||||
| Plan 100X with Iris Diaphram for Oil Dark Field Observation | A5D.1030-2 | |||||||||
| Polarizing | Simple Polarizing Kit | A5P.1001 | ||||||||
| Phase Contrast | Sliding Phase Contrast Set --Sliding Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,40x --Centering Telescope --Green Filter |
A5C.1002-C3 | ||||||||
| Fluorescent | EPI-Fluorescent Kit --Power Supplier 220V/110V Interchangeable, Digital Display --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp --Barrier To Resist Ultraviolet Light --Fluorescence Free Oil --Fluorescent Objective 10x,25x,40x,100x --Excitation Filter B/G |
A5F.1001 | ||||||||
| --Excitation Filter U/V | A5F.1001-UV | |||||||||
| Special Designed Firmware Separately For Biological & Stereo Microscope, For Halogen & LED Light, Can Switch Easily In Menu To Get Best Image |
| Left/Right & Up/Down View Angle Free Adjustable In All Direction |
| 2 Input Port |
| 1.5M Line Control Included Avoid Multi Cameras's Interference, Remove Line Control Can Avoid Wrong Settings By Unauotherized People |
| Strong Metal Frame & High Quality Surface Finish |
| 12.5" Full HD 1080p LCD Screen With Better Color Correction |
| Real Color Reproduction, Clear & High Brightness Image Quality |
| Independent Developed Color Temeperature Control System, Upgrade For Life Time |
Company Information
OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
