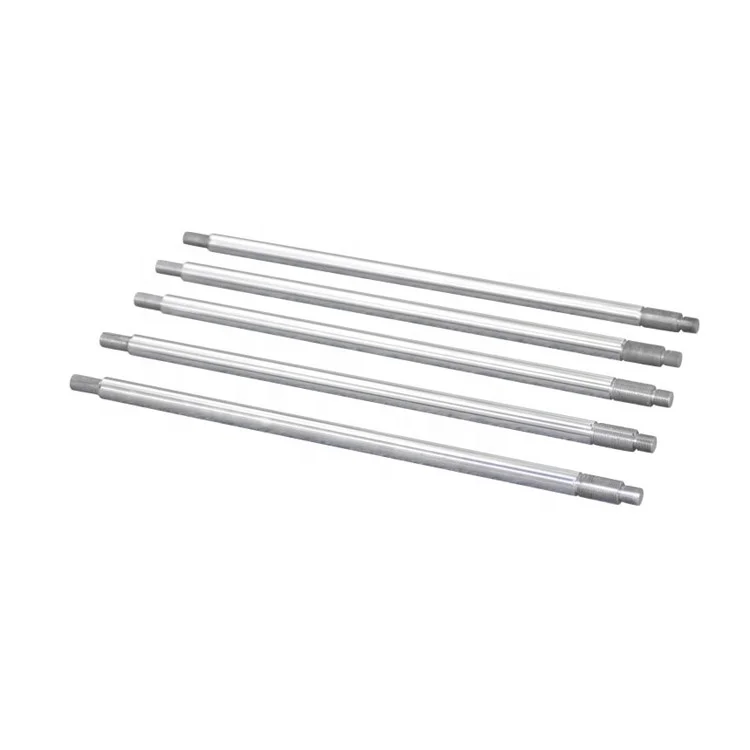

Quality Piston Rod Connecting shaft

Product Overview

Description



Production introduce :

As the name suggests, is doing work to support the piston connecting member, the majority of applications in the cylinder, the cylinder movement execution unit, is a frequent movement, high technical requirements of moving parts. Hydraulic cylinders, for example, by the: cylinder, piston rod (cylinder rod), piston, cover several parts. Its processing quality directly affects the entire product line and reliability. Rod processing requirements, its surface roughness is Ra0.4 ~ 0.8um, concentricity, wear demanding. The basic characteristics of the cylinder rod are elongated axis machining, its difficult process, has been plagued by processing staff.



Technical Parameters:



specifications	φ6-φ12	φ16-φ25	φ30-φ50	φ55-φ100	φ105-φ1200
length	200-2000	200-3000	200-5000	200-10000	1000-10000
Surface roughness	0.4-0.1
Surface Treatment of hardness	HRC60among		Straightness	0.15/1000mm
Circle of Tolerance	GB1184 9clas		Chrome thickness	According to user requirements
Full-length size Tolerance	GB1100ITclass		Material	According to user requirements
Axis of hardness	HB220-280
Availability Status	Not dealing with the surface, surface chrome or nickel phosphorus and nitrogen surface salt spray
