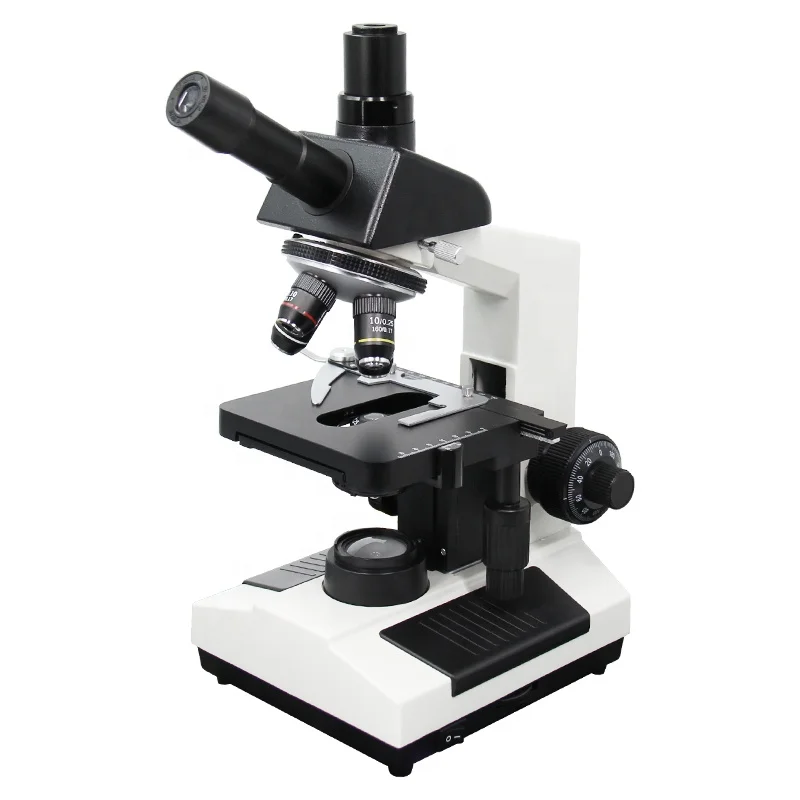

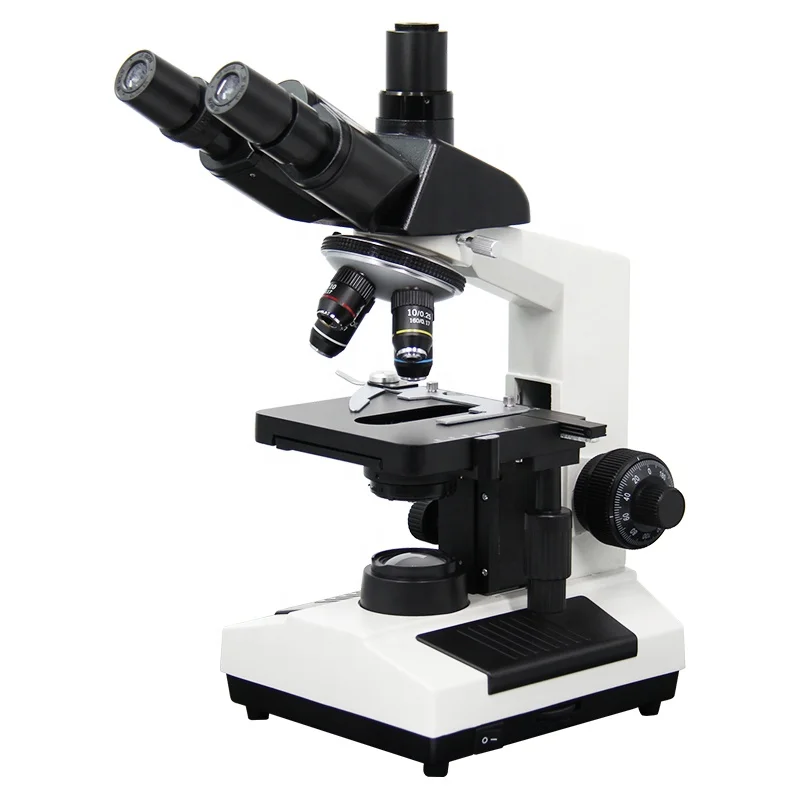

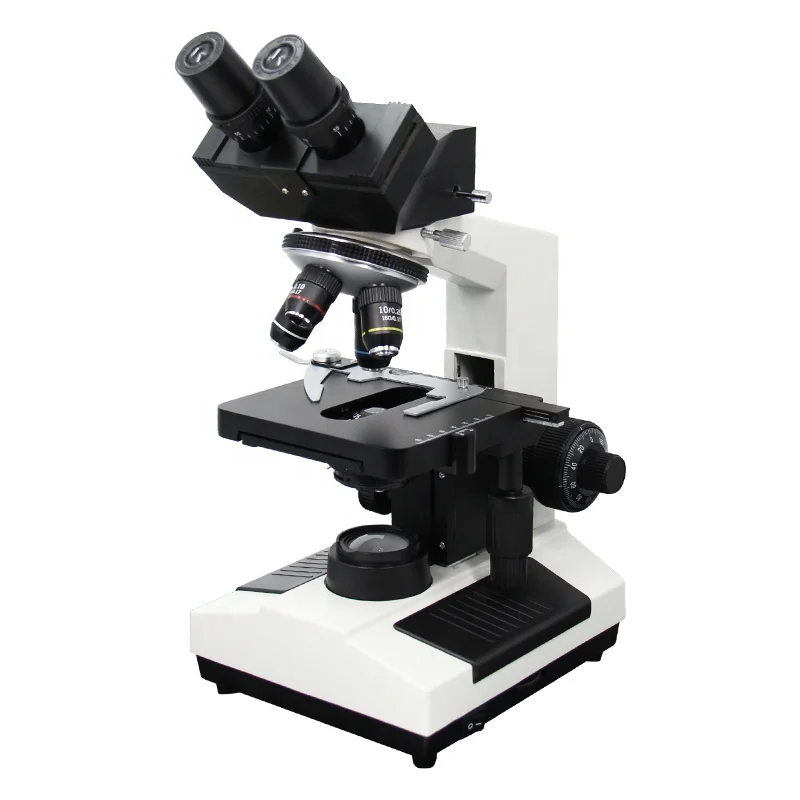

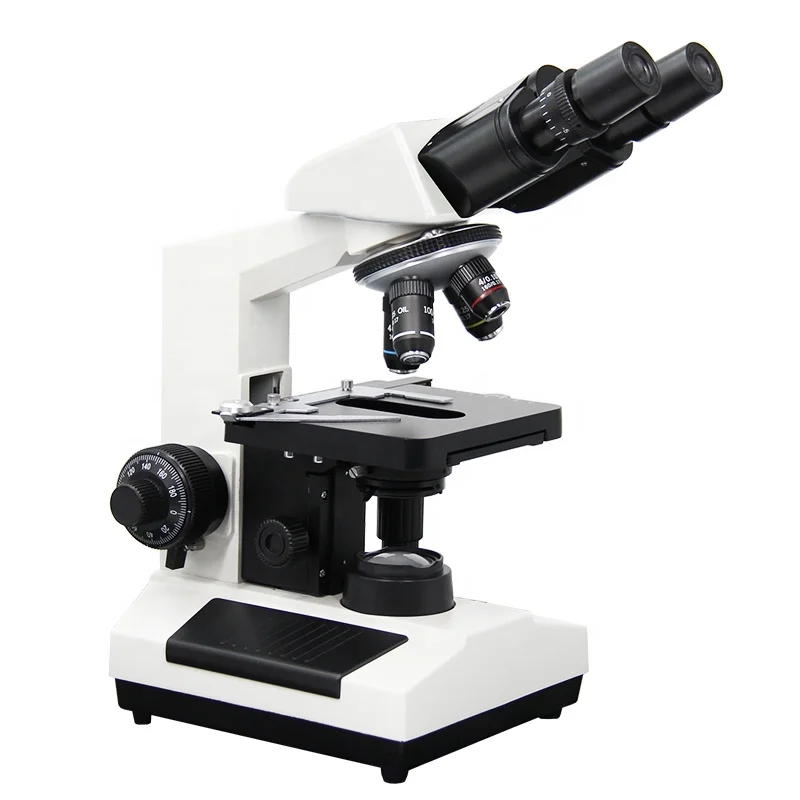

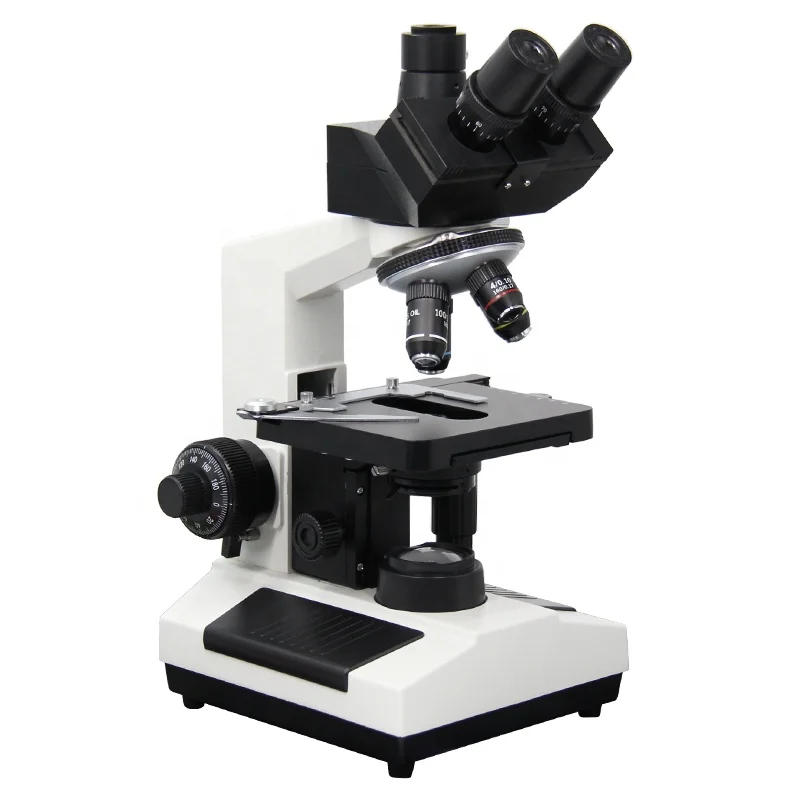

OPTO EDU A11.1007 16 Xsz 107bn цена блочного Лука оптический студент использовал лабораторный Биологический микроскоп бинокль тринокулярный микроскоп для лабораторий
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62376698916):
Product Overview
Description

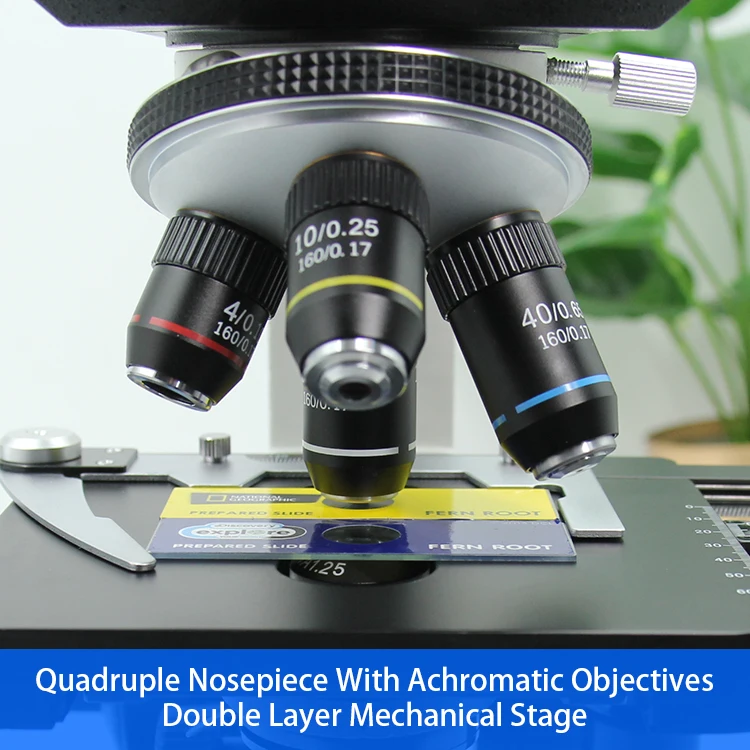

Nosepiece & Objective

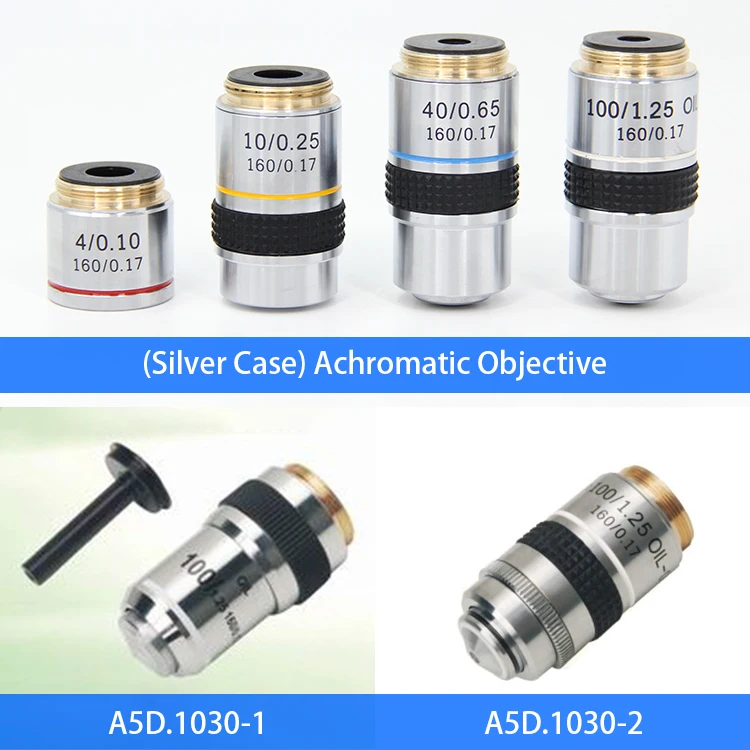

--Quadruple Nosepiece, With Achromatic Objectives : 4x, 10x, 40x(s), 100x(s).
--40x And 100x Objective Lens Has A Spring Design, If The Front Of The Objective Lens Is Automatically Indented, It Will Not Damage The Objective Lens And Sample.
--The 100x Objective Lens Is An Oil Objective Lens. When Used, Cedar Oil Is Used As A Medium For Better Observation.
Working Stage
--Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm
Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison.
--40x And 100x Objective Lens Has A Spring Design, If The Front Of The Objective Lens Is Automatically Indented, It Will Not Damage The Objective Lens And Sample.
--The 100x Objective Lens Is An Oil Objective Lens. When Used, Cedar Oil Is Used As A Medium For Better Observation.
Working Stage
--Double Layer Mechanical Stage, Size 140x140mm, Moving Range 50x75mm
Medium-sized Large Working Stage, You Can Place Two Microscope Slides For Easy Observation And Comparison.
Condenser

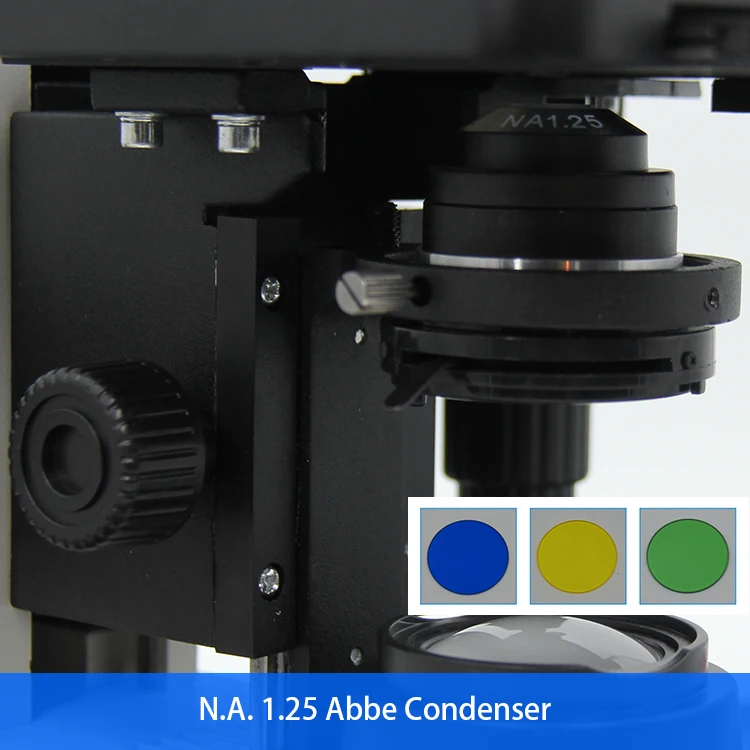

--N.A. 1.25 Abbe Condenser, Iris Diaphragm, With Filter Holder.

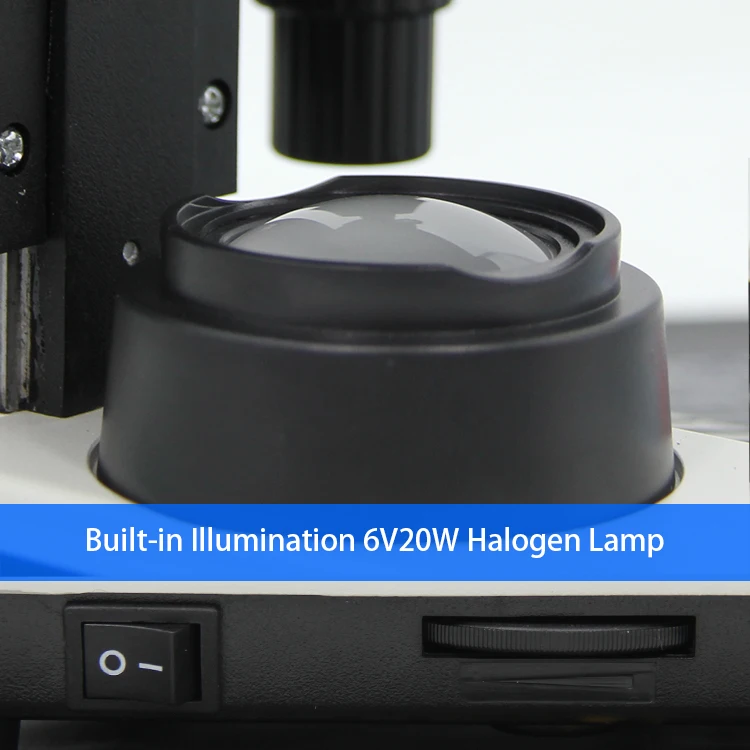

Illumination
--Built-in Illumination 6V20W Halogen Lamp, Can Be Replaced By A Plan-concave Mirror
Focusing

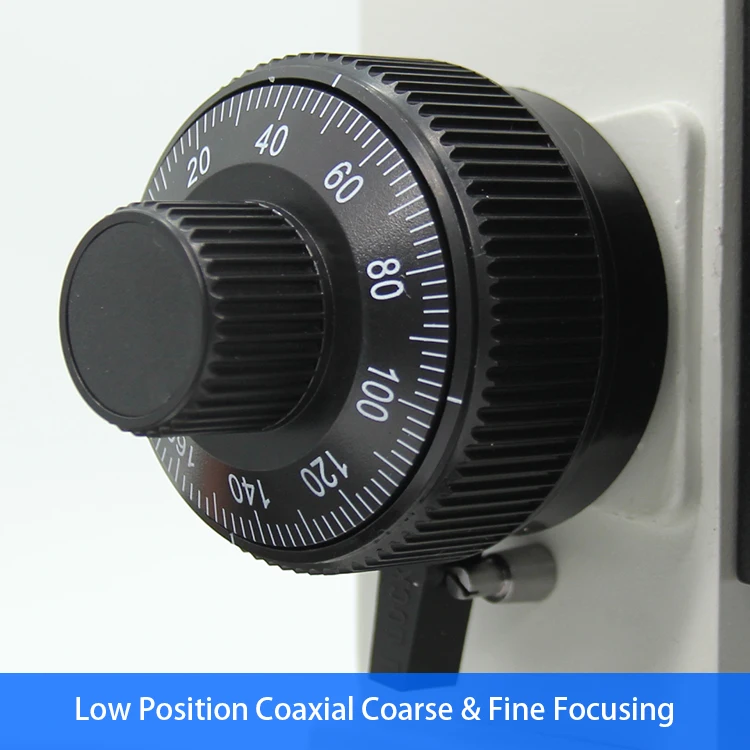

--Low Position Coaxial Coarse & Fine Focusing, Ergonomic, Easier To Operate.
--Fine Focusing Scale 0.002mm.
--With Tension Adjustment, With Up Limit, Personalized Settings, You Can Adjust The Tension According To Individual Needs.
--Fine Focusing Scale 0.002mm.
--With Tension Adjustment, With Up Limit, Personalized Settings, You Can Adjust The Tension According To Individual Needs.

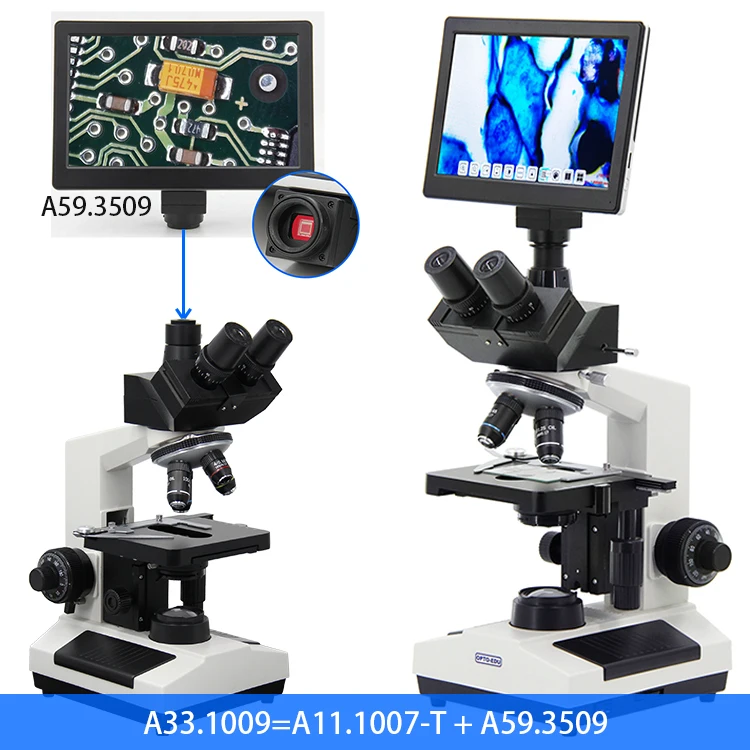

A59.3509
5.0M, 9"LCD, 1/2.8"CMOS, Screen Resolution 1024*600, USB2.0 Real Time Image Output, TF Card, USB HDMI Mouse Control Menu For Measure

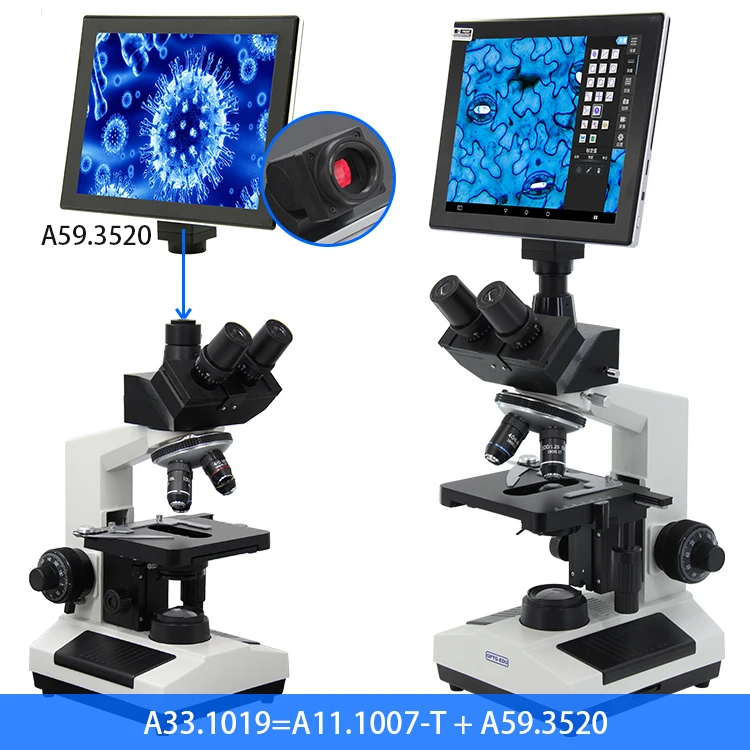

A59.3520
5.0M, 9.7"LCD, Resolution 2048*1536, Android 5.1, CPU 4 Core 1.8G, RAM 2G ROM 8G, HDMI+TF Card Output, Touch Screen USB Mouse Control, Installed Measure Software, Chinese/English Manual
A11.1007 Biological Microscope Optional Accessories | Cata. No. | ||
Adapter | 0.45x C-mount With Reduction | A55.1002-45 | |
Objective | Achromatic 20x/0.4, W.D.=9mm | A52.1001-20 | |
Achromatic 60x/085(S) | A52.1001-60 | ||

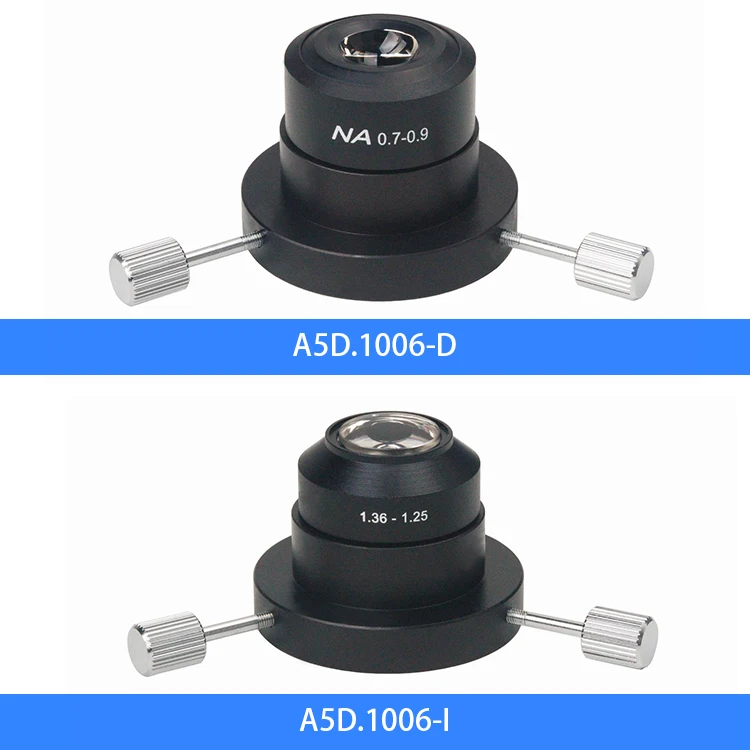

Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | A5D.1006-D | |
Dark Field Condenser, N.A. 1.25~1.35, Immersion | A5D.1006-I | ||
Achromatic 100X with Cone Diaphram for Oil Dark Field Observation | A5D.1030-1 | ||
Plan 100X with Iris Diaphram for Oil Dark Field Observation | A5D.1030-2 | ||

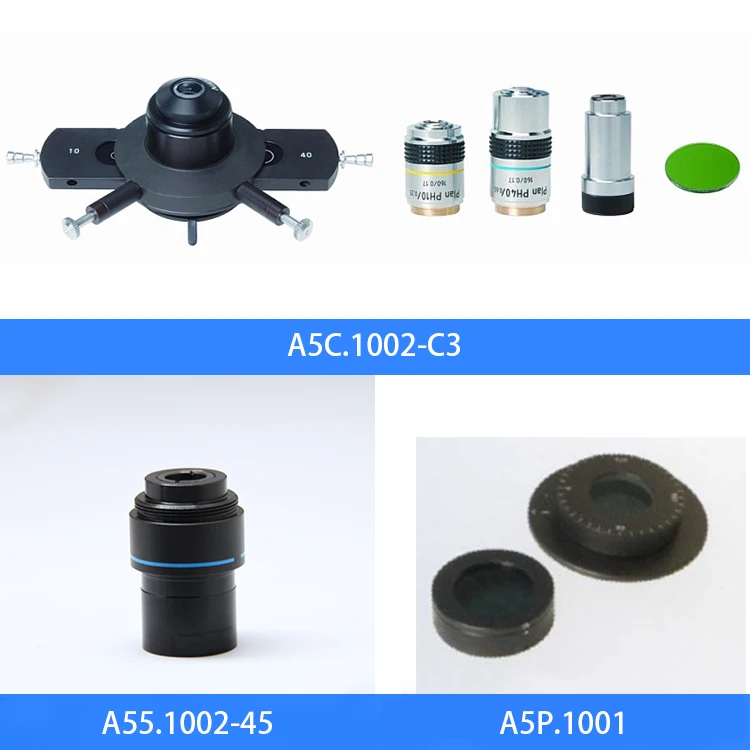

Polarizing | Simple Polarizing Kit | A5P.1001 | |
Phase Contrast | Sliding Phase Contrast Set --Sliding Phase Contrast Condenser --Achromatic Phase Contrast Objective 10x,40x --Centering Telescope --Green Filter | A5C.1002-C3 | |

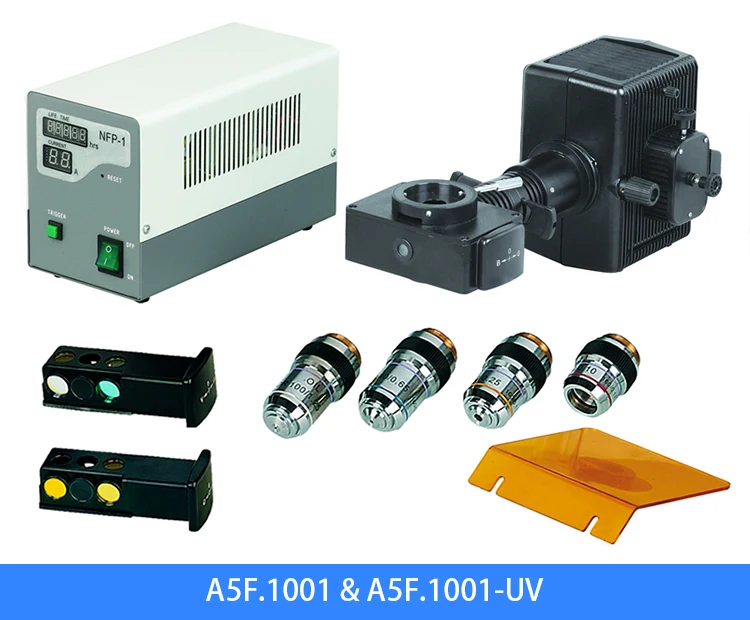

Fluorescent | EPI-Fluorescent Kit --Power Supplier 220V/110V Interchangeable, Digital Display --100WHBO Ultra Hi-Voltage Spherical Mercury Lamp --Barrier To Resist Ultraviolet Light --Fluorescence Free Oil --Fluorescent Objective 10x,25x,40x,100x --Excitation Filter B/G | A5F.1001 | |
--Excitation Filter U/V | A5F.1001-UV | ||
