10t 60t Alloy Steel Weighing Load Cell
- Category: >>>
- Supplier: Shanghai Xinheng Electronics Co. Ltd.
Share on (62376720429):
Product Overview
Description
Packaging details: foam and carton.
Application for: hopper scale, silo scale, weighing module, etc.

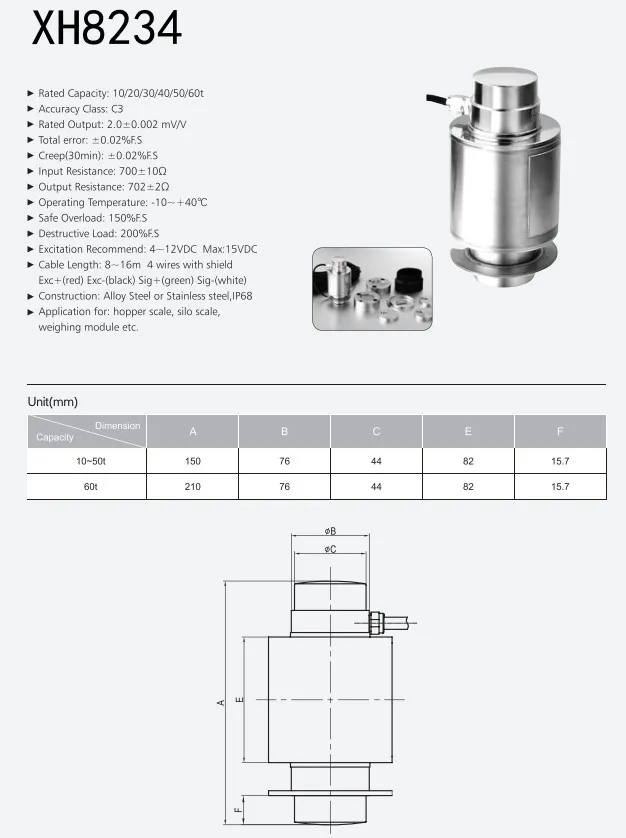

Technical parameters:
| Rated capacity | 10/20/30/40/50/60t |
| Accuracy class | C3 |
| Rated output | 2.0±0.002mV/V |
| Total error | ±0.02%F.S |
| Creep (30min) | ±0.02%F.S |
| Input resistance | 700±10Ω |
| Output resistance | 702±2Ω |
| Operating temperature | -10ºC ~ +40ºC |
| Safe overload | 150%F.S |
| Destructive load | 200%F.S |
| Excitation recommend | DC4~12V, max DC15V |
| Cable length | 8~16m, 4 wires with shield |
| Exc+(red), Exc-(black), Sig+(green), Sig-(white) | |
| Construction | Alloy steel or stainless steel, IP68 |
