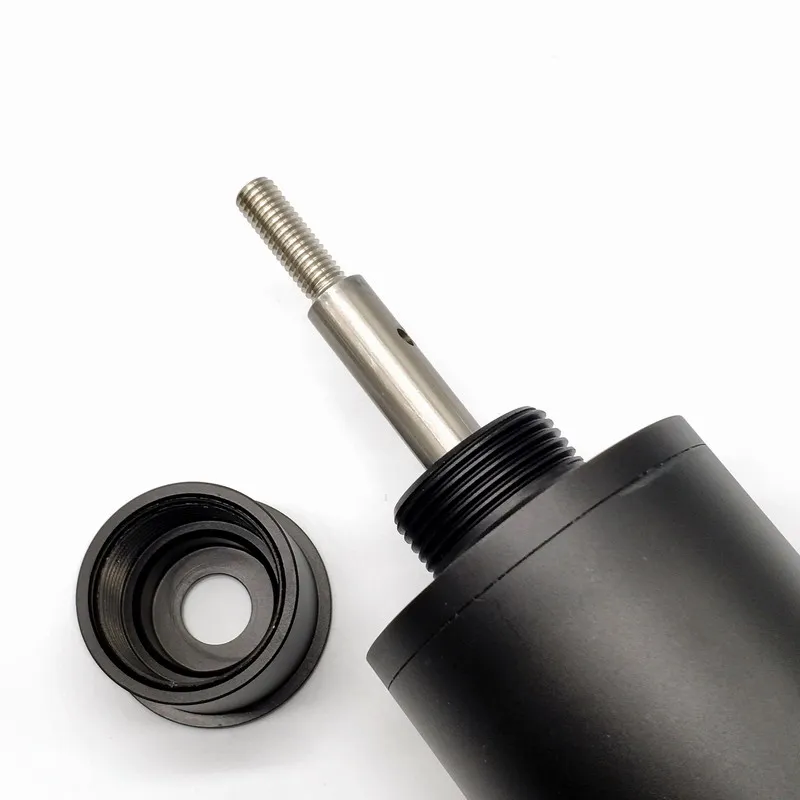

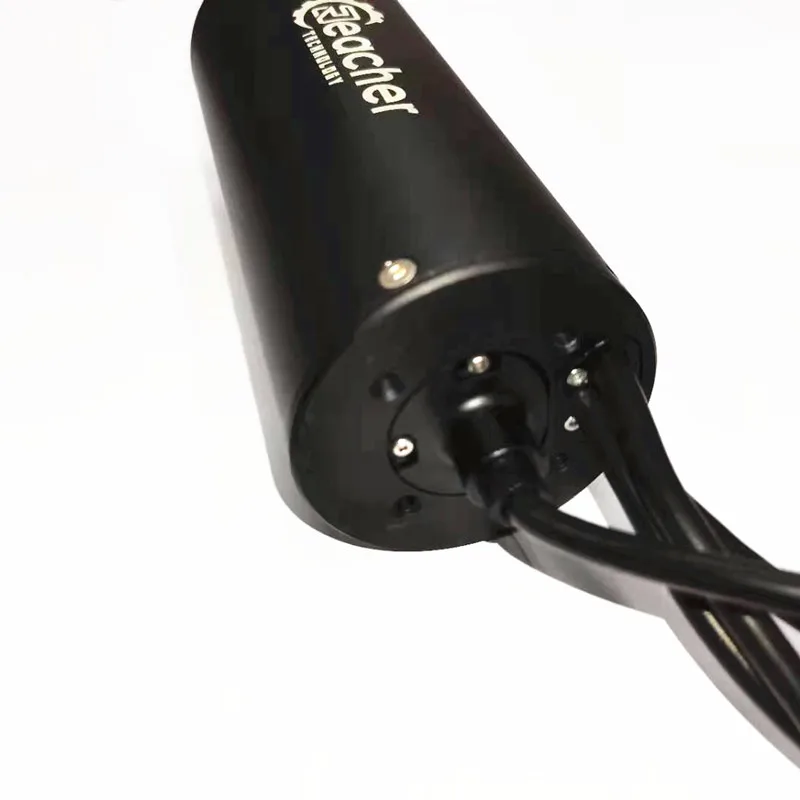

65161 48V 60V 6000W electric brushless dc motor with hall sensor temperature sensor

Product Overview

Description

48V 60V 6000W electric brushless dc motor with hall sensor temperature sensor



Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.







Product Description





The Reacher Tech RTSD65L161 Brushless DC Motor is designed for surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.

Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.

We have both senored and sensorless version, please choose.





Product Parameters





RT Motor	SD65L161-270	SD65L161-120	SD65L161-100	SD65L161-80
Construction	18N/6P	18N/6P	18N/6P	18N/6P
Winding Turns	3T	3T	4T	5T
Working Voltage	40-60V	40-60V	40-60V	40-60V
Max RPM	16200	7200	6000	4800
KV	270	120	100	80
No Load Current @8.4V	2.5A	2.0A	1.5A	1.2A
Max Power	9KW	7.2KW	6KW	4.8KW
Peak Current (A)	150	150	150	120
Max Efficiency	>92%	>92%	>92%	>92%
Net Weight (kg)	2.5	2.5	2.5	2.5
Dimension(mm)	D65.5*L161.5	D65.5*L161.5	D65*L161.5	D65*L161.5
Shaft Dimension	D12*30mm	D12*30mm	D12*30mm	D12*30mm
Max Torque	80kg*cm	108kg*cm	115kg*cm	120kg*cm
Wire Length	Custom Made	Custom Made	Custom Made	Custom Made
Connector	Custom Made	Custom Made	Custom Made	Custom Made
Working Life	10000H	10000H	10000H	10000H







To work with our brushless dc motor well, we suggest you buy our brushless speed controller as well. Also the LCD Program Card warm suggested.





OEM/ODM Order question



We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.



For the motors please let us know your requirements:

1. Please choose inrunner motor or outrunner motor you need.

2. Do you have motor diameter and length limited?

3. What working voltage you will use for this motor?

4. What's your expected rated power?

5. What's your expected RPM?

6. You battery pack can bear how high peak current?

7. You estimated yearly sales qtys?

8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.

9. Other requirements if you need, for example, wire length, connector types and so on.

Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.

Below our custom made motors for other clients for your information.

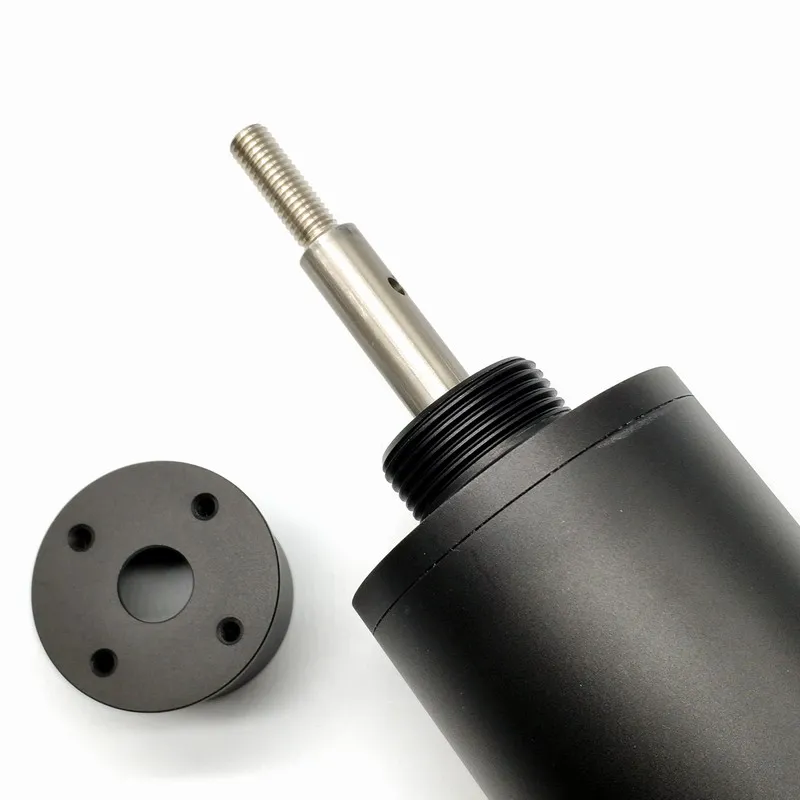

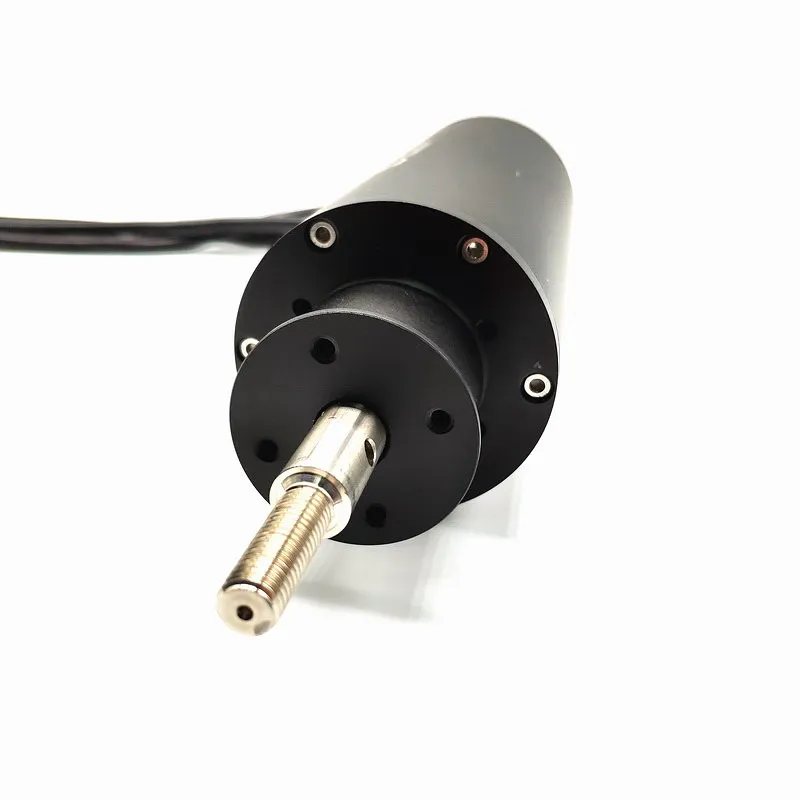

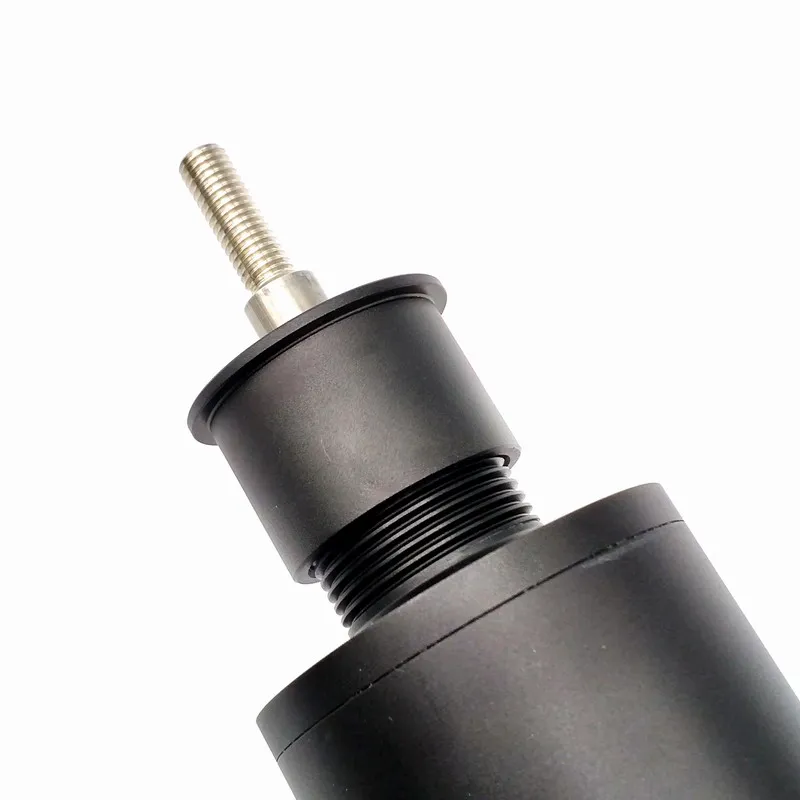

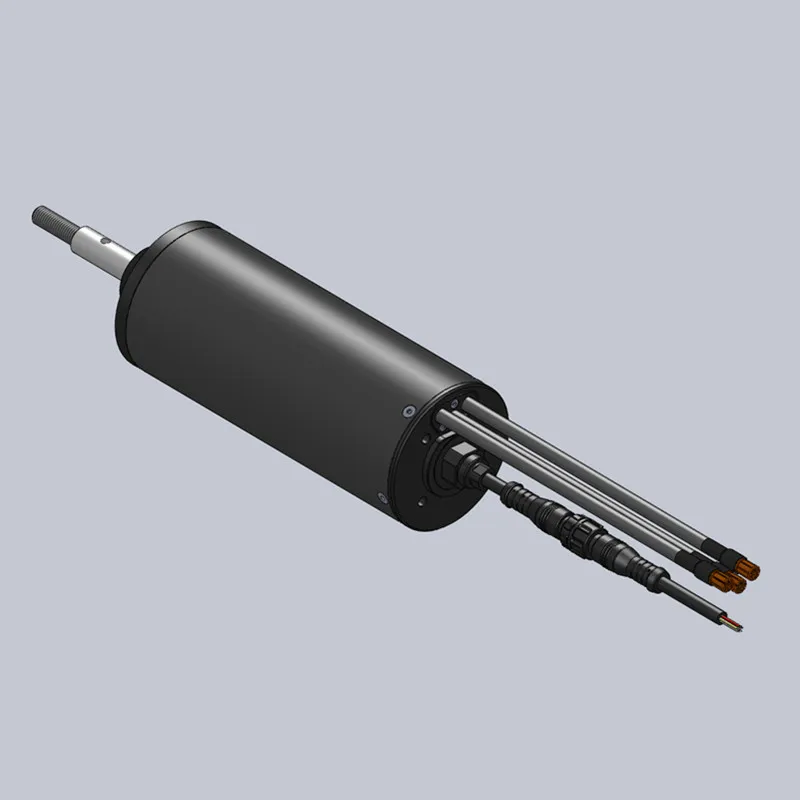

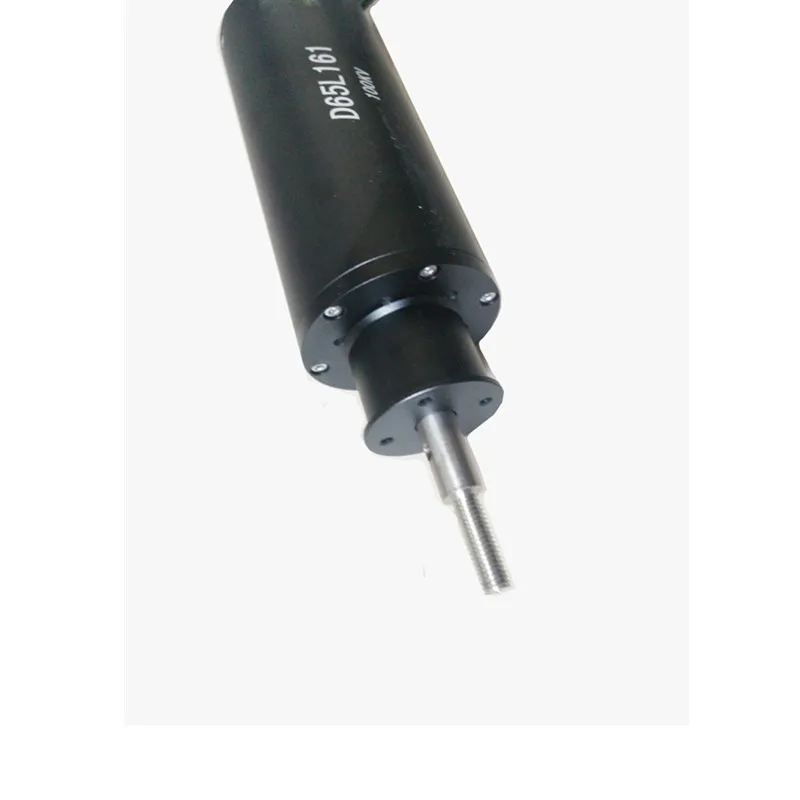

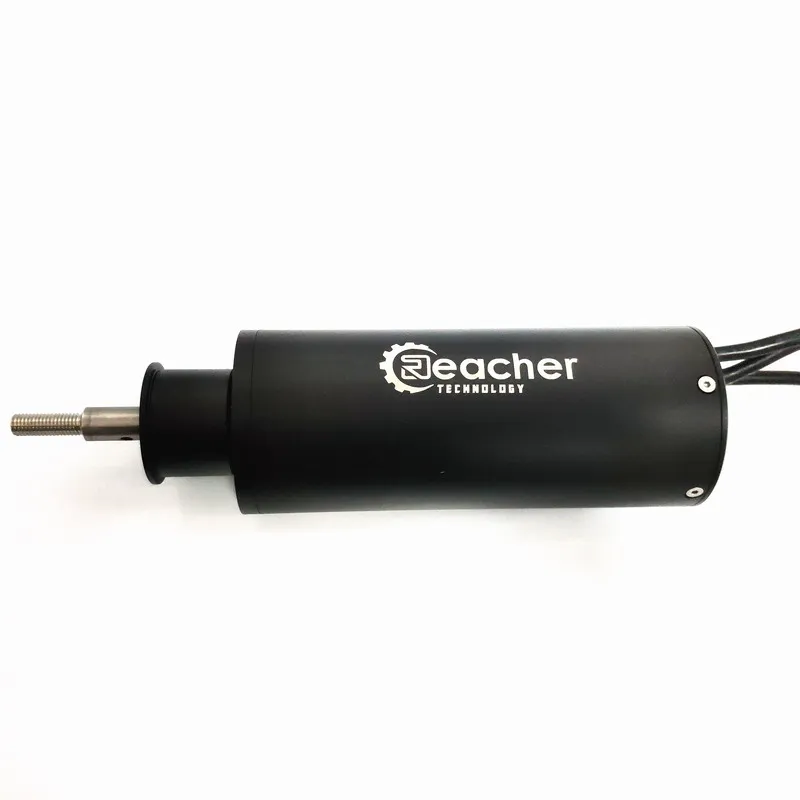

Product Pictures

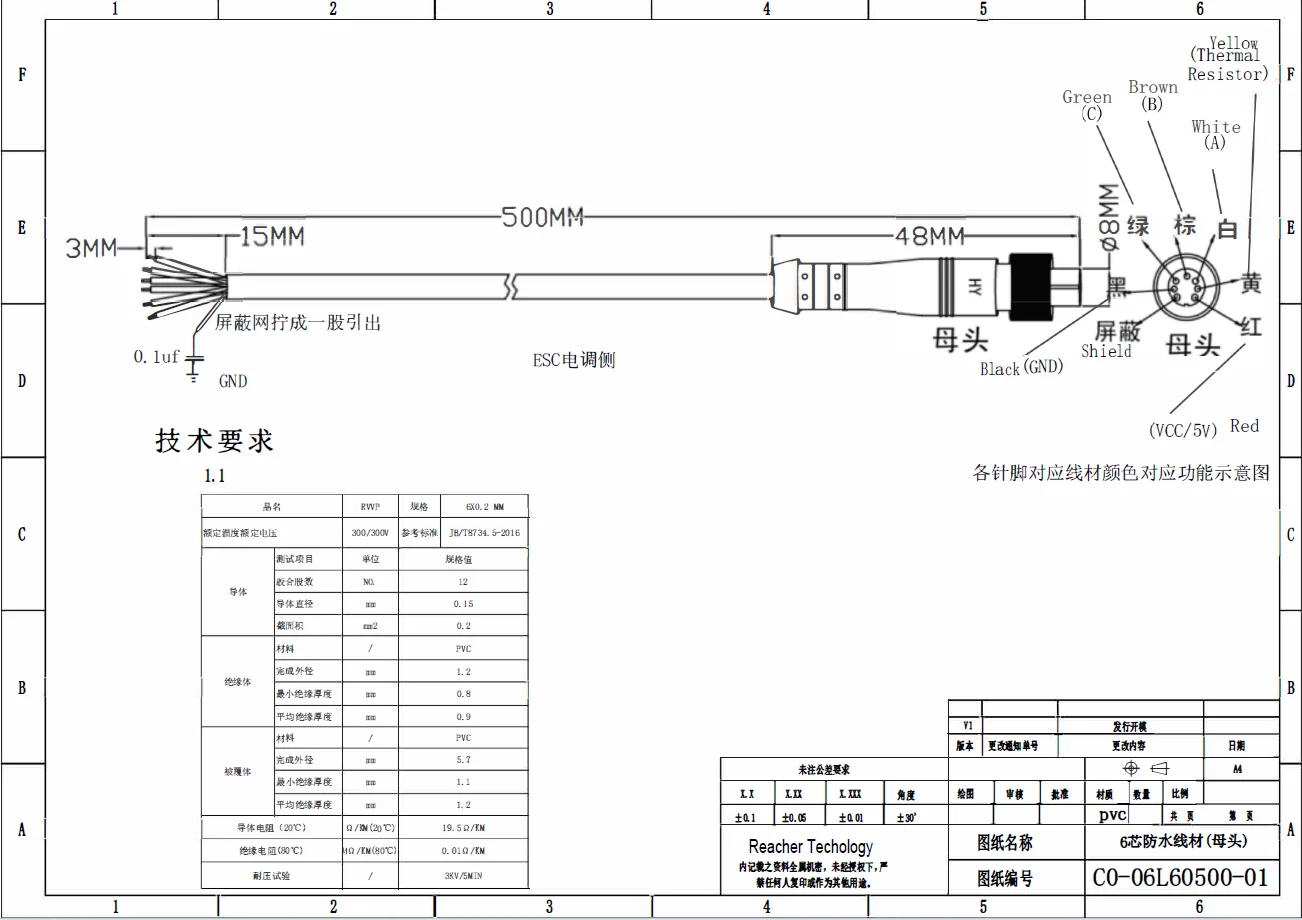

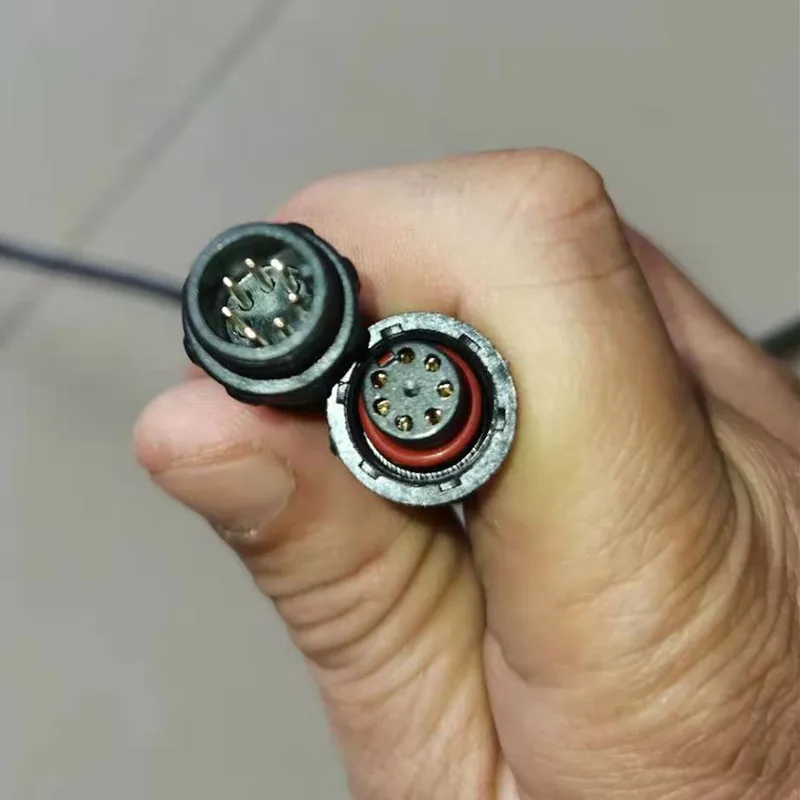

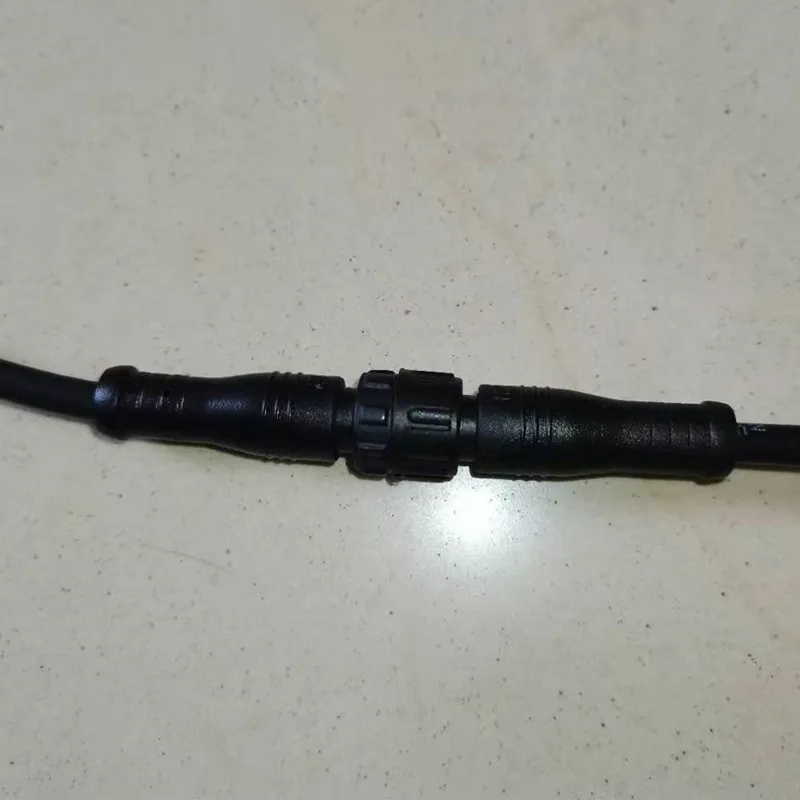

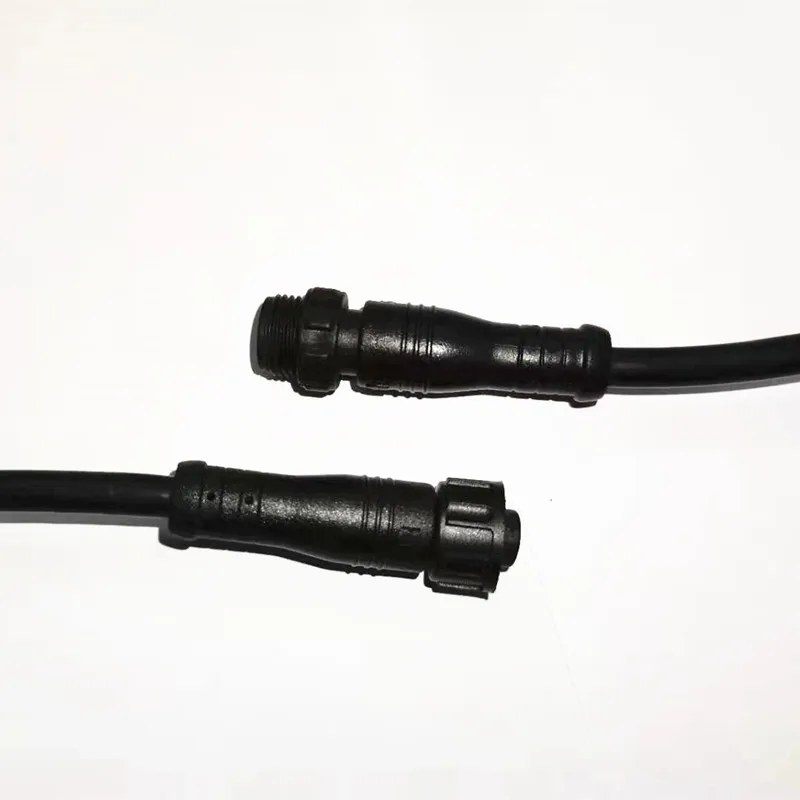

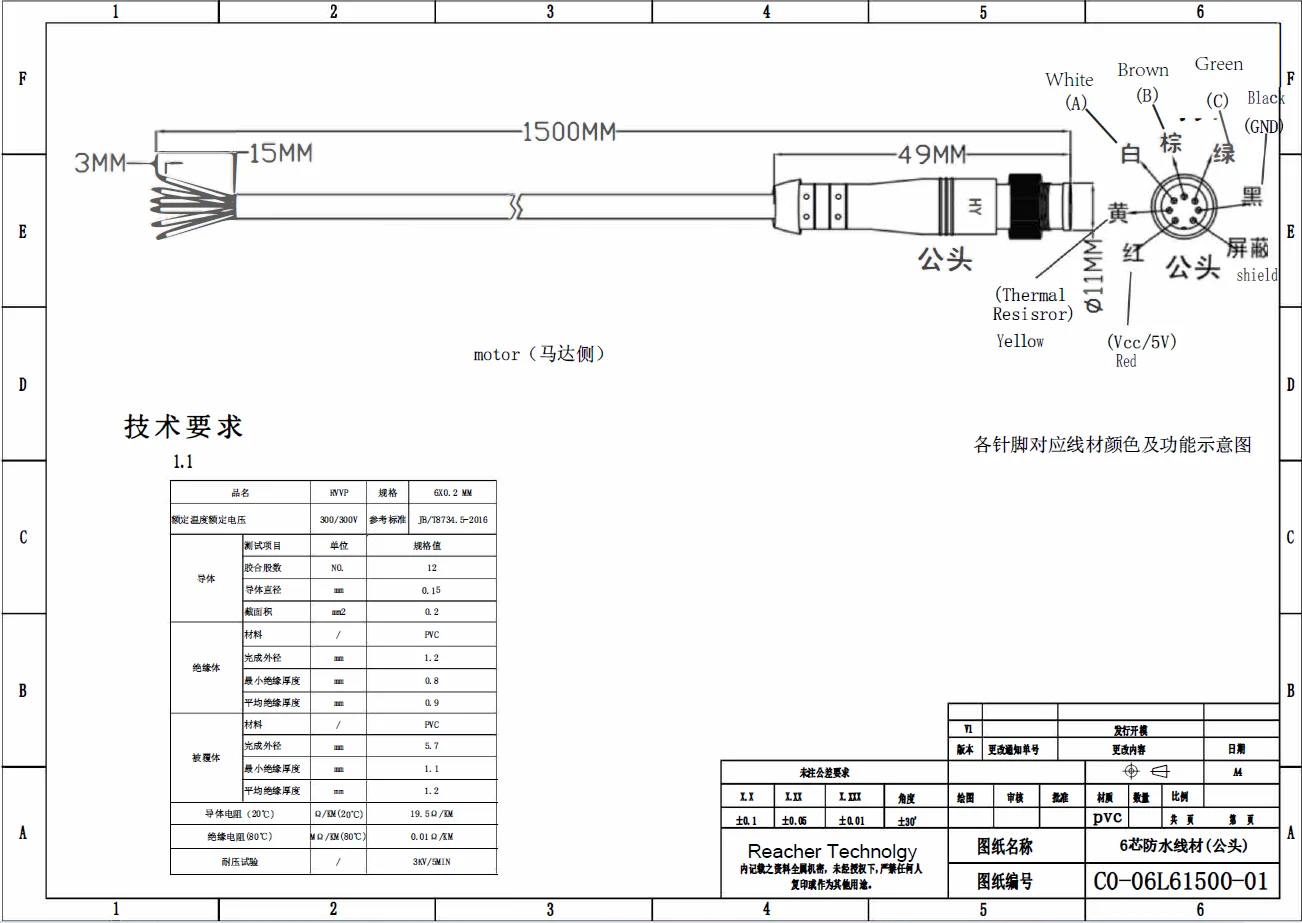

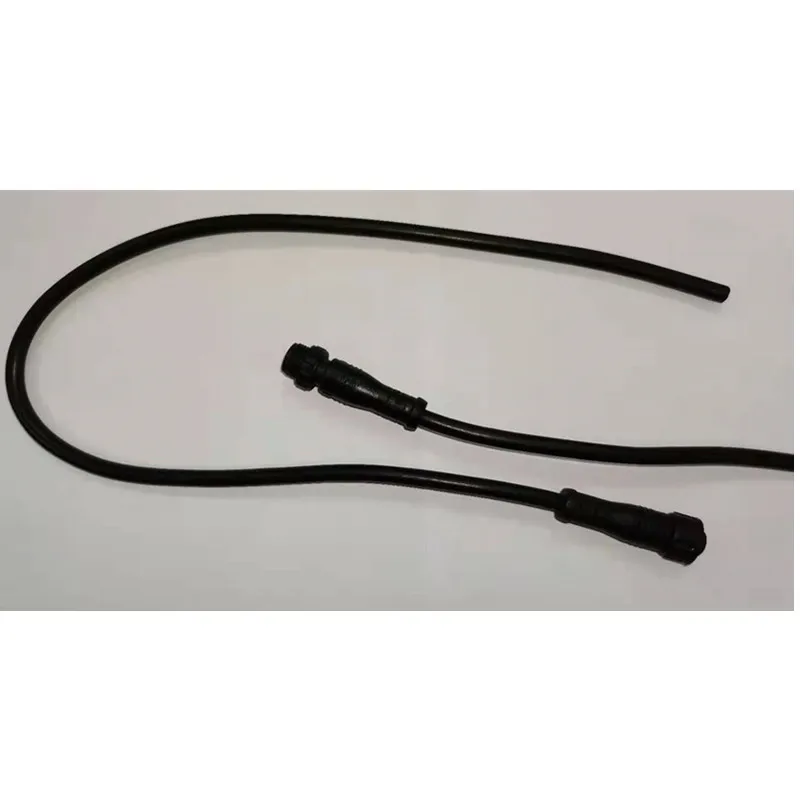

 Please note this sensored motor need to work together with sensored speed controller.
