9m3/h diesel shotcrete concrete spraying machine for sale
GZ-9D is diesel large-sized shotcrete machine for the spraying process.
GZ-9D shotcrete machine can be used for large-section tunnel building, mine, etc.
GZ-9 is available in following versions:
Basic: electric drive can be combined with tyre chassis. Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
Product Paramenters
Output Capacity
6-9m3 /h
Max. Horizontal Conveying Distance
200m
Suitable Mix Ratio(Cement/Sand)
≤1:4~5
Max. Aggregate Size
Dia.20 mm
Conveying Hose Inner Diameter
Dia.64 mm
Conveying Pressure
0.2-0.4MPa(29-58PSI)
Air Consumption
10~12m3/min(357-430CFM)
Material Charging Height
1.1m
Rotor Speed
7.5-11r/min
Diesel Engine
20hp, 2200rpm, Radiator Cooling
Diesel Engine Starting
Electric start
Clutch Type in Diesel Engine
Automatic Clutch
Air Vibrator
OR100, Oli
Overall Dimension(length×width×height)
2.66×1.11×1.50m
Net Weight
950kg

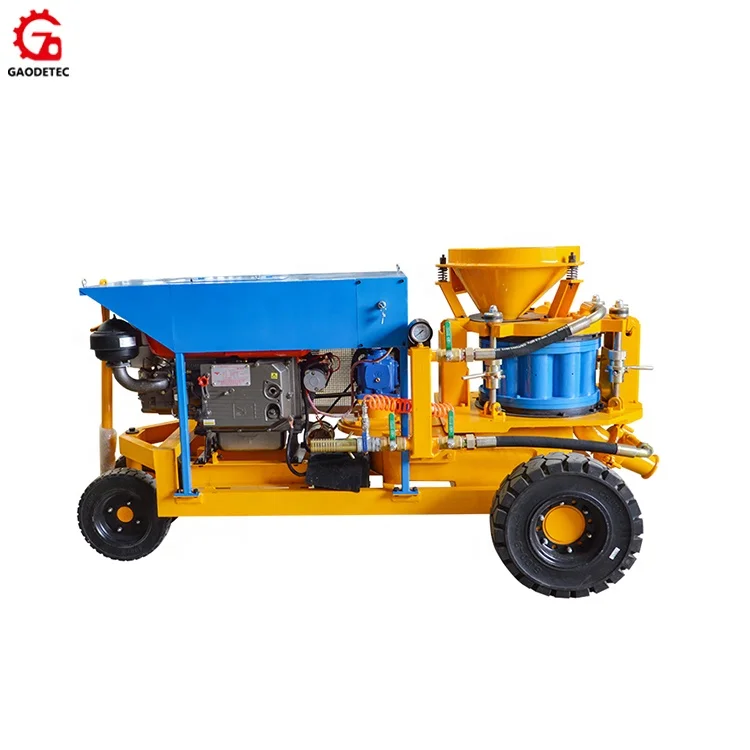

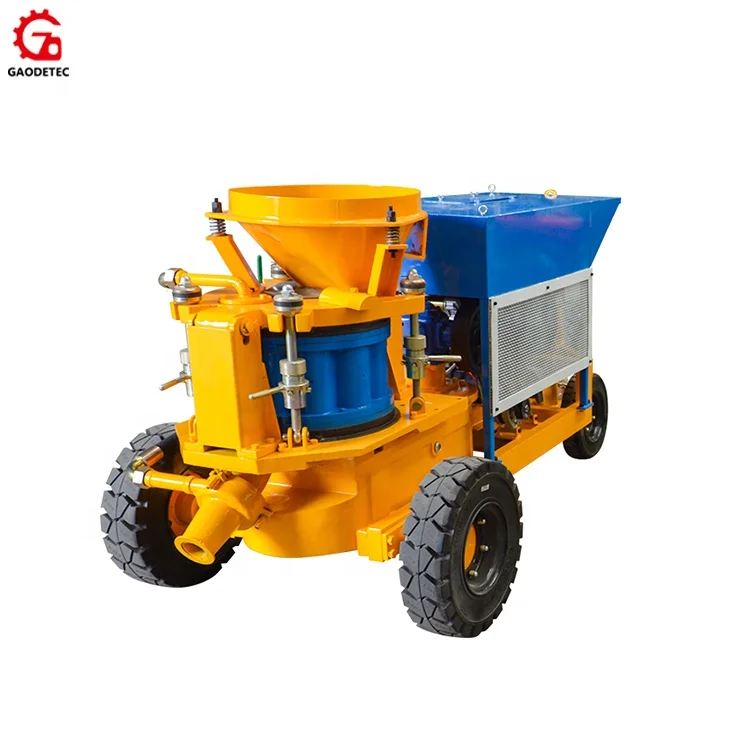

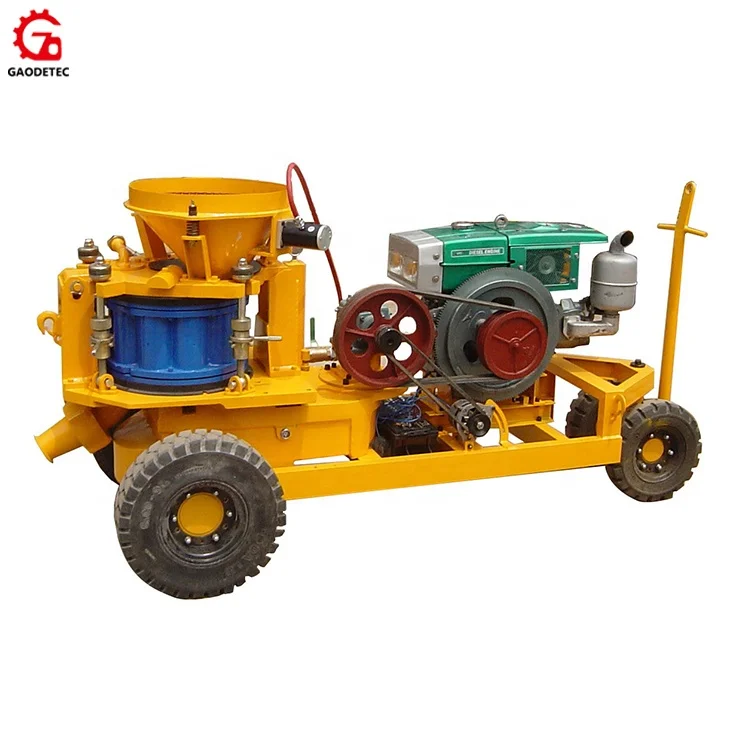

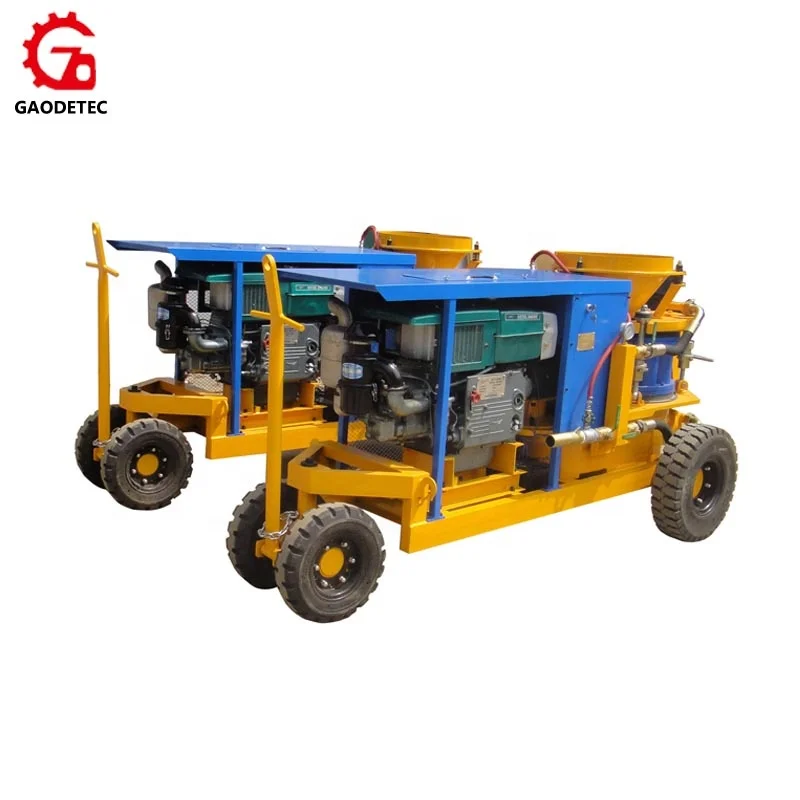

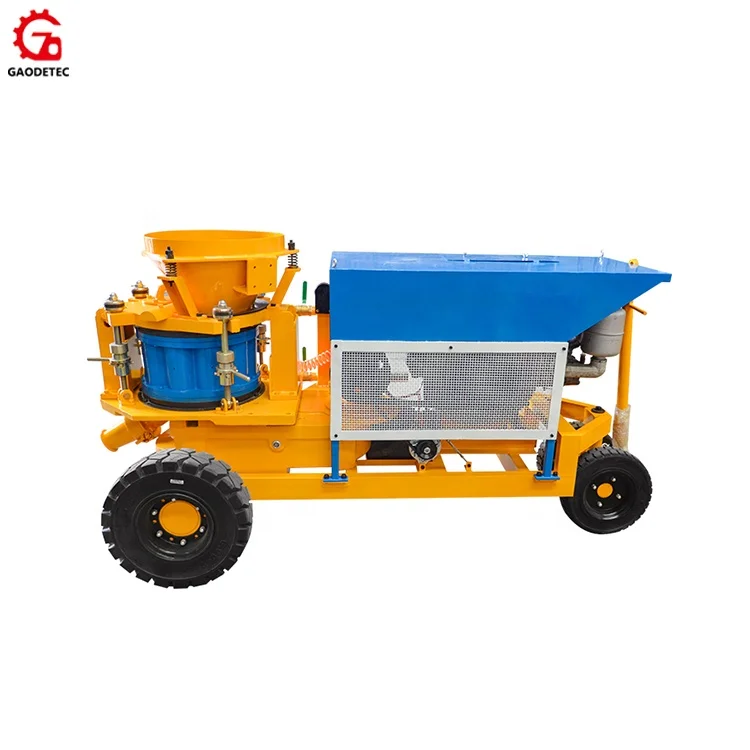

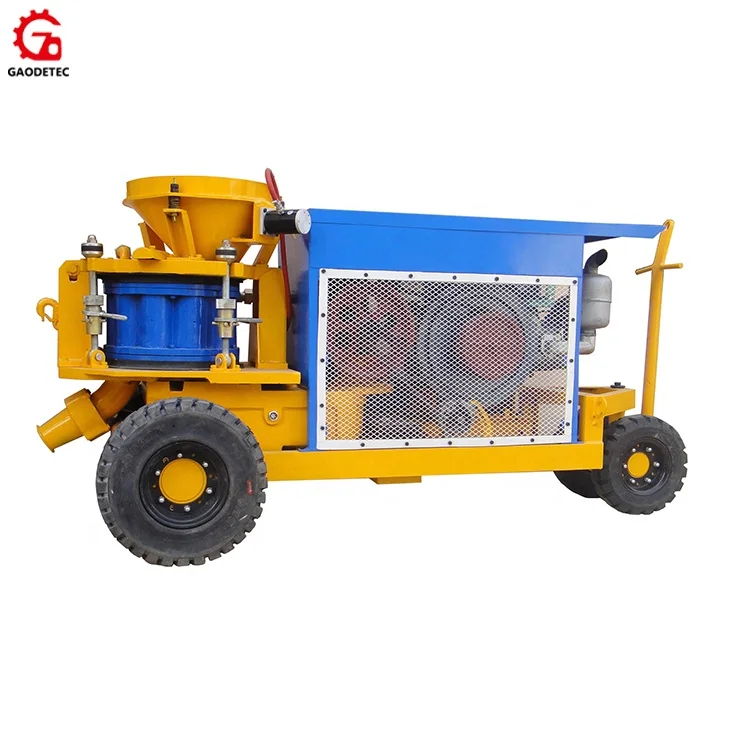

Detailed Images
Accessories
A complete set of GZ-9 shotcrete machine
No.
Description
Quantity
Unit
Remarks
1
GZ-9 Main Machine
1
set
2
Nozzle Assy
1
set
3
Conveying Hose, ID64mm, 50ft.Length
1
piece
4
Water hose with hose hoop
1
piece
5
Rubber Hose Joint
3
piece
Fitting
6
Quick Coupling
3
piece
7
Upper Sealing Plate
1
piece
8
Lower Sealing Plate
1
piece
Application
GZ-9D shotcrete gunning machine application
1. Dry-mix shotcrete for tunnel building, hydropower engineering, mines, underground engineering, civil engineering and slope stabilization, ect. 2. Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
Packing&Shipping
1. Plastic wrap, plywood case, free-fumigation, standard export packing. as shown below.
