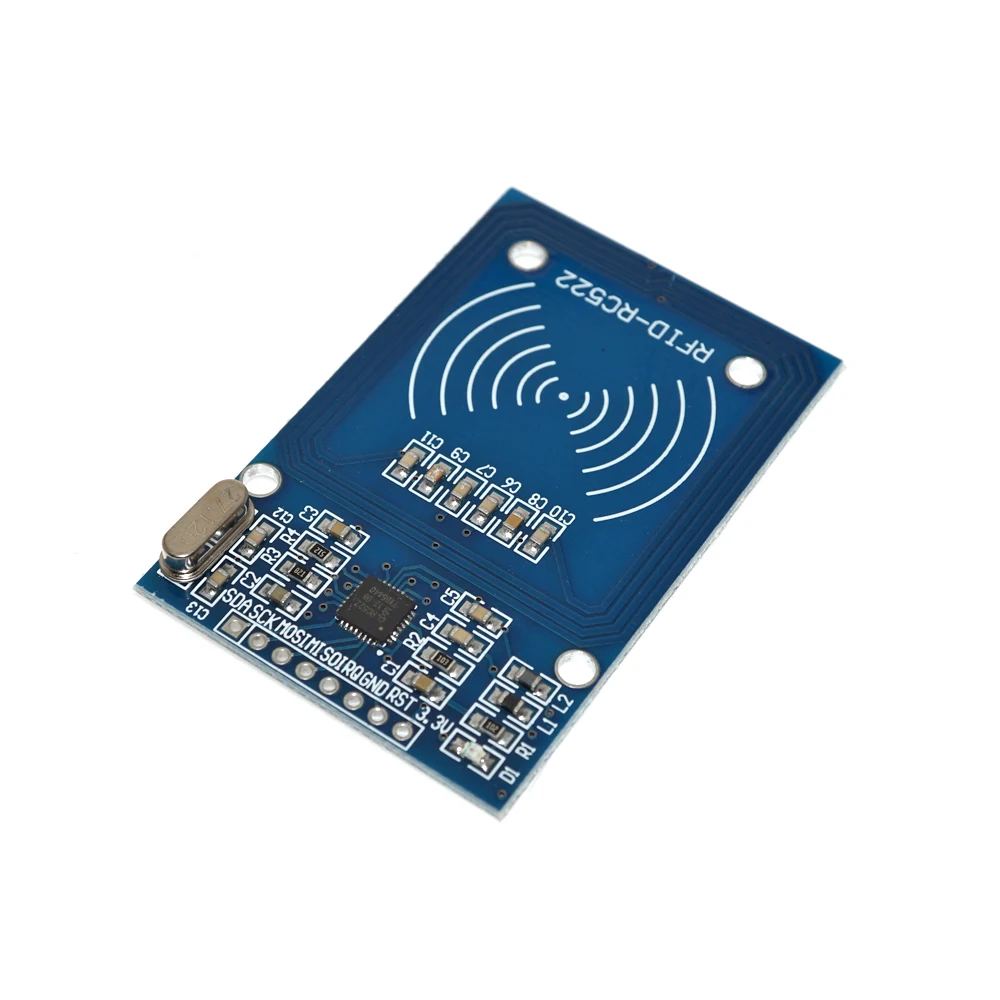

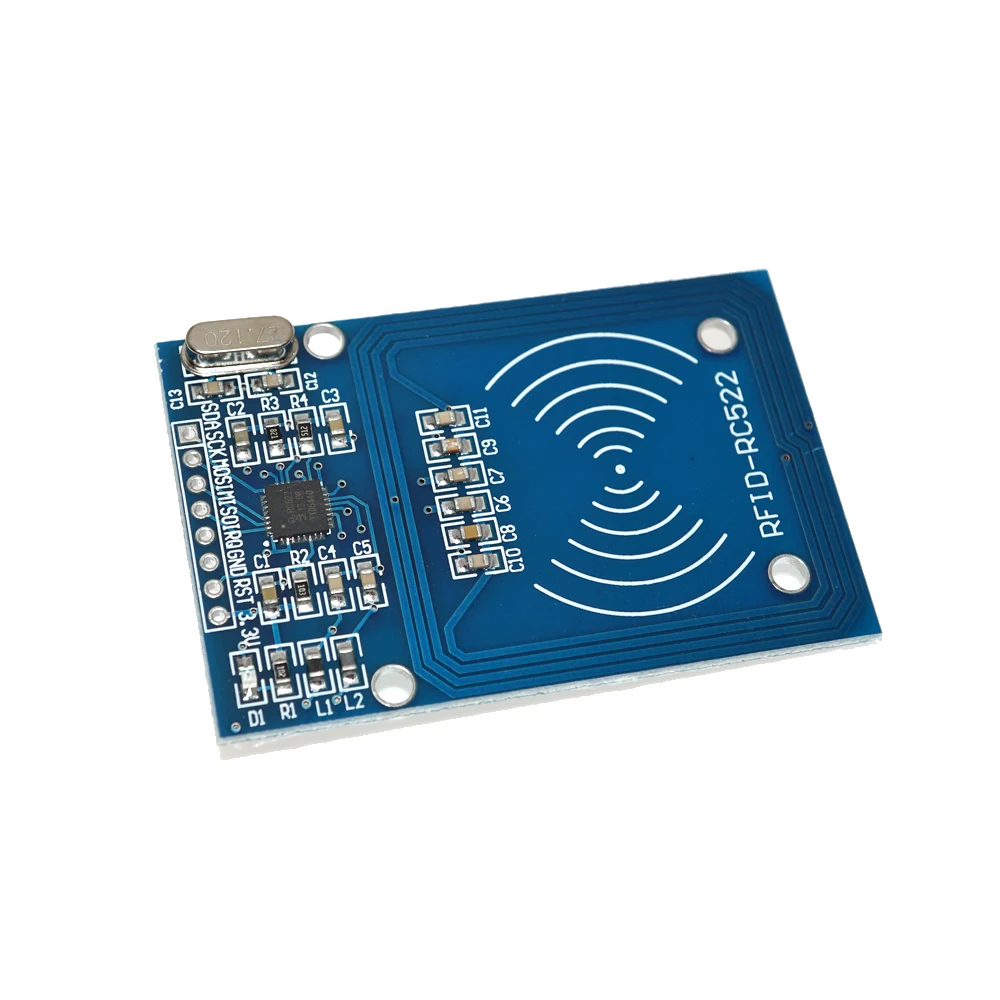

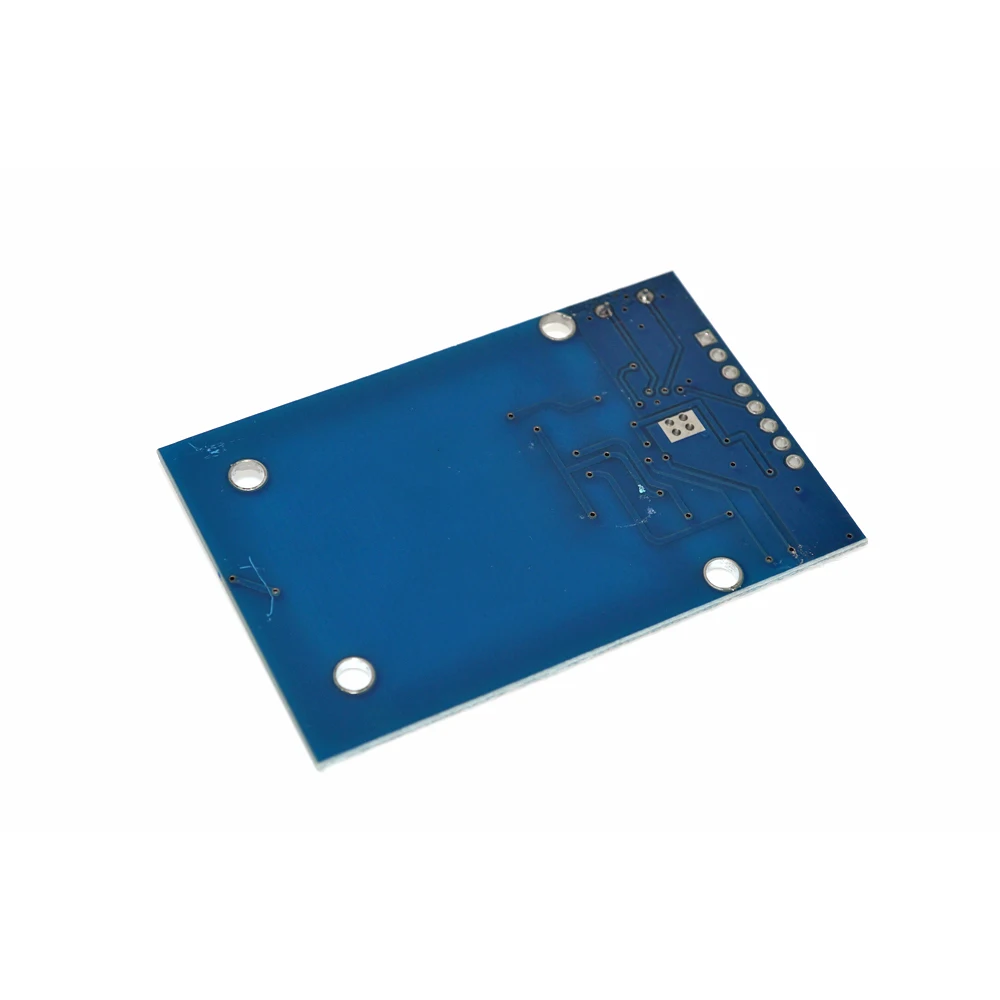

Okystar 13.56mhz RFID Reader Interface RFID RC522 Module
Okystar 13.56mhz RFID Reader Interface RFID RC522 Module
Okystar 13.56mhz RFID Reader Interface RFID RC522 Module
Okystar 13.56mhz RFID Reader Interface RFID RC522 Module
Okystar 13.56mhz RFID Reader Interface RFID RC522 Module
Okystar 13.56mhz RFID Reader Interface RFID RC522 Module
Okystar 13.56mhz RFID Reader Interface RFID RC522 Module

Okystar 13.56mhz RFID Reader Interface RFID RC522 Module

Share on (62376763813):


Price:US$ 0.84 - US$ 0.91

Quantity:


Product Overview

Description







We Earned Plenty Experience For Customized ODM Order








Product Parameters


Description:
1. Weight: 9g
2. Color: blue
3. Operating current :13-26mA/DC 3.3V
4. Idle current :10-13mA/DC 3.3V
5. Sleep current: <80uA
6. Peak current: <30mA
7. Operating frequency: 13.56MHz
8. Supported card types: mifare1 S50mifare1 S70mifare
9. Environmental operating temperature: -20-80 degrees Celsius
10. Environmental storage temperature: -40-85 degrees Celsius
11. Relative humidity: relative humidity 5% -95%
12. Data transfer rate: maximum 10Mbit/s
13. Diameter of S50 special-shaped card: 3.1(max)
14. MF RC522 is applied to the highly integrated read and write
15. 13.56MHz contactless communication card chip
16. Low-voltage, low-cost, small size of the non-contact card chip to read and
write
17. Smart meters and portable handheld devices developed better choice
18. The MF RC522 use of advanced modulation and demodulation concept
completely integrated in all types of 13.56MHz passive contactless
communication methods and protocols
19. 14443A compatible transponder signals
20. The digital part of to handle the frames and error detection.
support rapid encryption algorithm, terminology validation products
21. MFRC522 support series of high-speed non-contact communication,
two-way data transmission rate up to 424kbit/s
22. MF RC522 are similar to MF RC500 MF RC530 , but also have the
characteristics and differences. Communication between it and the host mode
helps to reduce the connection narrow PCB board volume, reduce costs
23. The MF522-AN module design circuit card reader, easy to use
24. Low cost, and applies to the user equipment development
25. The reader and advanced applications development meet the user RF
card terminal design/production needs
26. This module can be directly loaded into the various reader molds, very
convenient.
Package List:
1 * RC522 Reader IC Card Module

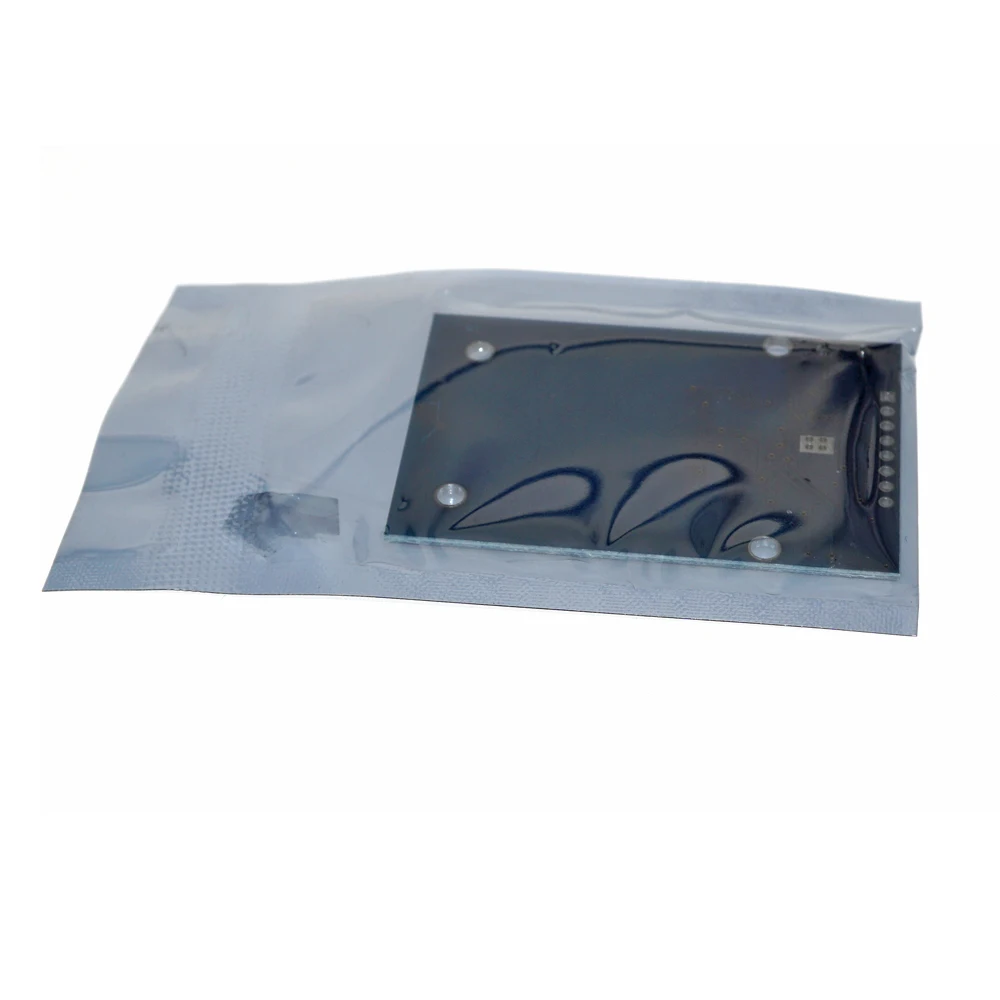

Product Packaging
