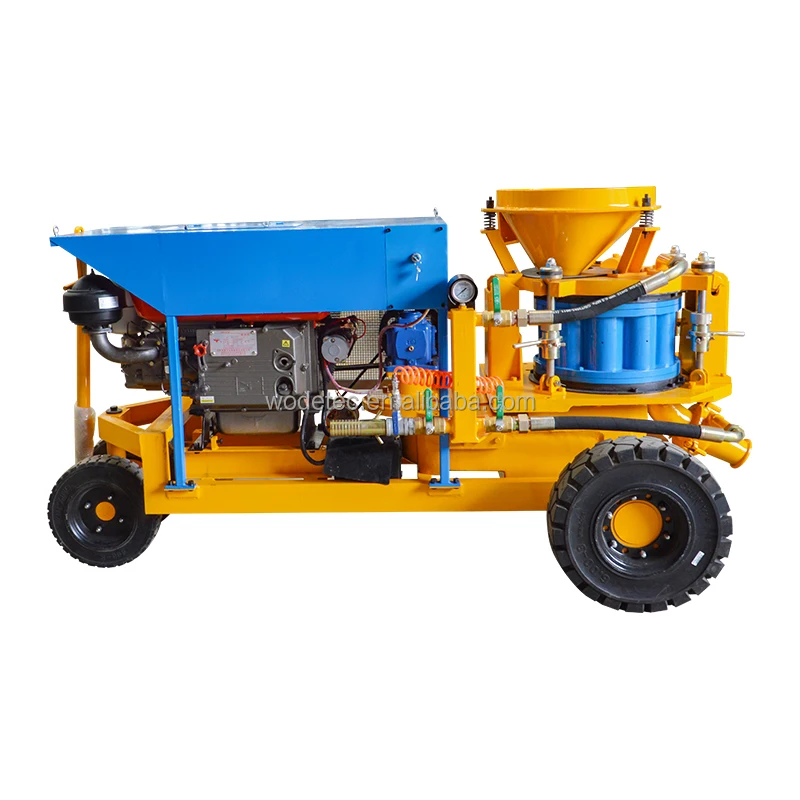

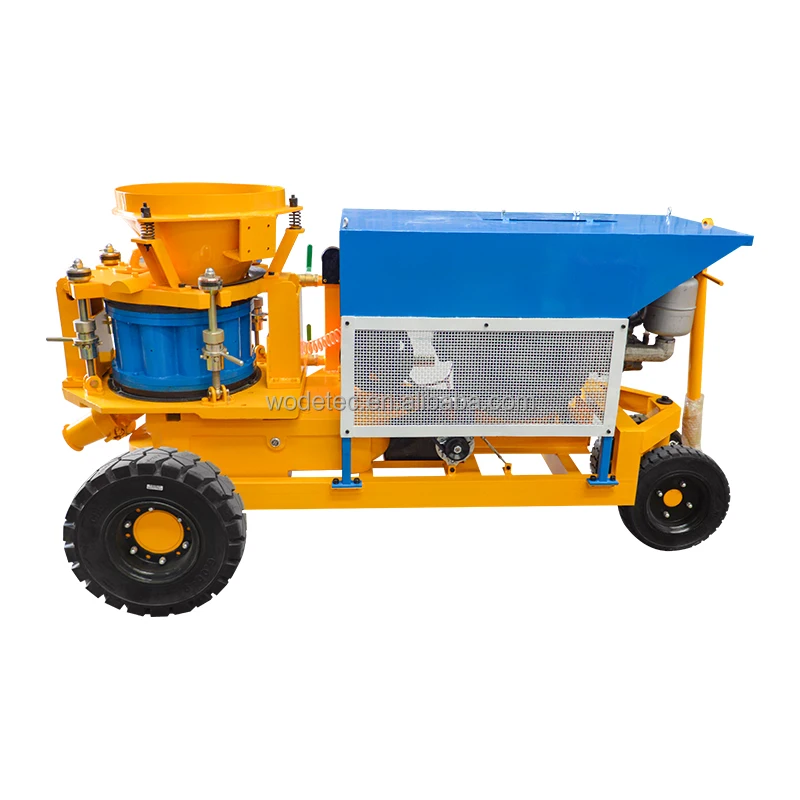

explosion proofing concrete shotcrete Dry Mix Gunite Machine with Lightweight nozzle
- Category: >>>
- Supplier: Zhengzhou Wode Heavy Industry Co. Ltd.
Share on (62376772980):
Product Overview
Description
Product Description
WZ-9D is large-sized shotcrete machine for the spraying process.
WZ-9D can be used for large-section tunnel building, mine, etc.
WZ-9 series concrete gunite machine is available in following versions:
Basic: Electric drive can be combined with tire chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
Basic: Electric drive can be combined with tire chassis.
Extended (optional): Air motor drive or diesel drive combined with Skid or Rail-wheel.
Product Specification
Item | WZ-9D |
Output Capacity | 6-9m3 /h |
Max. Horizontal Conveying Distance | 200m |
Suitable Mix Ratio(Cement/Sand) | ≤1:4~5 |
Max. Aggregate Size | Dia.20 mm |
Conveying Hose Inner Diameter | Dia.64 mm |
Conveying Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10~12m3/min(357-430CFM) |
Material Charging Height | 1.1m |
Rotor Speed | 7.5-11r/min |

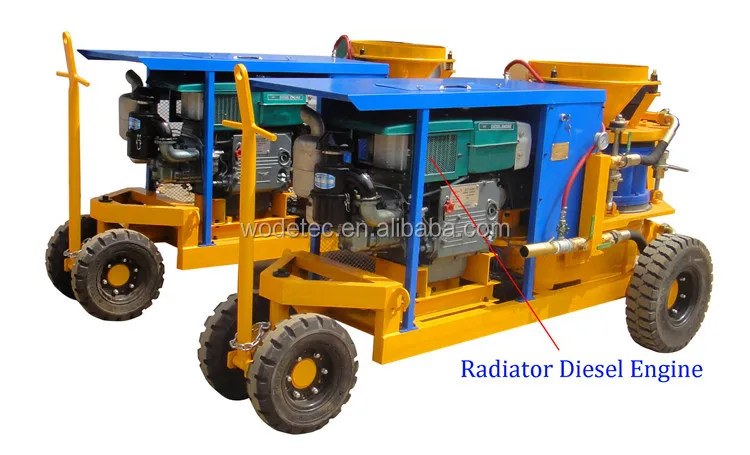

Diesel Engine | 20hp,2200rpm, Radiator Cooling |

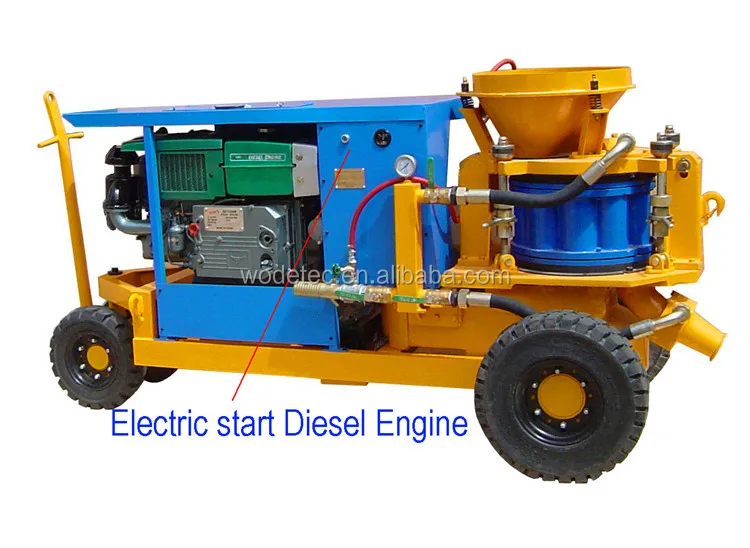

Diesel Engine Starting | Electric start |

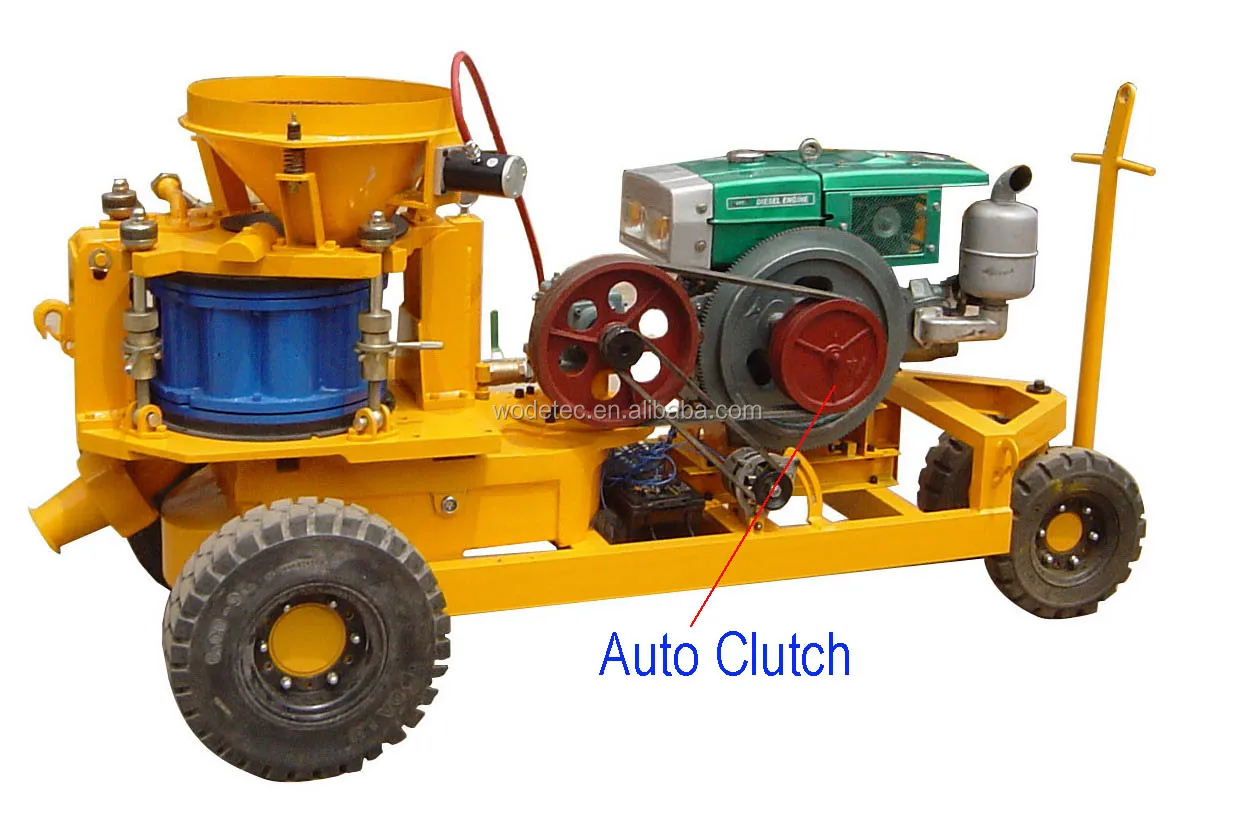

Clutch Type in Diesel Engine | Automatic Clutch |
Air Vibrator | OR100,Oli |
Overall Dimension(length×width×height) | 2.66×1.11×1.50m |
Net Weight | 950kg |
WZ-9D shotcrete machine feature:
1. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
2. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
3. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
4. Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

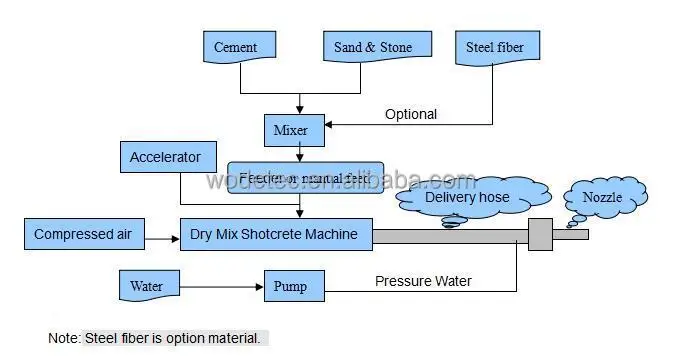

Dry mix shotcrete working process
Product Structure

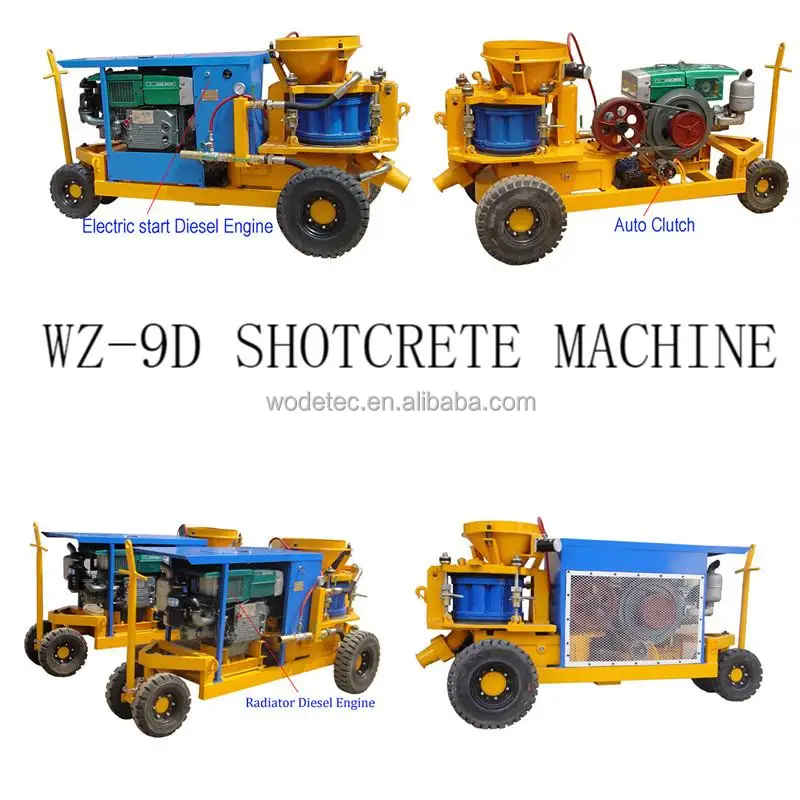

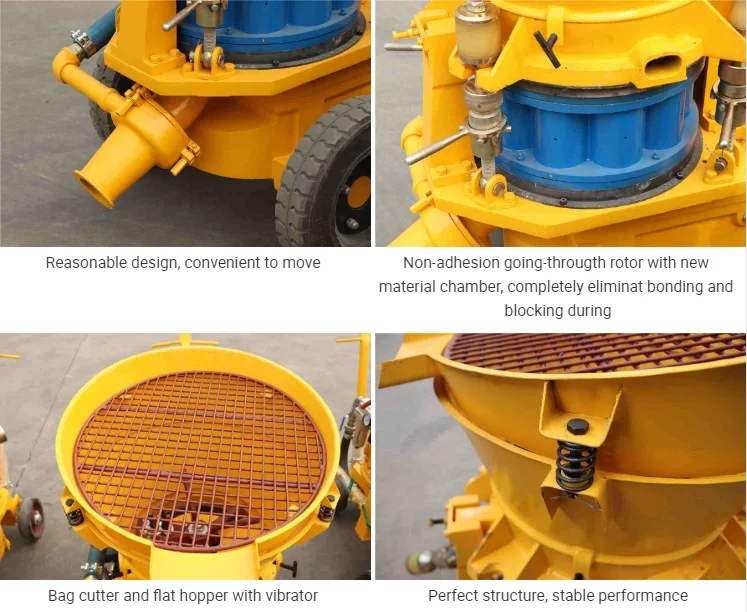

Product Detail

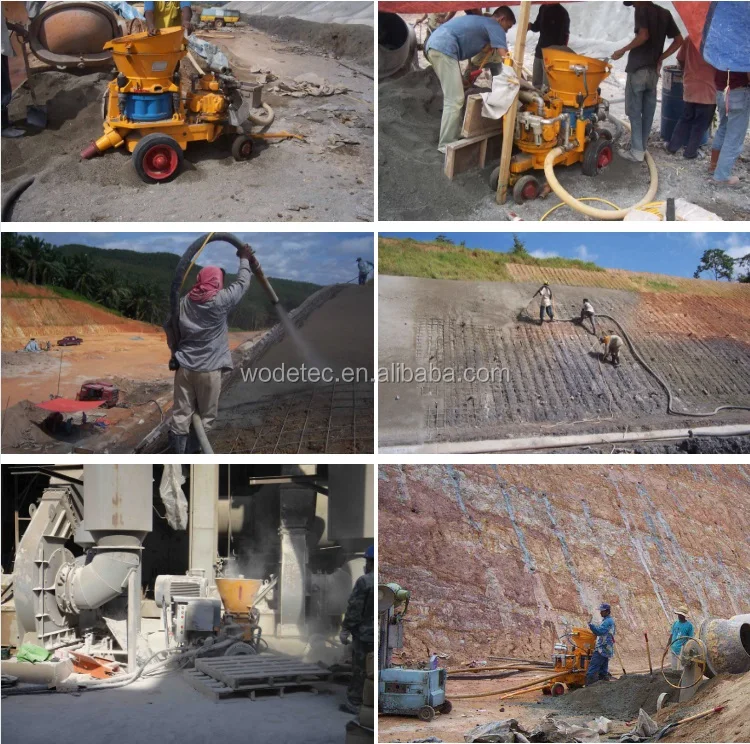

Product Application
Why choose us?
1. We are China Leading of shotcrete machine.2. Alibaba assessed 1 years gold supplier.
3. 100% QC inspection before shipping.
4. Best quality & Best Service with competitive price.
Related Product
Company Information
Wode Heavy Industry Co. Ltd., short name Wodetec, is a manufacturer specialized is R&D, manufacture and sale of concrete shotcrete machine.
We have developed full series of dry-mix shotcrete machines and wet-mix shotcrete machines, output from 1.5m3/h to 9m3/h, electric motor, diesel engine, air motor and gasoline engine are available options for customization. From years of experience Wode Heavy Industry Co., Ltd. has developed its own R&D and technician teams, which supports further development and customized service for clients.
We also produce grouting equipment, mortar pump, refractory mixer, refractory gunite machine, foaming machine, concrete pump, hose pump and a series of products.
Contcat Us
We are the shotcrete machine factory, we can customize according to your requirements. If you have any questions, please contact us and we will provide you with the corresponding product parameters and quotations.
Contact us for more information.
1. What's the project you will use the machine do, for slope protect, or other?2. Do you need dry-mix shotcrete machine or wet-mix shotcrete machine?
3. What's the output you need, 3m3/h, 5m3/h, 9m3/h, or other?
4. What's the maximum particle size of the material, less than 10mm, 15mm, or 20mm?
