Product Overview
Description
cStandard vehicle type 20kw charger, adjustable voltage and current
more products
Product Description

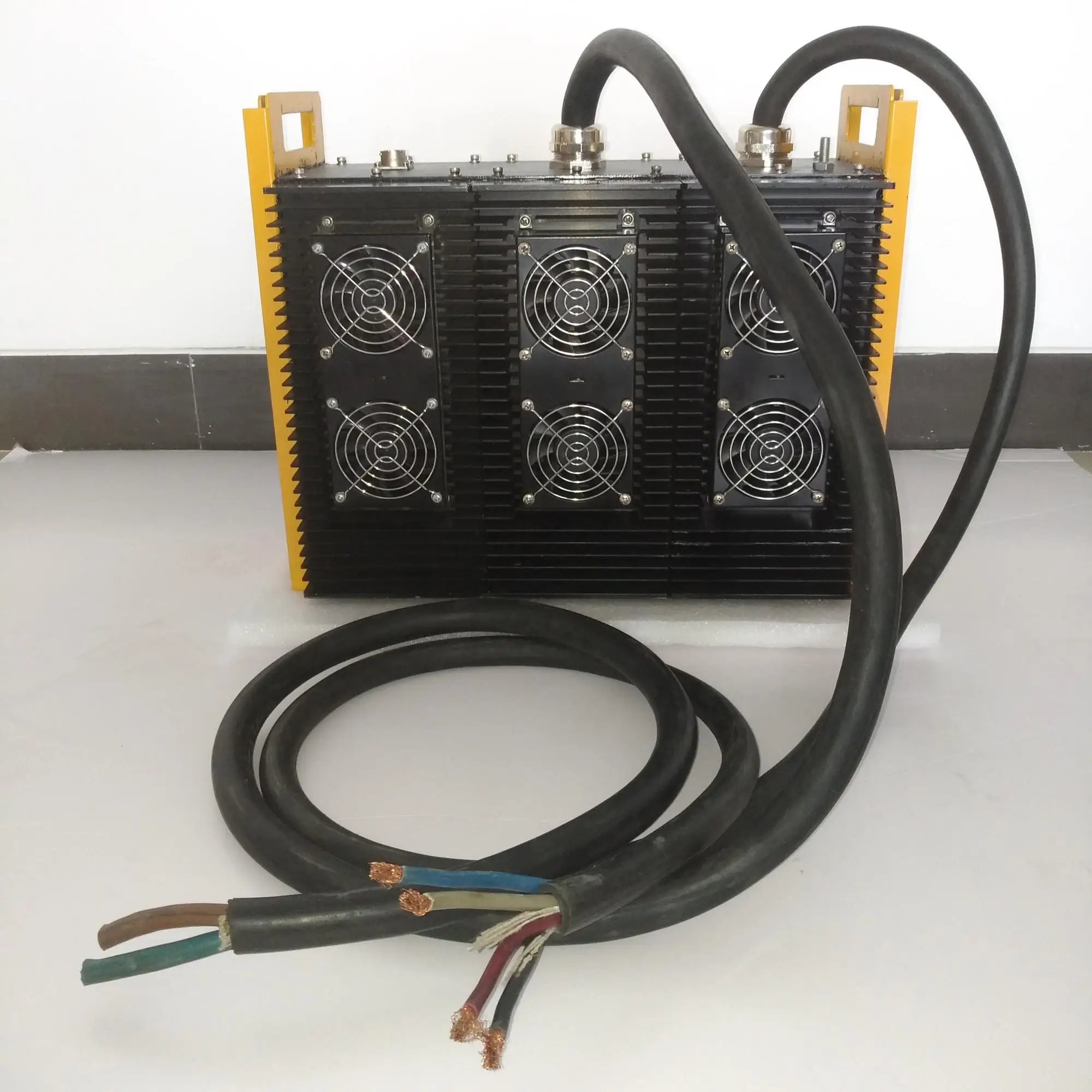

High power 20kw ev charger ac to dc auto electric vehicle bus or truck fast onboard battery charger
Place of Origin:Hebei, China (Mainland)
Brand name:Dilong electrical converter charger
Model Number:DA20KM33-360C
Features:
Constant current and constant voltage automatic conversion, effectively save charging time
Active power factor correction≥0.99
Input over-voltage/under-voltage protection
Output over-voltage/under-voltage protection
Output over-current protection
Output short circuit protection
Output reverse connect protection
Over-temperature protection
CAN communication intelligent fault alarm, protection function
Built-in 13.5V independent auxiliary power supply for automotive battery management system
Suitable for a variety of car installation
Specification
Input Voltage | 380Vac (AC304~AC457)3 phase 4 wire |
Output power | 20KW |
Output Voltage | DC 600V (400-750Vdc) |
Output Current | 50@400Vdc(max) |
Voltage accuracy | Vo:<±1% |
Line Regulation | <±0.2% |
Load Regulation | <±0.5% |
Ripple and Noise | <±3%Vo |
Dynamic response | ≤200us |
Efficiency | ≥94% |
Over-voltage protection | yes |
Under-voltage protection | yes |
Over-current protection | yes |
Under-current protection | yes |
Short circuit protection | yes |
Output reverse connect protection | yes |
Over-temperature protection | 85±5 ℃ CAN warning protection |
CAN communication | yes |
Isolation Voltage | 2000VAC Input-Output 2000VAC Input-shell 2800VAC Output-shell |
Insulation resistance | Input-output-shell>10MΩ |
Operating Temperature | -40~+70℃ |
Operating Humidity | 20%~90%RH |
Cooling mode | Forced air cooling |
IP Grade | IP65 |
Weight | 36kg |

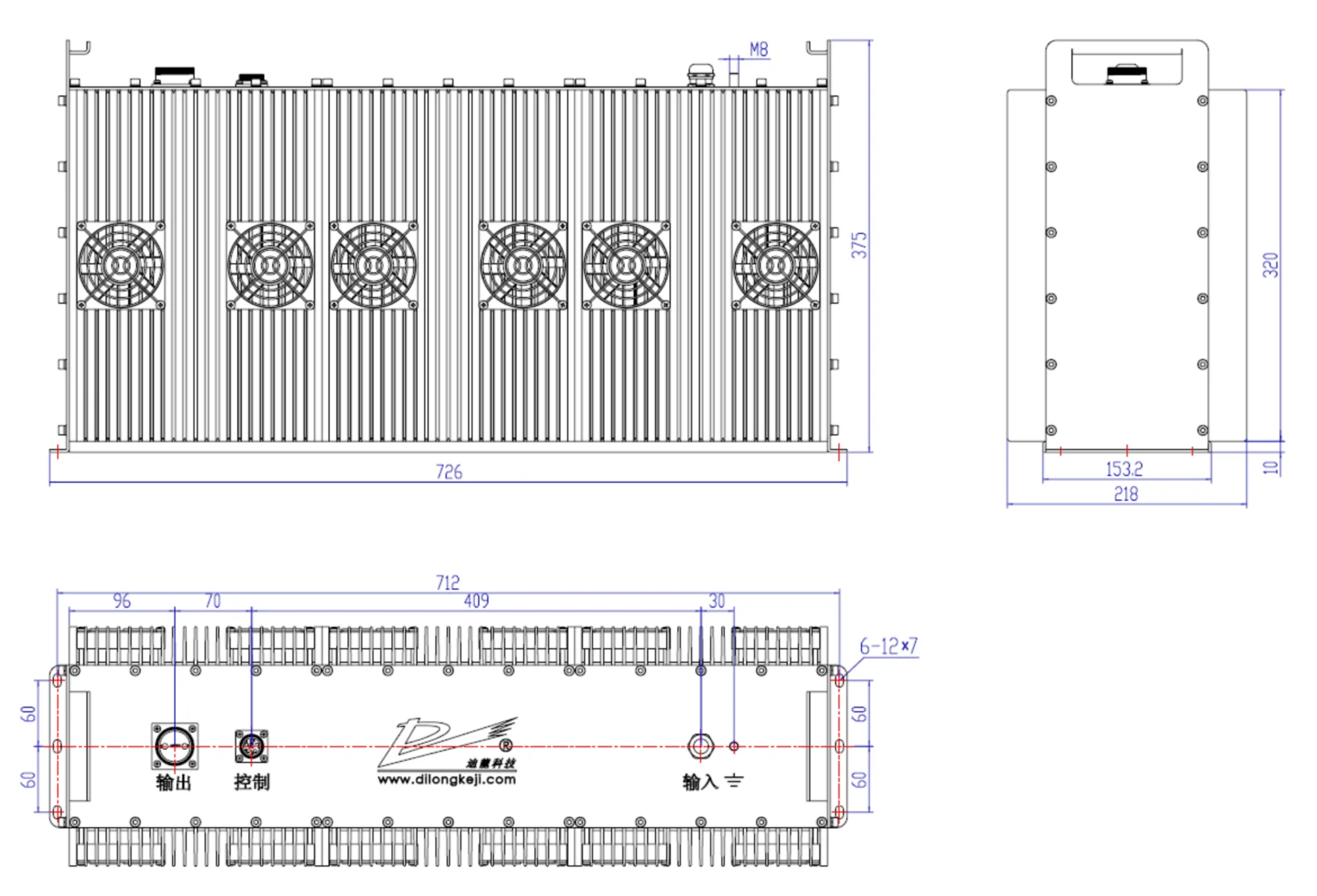

Size | |
Installation Guide
Advanced testing
Company Information
We are a professional military power supply and industrial power production enterprise which integrates development, production and sales. The company was set up in 1990. Nowadays, we have established branch company, more than 280 employees in beijing and shenzhen city. The factory has developed a series of power supply, such as 1/16brick 50W, 1/8brick 100w, 1/4brick 100w, half brick 200w, brick 700w, and DLSP module power supply. Technology is already ahead of domestic and international peers.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
