Product Overview

Description

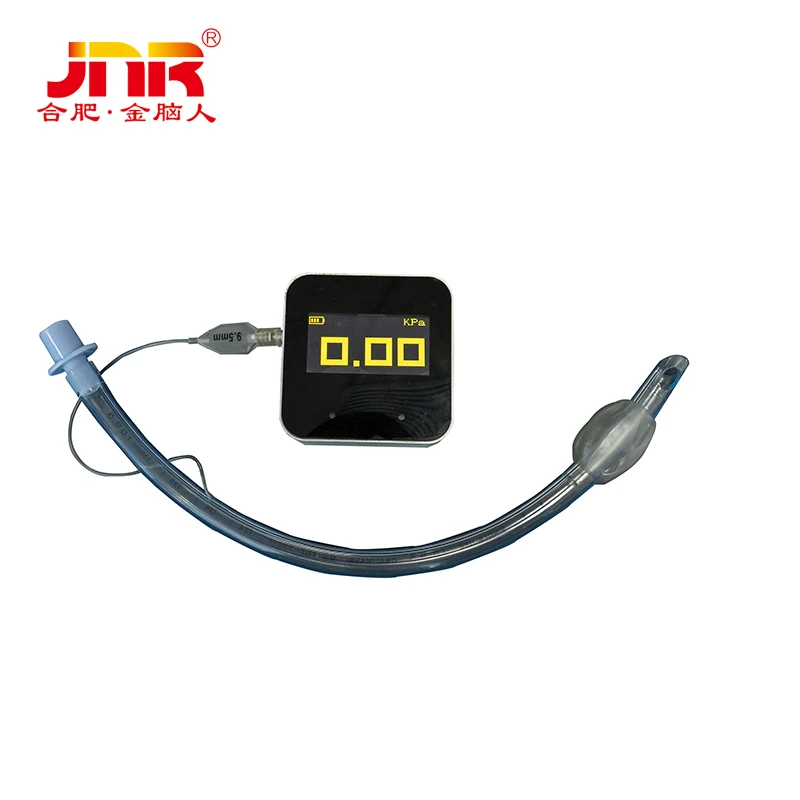

Multi-function intubated pressure gauge



operating manual





Brief



Currently, during anesthesia surgery, the inflating of endotracheal intubation is completed with the help of a syringe, there is no identification of the air pressure inside the air bag.



The multi-function intubated pressure gauge ,the accuracy of the display as well as the pre-defined pressure ranges help users to maintain the correct pressure with any kind of airway devices.



 The devices reduce the risk of pressure necrosis and mucosal ischemia. It can help preventing the risk of aspiration which can lead to the possibility of pneumonia.



The multi-function intubated pressure gauge not only displays the pressure inside the casing in real time, but also automatically fills the casing to the appropriate pressure value (0.8-1.2kpa),pump air with one key, the operation is simple and convenient.





Note



l  When starting up, it will be automatically calibrated. The calibration pressure is zero. Before starting up, the tube cannot be connected to the device.





l  After aeration, if need to disconnect the tube from the device, do not pinch the air bag of the tube and pull out the plug (it will cause the air bag pressure inside the animal's trachea to increase and damage the trachea).









Function and name

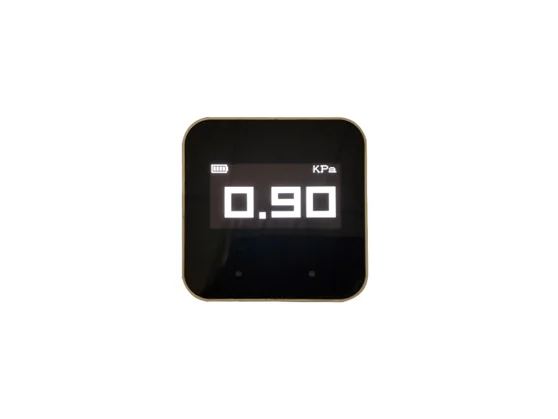

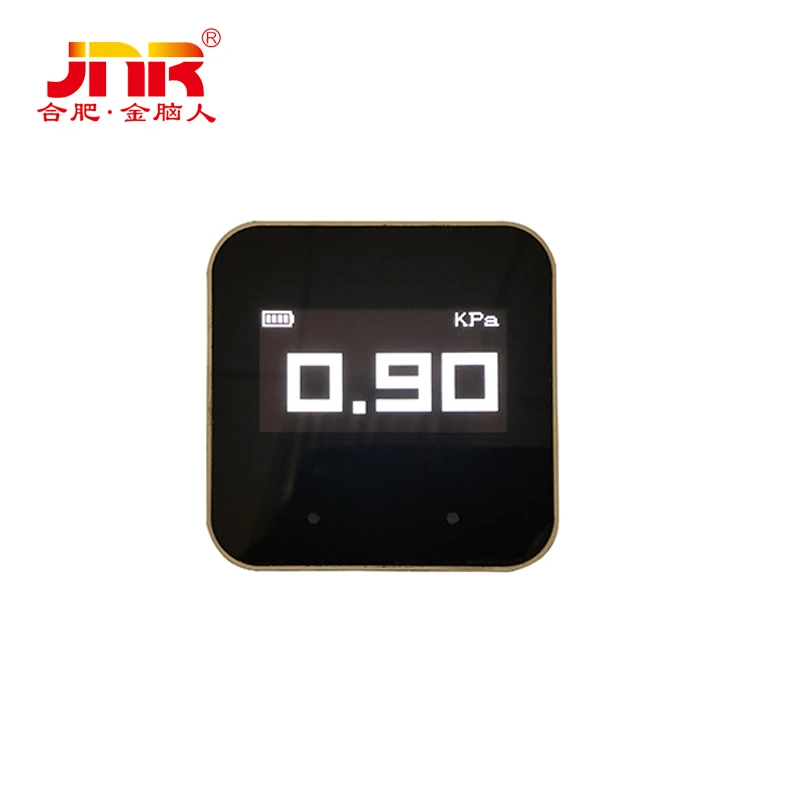

Front



Aeration: touching this position, the inflatable indicator light is on and the air pump starts to inflate.



Deflation: touching this position, the exhaust indicator light is on, and the air pump starts to exhaust.

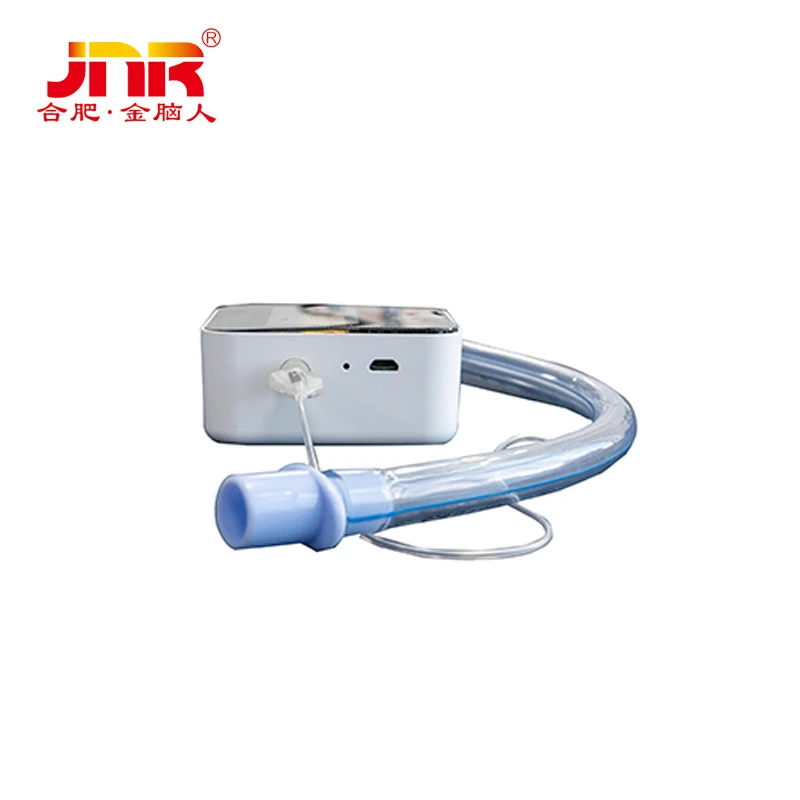

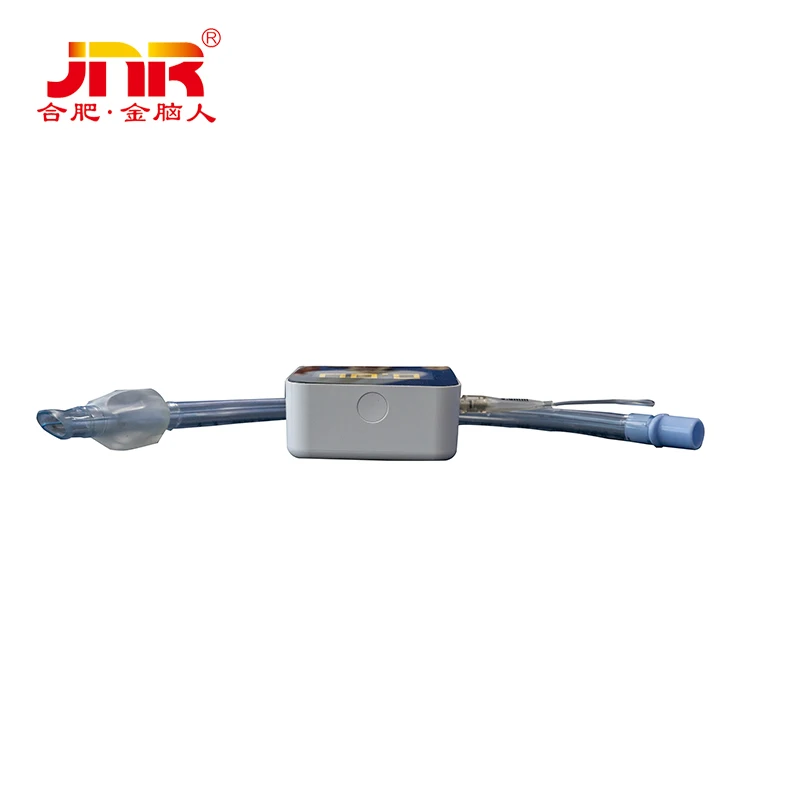

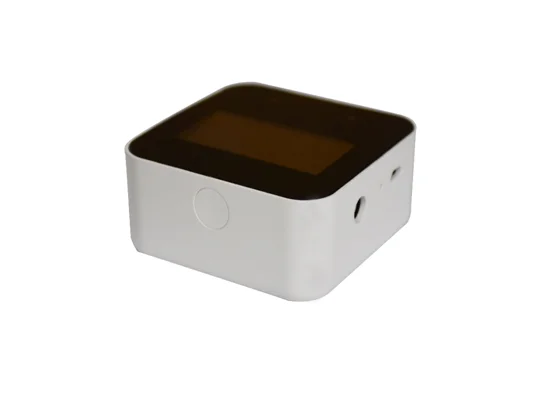

Side face



l  ON/OFF:Press 3 seconds

l  Charge connector:4.2V 0.2A Micro USB

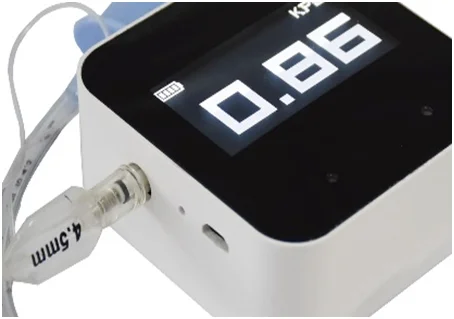

l  Tube connector





Operation



Aeration

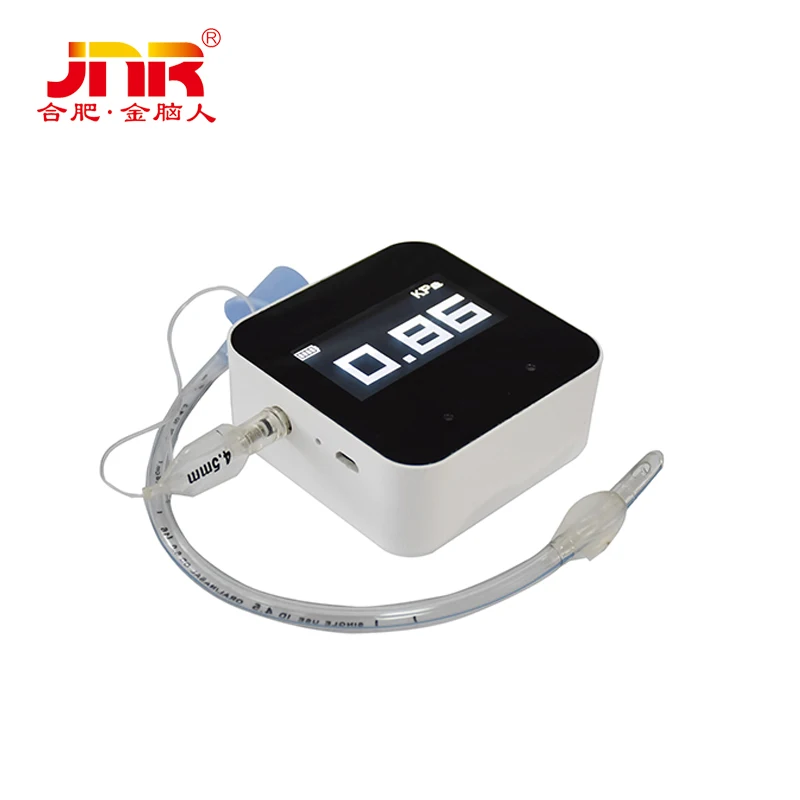

Insert the endotracheal intubation plug into the tube connector of the device and touch the aeration button. At this time, the inflatable indicator light is on and starts inflating. When the sound of a drop is heard, the aeration finished.

The inflating process is from fast to slow, the length of time is related to the size of the airbag.





Deflation

Touch the deflation button, and the air extraction indicator light will be on, when the sound of a drop is heard, it means that the tube can be pulled out .





Specification

Screen:2.42 inch OLED

Measuring range:±2.5KPa

Error range:±1.5%Span

Battery capacity:1000mAh

Input Voltage:4.2 V 0.2A

Size:77mm*77mm*34mm

Net weight:120g
