SDEKON ATH 20P Digital Spring Tester

Product Overview

Description

SDEKON ATH-20P Digital Spring Tester



1.Applications:

SDEKON ATH-P Series Digital Spring Extension Compression Testing Machine is used to test

amount of deformation and characteristic of load relation of extension and compression springs.

It can be applied to the testing of working load of extension and compression springs under

certain working length. Advanced and highly integrated chip microprocessor is adopted by this

machine, which also has liquid crystal display (English) and metal enclosure.

The interference-killing feature of the system is thus greatly improved.



2.Main Specification:

Model	ATH-10P	ATH-20P	ATH-30P
Max. Test Load	10 N	20 N	30 N
Min. Resolution	0.001 N
	0.0001 Kg
	0.0001 Lb
Length Of Travel Of Displacement Scale	60 mm
Division Value Of Displacement Scale	0.01 mm
Platen Diameter	34 mm
Max. Free Length Of Measurable Spring	80 mm
Indication Error	±1%
Working Temperature	20±10℃

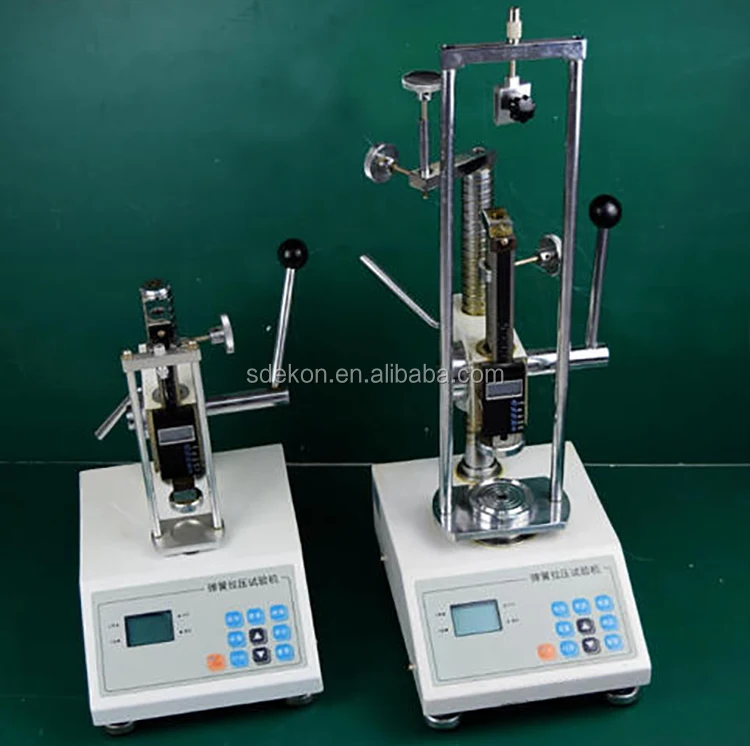

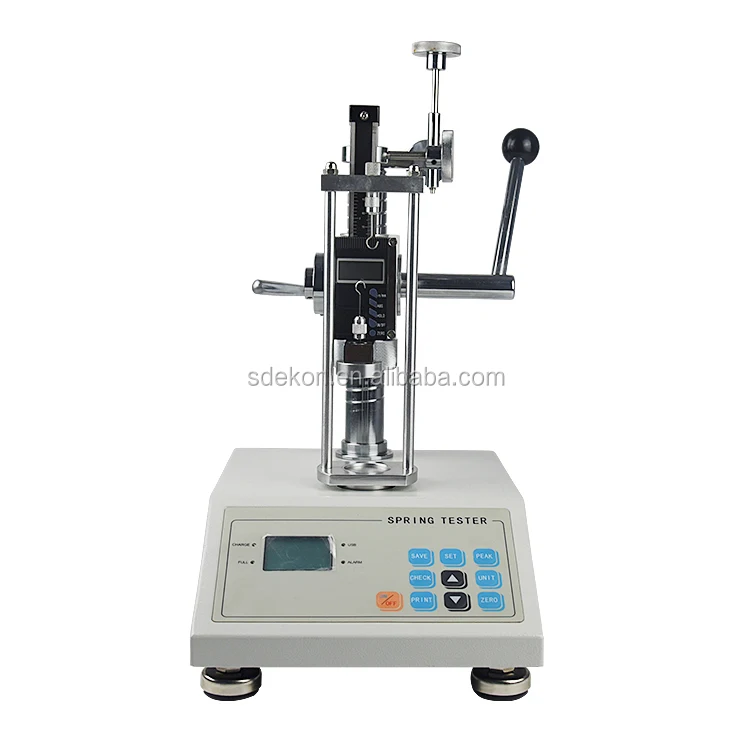

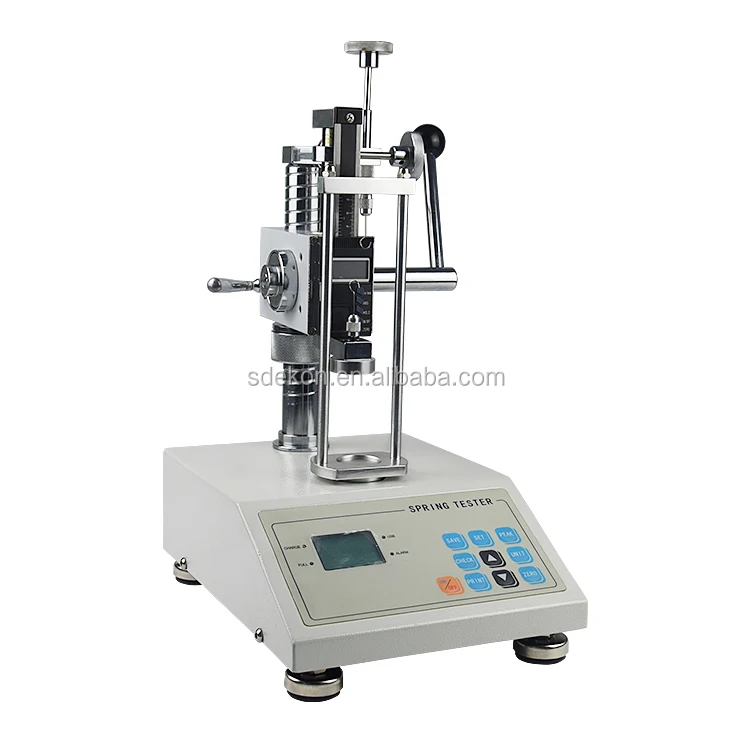

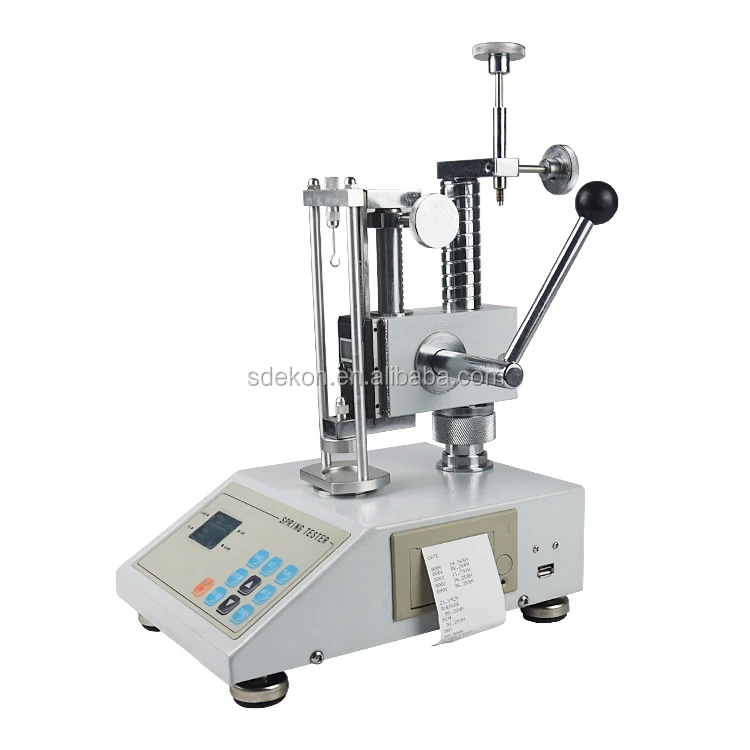

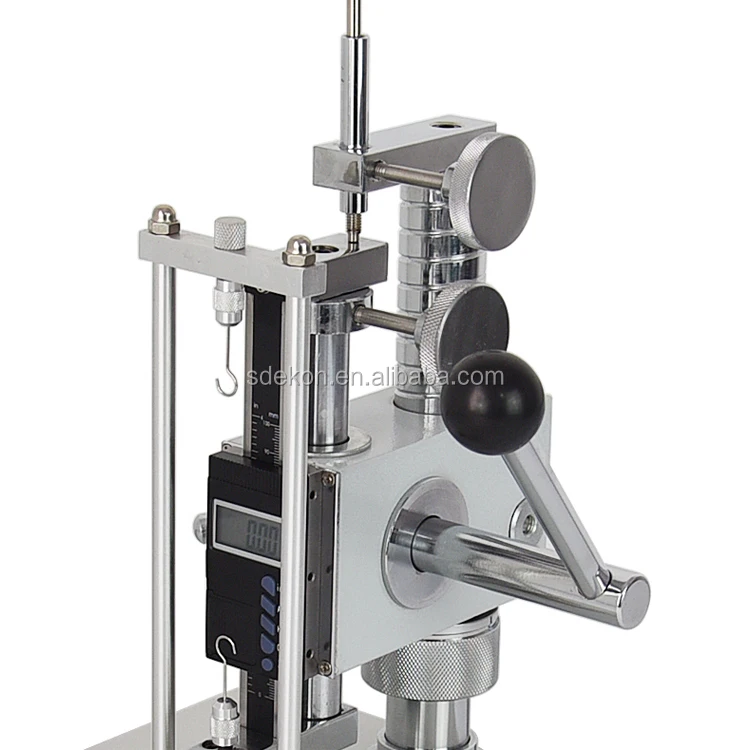

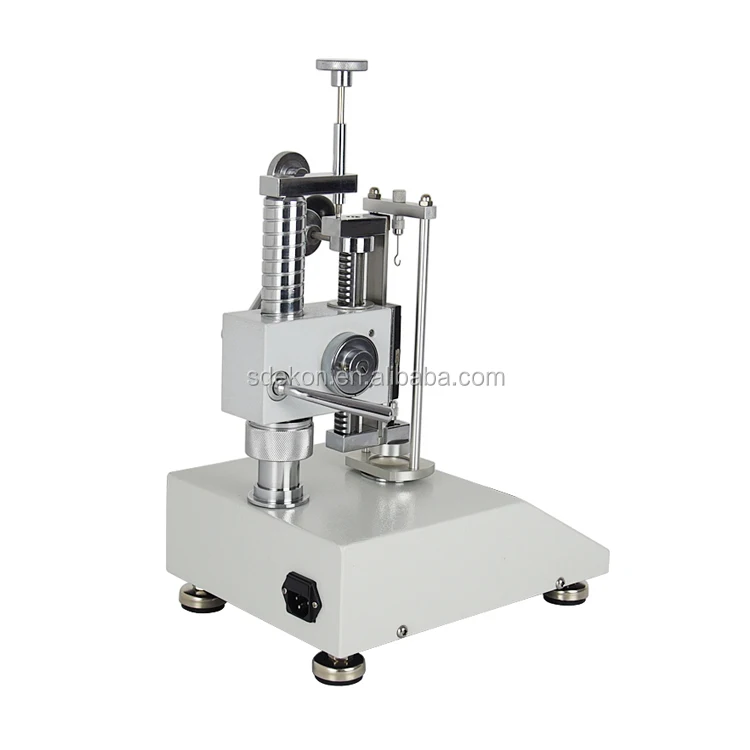

3.Product Physical Pictures:
