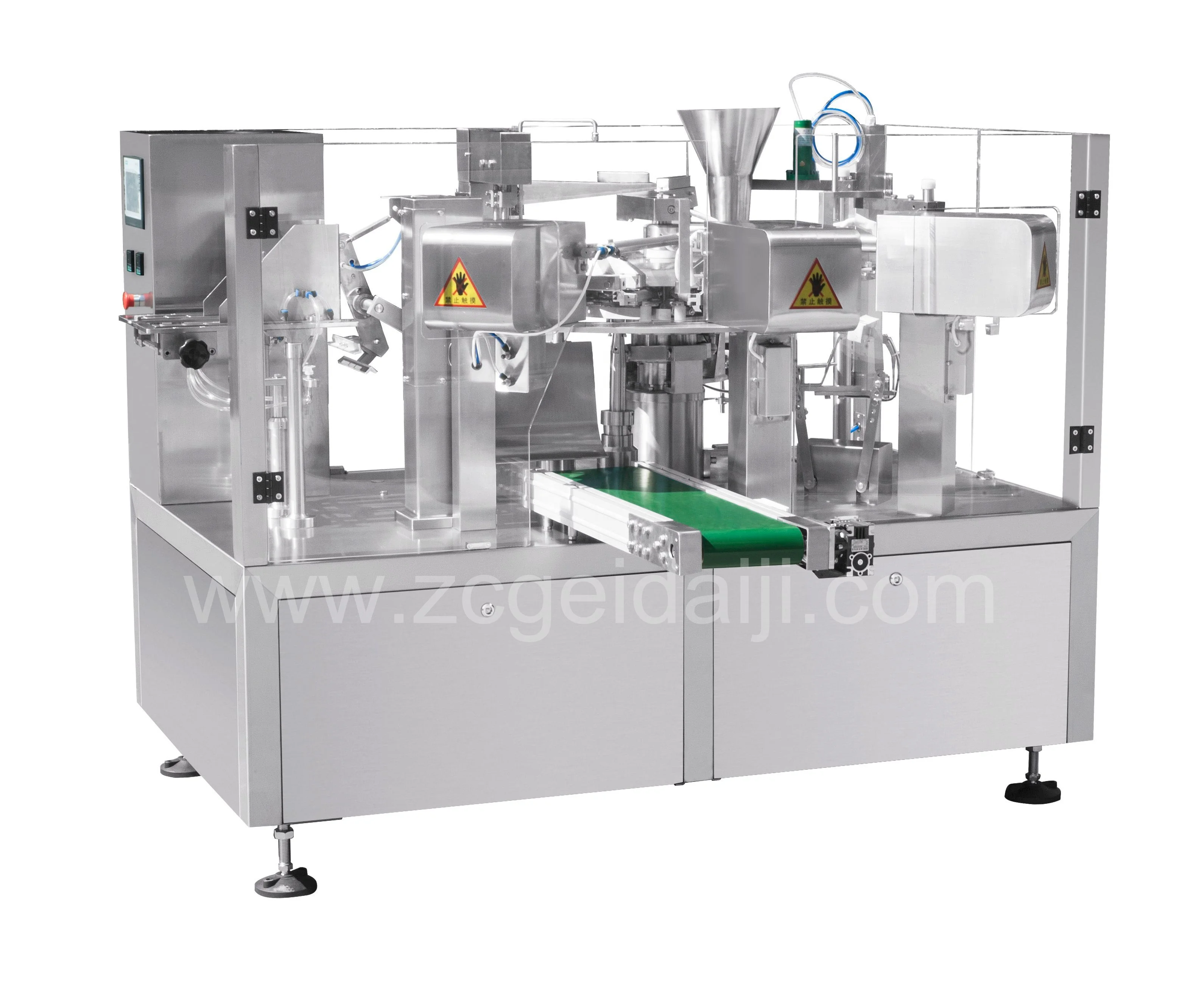

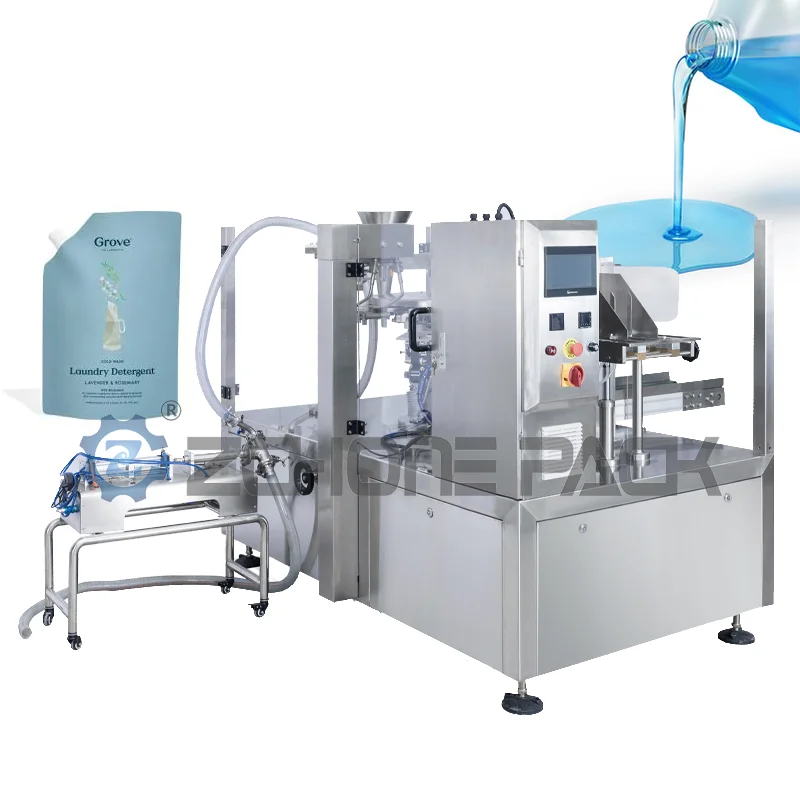

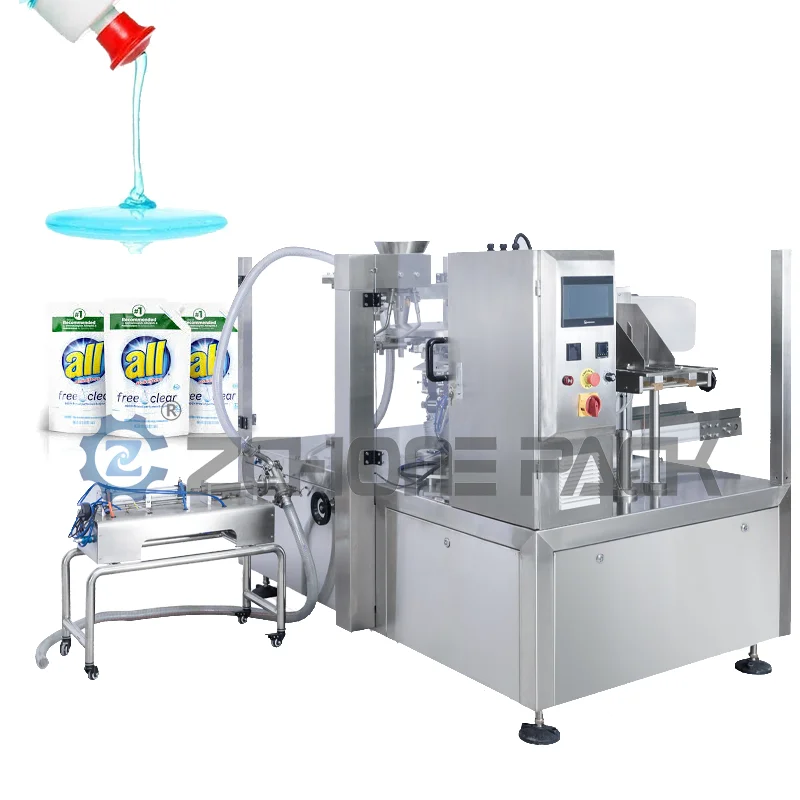

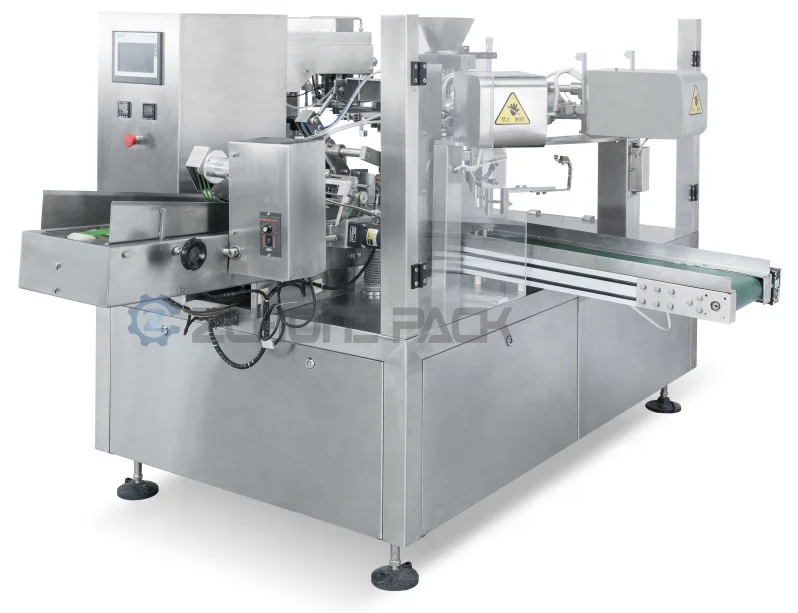

Full Automatic Fruit Juice /Milk/Water/Ketchup Sachet Liquid Packaging Machine Spices Packing Machine
- Category: >>>
- Supplier: Foshan Zhengchang Machinery Equipment Co. Ltd.
Share on (62377219365):
Product Overview
Description
Features
1.Automatic Diagnosis and Alarm System
2.SUS 304
3.IP65 & Dustproof
4.No Manual Work Required
5.Stable Production
6.Speed Adjustment
7.Wide Range of Packing
8.Touch Screen with PLC
Specification
Item | ZC-8200 | ZC-8250 | ZC-8300 | ||
Packing Speed | Max 60 bags / min | ||||
Bag size | L100-300mm | L100-350mm | L150-450mm | ||
W70-200mm | W130-250mm | W200-300mm | |||
Bag Type | Pre-made bags, Stand up bag, Three or Four-side sealed bag, Special-shaped bag | ||||
Weighing Range | 10g~1kg | 10~2kg | 10g~3kg | ||
Measurement Accuracy | ≤±0.5 ~ 1.0%，depend on the measurement equipment and materials | ||||
Maximem bag width | 200mm | 250mm | 300mm | ||
Gas consumption | 0.8Mpa 0.3m³/min | ||||
Total power/ voltage | 1.5kw 380v 50/60hz | 1.8kw 380v 50/60hz | 2kw 380v 50/60hz | ||
Air compressor | Not less than 1 CBM | ||||
Dimension | L1900*W1400*H1450mm | L2000*W1500*H1550 | |||
Machine Weight | 1300kg | 1500kg | |||
Complete system
Liquid Pump
Pneumatic liquid filling machine is driven by electricity and air compressor, is suitable for filling good liquidity products, such as water, oil, beverage, juice, drink, oil, shampoo, perfume,sauce, honey etc, widely applied to food, commodity, cosmetic,medicine, agriculture etc.

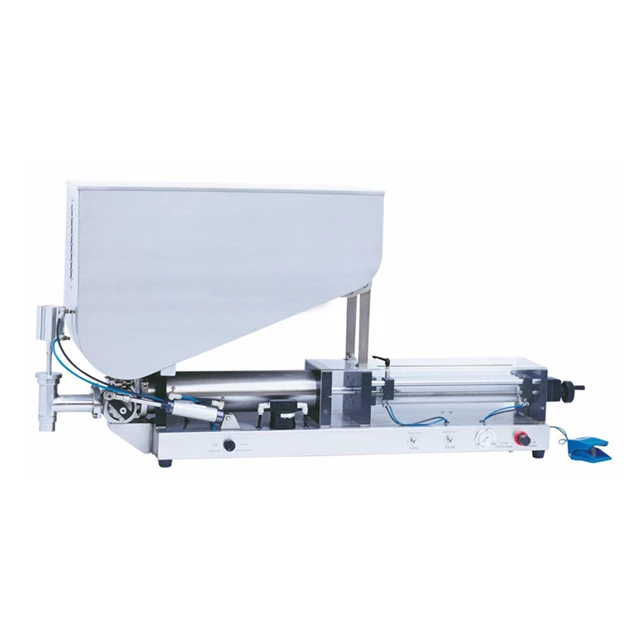

Paste Pump
The filling machine is used for quantitative dispensing of pharmaceutical liquids, refreshing drinks, cosmetics, etc. The whole
machine is made of high quality stainless steel, and the shape is novel and beautiful.
machine is made of high quality stainless steel, and the shape is novel and beautiful.
Rotary table
The conveyor is applicable for transferring bag from take off conveyor. 304SS materials , diameter 1200mm, we can make this machine according to your requirement.
Packing Solution
The Filling System is Just for Your Reference.We Will Offer You the Best Solution According to Your Product Mobility, Viscosity,Density, Volume, Dimensions, Etc.
Liquid Packing Solution —— Piston Pump Filller Is Specialized for Liquid Filling Such as Water, Juice, Laundry Detergent, Ketchup, Etc.
Solid Packing Solution —— Combination Multi-head Weigher Is Specialized for Solid Filling Such as Candy, Nuts, Pasta,
Dried Fruit, Vegetable, Etc.
Granule Pack Solution —— Volumetric Cup Fillier Is Specialized for Granule Filling Such as Chemial, Beans, Salt, Seasoning, Etc.
