Light steel main channel making iron door frame forming machinery

Share on (62377234151):


Price:RUB 535,571.40 - RUB 841,612.20

Quantity:


Product Overview

Description

1
material of input sheet
galvanized steel
2
medium plate
Arch style
3
material thickness
1.0-1.2mm
4
main motor power
7.5kw servo motor
5
hydraulic pump power
5.5kw
6
forming step
18steps
7
diameter of shaft
50mm
8
main frame
welding by steel box
9
roller material
Cr12 steel with chrome
10
cutting knives material
Cr12
11
control system
PLC control system with inverter
12
working speed
8-10m/min
13
machine size
5.5*1.0*1.3m
14
machine weight
about 4.0 tons
15
voltage
380v 3phase 50hz

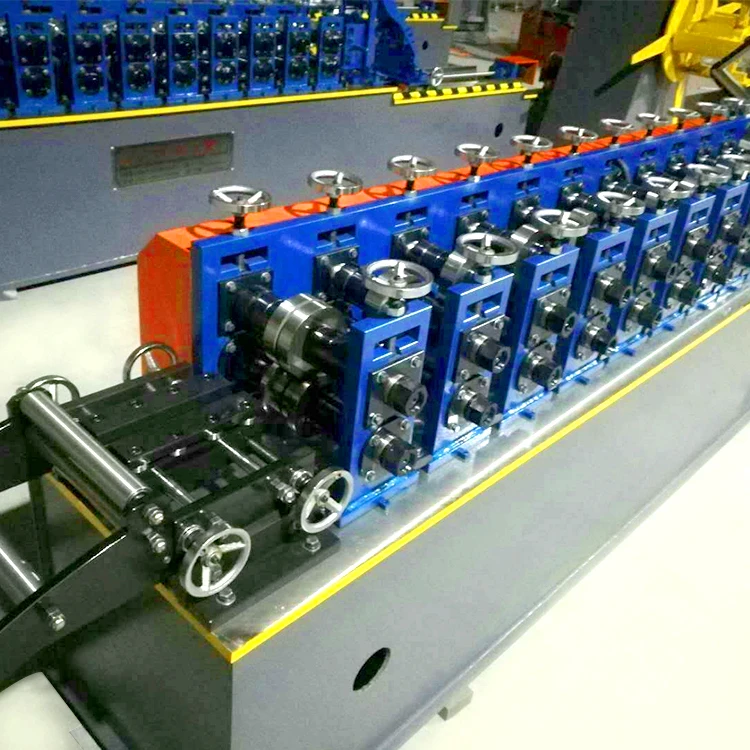

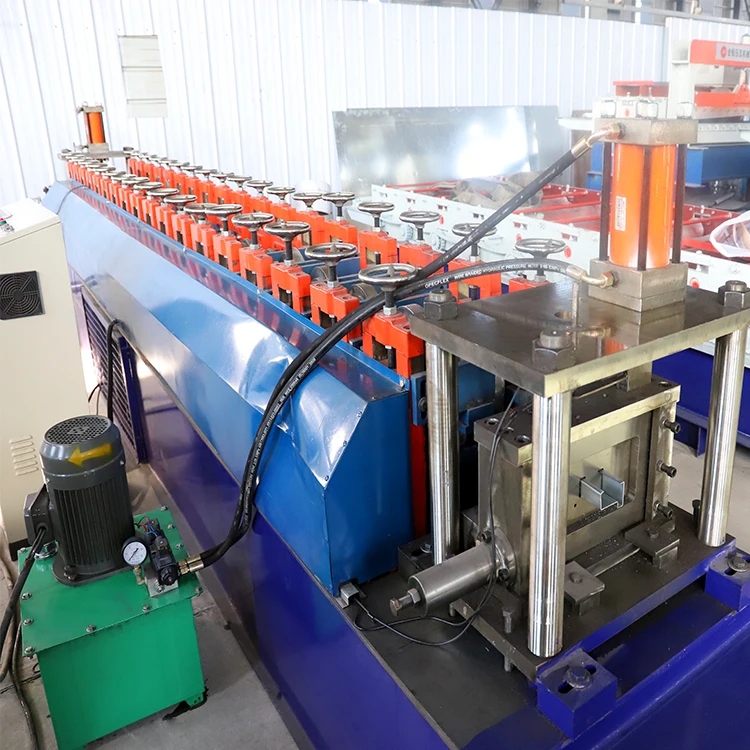

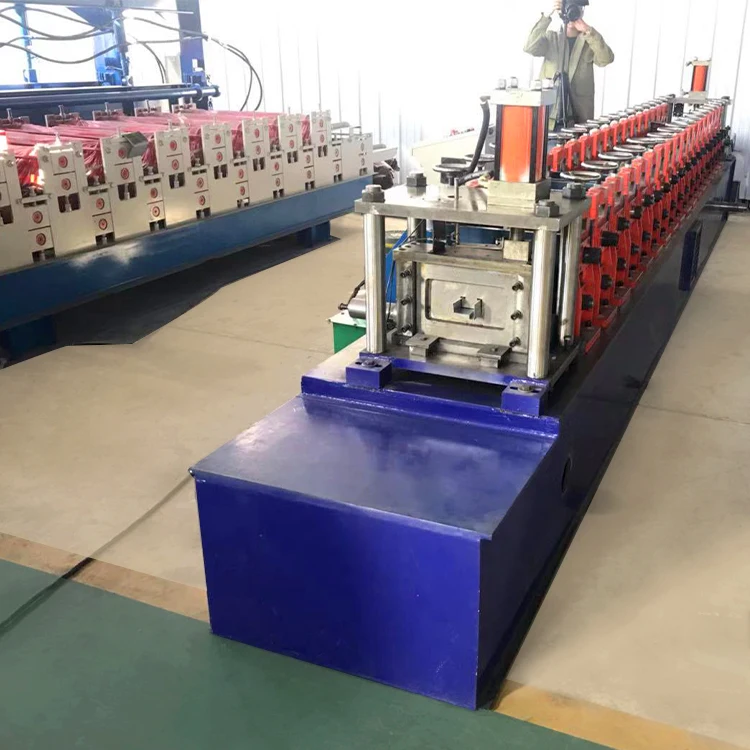

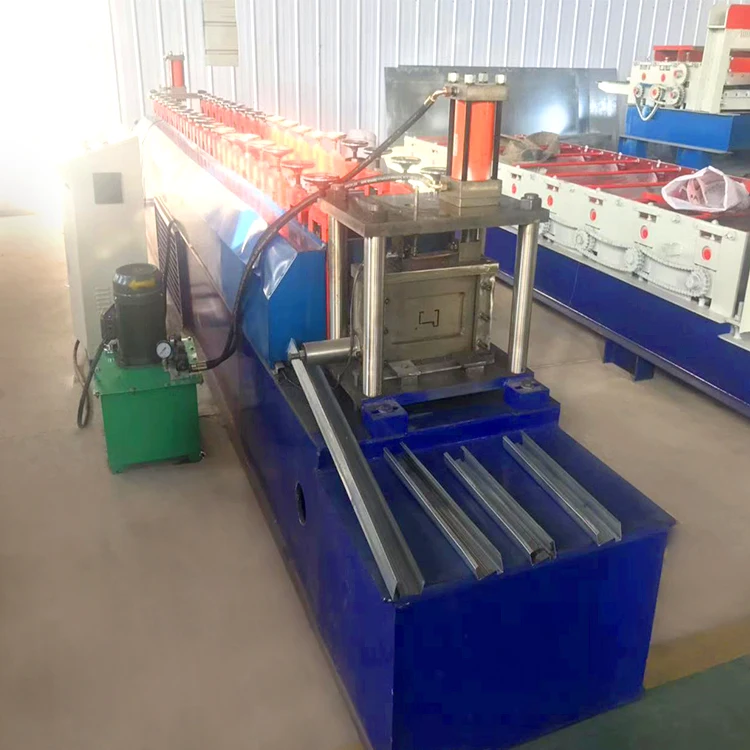

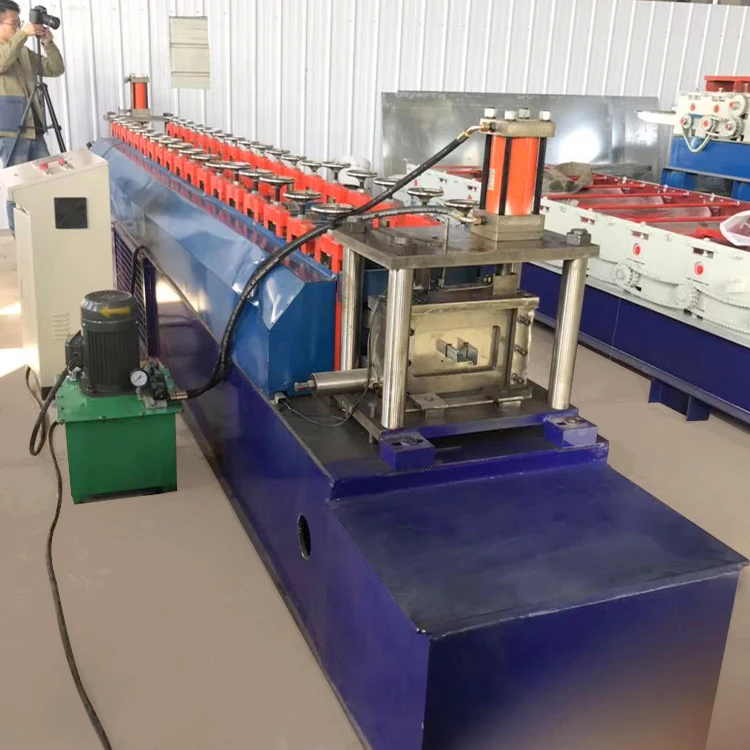

      Automatic steel door frame roll forming machine can make various types metal door or window frames, reinforced, fire stop doors,
etc by roll forming method. The steel door frame roll forming machineis a complete product line. After roll forming by our
production line, we could make very smooth and beautiful steel door frame without any scratch on surface. This steel door frame
production line is composed by the following elements: De-coiler, feed & leveling device, main roll forming machine, cutter,
run-out table, etc. Those machines are customized according to the drawing profile.

Company Introduction
Packing&Shipping
Related Products
After Sales Service
 1. Warranty: One year, and we will provide technical support for whole life of the equipment.
 2. Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technician face to face.Without visiting,we will send you user manual and video to teach you how to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
FAQ
1. Q: What is the MOQ?
A: 1 set.
2. Q: What is the Delivery time?
A: Within 25 workdays.
3. Q: What is the Payment terms you can accept?
A: T/T or L/C.30% deposit,and before shipped we hope to receive the balance 70%.Also 100% L/C is accepted.
4. Q: What is the Warranty?
A: Within 12 mounts,all of the technical personnel are ready to serve you at any time.
