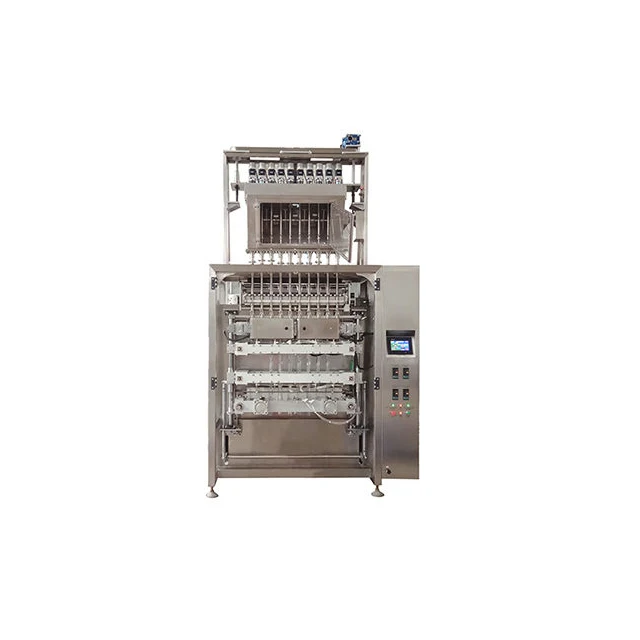

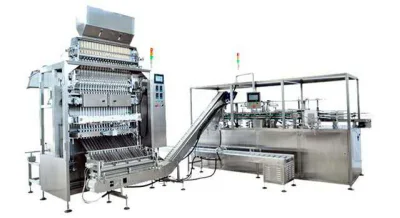

Automatic multilane 3 in 1 coffee instant coffee stick packing machine
- Category: Multi-Function Packaging Machines >>>
- Supplier: Wuhan Global Exchange Import And Export Limited
Share on (62377246108):
Product Overview
Description
APPLICATION
This machine is applicable for dosing powder and sealing in form of stick, with back sealing style, include the stick forming, product dosing, filling and stick sealing processes, In different patterns of sealing, and flat, zigzag cutting or other irregular shape punching.
Application Pouches | Back Sealing Stick, Irregular Stick |
Application Products | Milk Powder, Rice Flour, Protein Powder, Powdery Drugs, Powder Additives, Glucose, Dyeing Ingredients, Flavors, Spices |
TECHNICAL SPECIFICATION
Type 4W-xxx | 280FB | 480FB | 880FB |
Dosing Method | Servo Auger | Servo Auger | Servo Auger |
Packaging Speed | 35-60 sticks/min/lane | 35-60 sticks /min/lane | 35-60 sticks /min/lane |
Max film width | 280 mm | 480 mm | 880 mm |
Lanes | 3-7 lines | 5-12 lines | 5-12 lines |
Filling Accuracy | +/- 0.3-1% | +/- 0.3-1% | +/- 0.3-1% |
Filling Range | 1-50 g | 1-50 g | 1-50 g |
App Air Supply | 0.3 CBM/min, 0.6 Mpa | 0.4 CBM/min, 0.6 Mpa | 0.6 CBM/min, 0.6 Mpa |
Power Consumption | 2.7 kw | 3.3 kw | 3.6 kw |
Power Supply | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz | 380 V /3 Phases/ 50 Hz |

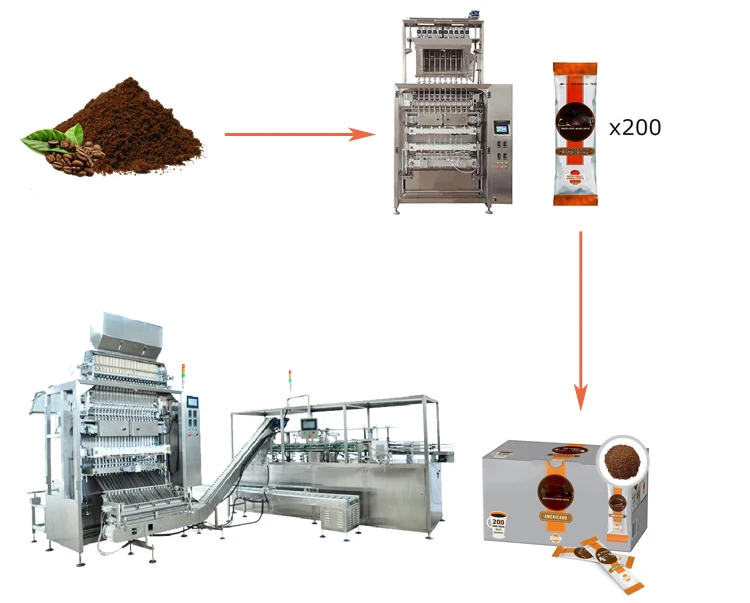

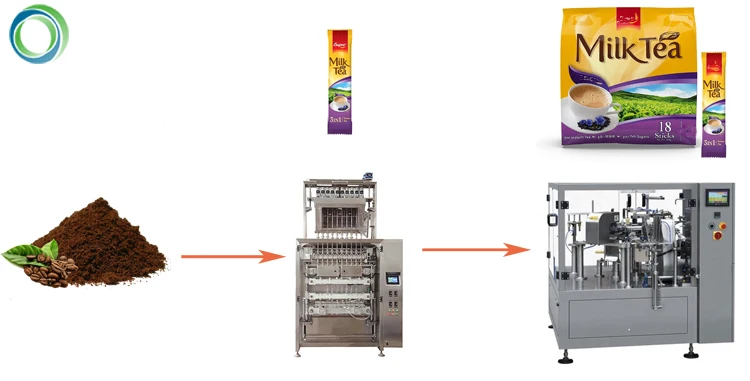

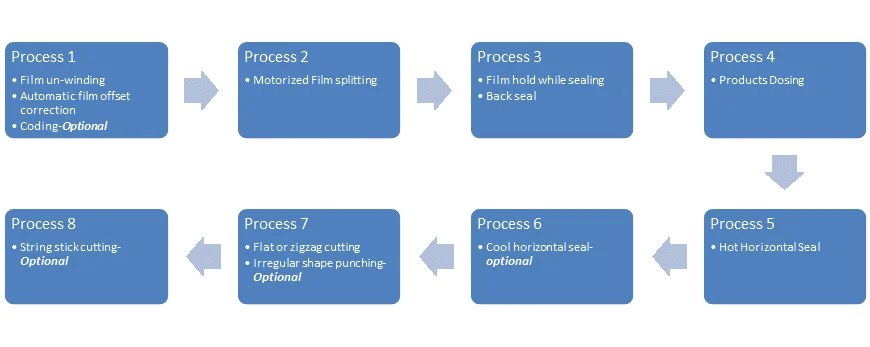

WORKING PROCESSES

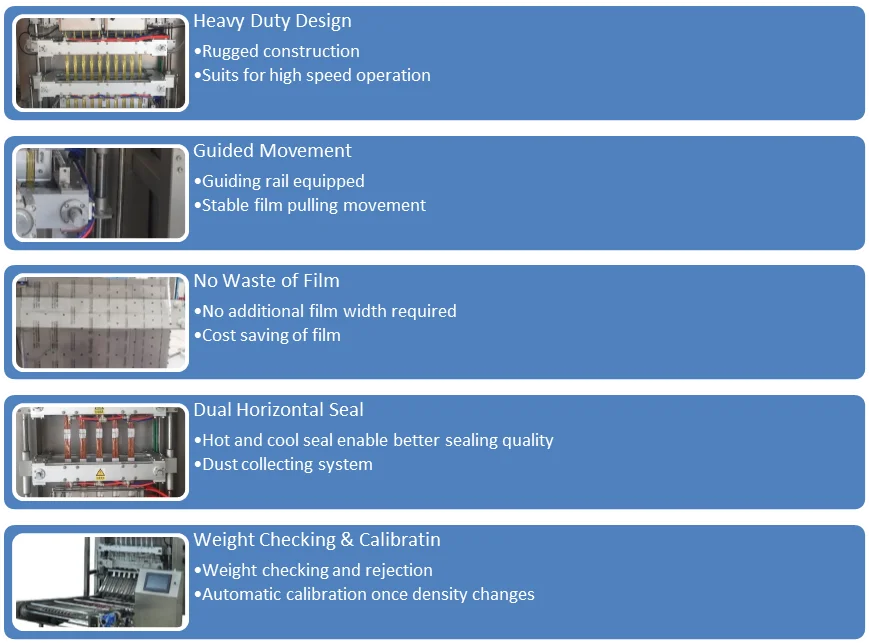

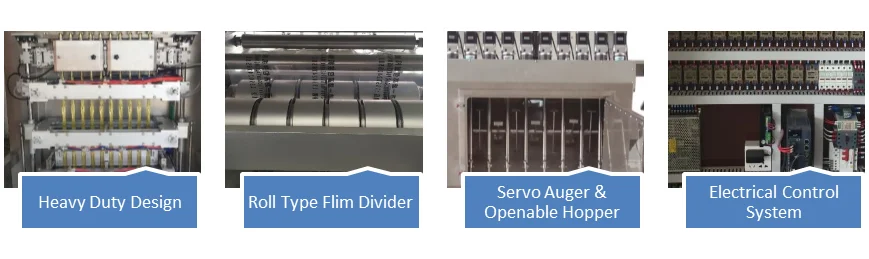

FEATURES

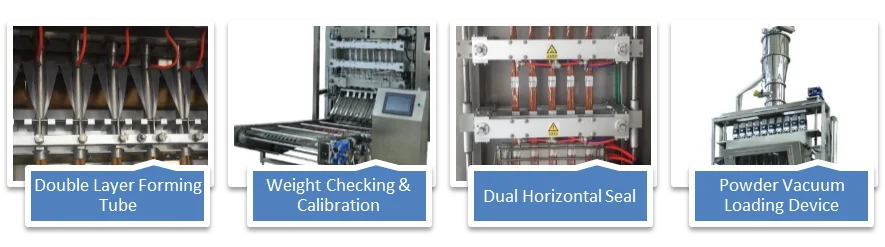

ADVANTAGES

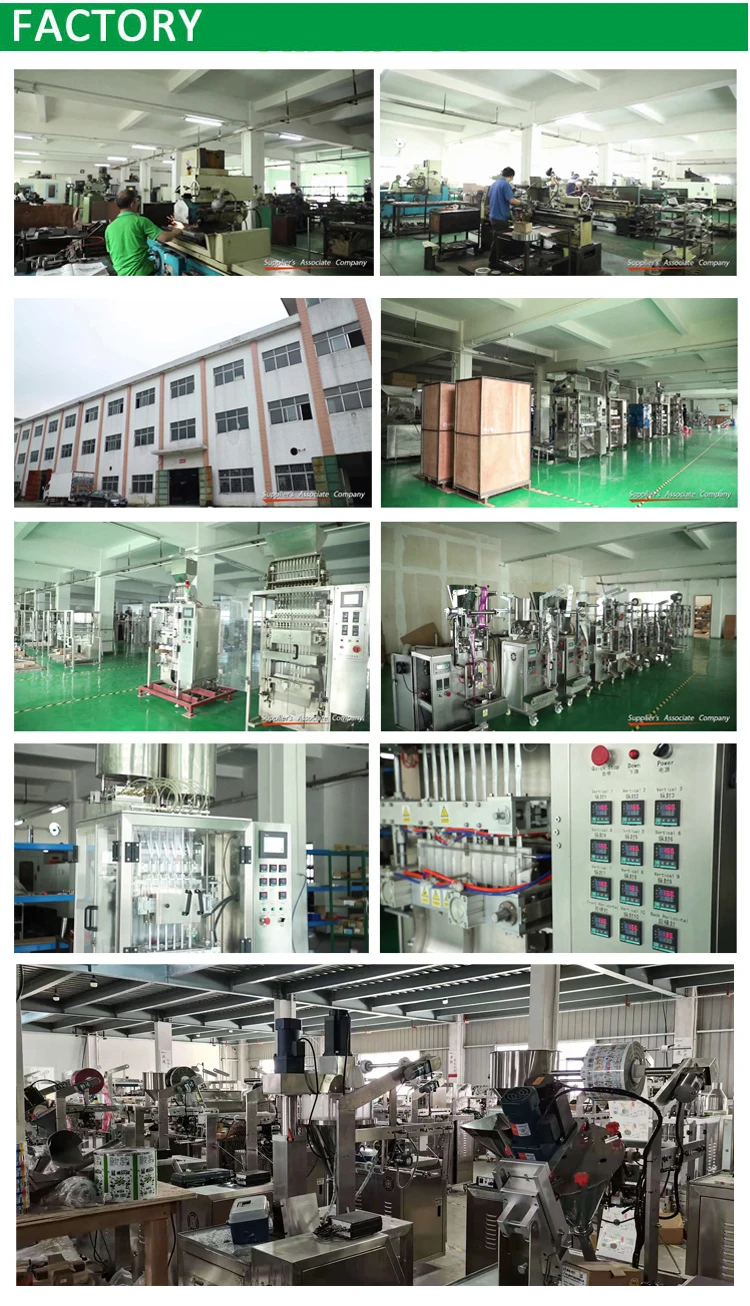

COMPANY INFORMATION
