FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr
FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr
FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr
FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr
FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr
FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr
FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr

FL & OEM 3G 4g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr

Share on:


Price:$480.00 - $495.00
Price in USD:Details

Quantity:


Product Overview

Description



Products Description


H265 Hard Disk Model All In One Device(MDVR+VPC)
1. Video surveillance and people counting are combined in a device.
2. People counter:
1) high precision counts (> 97%).
2) Binocular 3D stereo vision cameras.
3. Mobile DVR:
1) 1080P video resolution (1920X1080).
2) Can be integrated with external devices through RS232 and RS485.

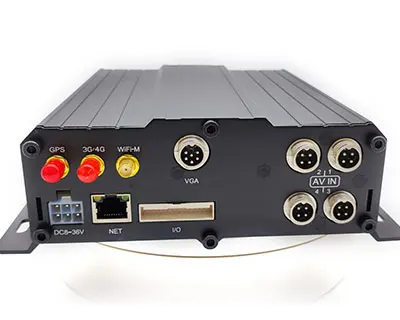

H265 Hard Disk Model All In One Device(MDVR+VPC)
FL & OEM 3G 5g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr

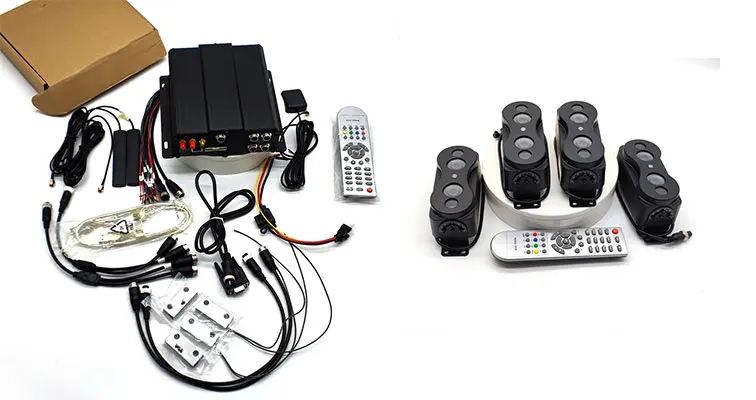

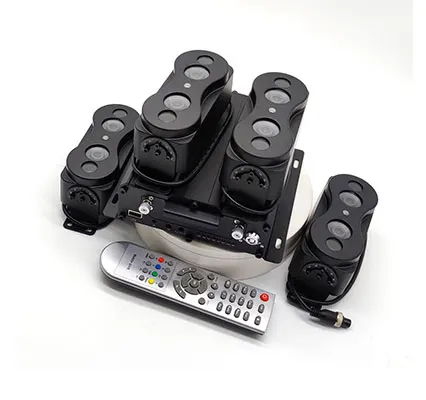

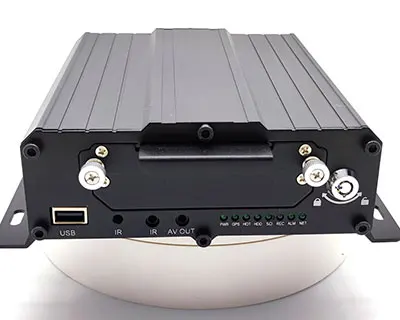

Details Images




FL & OEM 3G 5g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr


Product Advantages


1.The original Haith chip
Further Video Recorder, each of which uses the original industrial-grade Heise chip, can ensure stable operation in the severe cold and heat environment.
2. Support screen switching
Supporting reverse screenenlargement, four-way video switching, providing technical support.


3. Wide Voltage Design
Vehicle broadband power supply can work steadily in the range of DC8V-36V voltage.
4. Humanized USB Interface
Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

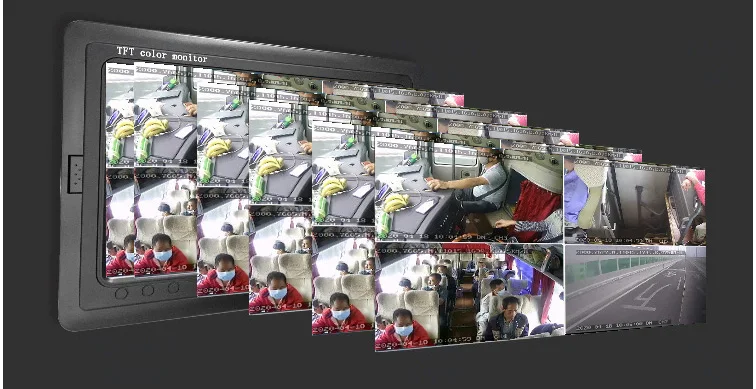

Monitor screen
FL & OEM 3G 5g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr


Four-channel simultaneous recording, smooth picture quality
Support parallel preview and return visit of different channels under multi-screen splitting


Loop recording, automatic coverage
When it detects that the hard disk space is insufficient, the system intelligently deletes the early unlocked screens, without manual operation, you can cycle the recording

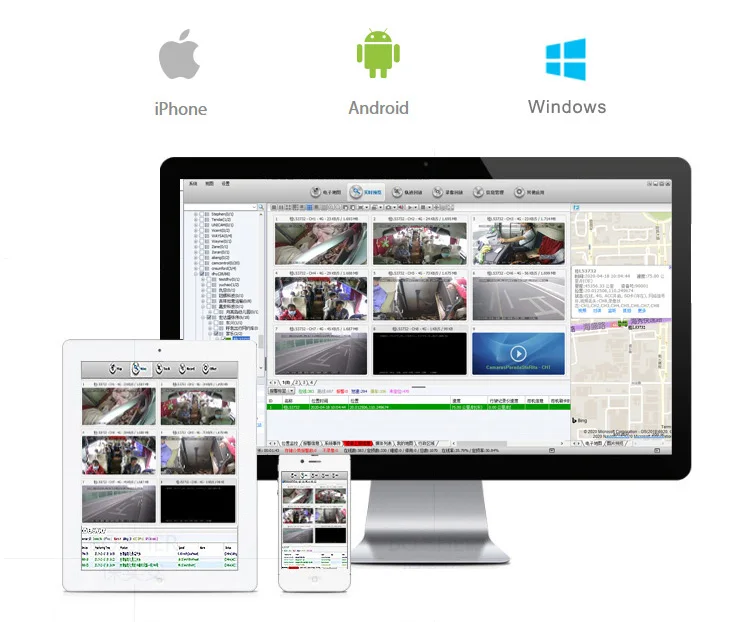

3G/4G remote real-time monitoring
Insert a 3G/4G phone card, download the client, you can support multi-device terminal viewing, real-time sharing, remote download,real-time video you want to watch


GPS (Beidou) positioning
Carrying out vehicle positioning through GPS, knowing the location and driving trajectory of the vehicle, realizing the real-time scheduling of the vehicle and improving efficiency

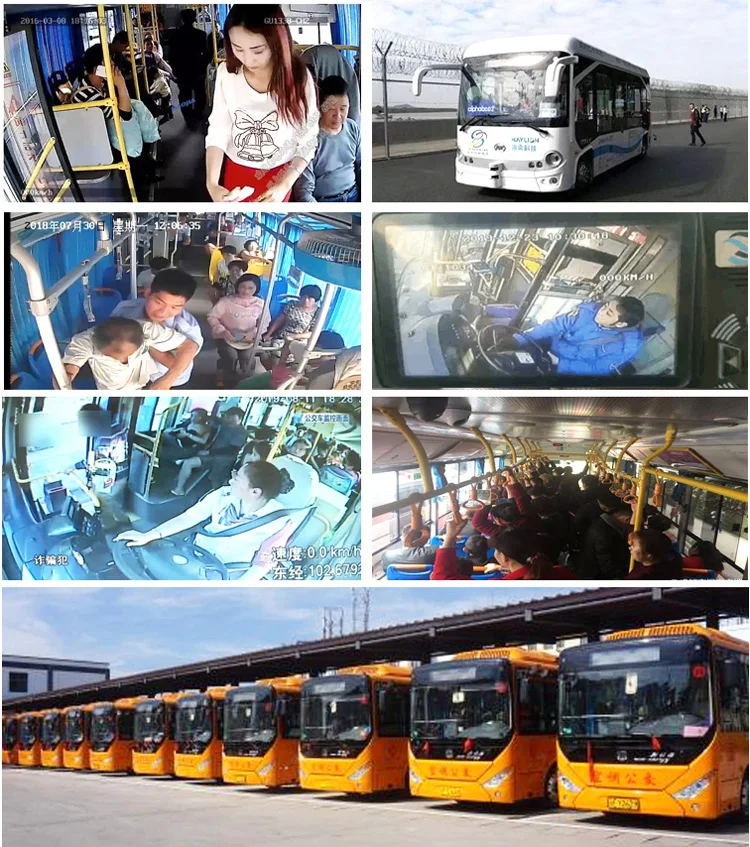

Suitable for a variety of models
Bus ,Coach ,School Bus, Truck ,Tanker, Harvester

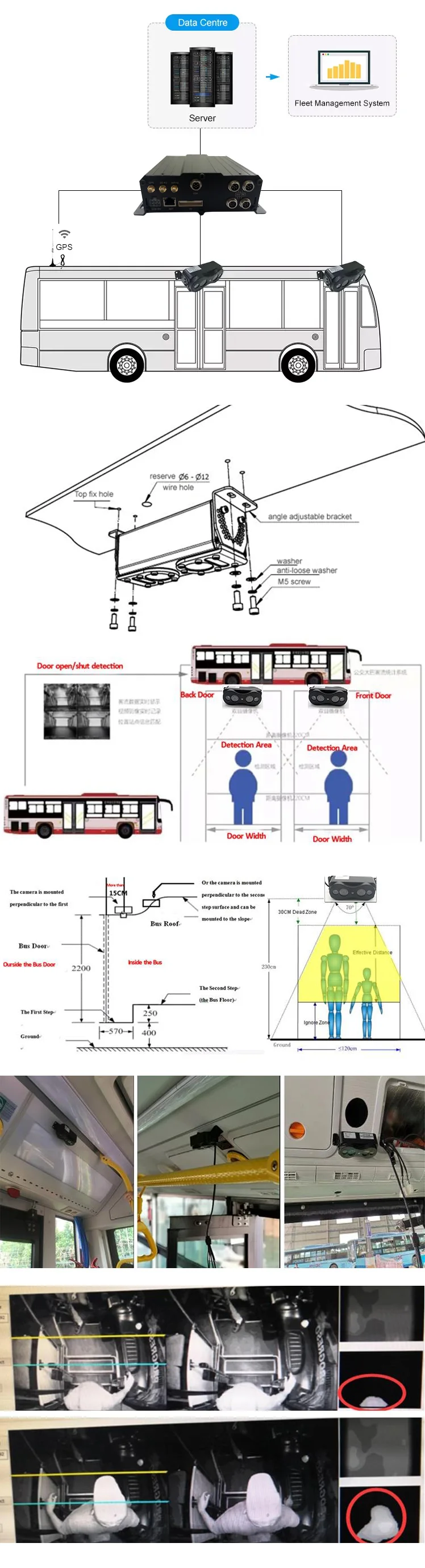

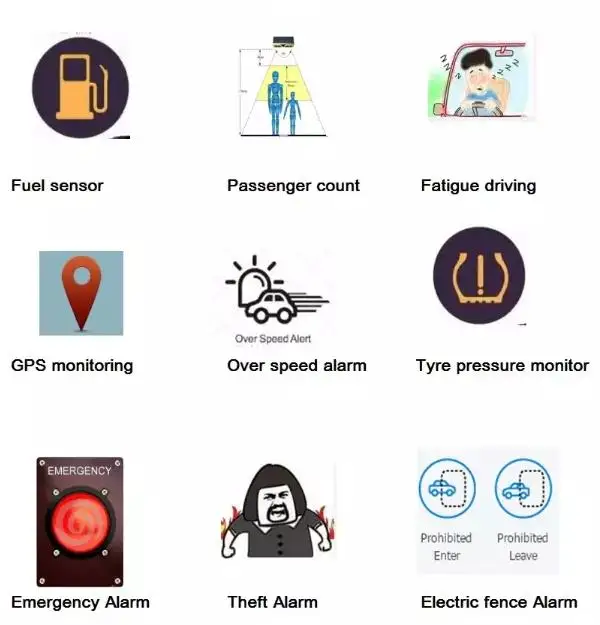

Vehicle Survilliance Solutions
FL & OEM 3G 5g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr

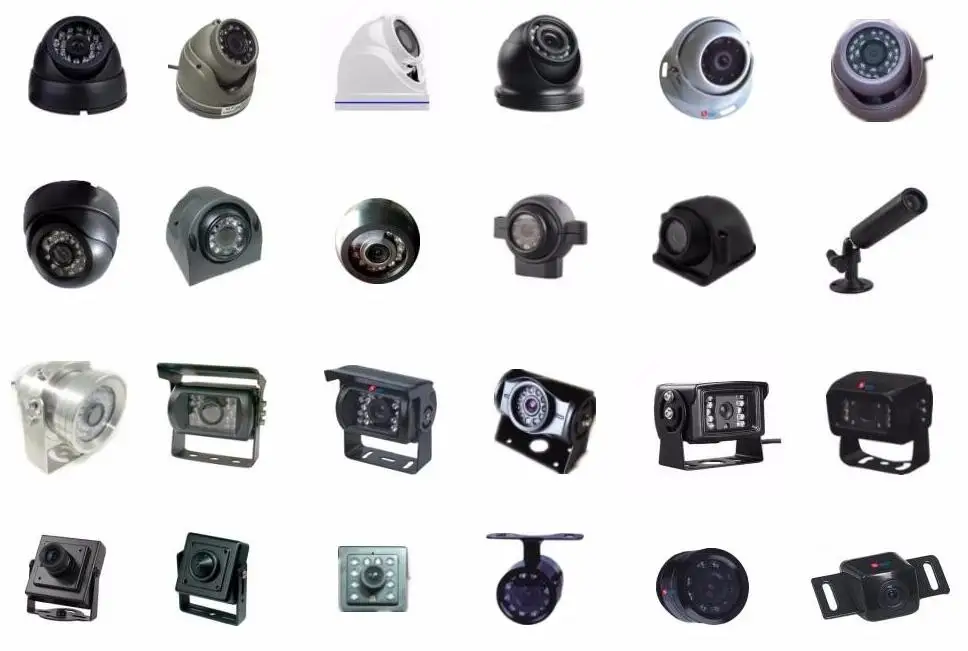

Cameras for mobile dvr(optional)
FL & OEM 3G 5g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr


Company
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D,
manutactur-ing and marketing SD card Mobile DVR, hard drive DVR, 3G/4G/GPS/GPRS/WIFI
Mobile DVR/NVR,.GPS tracker and CCTV camera, which is the best manufacturer specialized
in vehicle security productsin China.
In China and abroad, we have won a good reputation and had many success stories. In China,
morethan 2000 transport companies choose our products. Our products are made to meet
safety standardssuch as CE, FCC and RoHS.
With more than 10 years of OEM ODM experience, our manufacturing has sucessfull supported
name brands worldwide with quality productswith a strong R&D capability and our qualifed
products havebeen exported all over the world covering Asia, North &South America, Europe,
Oceania, Middle Eastcountries.

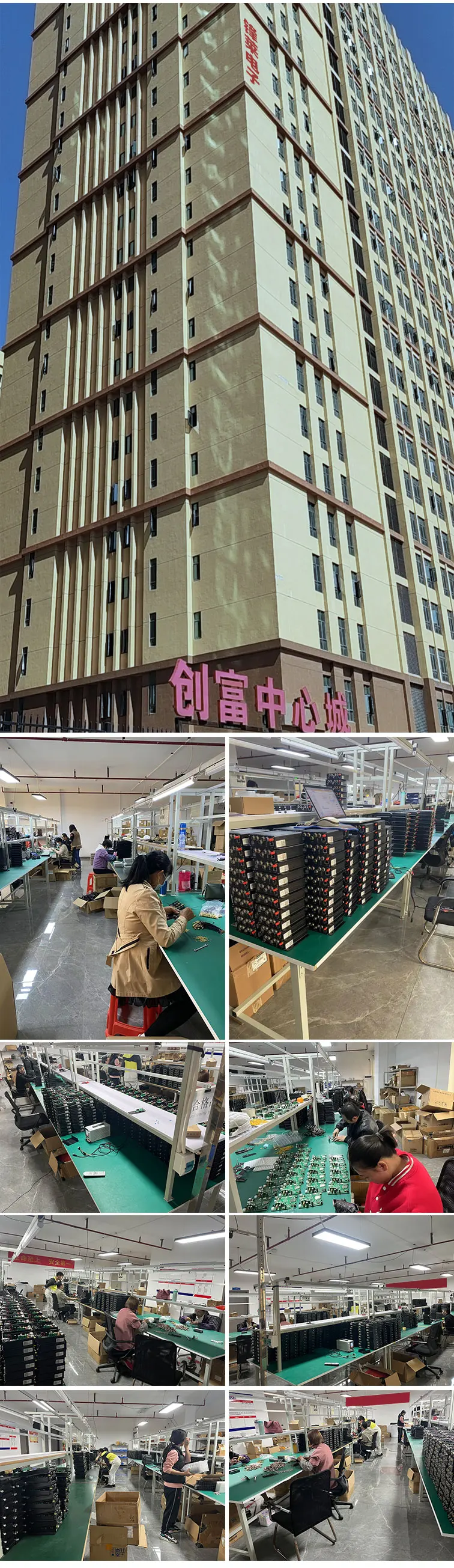

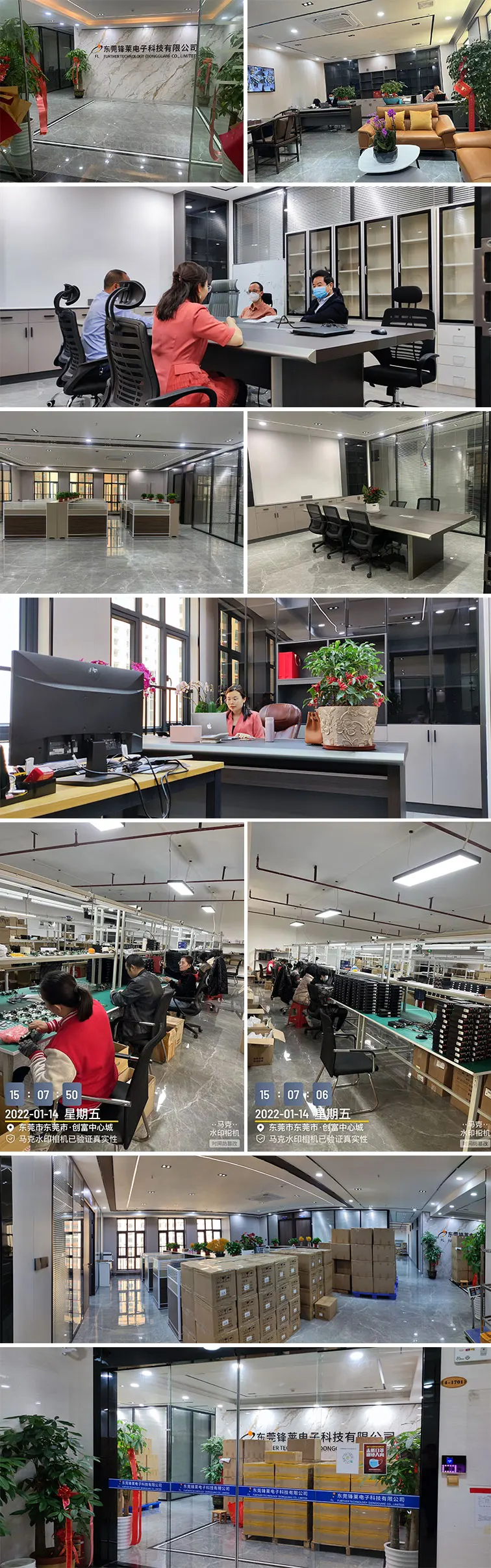

Manufacturing Technique
FL & OEM 3G 5g GPS Mobile DVR 1080P Local Storage Truck Surveillance Remote Platform H.265 4CH 4G Mini School Bus Vehicle Mdvr

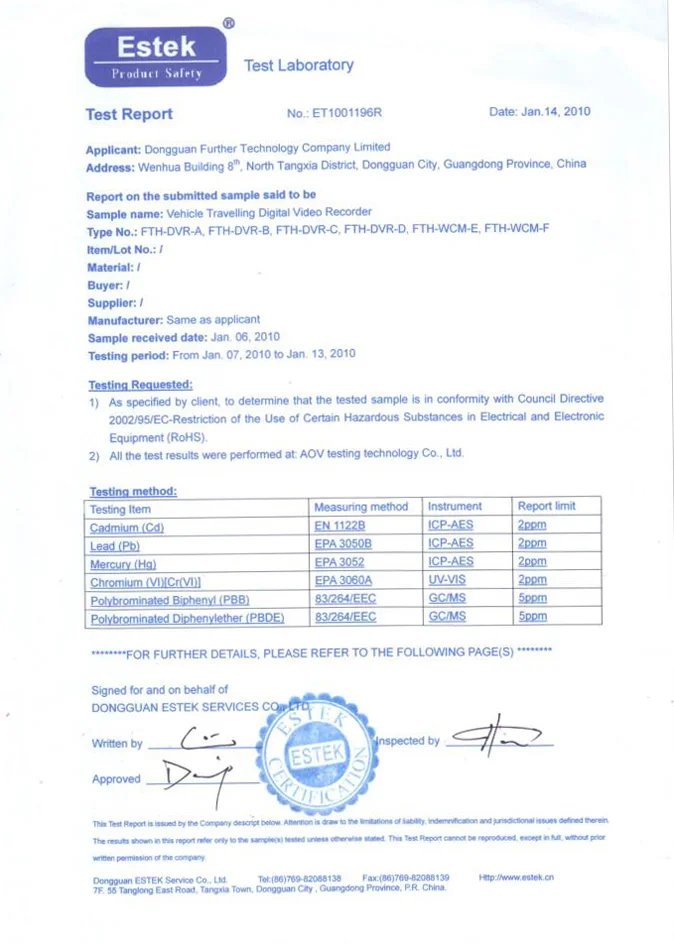

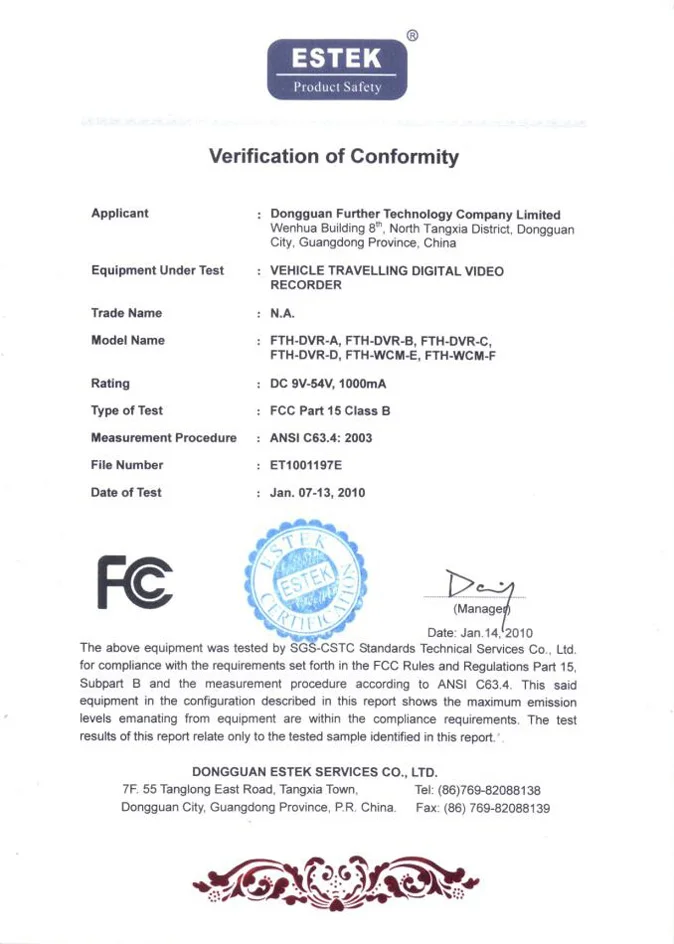

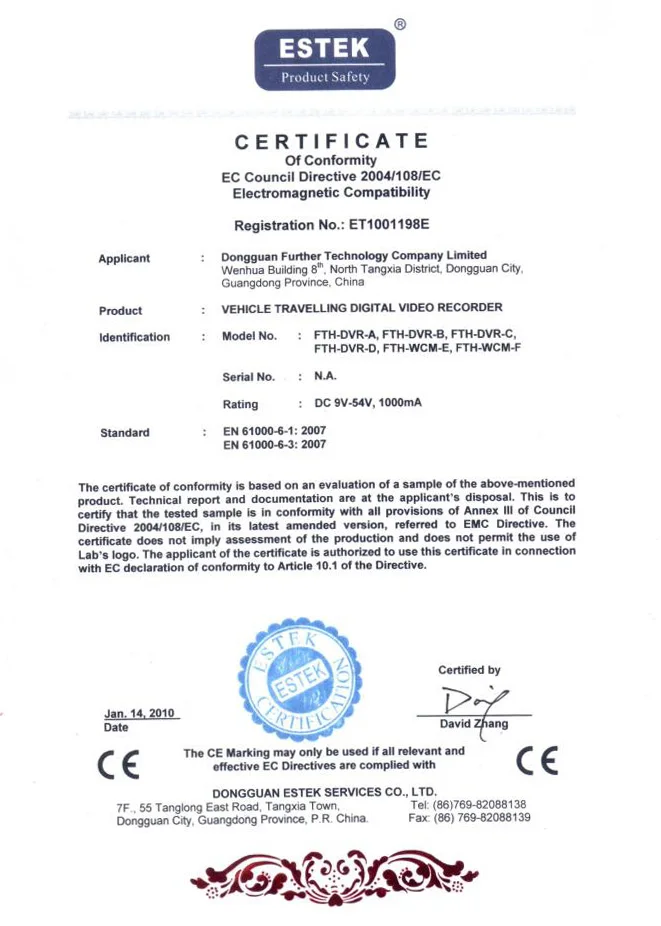

Certifications
CE，FCC，RoHS，ISO001




MDVR Features


◆HIS Solution, H.264/H.265 Compression, Multiple stream recording, support 8CH 1080P AHD Mega pixels camera input.
◆ Support motion detection.
◆ High quality real time recording,1080P/ 720P/CIF/HD1/D1 Optional, quality adjustable.
◆ 8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application.
◆ Support 12VDC output voltage,power supply for Camera/Screen etc.
◆ Max 4TB HDD + 256GB SD Card Mirror Recording, protect DVR from shock & Dust damage.
◆ Watchdog abnormal restart function,protect SD Card and Record.
◆ Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.
◆ ACC Delay off,can set 24 hours.
◆ Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.
◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements.
◆ Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management.
◆ Support GPS/BD,3G/4G Module Optional,WIFI(2.4GHZ/5.8GHZ) extend.
◆ Strong Network,phone device configure ,Support SMS Get device information and configure.
◆ Support Video&Audio Monitoring,Intercom, PTZ, Alarm,Over speed,Geo Fence etc through remote control platform.
◆ 8CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm.
◆ 2CH alarm output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc .
◆ High level aviation interface,easily installation and better shockproof, more stable.
◆ Easily Smart GUI Interface, saving time in device setting.
◆ Strong Stable Application,Support Real-time monitor, talk-back, playback, record, picture snap etc.
◆ Updated through SD or OTA Remote Automatic updating,more stable and convenient.
◆ Support Phone Remote Monitor,3G Phone Calling etc.
◆ Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc.
◆ Be Customized according your request.


Product Paramenters


Main processor
Hi3521D V100 chipset
High performance chipset
System
Language
Chinese, English, Russian (customized)
Operation interface
OSD menu
Password security
User Password and Administrator Password
CUI
Image OSD
Can be connected to an external AV display and VGA display, Remocontrol operation setting system parameters
Interface

Audio and video
Video input
4/8-channel video input, 4pin interface, 1.0Vp-p, 750Ω
Video output
1 channel AV composite audio and video output, 4pin interface, 1.0Vp-p, 750, 1 channelVGA output
Audio input/output
4/8 input, 1 output,4pin interface
Compression Format
Encoding format: G726 40KBPS, Sampling rate: 8000 sample bit width, 16bit Sampling points: 320;
Preview
1/2/4/6/8/9 screen split preview, support manual/event trigger full screen display function
Resolution
Support 1080P/960P/720P/D1/HD1/CIF, MAX:8 channels 1080p
Video Quality
1-8 levels, 1 is the highest level, 8 is the lowest level.
Video Standard
PAL: 100 frames/s, CCIR625 line, 50 games NTSC: 120frames/s, CCIRS25 line,60Games;
1080P:1536Kbps~ 8Mbps, Multi-level image quality optional
720P:1000 Kbps ~ 6Mbps, Multi-level image quality optional Di: 800Kbps ~ 3Mbps, Multi-level image quality optional
HD1: 600Kbps ~ 2.5Mbps, Multi-level image quality optional
CIF: 256Kbps ~ 1.5Mbps, Multi-level image quality optional
Video mode
The default: auto recording after power on.
Ignition recording, alarm trigger recording and manual recording are supported.
Video storage
File format
H.265
File system
Special file system or FAT32
Hard Disk
Support 1xHard Disk( Max 4TB) and 1xSD card(Max 256GB), cyclic recording
Upgrade method
Support USB flash disk updating, SD card upgrade
Video playback
Search video and video files by recording time, recording mode, etc.
Supports up to 4 channels of synchronized playback, pauses, fast forwards, rewinds,
supports 2, 4, 8, 16 times faster forward of backward
Alarm
Alarm input
8-channel alarm input with alarm linkage function
Alarm Output
2-Channel alarm output
G-Sensor
Support built-in G-SENSOR acceleration sensor, alarm linkage trigger
Port
RS232
2*RS232
RS485
1*RS485
RJ45
1*RJ45
USB
1*USB
Module
3G(Optional)
Built-in 3G module (WCDMA/EVDO/TD-SCDMA)
4G(Optional)
Built-in 4G module (TD-LTE/FDD-LTE)
WIFI(Optional)
Built-in WIFI module (2.4G)
GPS(Optional)
Support Dual Module GPS/BD
Software

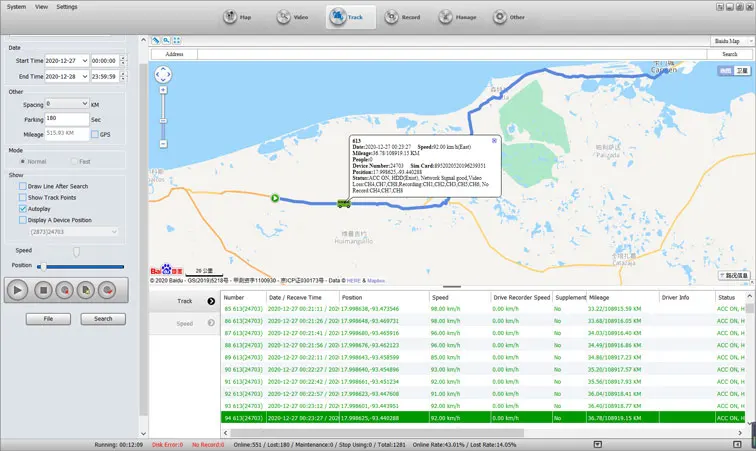

CMSV6 Client
4G remote real-time monitoring GPS positioning, remot management, recording, playback,
intercom, monitoring, track playback alarm processing.
Mobile phone terminal
Remote real-time monitoring, GPS positioning. recording playback, intercom, monitoring,and alarm prompts are available anytime and
anywhere.
PC playback
Video playback track playback and analysis
Power
Power management
Wide voltagepower supply Overload 1 undervoltage I shor circuit protection, low voltage automatic shutdown, Support timer switch,
delay shutdown function.
Input voltage
DC:+8V ~ +36V
output voltage
+12V@1A, +5V@1A
Working environment
Temperature
-20'C to +70"C
Humidity
20% to 80%
Size
Machine
200mmx187mmx62mm


Video Counter Specifications


* High precision counting accuracy (>97%)
* Popular Hi3520D chips solution
* Rich RS-232 for external devices
* 4CH Video Input, 2CH Video Output
* Really Vandal-proof & EMC for buses
* Excellent power protection 9-36V,10A max
* Effectively distinguish bidirectional moving, shoulders, retention, wandering, luggage, etc.
* Well-tested design in thousands of buses over the world
* 195-300cm (height), 80-300cm(width)
* Easy setup and connection to IPAS system
* 300,000pcs of records saved in memory
* Smartly Resent records when network is lost
* 30-90MB data plans only every month
* Used in step environment
* Built-in 3G/WIFI/GPS optional
* Max 4bus doors with combination of counters

Power Supply
* 3D Binocular Camera:≤3 W
* BPC-V1≤ 8W
* BPC-V2≤ 11W

Environmental
 * MTBF:>6000 hours * Temperature range:-25~+55℃
* Relative Humidity:10% - 90%
* Heat radiating:Passive heat output (natural cooling)


Binocular Cameras


Binocular Cameras
Features:
* 720P AHD CMOS Sensor
* Effective pixel 1280*720
* IP 65, Dust proof
* 0.05 Lux (LED is OFF)
* Metal IR-Cut
* 12V DC input
* 180×64×55 mm（L×W×H）
Specifications
New 3D Binocular Camera
Remarks:

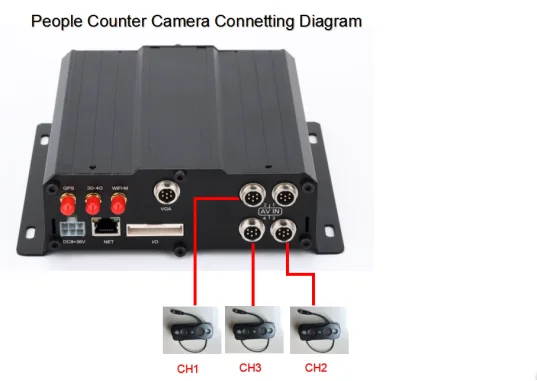

Left and Right Camera must connect right with the counter.
Lighting Requirements
There are no strict lighting requirements (if the infrared LED illumination is set to maximum intensity, the BPC can even work in complete darkness). However, we recommend that, for optimal performance, users should provide constant diffused illumination (approx. 500-1000 Lux, i.e. standard light intensity for an interior office space). Users should also avoid direct sunlight or strong light pointing in the detection area.


Lens
Installation Height
Blind Zone
Detect Height
Detect Width
2.8mm
195-210
16-22cm
110-140cm
100-140cm
3.6mm
210-240
20-25cm
100-120cm
90-120cm
4mm
230-260
25-30cm
95-110cm
105-110cm


FAQ


1. who are we?
We are based in Guangdong, China, start from 2007,sell to Domestic Market(40.00%),Southeast Asia(10.00%),Eastern
Europe(8.00%),North America(7.00%),Northern Europe(7.00%),Western Europe(5.00%),Southern Europe(4.00%),Central America(4.00%),Mid East(4.00%),South America(3.00%),Eastern Asia(3.00%),South Asia(2.00%),Africa(2.00%),Oceania(1.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Mobile DVR,Mobile NVR,People Counter,CCTV Camera,Car Black Box

4. why should you buy from us not from other suppliers?
Further Technology (Dongguan) Co., Limited is a professional high-tech enterprise for R&D, manufacturing and marketing SD card and HDD Mobile DVR/NVR,GPS tracker and CCTV camera,People counter. Our products are made to meet safety standards such as CE, FCC and RoHS.

5. what services can we provide?
Accepted Delivery Terms: EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian

6.Does your Company support OEM or ODM service?
Yes, our company has our own R&D department, and factory , can support OEM & ODM Service.

7. Does your MDVR System has CE FEE E-Mark?
Yes, our MDVR System has CE FEE E-Mark Certifications.

8.How about your quality control?
We have a very strict quality inspection step , 100% full Quality inspection

9. What is about your warranty?
For MDVRS, the warranty is 12 month, for Cameras,the warranty is 24 month. But actually we give Lifetime maintenance services, over the warranty period, only need to pay the cost of replacement parts , other maintenance services are free.

10.Q:Device keep Rebooting
A:1)Check working power,I flow power device will keep rebooting;
2)HDD/SD Card error, remove storage device and turn on device checking;

11.Q:Device on with HDD but not recording;
A:1)Check SD/HDD formatted or not;if not please enter Main GUI--System Set--Format,formatHDD/SD Card;
2) Check If close Recording, or set Timed Recording mode, if yes it won(t recording
3) If the HDD is connected well, if yes the HDD/SD light is on.

12.Q: With GPS but no GPS coordinate Information
A:1)Check if GPS module exist;
2) Check GPS Antenna connection,suggest install on the outside place with strong signal;
3) If testing in office, suggest put GPS Antenna out of window;
4) If working environment not good will related to no GPS Information or wrong information;

13.Q:Deviation of GPS Location on Map?
A:The signal is effective if the GPS module has been positioning, there are so many reasons caused bias, governmentrestriction, permissible error, GPS signal break off, The actual satellite map error occurred for the security, GPS Correction can solve the problem.

14.Q:If using 3G ,what should we concern?
A:1)Choose inside wireless module WCDMA,EVDO,TD-SCDMA, relative module setting is different then SIM Card is different, please make sure the module is corresponding with the SIM Card.
2) If Server IP & Port set correct,if 3G signal strong for dialing;3G dialing successfully or not;
3) Check 3G Antenna connection,dialing will be failed if 3G signal too weak;
4) Check SIM Card 3G Flow

15.Q:Device working but can not see Vehicle and video on client software
A: 1)Check if Center Server running and device Number if using;
2) Check Server IP and Port parameter setting;
3) Check is using 3G or WIFI for connecting, if 3G check the 3G Model WCDMA or EVDO and related
SIM card,3G antenna connect normally/APN setting/Center No. setting;
If it still can not work,please offer the most detailed information to us for technical support

16.Q:Device Online but can not see video
A:1)Please set Low Sub-stream,when sub-stream set high it will affect the transmission because of the network;
2) Network environment not good;

17.Q: During playback, the map doesn't show?
A: Possible reasons are as follows: Net cable did not connect to PC; Net works, but the computer can not get to the Internet;


Recommend Products




We Recommend

0.0095 s.
