GXG Technology 304 316 SS Balustrade Pipe Making Machine
- Category: >>>
- Supplier: FOSHAN GXG TECHNOLOGY CO. LTD
Share on (62377274769):
Product Overview
Description
Product Introduction

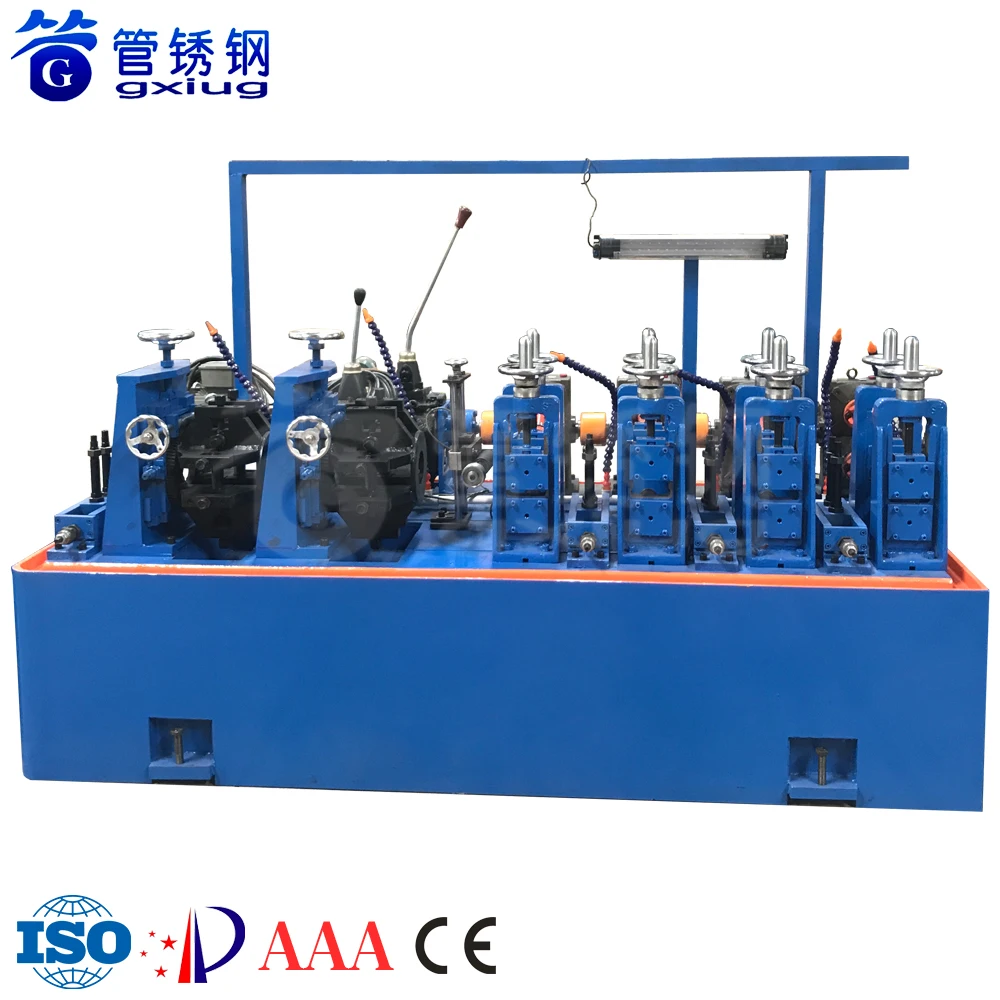

GXG Technology 304 316 SS Balustrade Pipe Making Machine
TUBE MATERIAL:Stainless Steel/Copper/Carbon Steel/Iron/Galvanized Etc
PIPE SHAPE:Round/Square/Rectangle/Special-shaped Etc
USDAGE:Pipes for Furniture, Construction, Municipal Facilities etc Fields
Product Model Parame
GXG Technology 304 316 SS Balustrade Pipe Making Machine
| MODEL | Round Tube Range (mm) | Square Tube Range (mm) | Wall Thickness Range (mm) | Horizontal Shaft Diameter (mm) | Vertical Shaft Diameter (mm) | Main Motor Power (kw) | Installation Dimension (L*W m) | Rated Voltage (v) |
| GXG-S40 | Ø5—31.8 1/5”—1-1/4” | 5*5—25*25 | 0.15—0.8 / 0.5 | Ø40 | Ø25 | 5.5 | 21*1 | 220 380 415 440 |
| GXG-40 | Ø9.5—50.8 3/8”—2” | 8*8—40*40 | 0.23—1.5 / 1.2 | Ø40 | Ø25 | 7.5 | 22*1.2 | |
| GXG-L40 | Ø15.9—63.5 5/8”—2-1/2” | 13*13—50*50 | 0.30—1.8 / 1.3 | Ø40 | Ø25 | 7.5 | 23*1.2 | |
| GXG-50 | Ø19.1—76.2 3/4”—3” | 20*20—60*60 | 0.35—2.5 / 1.5 | Ø50 | Ø30 | 11 | 25*1.3 | |
| GXG-60 | Ø31.8—114.0 1-1/4”—4-1/2” | 30*30—90*90 | 0.55—3.0 / 2.0 | Ø60 | Ø35 | 15 | 28*1.5 |
Product Description
GXG Technology 304 316 SS Balustrade Pipe Making Machine
