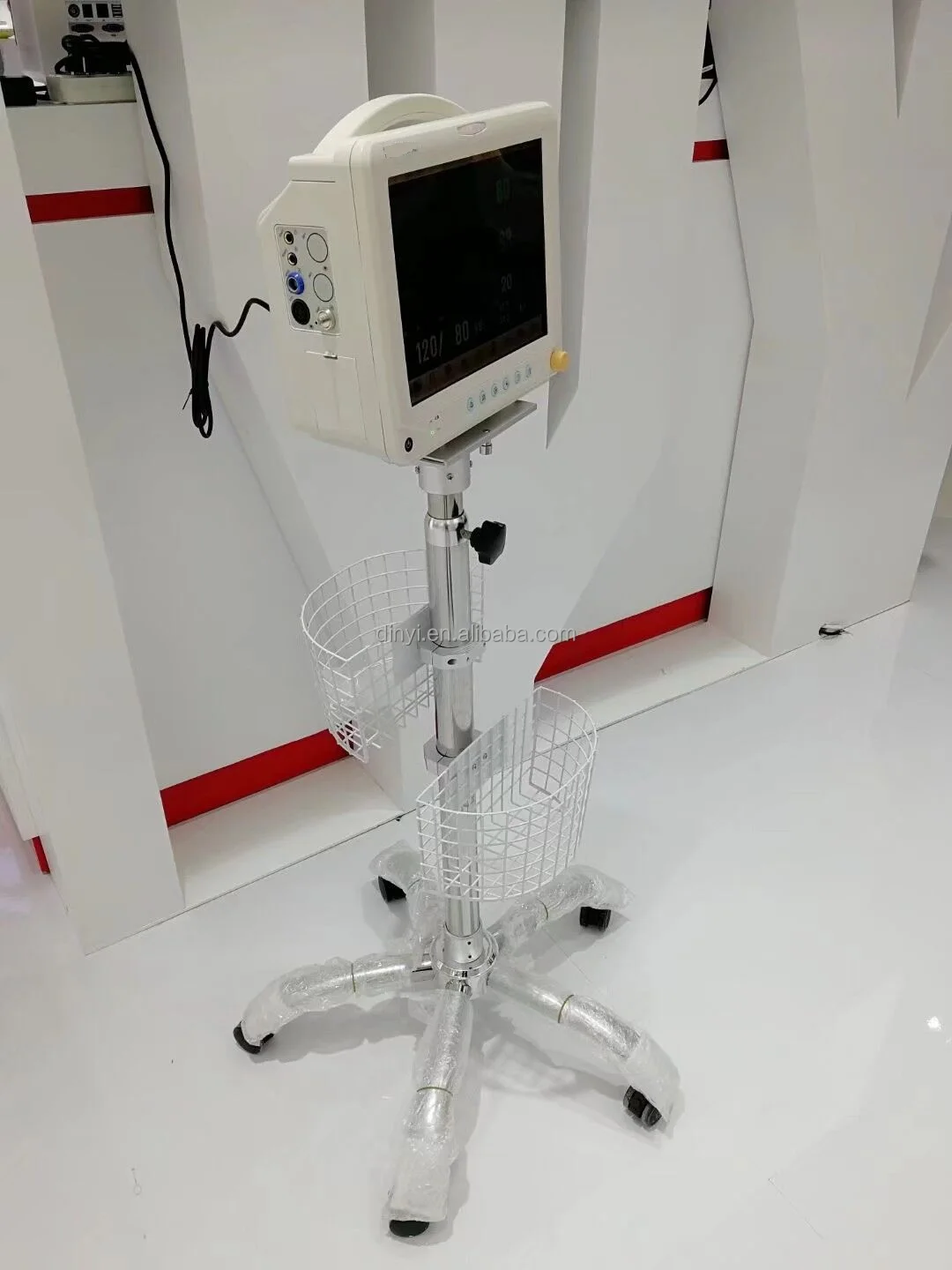

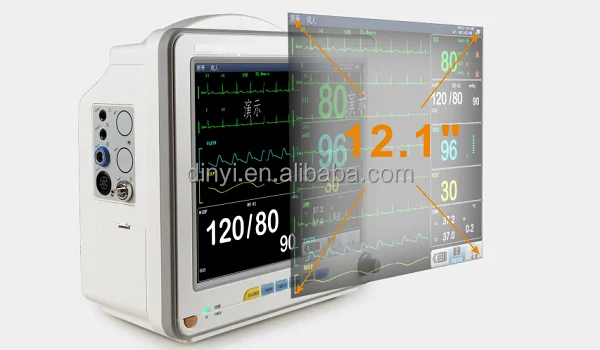

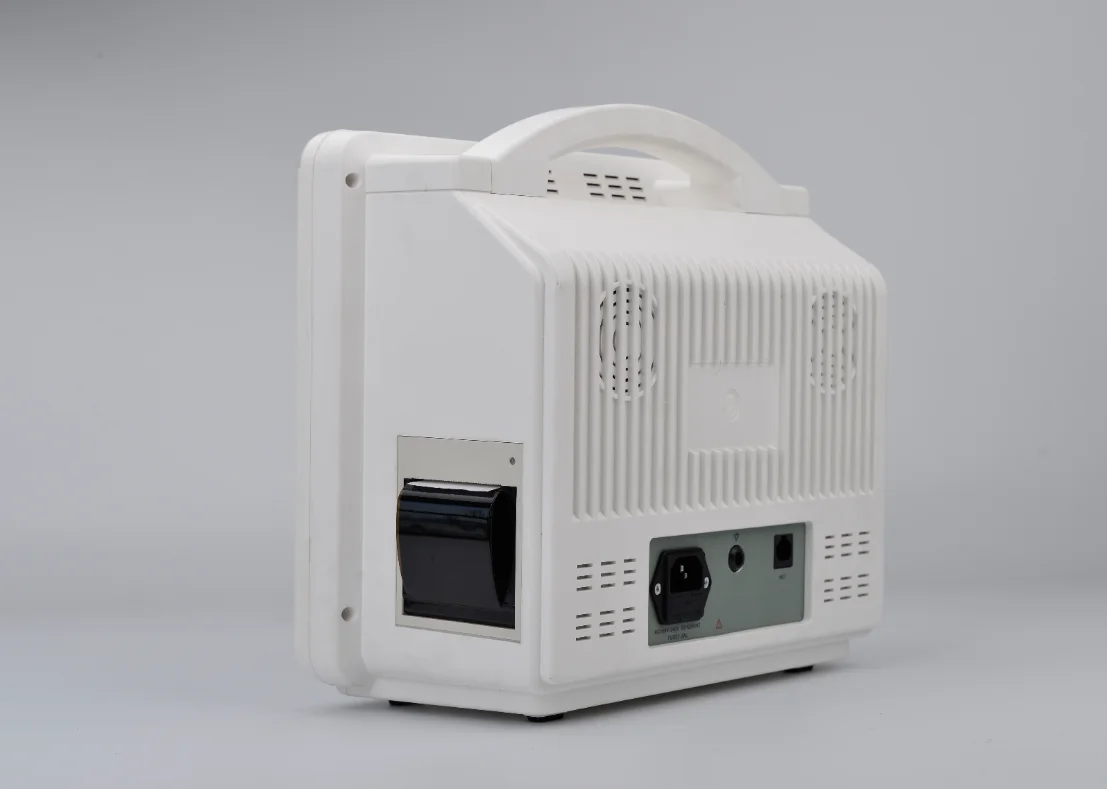

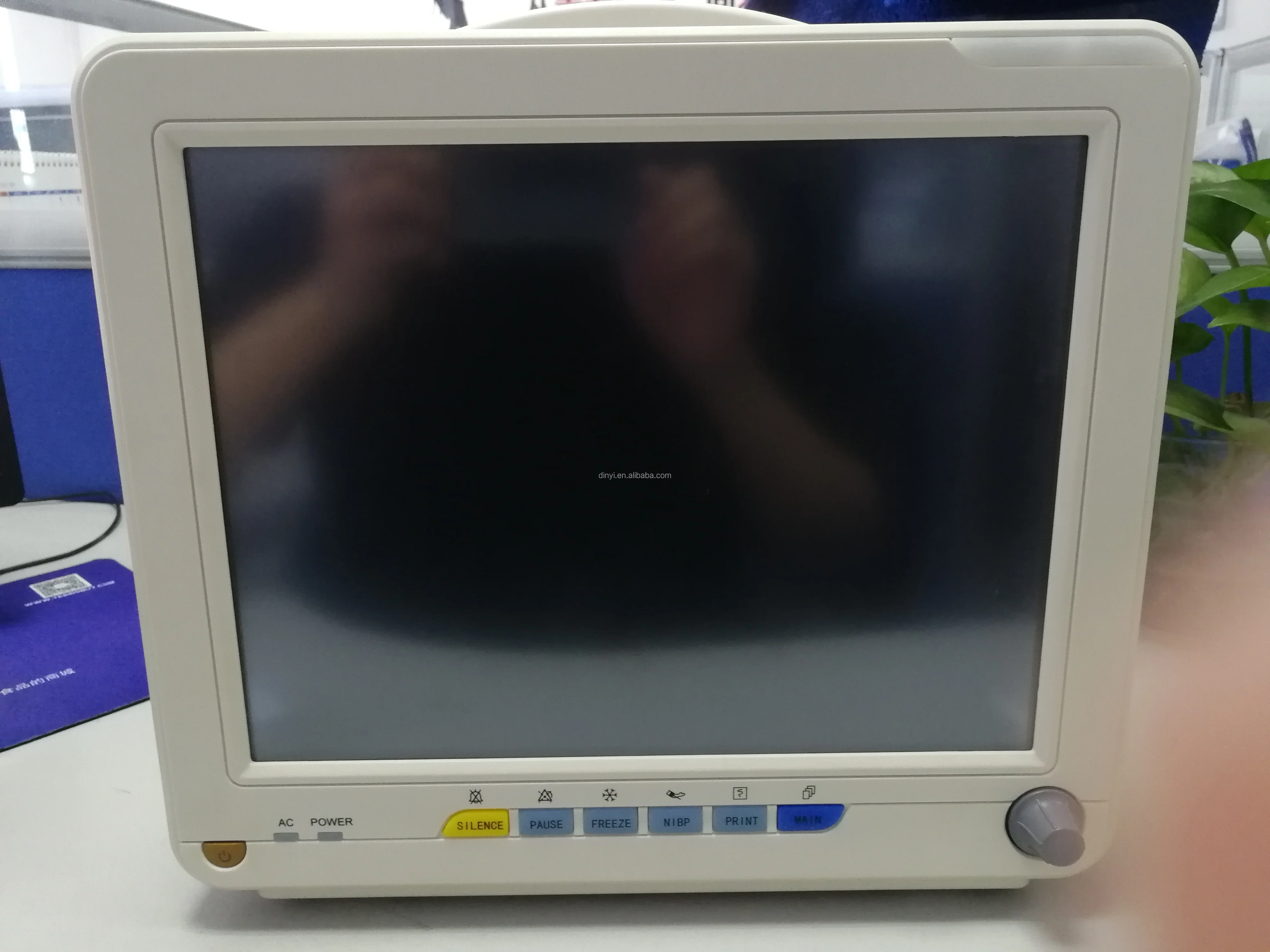

Veterinary etco2 patient monitor good quality cheap price

Product Overview

Description

Veterinary etco2 patient monitor good quality cheap price



Product Specification

I.1 ECG

Lead Mode 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)

Lead selection              I, II, III, avR, avL, avF, V,

Waveform 2 ch



Lead mode 3 Leads ( R, L, F or RA, LA, LL)

Lead selection           I, II, III,

Waveform 1 ch

Gain                          ´2.5mm/mV, ´5.0mm/mV, ´10mm/mV, ´20mm/mV,  auto

HR and Alarm

Range

                   Adult     15 ~ 300 bpm

                  Neo/Ped 15 ~ 350 bpm

Accuracy ± 1% or ± 1bpm,which great

Resolution 1 bpm

Sensitivity > 200 (uV _P-P)

Differential Input Impedance > 5 MΩ

CMRR

Monitor       > 105 dB

Operation       > 105 dB

Diagnosis > 85 dB

Electrode offset potential ±300mV

Leakage Current < 10 uA

Baseline Recovery < 3 S After Defi.

ECG Signal Range ±8 m V (Vp-p )

Bandwidth

Surgery          1 ~ 15 Hz

                         Monitor   0.5 ~ 35 Hz

                     Diagnostic     0.05 ~ 100 Hz

Calibration Signal 1 (mV _p-p),  Accuracy :±5%

ST Segment Monitoring Range

Measure and Alarm -2.0 ~ +2.0 mV

ARR DetectingType            ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC

Alarm  Available

Review Available

I.2 RESPARATION

Method Impedance between R-F(RA-LL)

Differential Input Impedance >2.5 MΩ

Measuring Impedance Range: 0.3~5.0Ω

Base line Impedance Range: 0 – 2.5  KΩ

Bandwidth 0.3 ~ 2.5 Hz

Resp. Rate

Measuring and Alarm Range

Adult 0 ~ 120 rpm

Neo/Ped 0 ~ 150 rpm

Resolution 1 rpm

Accuracy ±2 rpm

Apean Alarm 10 ~ 40 S

I.3 NIBP

Method Oscillometric

Mode Manual, Auto, STAT

Measuring Interval in AUTO Mode

1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)

Measuring Period in STAT Mode 5 Min

Pulse Rate Range 40 ~ 240 bpm

Alarm Type           SYS, DIA, MEAN

Measuring and alarm range

             Adult Mode

SYS 40 ~ 270 mmHg

DIA 10 ~ 215 mmHg

MEAN 20 ~ 235 mmHg

             Pediatric Mode

SYS 40 ~ 200 mmHg

DIA 10 ~ 150 mmHg

                     MEAN 20 ~ 165 mmHg

Neonatal Mode

SYS 40 ~ 135 mmHg

DIA 10 ~ 100 mmHg

MEAN 20 ~ 110 mmHg

Resolution

  Pressure 1mmHg



Accuracy

    Pressure

Maximum Mean error    ±5mmHg

Maximum Standard deviation ±8mmHg

Overpressure Protection

Adult Mode 297±3 mmHg

Pediatric Mode        240±3 mmHg

             Neonatal Mode 147±3 mmHg

I.4 SpO2

Measuring Range 0 ~ 100 %

Alarm Range 0 ~ 100 %

Resolution 1 %

Accuracy

              70% ~ 100%  ±2 %

                     0%  ~  69%  unspecified

Actualization interval about 1 Sec.

Alarm Delay 10 Sec.

Pulse Rate

Measuring and Alarm Range

0~254bpm

Resolution 1bpm

Accuracy ±2bpm

I.5 TEMPERATURE

Channel 1

Measuring and Alarm Range 0 ~ 50 °C

Resolution 0.1°C

Accuracy ±0.1°C

Actualization interval about 1 Sec.

Average Time Constant < 10 Sec.

I.6 IBP

Label ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and alarm range

ART   0 ~ 300 mmHg

PA   -6 ~ 120 mmHg

CVP/RAP/LAP/ICP -10 ~ 40 mmHg

P1/P2 -10 ~ 300 mmHg

Press Sensor

Sensitivity 5  uV/V/mmHg

Impedance 300-3000Ω

Resolution 1 mmHg

Accuracy ±2% or ±1mmHg, which great

Actualization interval about 1 Sec.







I.7 CO2 Specification



   I.7.1 Monitoring range

0% ~ 13%

   I.7.2 Resolution

1 mmHg

   I.7.3 Accuracy

2 mmHg @  < 5.0% CO2(at ATPS)

   I.7.4 Respiration Rate

3 - 150 bpm
