Стеклянные рамы для теплиц с редукторным двигателем, боковой вентиляцией и вентиляцией крыши, оцинкованный профиль, сельскохозяйственная теплица
- Category: >>>
- Supplier: Chongqing Maxpower Machinery Co. Ltd.
Share on (62377411560):
Product Overview
Description
Product Description

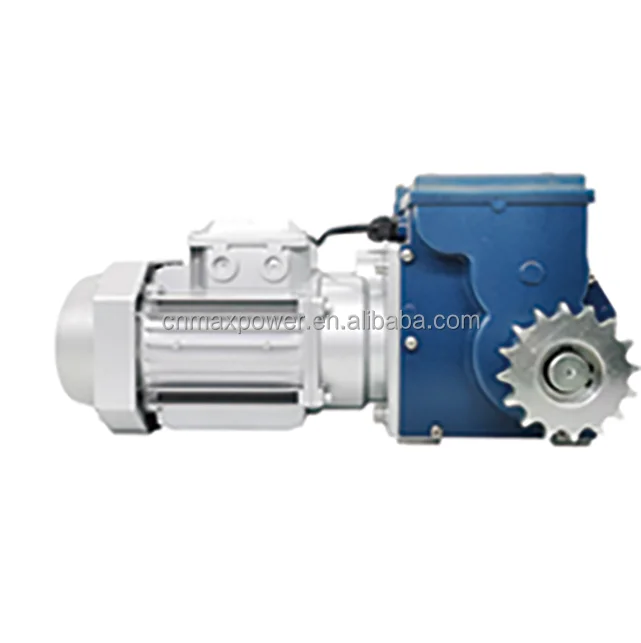

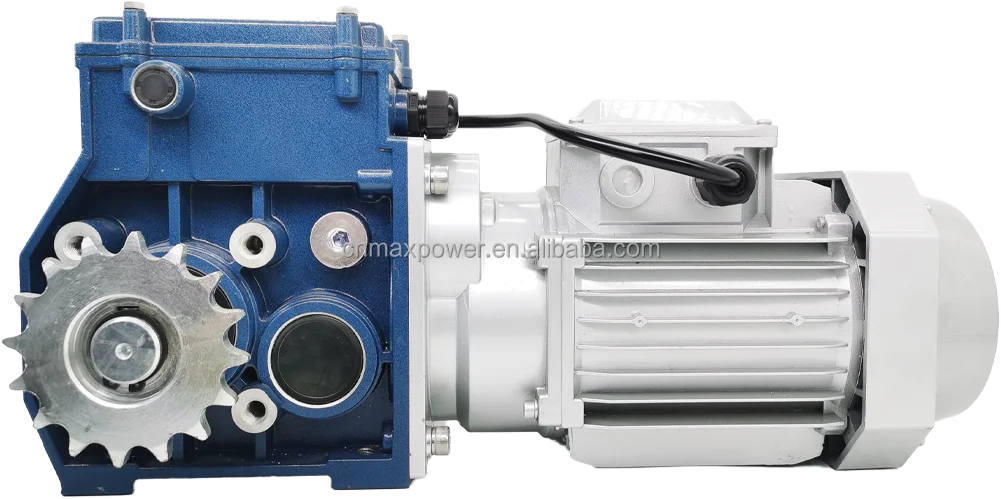

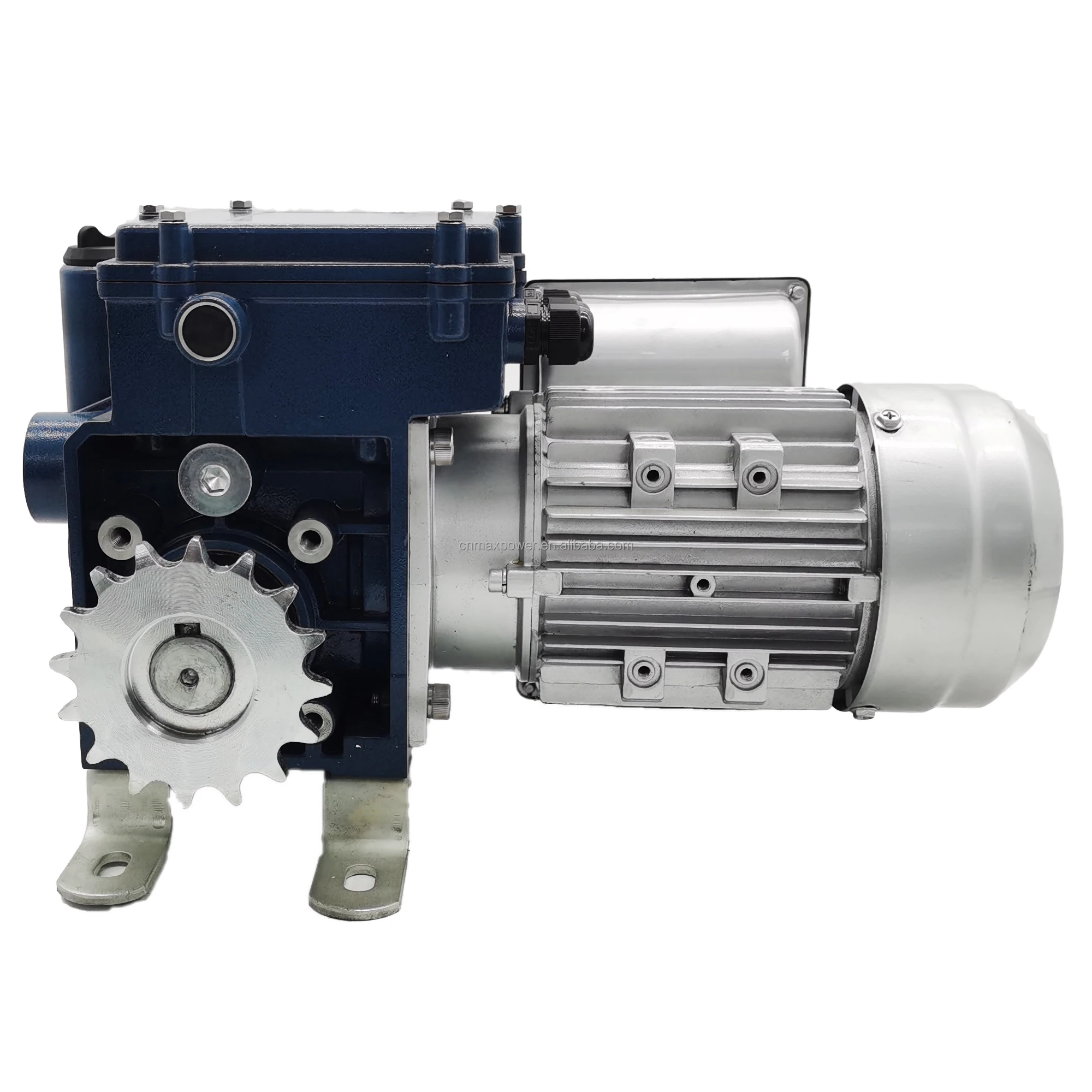

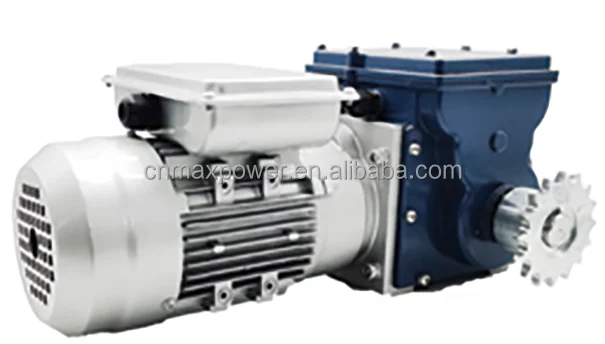

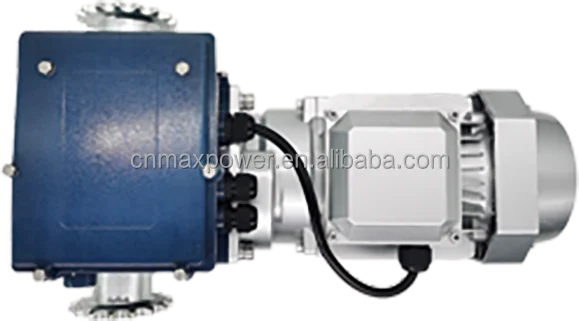

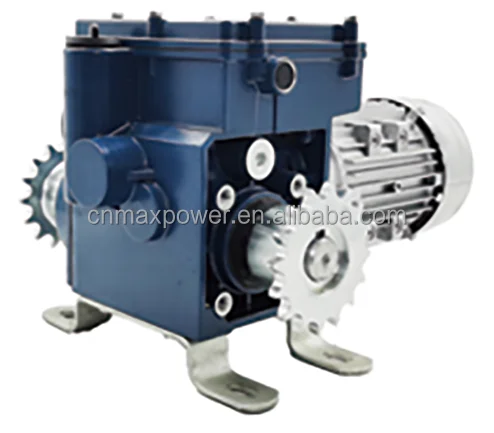

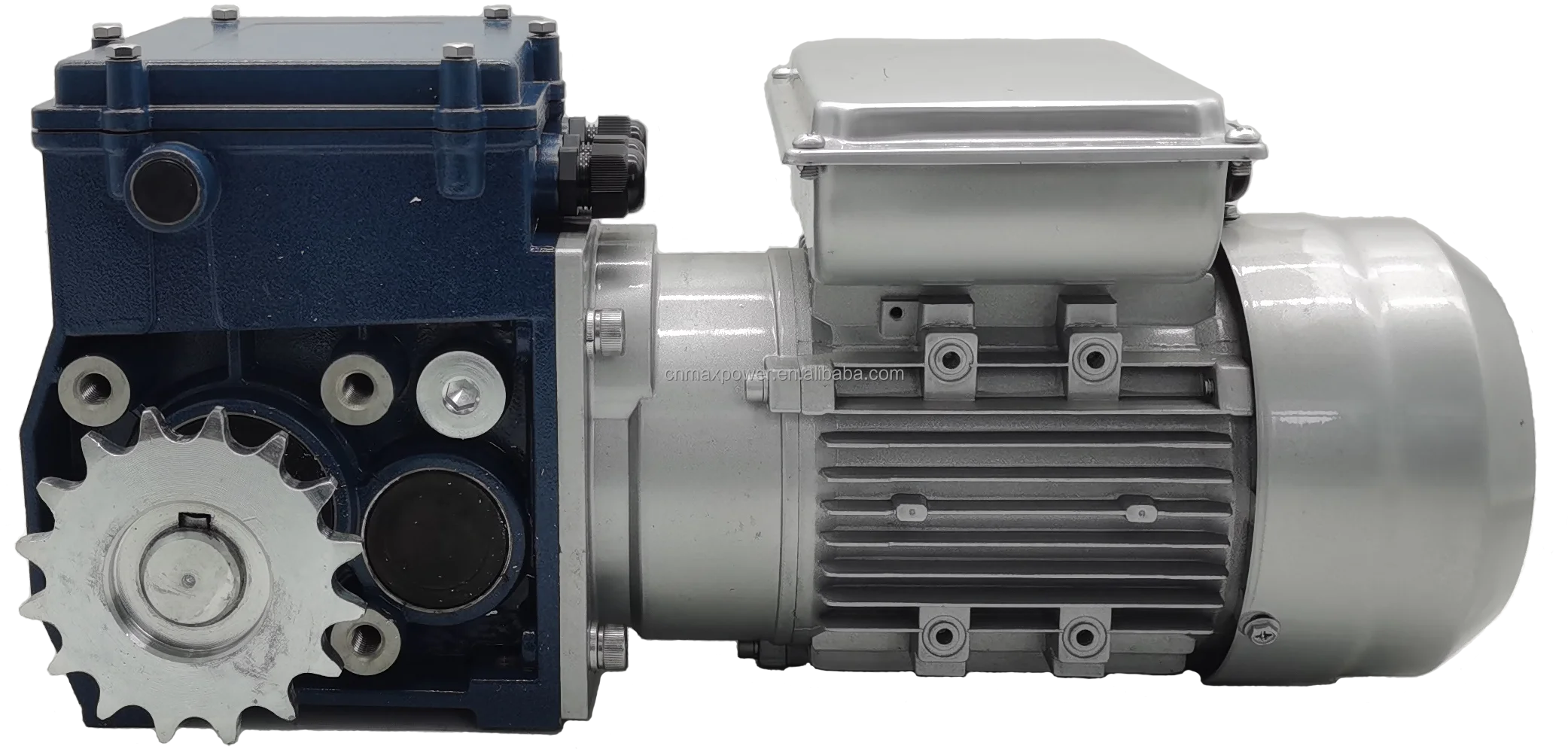

Reducer motor, also called gear motor, speed reducer, plays a huge role in today's greenhouse and animal husbandry. Maxpower's reducer motors are mainly used in the ventilation and shading systems. Reducer motors primarily serve two functions. First, they take the torque created by the power source (the input) and multiply it. Second, reducer motors, much as the name implies, reduce the speed of the input so that the output is the correct speed.
Ventilation system: The system consisit of reducer motor, drive pipe, shaft bearing, rack and pinion. The reducer motor drives the pinion by the drive pipe to move the rack back and forward to open or close the window.
Shading system: The reducer motor controls the movement of the shade net through the transmission of rack and pinion, which makes it easier to control the light acquisition of the greenhouse. With the popularity of the Light Dep Greenhouse in recent years, the reducer motor can help the light dep greenhosue to realize the automation of the shading system.
This product has an excellent reverse self-locking and stroke control device, which can realize automatic control, especially suitable for window opening occasions with high self-locking requirements. Also, you don't have to worry about running into a power outage, the motor supports manual operation.
Ventilation system: The system consisit of reducer motor, drive pipe, shaft bearing, rack and pinion. The reducer motor drives the pinion by the drive pipe to move the rack back and forward to open or close the window.
Shading system: The reducer motor controls the movement of the shade net through the transmission of rack and pinion, which makes it easier to control the light acquisition of the greenhouse. With the popularity of the Light Dep Greenhouse in recent years, the reducer motor can help the light dep greenhosue to realize the automation of the shading system.
This product has an excellent reverse self-locking and stroke control device, which can realize automatic control, especially suitable for window opening occasions with high self-locking requirements. Also, you don't have to worry about running into a power outage, the motor supports manual operation.
Features:
Low noise（≤60dB）
Installed in your long-term work environment, this level of sound will not affect your hearing and body.
Runs smoothly and safely
After a long period of professional testing, each motor can ensure precise self-control while running smoothly.
Suitable for most ventilation situations
For example, where it is necessary to precisely control the on and off time of the motor, where it is necessary to realize large-distance reciprocating operation, etc.

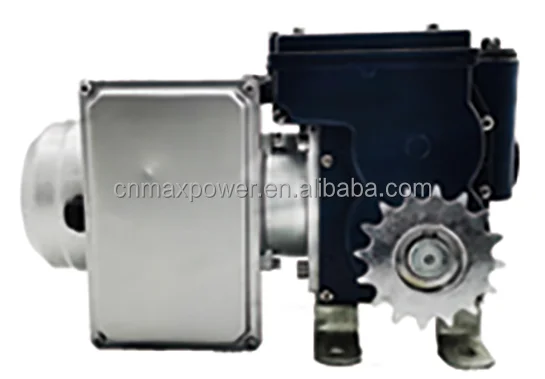

Model 63

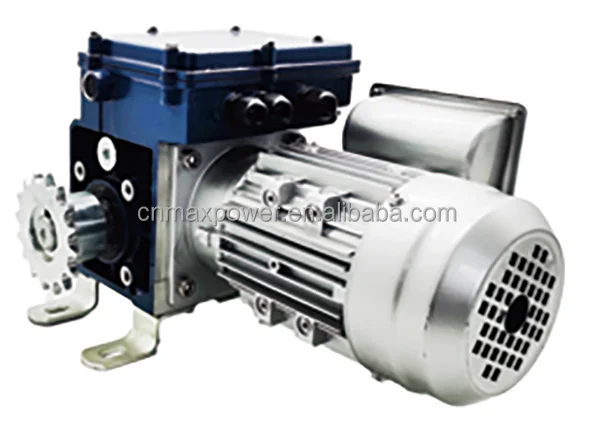

Model 71

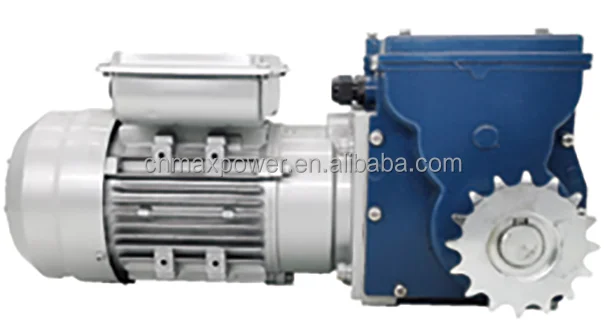

Model 80
Model | Power | Voltage | Speed ratio | Torque | Rotate speed |
63-220 | 0.18kw | AC220v | 427：1 | 150N.m | 3.4rpm |
63-380 | 0.18kw | AC380v | 427：1 | 150N.m | 3.4rpm |
71-220 | 0.37kw | AC220v | 504：1 | 370N.m | 2.6rpm |
71-380 | 0.37kw | AC380v | 504：1 | 370N.m | 2.6rpm |
71-5.2 | 0.55kw | AC380v | 264：1 | 280N.m | 5.2rpm |
80-5.2 | 0.75kw | AC380v | 264：1 | 400N.m | 5.2rpm |
80-2.6 | 0.75kw | AC380v | 504：1 | 800N.m | 2.6rpm |
