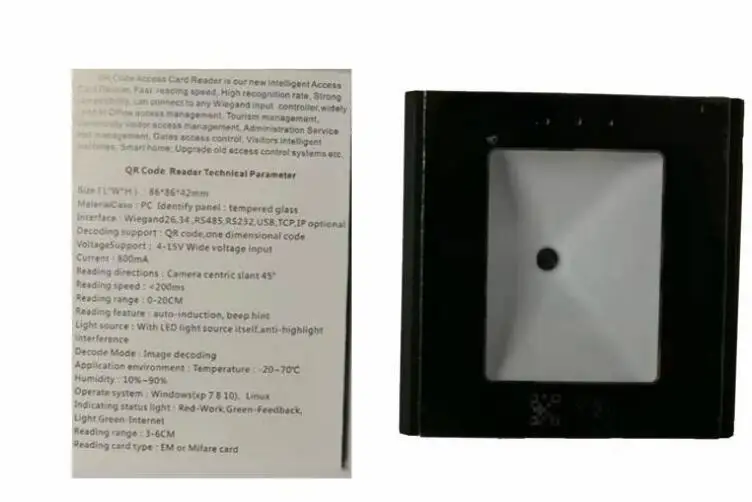

13.56mhz mounted QR code scanner wiegand rfid access card reader

Share on (62377490940):


Price:

Quantity:


Product Overview

Description


13.56mhz mounted QR code scanner wiegand rfid access card reader

Product Description



QR Code Access Card Reader is our new intelligent Access Card Reader, Fast  reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input controller, widely used at Office access management, Tourism management, Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.



Technical Parameter



Size(L*W*H)

86*86*42mm

Material

Case:PC  Identify panel:tempered glass

Interface

Wiegand26,34 ,RS485,RS232,USB,TCP/IP optional

Decoding support

QR code,one dimensional code

Voltage

Support 4-15V Wide voltage input

Current

800mA

Reading directions

Camera centric slant 45°

Reading speed

<200ms

Reading range

0-20CM

Reading feature

auto-induction, beep hint

Light source

With LED light source itself,anti-highlight interference

Decode Mode

Image decoding

Application environment

Temperature:-20~70Humidity:10%~90%

Operate system

Windows(xp 7 8 10),Linux

Indicating status light

Red-Work,Green-Feedback,Light Green-Internet

Reading range

3-6CM

Reading card type

 MF card

 proximity card reader.jpgqr code scanner.jpgrfid reader.jpgQR code reader.jpg



Features:

1.DC 12V 1000MA

2. MF Card for choose

3.Identify paper or screen QR Code

4.Support 26/34 weigand output to third party Access Control system

5. RS232, RS485,USB virtual keyboard, USB virtual Serial port, HTTP output, MQTT output optional.



Note:



ER80-MF: 13.56mhz + QR code reader



Packaging & Shipping
Packing & Shipping
Item No. ER80
Description QR code reader
QTY/BOX1 pieces per box
DimensionBox:16x14x8cm
Package materialNeutral box
Shipping date7 to 12 working days after receive of payments



Note:

1. We accept shipping way by china post and international express for small order, and by sea for bulk order.

2. Shipping lead time: about 5 to 8 working days by international express, 30 to 50 days by china post or sea. This lead time just for reference only,because they are different between various country and different period.

3. When shipping by china post, the item only deliveried to nearest post office, do not deliveried to destination, you may need to contact or go to local post for get the package.

4. We are not responsible for clear custom and custom fee, so when the item arrival your country, we may need your help to clear custom.
If custom clearance haven't proceed on time and made the goods are destroyed or shipped back. we won't resend the item, because it is not our responsibility.

5. If you have your own shipping agent, please kindly notice us when order.

6. Our shipping cost are excluding remote area handling fee, if your address belong to remote area, please tell us in advance before order. or you can provide us your detail receive address inclduing zip code, we will check does it belong to remote area or not.

7. If your address is Brazil,please let us know your Tax number when order.Thanks!
