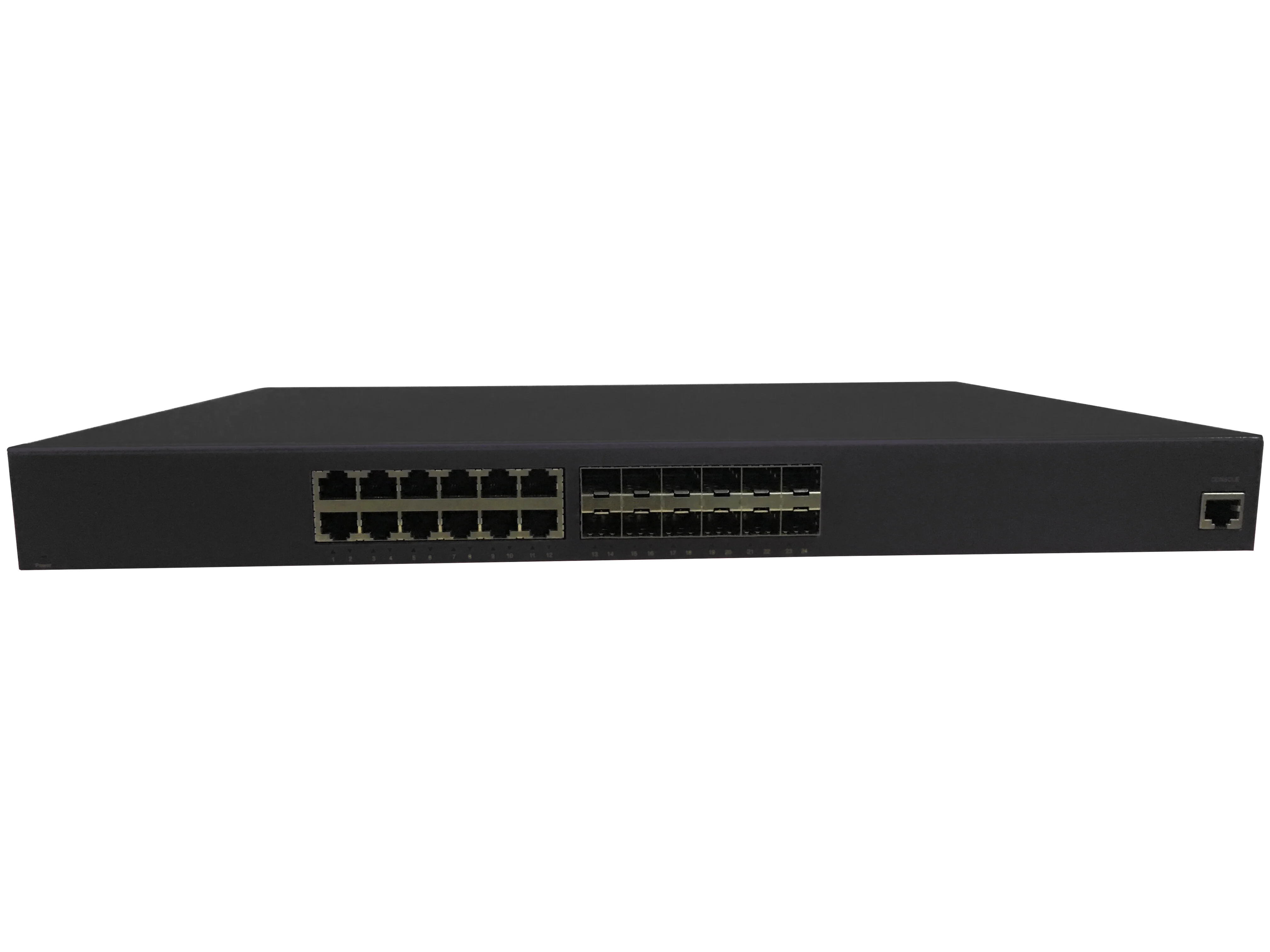

OEM l3 managed networking switch with 12 gigabit RJ45 + 12 SFP ports
Description:
S5624GX Network Switch is layer 3 gigabit switch which is developed for small and medium enterprises’ core network and
for medium network’s Convergence Layer’s applications. It is based on ASIC integration technology that provides
non-blocking wire-speed IP switching solution.
S5624GX can connect the gigabit networks for the server and large data end users, and it can also construct the main
networks for it can use the fiber to supply long-distance transmission.
Features:
High Performance Gigabit Switches
Provides 12 gigabit SFP ports and 12 10/100/1000BAST-T RJ45 ports
Link aggregation
Up to 32 aggregation groups, each supporting 8 ports
Layer 3 function
Support static and dynamic routing base on ASIC chipset
Support RIP V1, V2, OSPF
Service Classification
Up to 8 queues on each port
Non-blocking Switching
Up to 128Gbps port switch capacity and 95.23Mpps L2/L3 forwarding capability
Security Implementation Capacity
Up to 4096 802.1Q VLAN
Support static routing and dynamic routing protocol
Support IP and MAC address table locking and static setting
Support private VLAN
Support L2 to L7 packets filter and content-based packet identification
Jumbo frame
Up to 12K bytes jumbo frame
DHCP
Support DHCP Server and DHCP Relay
Multicast
Support IGMP v1 v2 v3 and IGMP Snooping protocol
Support PIM-SM multicast routing protocol ARP security features
Support manual IP and MAC binding
Support automatic binding base of address range
Support ARP locking
ACL features
Support Port-base ACL filtering
Support standard ACL and extension ACL
Multi-loop protection
Support STP, RSTP, MSTP (Recovery time less than 50ms)
Support VRRP (Virtual Router Redundancy Protocol)
Support EAPS (Recovery time less than 30ms)
Manageability
Support CLI, Telnet, SNMP, WEB
Built-in SNMP agents such as Bridge MIB, MIBII, Entity MIB v2, RMON MIB, Proprietary MIBSpecifications
Attributes | |
Networking Interfaces | 12 x 10/100/1000 Mbps RJ45 Ethernet Ports 12 x 1 Gbps SFP Ethernet Ports (combo) 1 x extended module slots for 2 x SFP+ 10GE module |
Management Interface | Console |
LED Indicators | Power, Link/Act |
Performance | |
Switching Capacity | 128 Gbps |
Forwarding Capacity | 95.23 Mpps |
Forwarding Mode | Store and Forward |
Packet Buffer Memory | 16 Mbit |
RAM for CPU | 2G Mbit |
Flash Memory | 64 Mbit |
MAC Address Table | 32K |
Max. Jumbo Frame size | 12KB |
VLAN Quantity | 4K |
ACL Table | 512 |
L3 Interface | 512 |
Port Queues | 8 |
Physical | |
Dimensions | 440 x 200 x 44 mm |
Weight |
|
Operating Temperature | 0 to 40℃ |
Storage Temperature | -10 to 70℃ |
Operating Humidity | 5 to 95% Noncondensing |
Power Method | 100-240VAC, 50/60Hz |
Max. Power Consumption | 100W |
EMC Safety | FCC, CE, RoHS |
Reliability |
|
Port Configuration | |
Enable and Disable | Support control enable and disable |
Auto-Negotiation | Support force port mode and speed |
Flow Control | Support IEEE802.3x full-duplex Support half-duplex backpressure |
Storm Control | Support broadcast, multicast and DLF package rate limit |
Port Mirroring | Support many to one mirroring |
Rate Limit | Support Port input and output rate limit |
Link Aggregation | Support manual Link Aggregation Support LACP Up to 32 maximum aggregation groups, each containing up to 8 ports |
Aggregation Strategy | Source MAC / Destination MAC / Source Destination MAC Source IP / Destination IP / Source Destination IP |
Port Protection | Each port can be configured into isolated protected port from each other |
MAC Configuration | |
MAC Address Table Management | Support |
Transfer Mode | Support IVL transfer mode |
Static MAC Address | Support |
MAC Binding | Support |
MAC Address Filter | Support |
MAC Quantity Limitation | Support limit the number of MAC-addresses Learning per port |
VLAN Configuration | |
VLAN Based on 802.1Q | Support |
MAC-Based VLAN | Support |
IP-Based VLAN | Support |
Protocol-Based VLAN | Support |
Guest VLAN | Support |
Private VLAN | Support |
Reliability Protocol | ||
Spanning Tree | Support STP/RSTP/MSTP | |
BPDU Guard | Support | |
BPDU Filter | Support | |
Port Loop Detection | Support | |
EAPS Protocol | Support RFC3619 | |
IP Routing | ||
Static ARP | Support | |
Default Routing | Support | |
Static Routing | Support | |
VLSM | Support Variable Length Subnet Mask | |
CIDR | Support for classless inter-domain routing | |
RIP | Support Routing Information Protocol v1/v2 | |
OSPF | Support Open Shortest Path First v2/v3 | |
VRRP | Support Virtual Router Redundancy Protocol v3 | |
PBR | Support Policy-based routing | |
DHCP relay at Layer3 | Relay of DHCP traffic across IP domains | |
Multicast | ||
IGMP | Support v1/v2/v3 | |
IGMP SNOOPING | Support | |
IGMP Group Limit on Interface | Support | |
Multicast groups | 256 | |
Static Multicast MAC Address | Support | |
Multicast source port suppression | Support | |
PIM-SM | Support | |
Access Control List (ACL) | ||
Based on Standard IP | Support | |
Based on Extend IP | Support | |
Based on MAC IP | Support | |
Based on MAC ARP | Support | |
Based on time | Support | |
Port Filtering | Support | |
Quality of Service (QOS) | |
Scheduling Mode | Support WRR, SP, WFQ |
Sorting Based on Port | Support |
Sorting Based on 802.1p | Support |
Sorting Based on DSCP (DiffServ) | Support |
Security | |
Administrative Security | Support start and end TELNET, WEB and SNMP serve Support TELNET, WEB and SNMP serve binding with Standard IP ACL Support control the number of user for TELNET |
CPU Protect | Switch self-security protect, forbid flow attack |
IP-MAC Address Binding | Support binding between static configuration IP, MAC and Port |
AAA | Support 802.1x protocol Support RADIUS protocol Support RADIUS server authentication authorization and bill Support MAC-based 802.1X authentication. Support 802.1x guest VLAN |
Prevent ARP Spoofing | Support manual configure ACL rule based on MAC ARP prevent ARP spoofing |
Management Feature | |
CLI Management | Support serial port management Support TELNET management Support SSH management |
WEB Management | Support |
SNMP Management | Support SNMP protocol Support SNMP TRAP Support standard and private MIB |
User management | Support multi-user management |
Show CPU Utilization | Support |
Show RAM Utilization | Support |
Log Management | Support |
Configuration Download / Upload | Support |
Upgrade Firmware | Support |
Timer Management | Support local timer management Support SNTP protocol get clock |
Debugging Tools | |
PING | Support |
TRACEROUTE | Support |
TELNET Client | Support |
Package List | |
Ethernet Switch | 1pcs |
User Manual | 1pcs |
Power Cord | 1pcs |
DB9 to RJ45 Cable | 1pcs |
Rack Mount Kit | 2pcs |
Rubber Feet | 4pcs |
Detailed Images
Related products

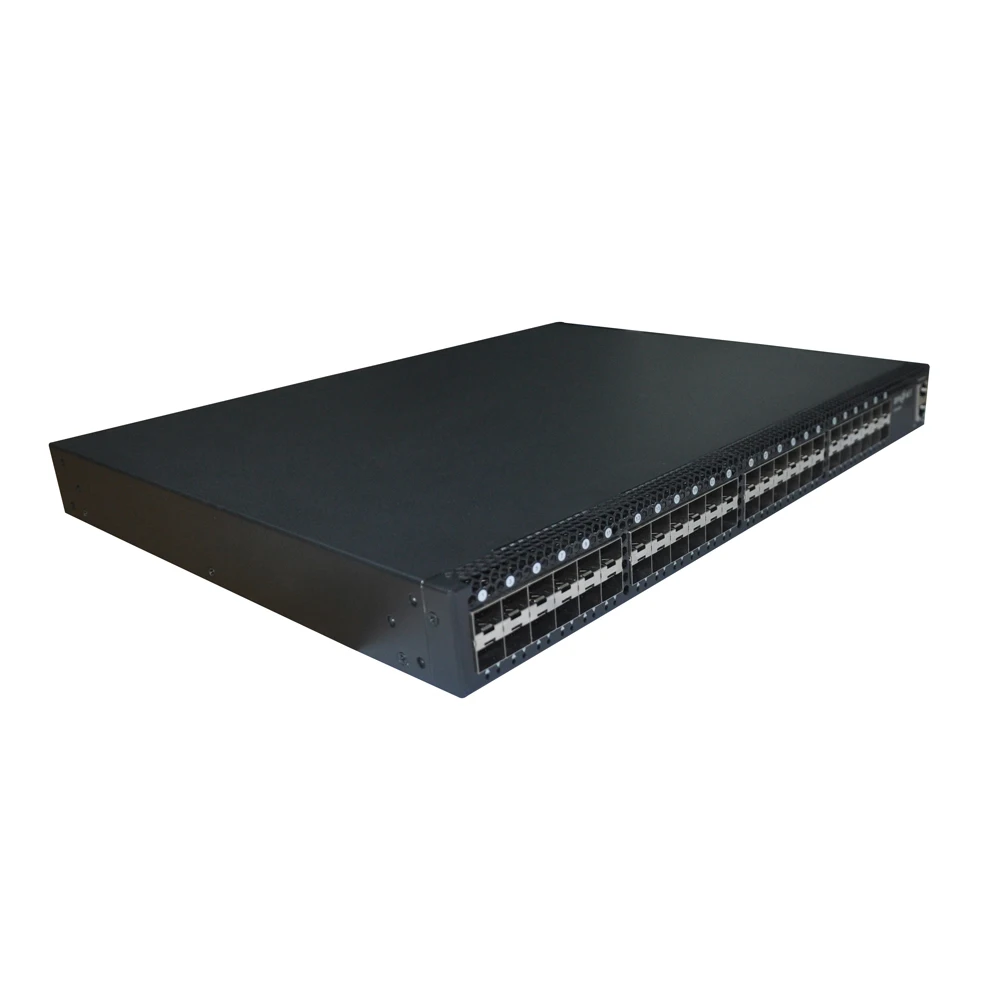

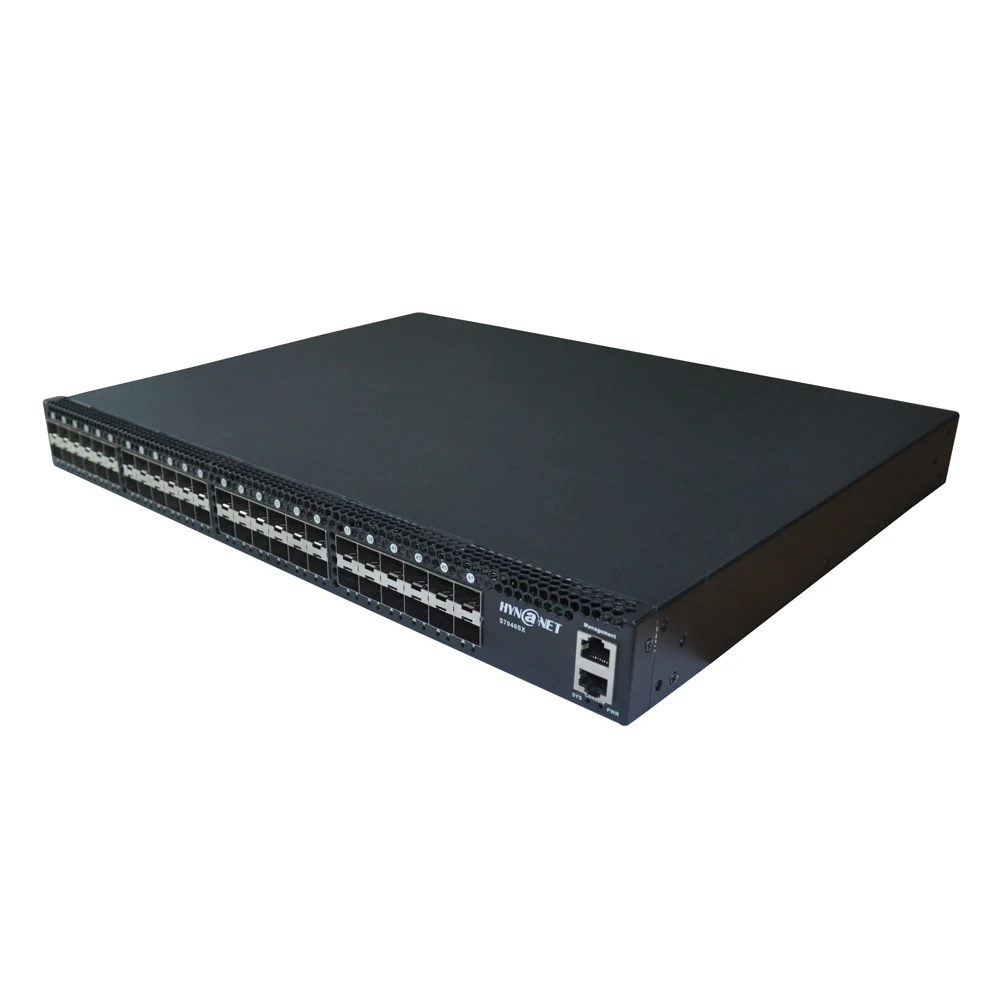

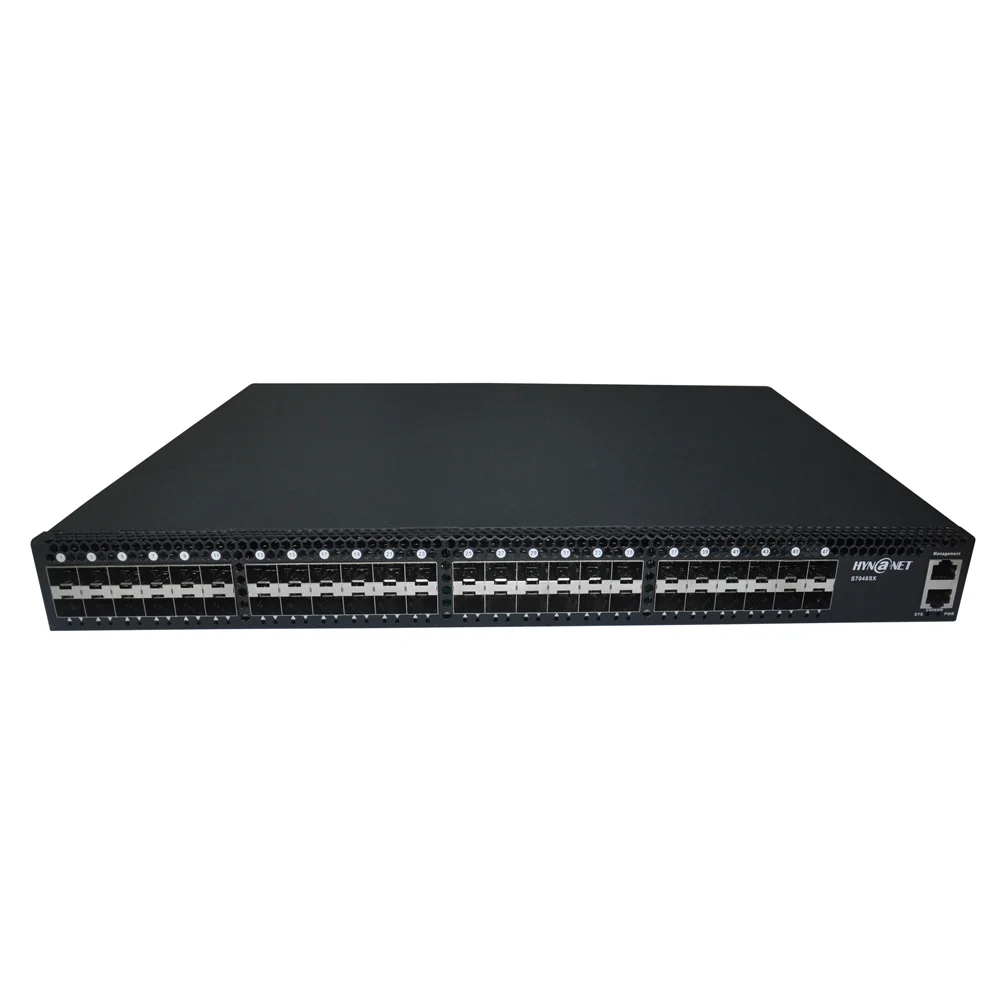

48ports L3 managed 10G SFP network switch
