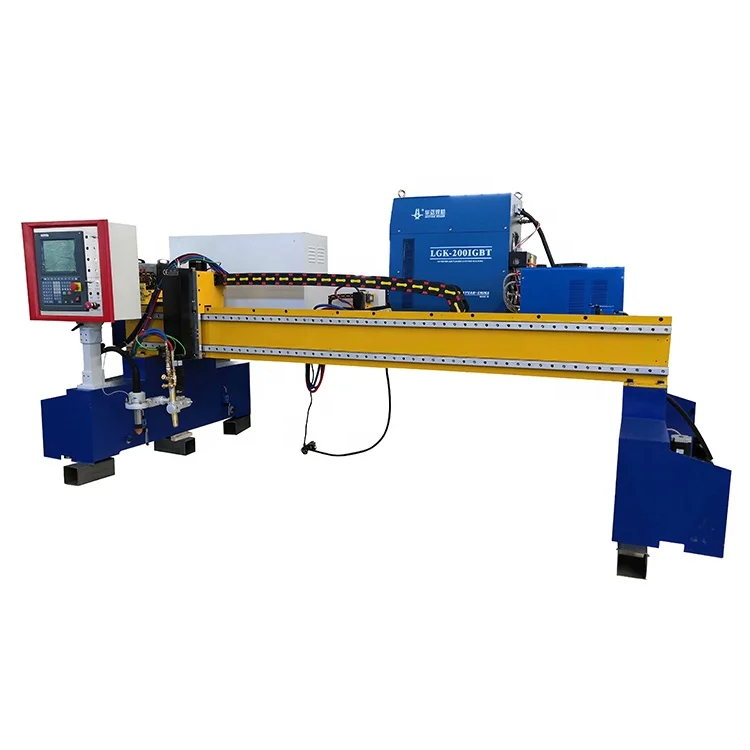

CNC gantry plasma/flame cutting machine with Hypertherm Powermax 65A and oxy fuel torch

Product Overview

Description

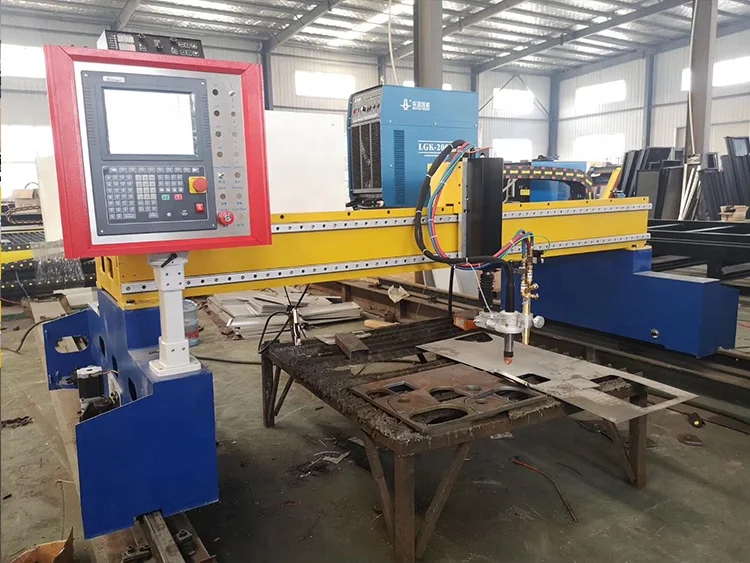

3060 Gantry CNC Plasma Cutting Machine For Metal

cnc plasma cutting machine for metal

Description of goods:
When using a plasma arc cutting, not only can cut carbon steel, but also cutting stainless steel, aluminum, copper and other metal materials, maximum cutting thickness determined by the plasma source with the decision. Normally, the device used by the U.S. sea treasure produced plasma power, plasma cutting speed relative to the oxyacetylene cutting speed, high efficiency, effectively reduce the overall cost.

When using oxyacetylene or other oxyfuel, only cutting carbon steel, cutting thickness 6 ~ 200mm, such as the use of special cutting torch, cutting nozzle and specialty gases, gas, maximum cutting thickness up to 300mm. Oxyfuel cutting, plasma cutting with respect to the slow, but a thick steel plate can be cut, and the use of low cost.

>>Technical specifications:

Effective Cutting Area	2000mm by 6000mm	3000mm by 6000mm
Cutting Modes	Flame & Plasma Cutting
Transmission	Rack & Gear
Drive	Double Sides Drive  Japan Panasonic Servo motor and drivers
Torch & Number	One Flame Torch, One Plasma Torch
Flame Cutting Thickness	0-200mm
Plasma Cutting Thickness	0-20mm
Position accuracy	0.03mm
Reposition accuracy	+-0.05mm
Cutting Gas	Acetylene,Propane,oxygen
Plasma Gas	Pressed air,Oxygen,N2
Torch height control (AUTO)	Capacitance Torch Height Control

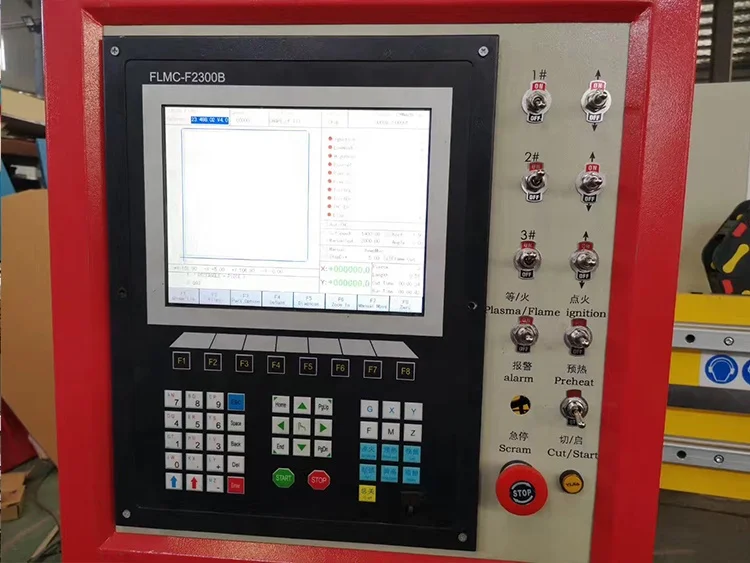

Control system	FLMC-F2300B
Travelling speed	0-20000mm/min
Cutting Speed	0-12000 mm / min
Working voltage	380V 50HZ



Specifications:

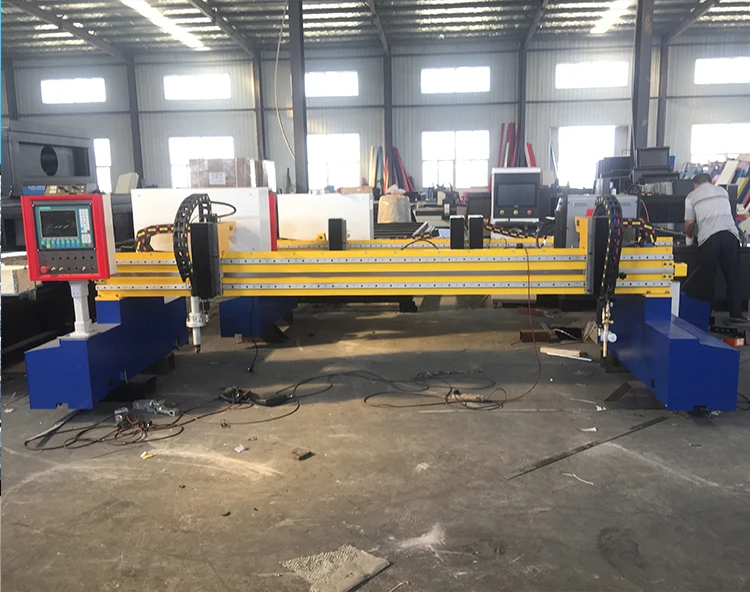

1. The machine body:
It is gantry type structure. The cross beams treated by whole annealing to eliminate stress so it has good rigidity and high strength without permanent deformation.
2. The vertical rails:
The vertical guide track adopts heavy rails. The surface has high precision after grinding . The rail length can be increased and decreased according to the requirements of users;Rails using 38Kg / m rail processed from the top surface and the side after grinding with high straightness and parallelism; foundation generally use concrete structure ( also available in steel ).
3. The cutting torch holder:
The cutting torch holder adopts the collision-preventing design to ensure the cutting torches are not damaged in production.
4. The horizontal rails:
The horizontal guide track adopts a straight line track with high precision and smooth running.
5. The travel reducer:
The travel reducer adopts high precision planet gear reducer.
6. The driven system:
The driven device adopts the full-digital AC servo system and motor made by Japan Panasonic which has high running precision.
7. Regulator of auto height regulator:
The machine has many functions such as automatic position, automatic perforation, and automatic height-regulating device of capacitance.
8. Program and nesting software:
FastCam.
9. CNC system:
It is equipped with most efficiency FL2300B Control system.
10. Cutting power:

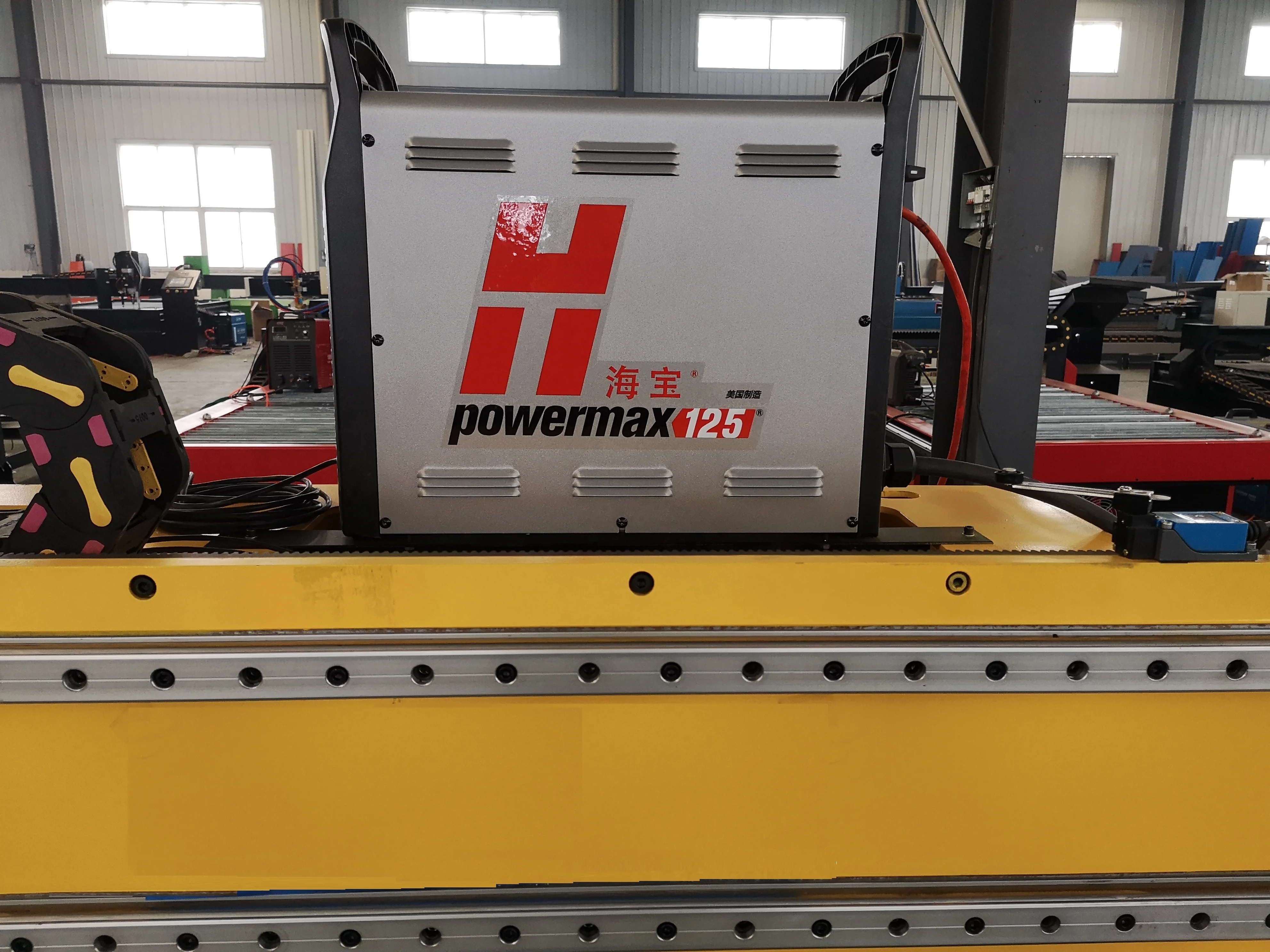

China LGK or USA Hypertherm optional.







Jinan Wisdom CNC Equipment Co., Ltd is one of the premium and quality-focused manufacturer and supplier in China integrating manufacture, research, marketing and service. We design, develop and manufacture CNC router machine (CNC wood router, stone engraving machine, metal engraving machine, 3 axis CNC router, 4 axis CNC router, 5 axis CNC router, 3D CNC router, CNC milling machine), CNC wood turning lathe, CO2 laser engraving and cutting machine, laser marking machine, fiber laser cutting machine, plasma cutting machine, etc.



Quality makes the core of our organization's philosophy, we are committed to providing customers with high quality products, competitive prices, excellent services and customized solutions. For decade of years development, our products have good market in more than 70 countries and regions including Europe, Africa, Mid east, America, Oceania and Southeast Asia, etc. Besides, we have 24hr customer service hot line, regularly consult customers' needs and suggestions to further improve our products and service.



We make use of the rich Internet information, integrate global market resource, and create a unique marketing and brand promoting mode belonging to "Wisdom". We insists on customer-oriented and non-stopping innovating to achieve common benefits, we whole-heartedly supply products with competitive price and perfect solutions to all users in all kinds of industries.

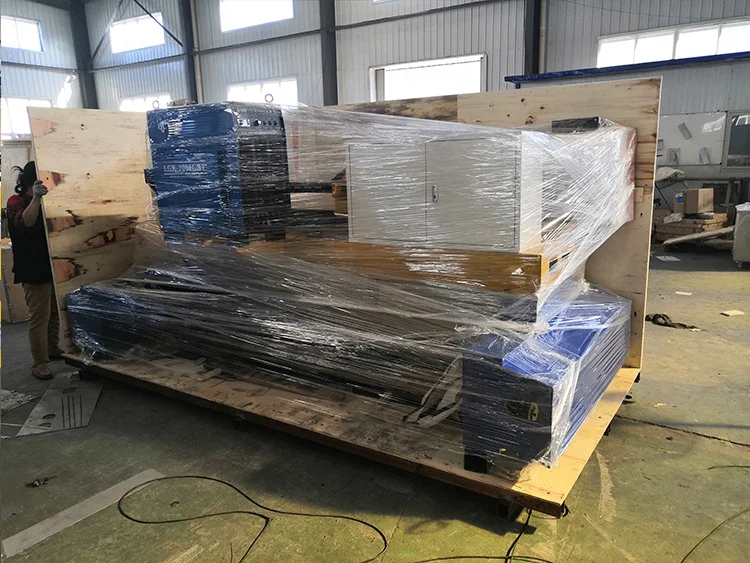

Rather careful and professional packing way for machine protection.
1. Film. Put PE film on the machine and some spare parts, then put bubble wrap to the machine.
2. Free-fumigation wooden case with steel tube support on wooden cover. Humidity-proof paper above the wooden plate.
This kind of package could protect the machine very well from dust and humidity etc.

1.What kind of guarantee do you offer on your professional range of CNC and laser machine?
We offer a full 24 months back to base warranty on the router cnc and relevant manufacturers warranty on 3rd party add ons. This covers electrical and mechanical parts under ‘normal use’.



2.How do you send your CNC router and laser machine?
They are firstly greased thoroughly and packaged in a free-fumigation wooden crate. Usually, we send machine by ship, sometimes, as customer’s requirement, send by air or by train. When the goods arrive at your sea port or destination, you can pick up goods with the bill of lading we offered. Or we can arrange the cargo agent to send goods to your door.



3.I want a size that you don’t make as standard, is this possible?
Absolutely, we design and manufacture everything ourselves and indeed do many custom builds.



4.I am new to CNC and laser, how difficult are your machines to operate?
We help a lot of beginners, if you have a reasonable knowledge of computer and are willing to spend a little time learning it is not that had. Quite often when we sell a machine we send the manual out before the machine is ready for the customer to read ahead.



5.Does machine comes with software?
Yes, we offer intelligent and compatible software with machine, so it will be more convenient for you to operate machine.



6. Do you offer training about products?
Yes, customer could get free training at our factory; or we can assign technician arrive at customer’s company for the training at some charge, and accommodation, food, tickets will be charged.

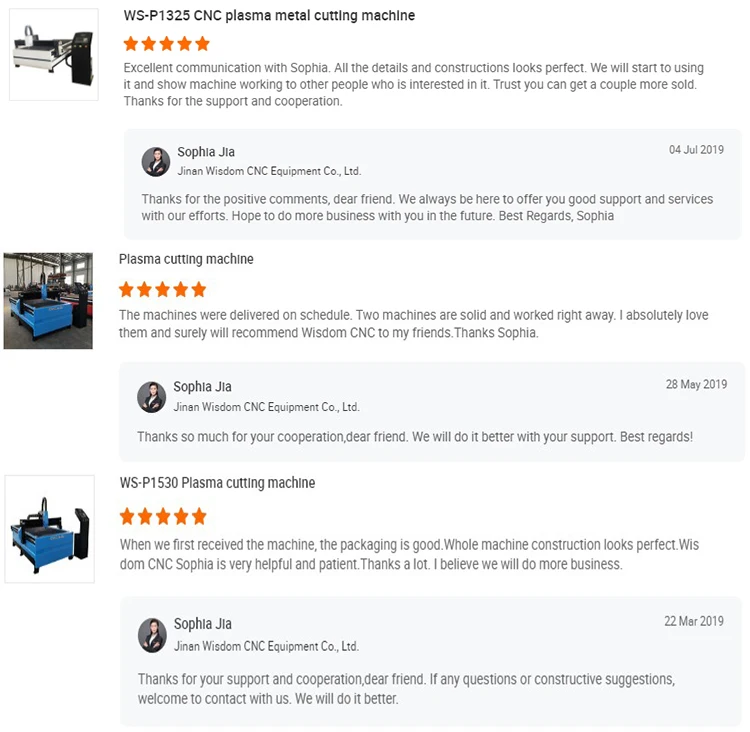

Customer's Feedback
