Best selling 2020 light color warm white square spotlight

Share on (62377756882):


Price:$35.70 - $107.10

Quantity:


Product Overview

Description



Product Description







. 18 PCS LED with beautiful light output.
. Die-casting Aluminium trim, Die-casting Aluminium housing.


.Powder coated painted in grey
.5°,10°,17°,23°,28°,43°,58° beam angle as option.


.2300 l m luminous flux output
.IP65 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you

























































































































General Data



Item No.



TGD-160160-36D



Power



36 Watts



LED type



18 PCS LED



Luminous flux



2300 lm



CCT



2700K, 3000K, 4000K, 6000K



CRI



80+



Beam angle



5°,10°,17°,23°,28°,43°,58°

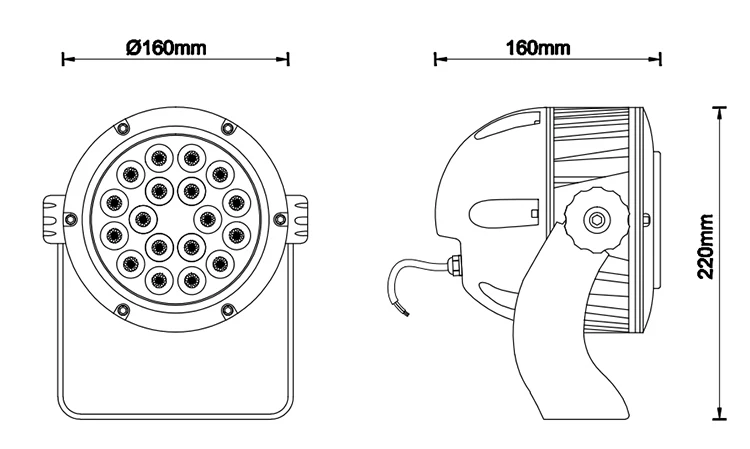

Dimension



160*160 (mm) Diameter x Height



Cut out



/



Net weight



2.8 kgs



Warranty



3 years



Certifications



CE, RoHS



Electrical Data



Input voltage



AC100~265V



Insulation class



Class I



Cable



1PC rubber cable 0.3M H05RN-F 3*1.5mm² mm square



Driver



Built-in high voltage constant current driver with transformer



Construction Data



IP rating



IP65 Waterproof



Housing



Die-casting Aluminium



Protection finishing



Powder coated painted in grey



Trim



Die-casting Aluminium



Glass



Tempered Glass T=4mm



Loading capacity



220 kgs



Cable Gland



PG7 IP67



Gasket



O-ring PMQ silicone seal



Accessories



Spike



The spike is optional

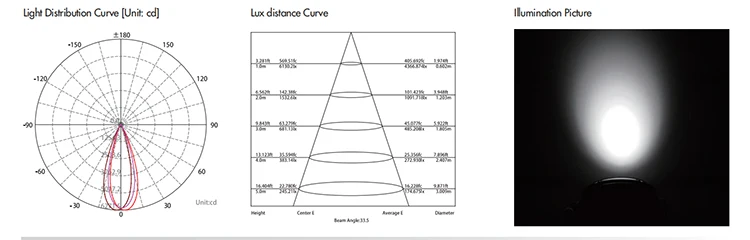

Photometric Data (3000K, 30°) & Illumination Picture

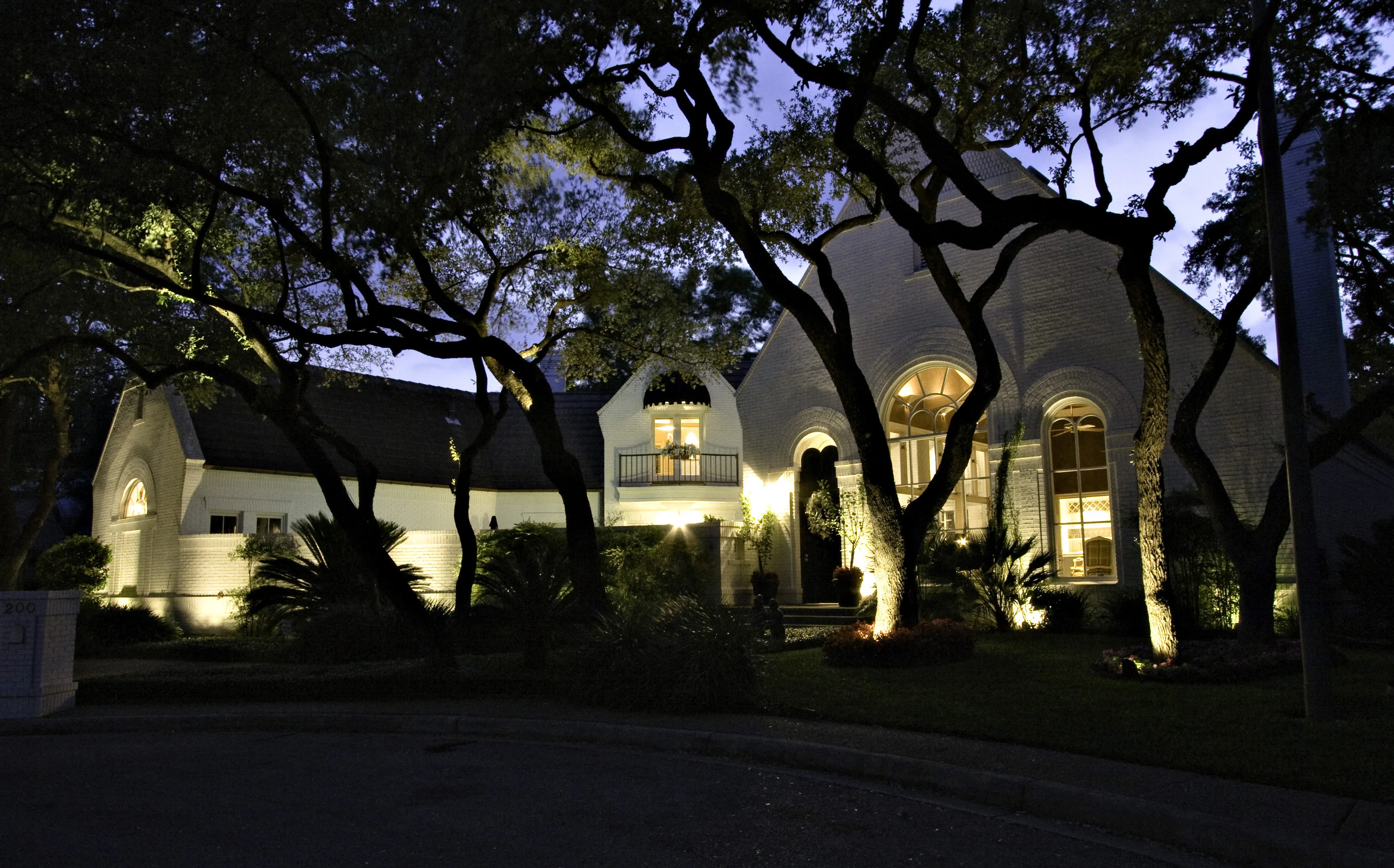

Application Pictures


.jpg













Company Information







Packaging & Shipping







Our Services







1.Are you a trade company or a manufacturer?


We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.





2.What is your delivery date?


 The delivery date is around 7-15 days for samples,and 15~25 days  for regular orders after receipt of payment.





3.What is your payment terms?


For samples: 100% deposit.


For regular order:30% deposit in advance and 70% balance before shipment.


The payment method can be Paypal,western union bank, bank for TT .





4.What's your delivery terms ?


We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.





5.What's your warranty ?


We are confident on our quality of design,and the warranty is 3 years.





6.Can I buy the quantity below MOQ ?


Yes, please contact us for the detailed prices based on your detailed quantity requirement.





7. How many years are you producing exterior LED lighting ?


12 years since 2007.
