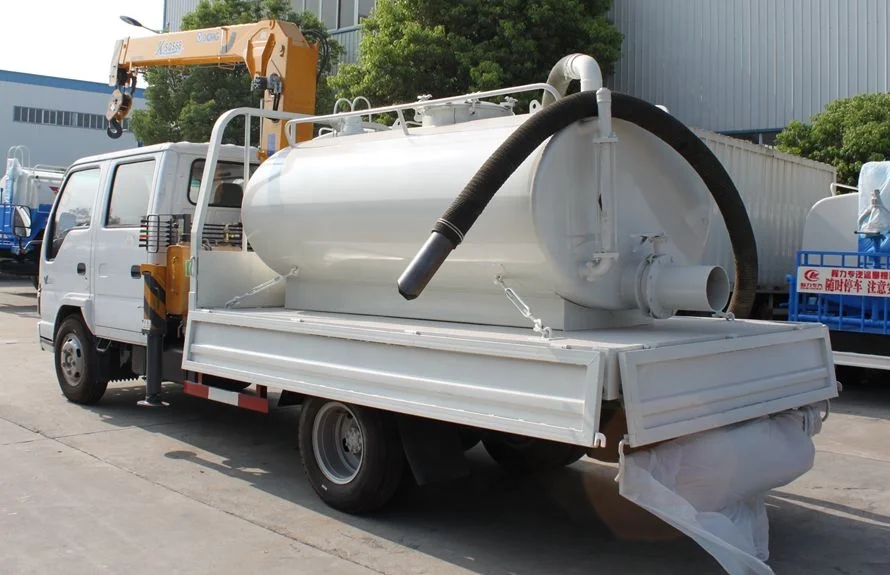

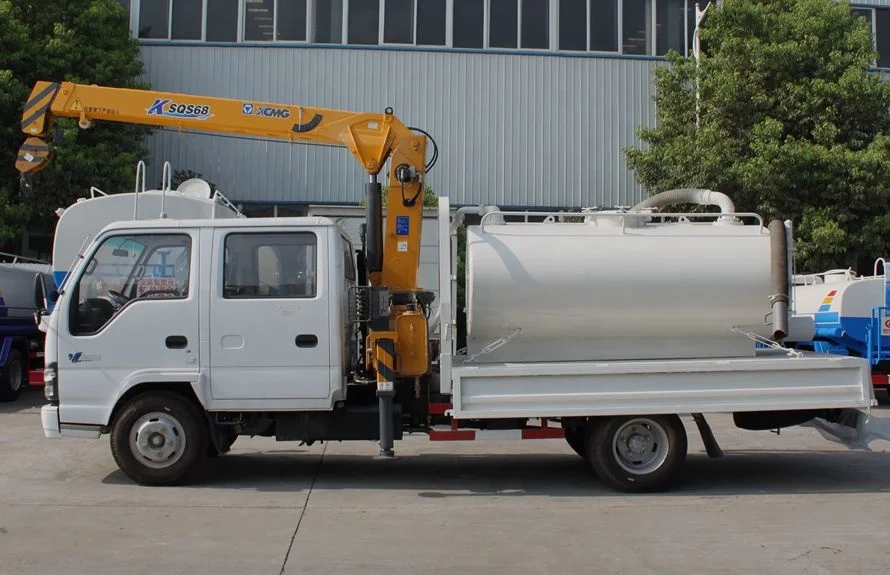

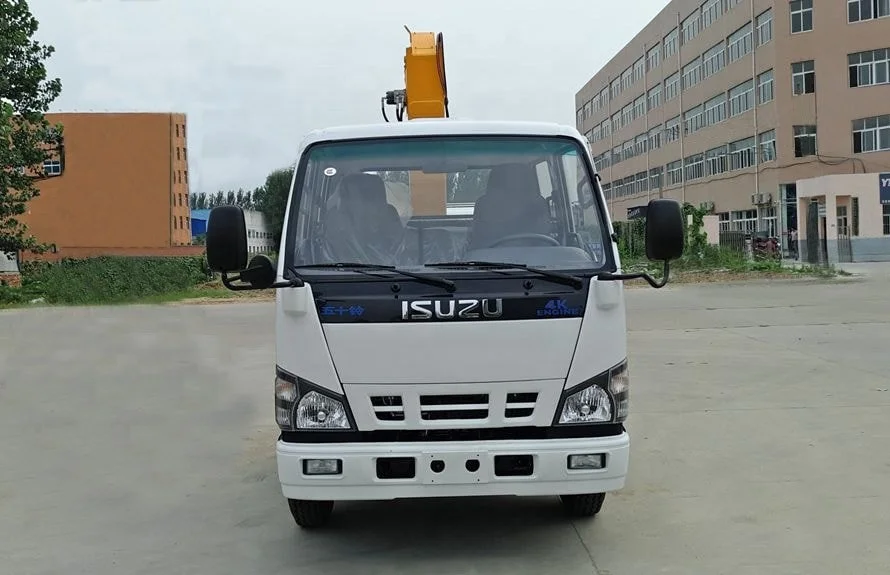

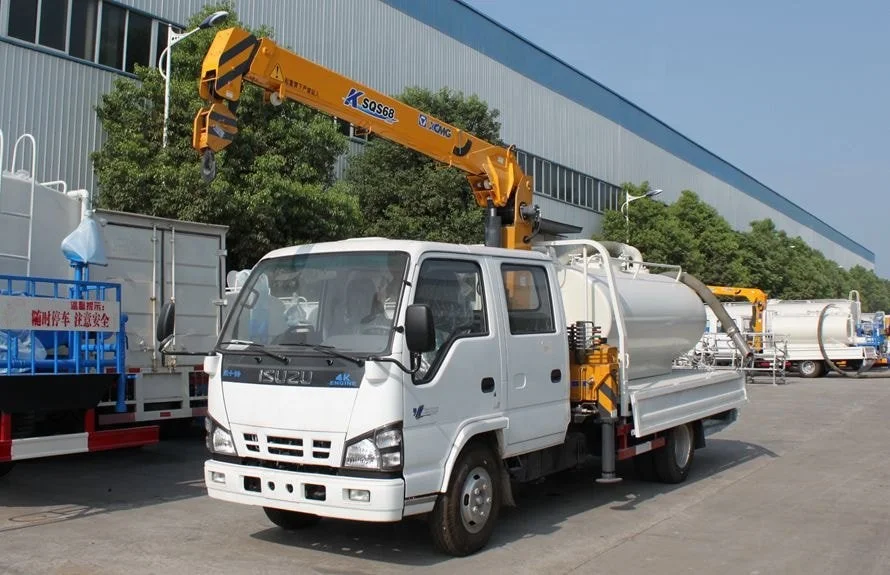

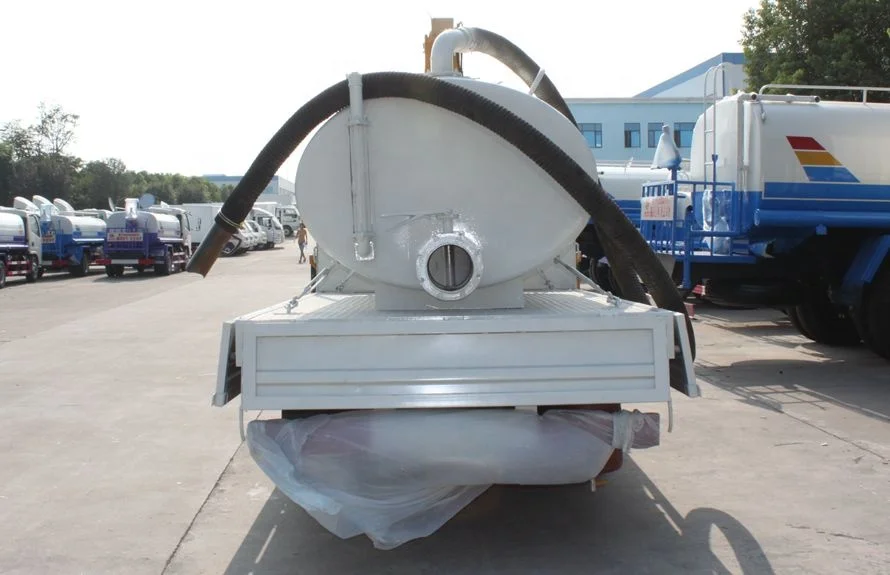

4x2 Japan brand elf 2 ton mini cantilever crane with sewage suction truck

Chassis configuration:

      I-suzu 2 ton truck crane uses double-row chassis, 600P light truck series, Isuzu 120 or 130 horsepower five-engine, 5-speed gearbox, front axle 2.5 tons, rear axle 4.8 tons, full car 7.00 wire tires, with original factory Air conditioning, direction assist, ABS, double-circuit oil brake system, cargo box length 3.3 meters, can be installed with suction tanks, sprinkler tanks, etc., to achieve a multi-purpose vehicle.

Crane configuration:

      I-suzu 2 ton truck mounted top can be equipped with 3.2 ton crane, crane brand can be selected from Sany, Xugong, Furukawa, etc., 360 degree full rotation, standard front leg, can be installed with fixed rear leg or hydraulic rear branch Legs, optional hanging baskets, grabs, rigs and other accessories.

      The above picture shows the two sections of Xugong 2 ton truck-mounted crane, three-arm lifting parameters, Xugong 2 ton truck-mounted two-section crane crane working radius of 5.4 meters, lifting height 7.5 meters, horizontal lifting parameters: 5.4 The rice lifts 0.4 tons, the 3.07 meters lifts 1 ton, and the 2 meters lifts 2.1 tons.

      The I-suzu  2 ton truck crane has a working radius of 7.7 meters and a lifting height of about 9 meters. The lifting parameters in the horizontal direction are: 7.7 meters lifting capacity 0.25 tons, 5.4 meters lifting weight 0.4 tons, 3.07 meters lifting weight 1 ton, 2 The rice lifting capacity is 2.1 tons.

The overall description of our Crane truck series

Our company are professional manufacturer in truck area, guarantee all goods Brand-New and China-Origined.

1. Chassis Model: Dongfeng,FAW,Foton,Sinotruck,North  and etc.

2. Engine Model:Cummins,Yuchai,Weichai,Xichai,Sinotruk and etc.

3. Drive Model: 4*2,4x4, 6*2,6*4,6x6, 8*4,  and three axis crane semi-tailer

4. Crane rotation angle: 360° with hydraulic systems straight /folding boom crane max loading weight:2T,3.2T,4T,5T,6.3T,8T,10T,12T,14T,16T,20T, 30T, 60T, 150T,

5. Cargo box's length:3-13m.

Product Photos

1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.

2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .

3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.

4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.

5. Model: we have sewage suction truck and sewage suction cleaning truck;

6. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;

7.Chassis brand: Dongfeng FOTON JAC FAW I-SUZU IVECO Sinotruk HOWO Shacman JMC.etc;

9. Crane tonnage: 2 to 250T;

10. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.

 1.By cargo bulk shipment or ro-ro shipment .
2.By Flat Rack Container
