Прямой Производитель, сварочный аппарат с горячей пластиной, подать заявку на Автомобильный задний фонарь

Product Overview

Description

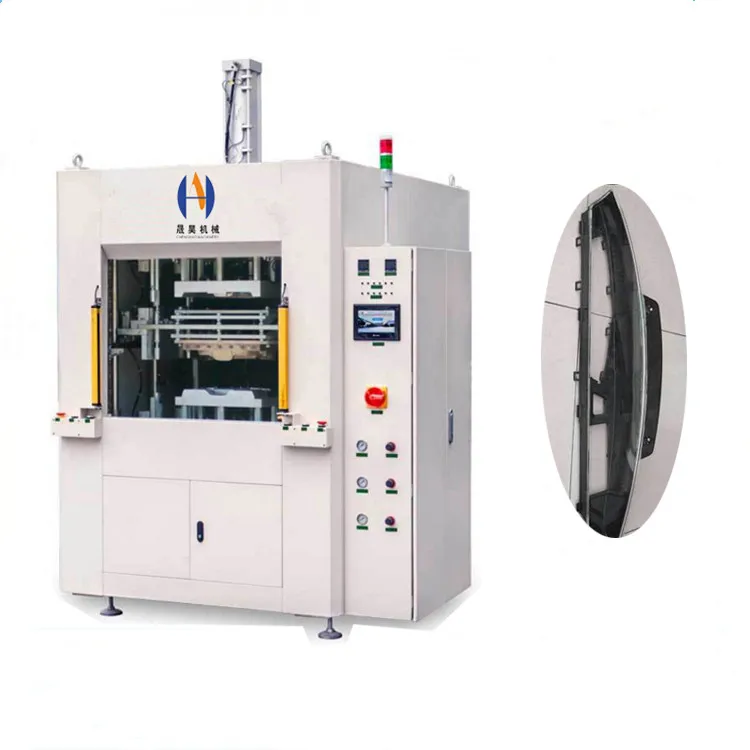

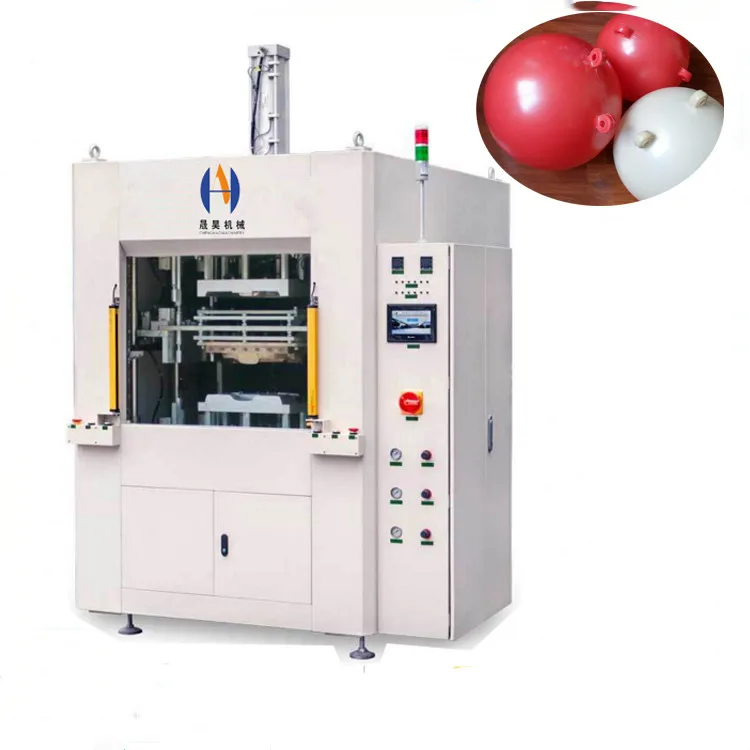

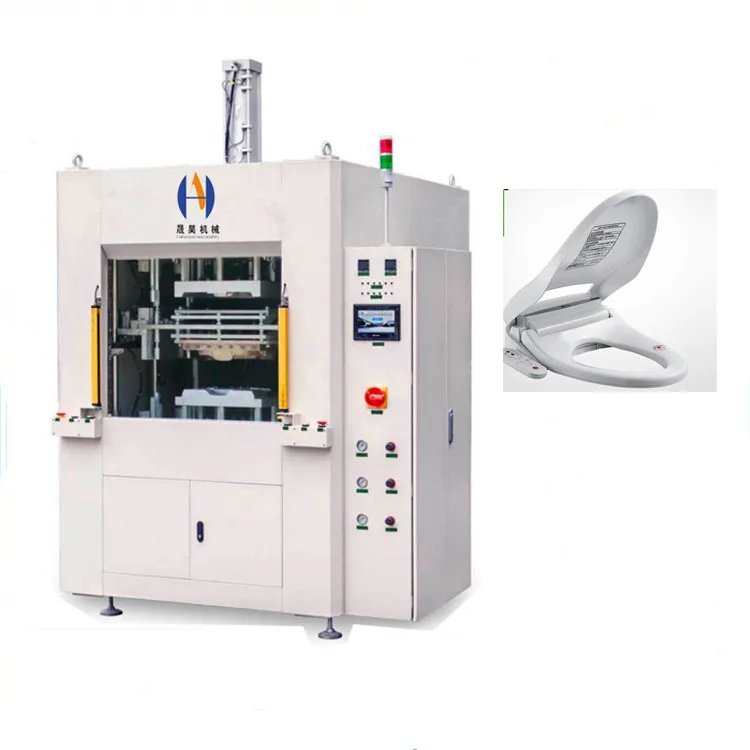

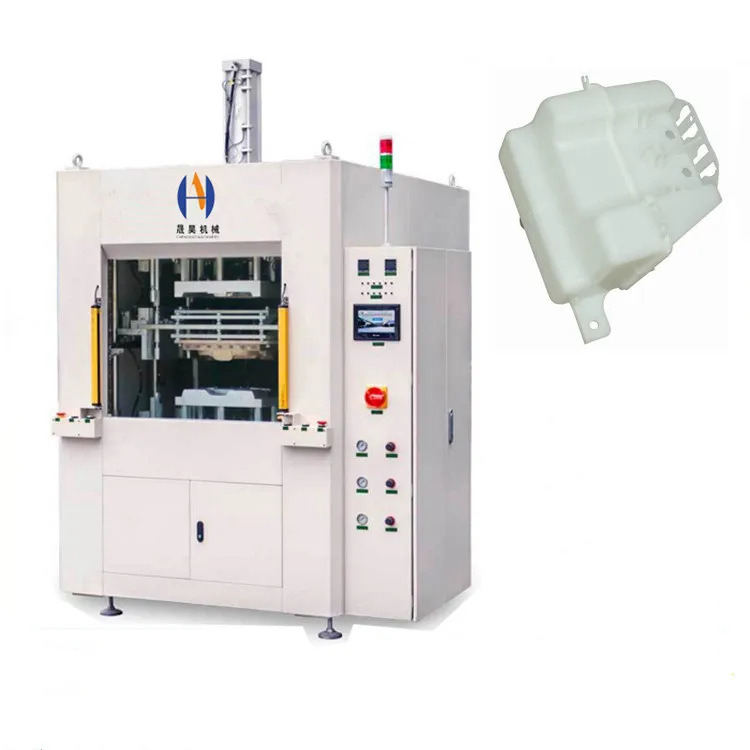

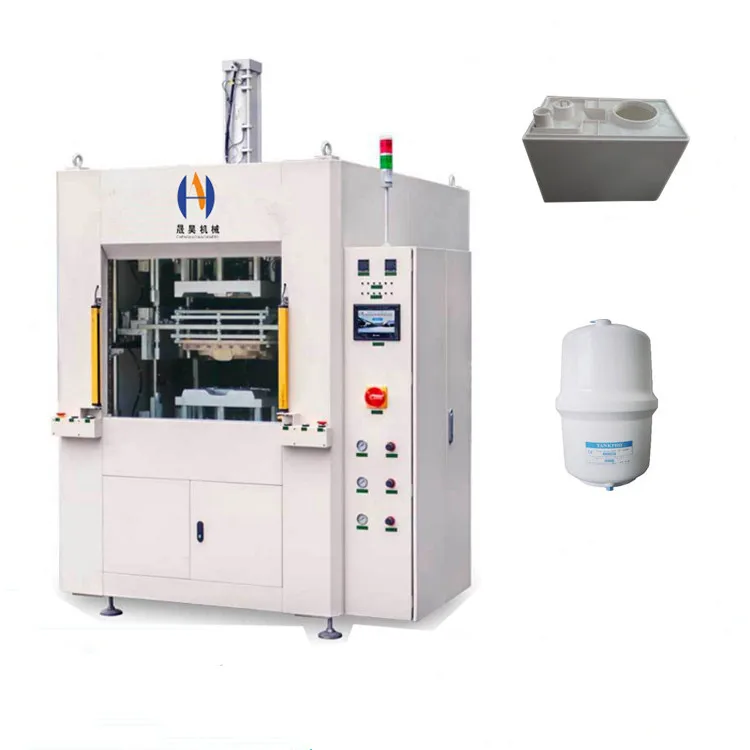

Direct Manufacture Hot Plate Welding Machine Apply for Automobile Tail Light





Machine Parameters:



Model	CH-300RB	CH-500RB
Power	5KW	10KW
Voltage	380V   3P 50/60Hz
Welding Area	200*400mm	400*600mm
Machine Size	1170*1300*1700mm	1600*1650*2600mm
Machine Weight	500KG	850KG



Machine Feature:



Easy to operate, wide range of applications; After welding, the result of watertight and airtight welding can be

achieved. For larger or irregular workpiece welding. Human-computer interface with PLC computer control system, machine action is correct, easy and safe operation. Fast speed and high labor efficiency.



Applicable plastic material: PE, PP,EVA, Nylon, ABS, Acrylic, POM, etc



Principle of the machine: Two metal plates are used to heat the weld surface of the two plastic workpieces to be fused, to melt the surface of plastic parts; Then quickly remove the hot metal plate and pressurize the upper and lower plastic parts so that the fusion surface is fused, solidified and integrated.

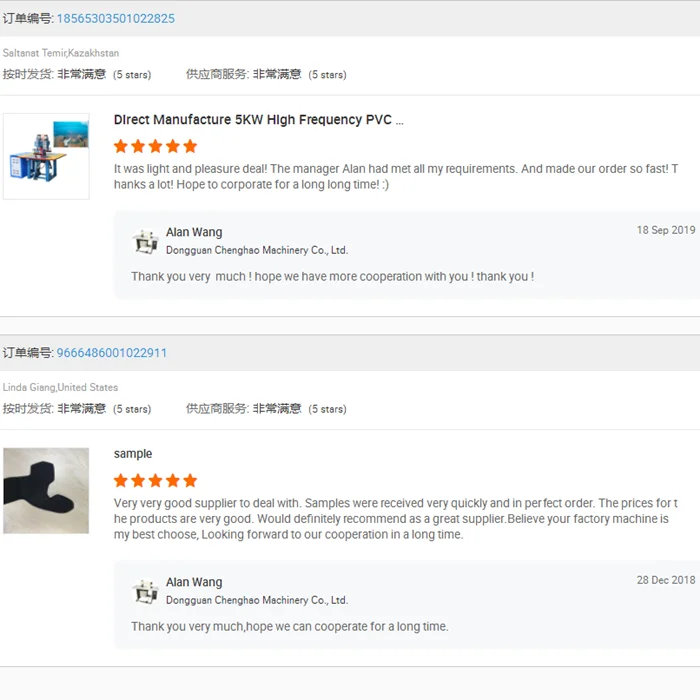

From Customer Feedback:

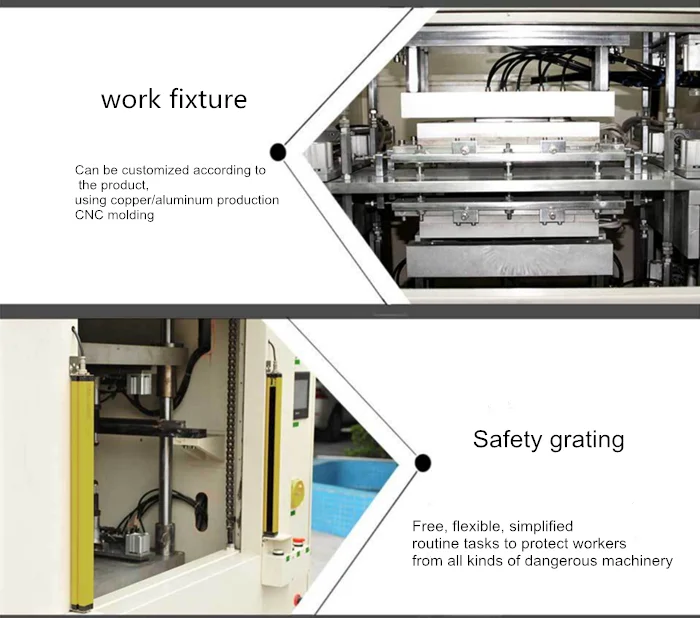

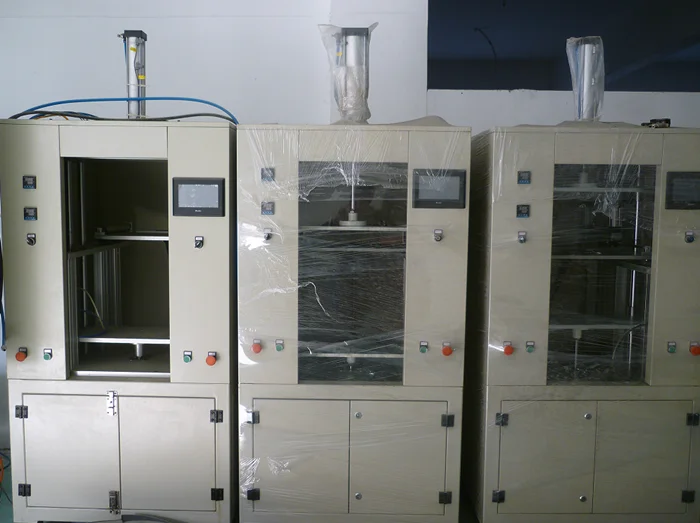

Product Detailed:

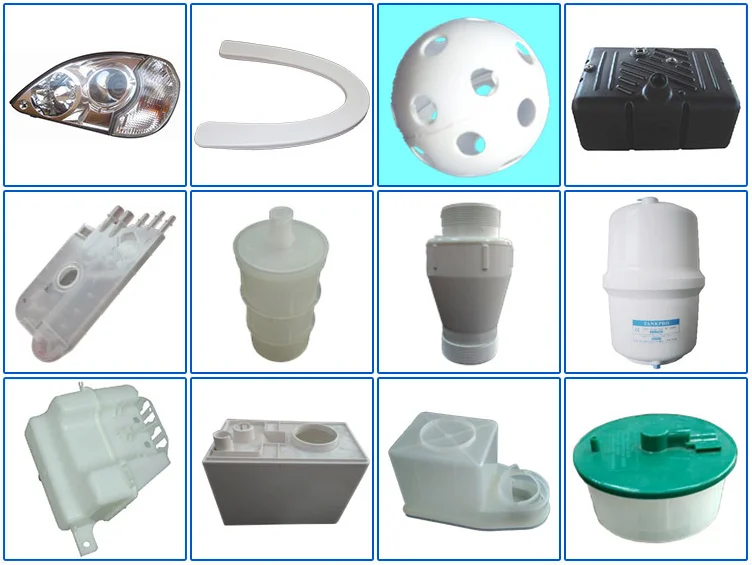

Sample:
