TF 135 CONCRETE RECYCLE SYSTEM Concrete recycler Ready mix reclaimer

Product Overview

Description

Concrete Reclaimer



 Ø CONCRETE RECLAIMR, MODEL TF-135

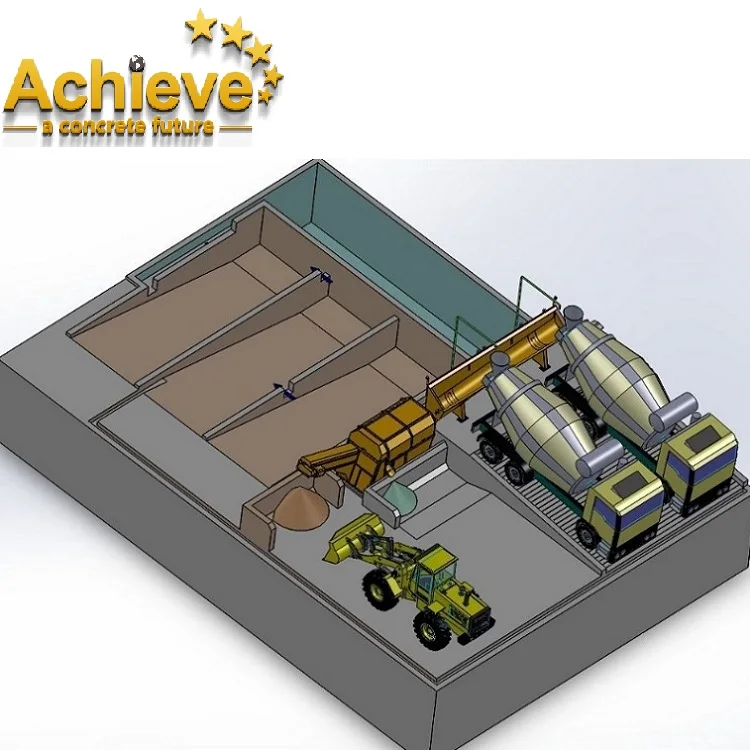

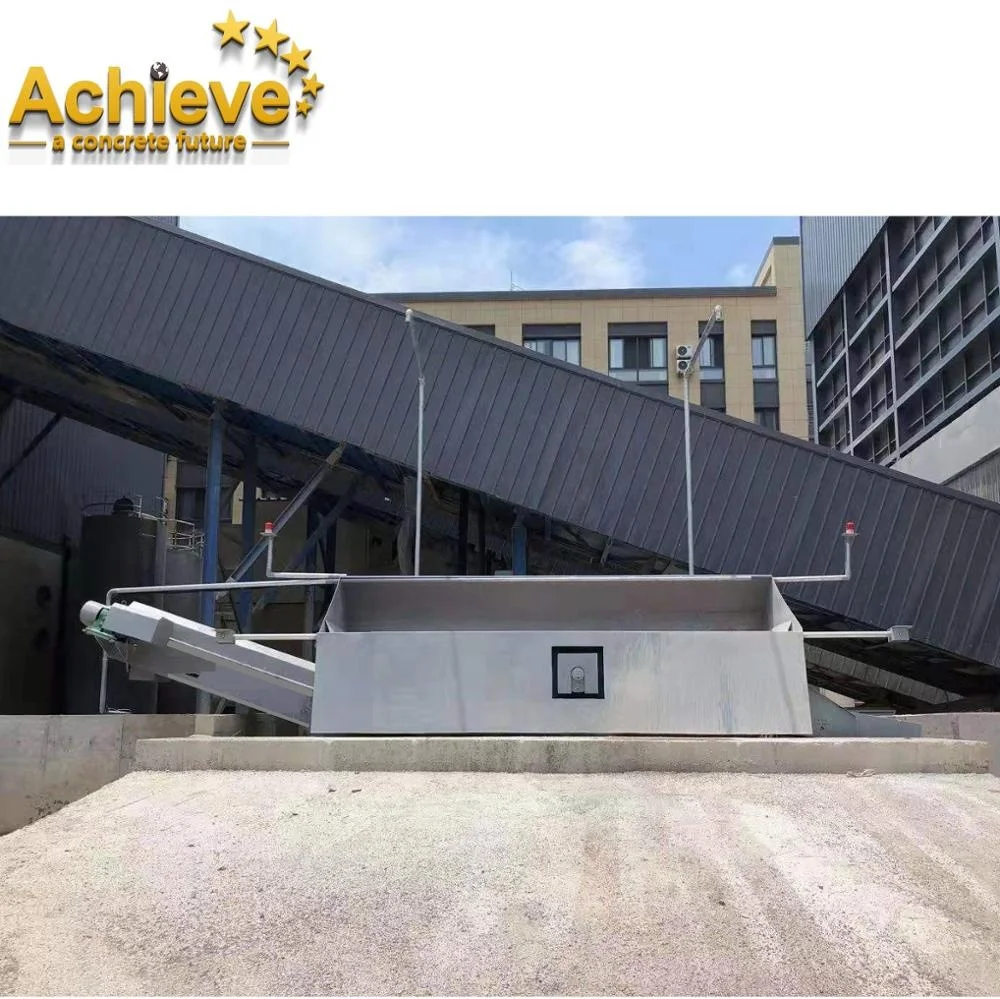

TF135 Vibrating Concrete Reclaimer is a new type of Concrete Reclaimer specially designed according to customers’ requirements for handling large waste concrete. The reclaimer and hopper is integrated designed using the principle of vibrating screening. The new model has the advantage of low fault rate, convenient maintenance and smaller land area. The separated stones could be discharged to the stone pile directly or carried to the aggregate yard through the belt. The sand falls down through the screen and is discharged through the screw conveyor. The slurry water is discharged to the slurry tanks.

Technical Parameters

Model	TF-135
Screening Capacity(m3/h)	30
No. of Washing Stinger	2
Sand Size(mm)	φ1~φ5
Stone Size(mm)	>φ5
Vibrator Power  (kw)	7.5
Sand Screw Power (kw)	5.5
Conveyor Belt Power (kw)	3
Weight (kg)	3400
Overall Size(m)	8.8×2.5×2.3
Qty. of Mixer Trucks	>30
Electric Control System	PLC Automatic Control

Product Advantages

1. The handling capacity is 30m3/h,  material is not blocking by using the separation of vibrating screening.

2. The discharge outlet chould be fixed according to the jobsite flexibly.

3. Easy process, small area, great separation effect

4. Good sealing, simple maintenance, low fault rate, long service-life

5. Simple operation, Automatic control (manual control is also available)
