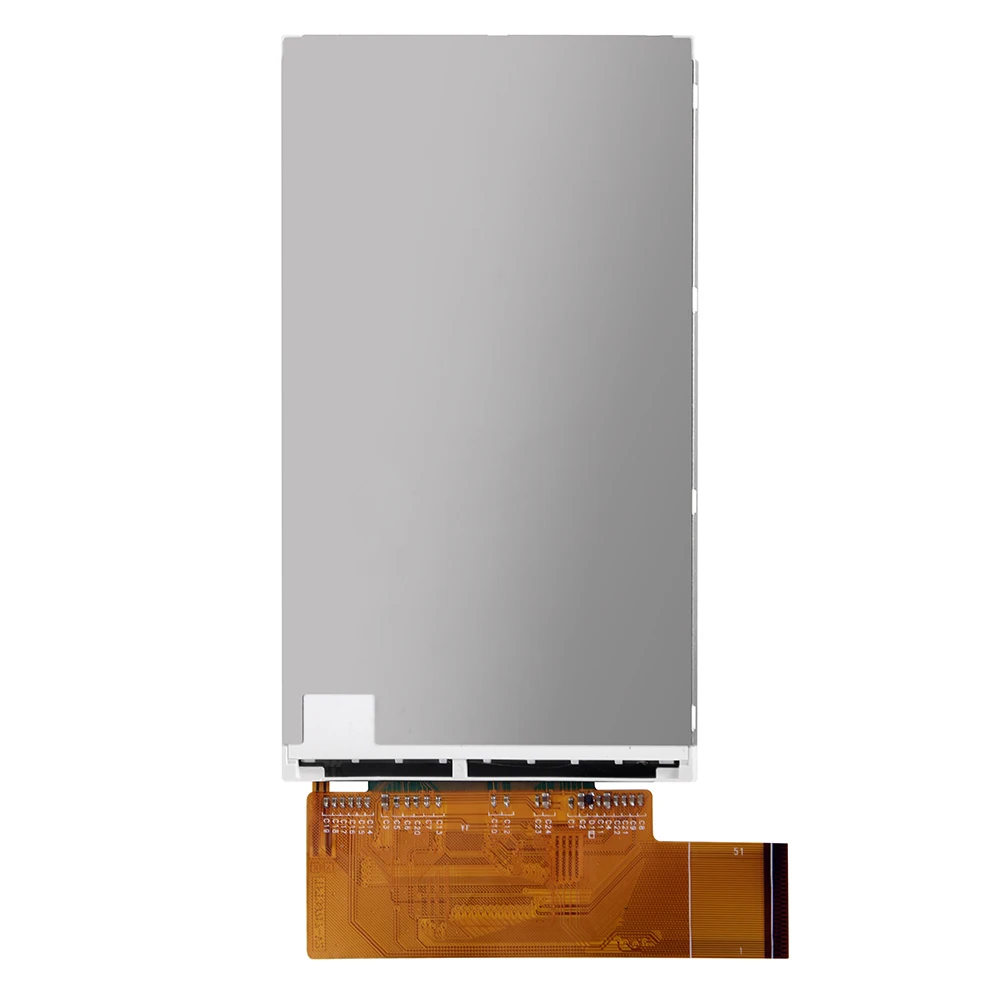

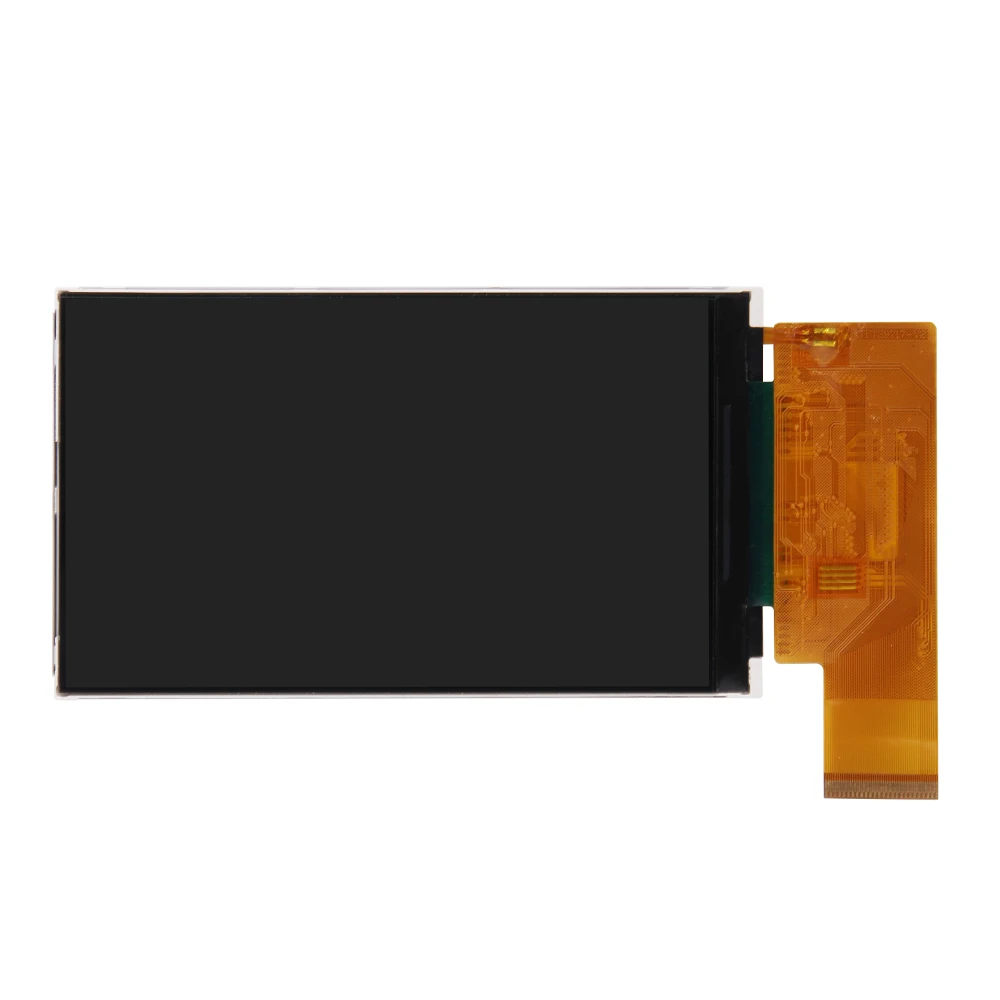

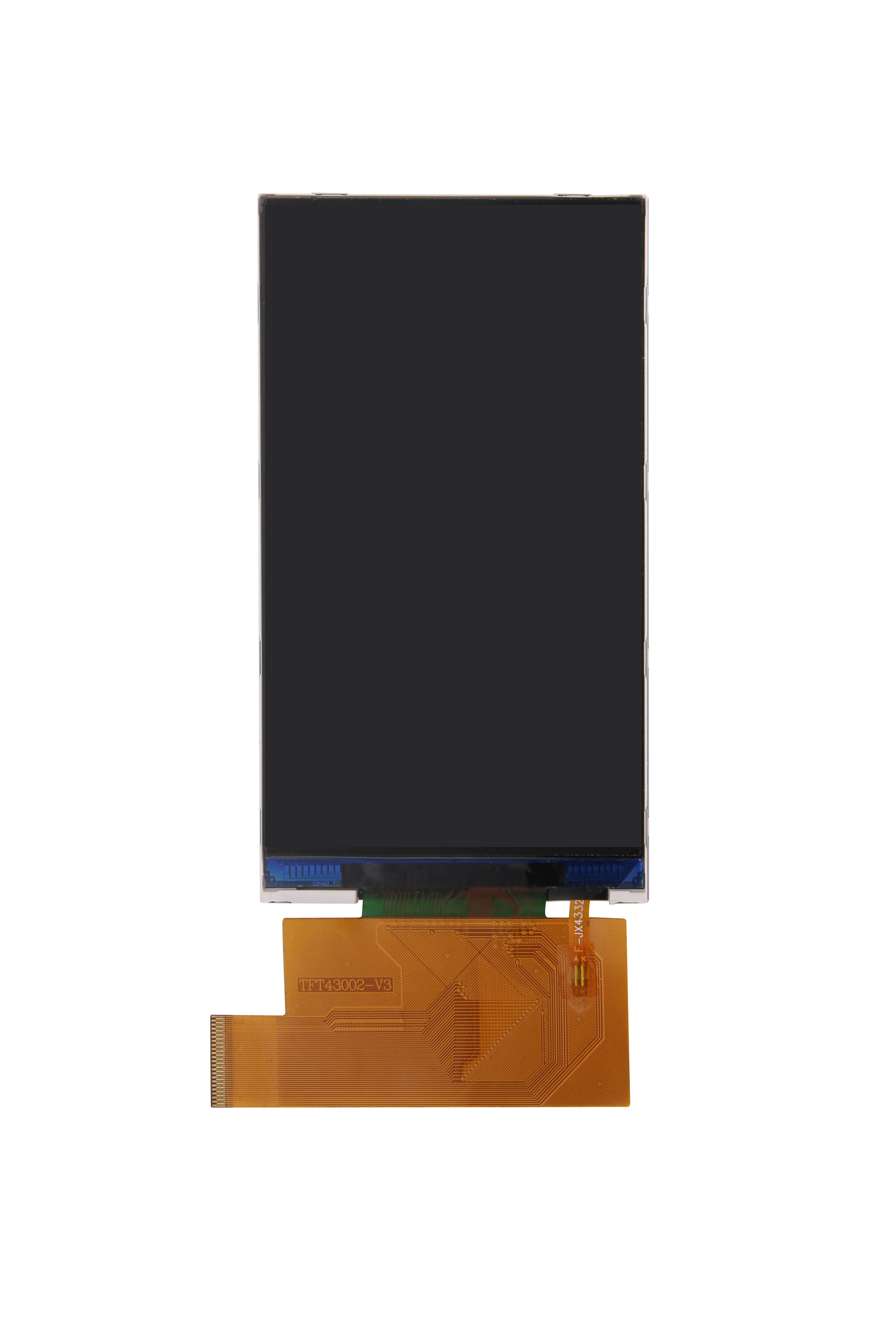

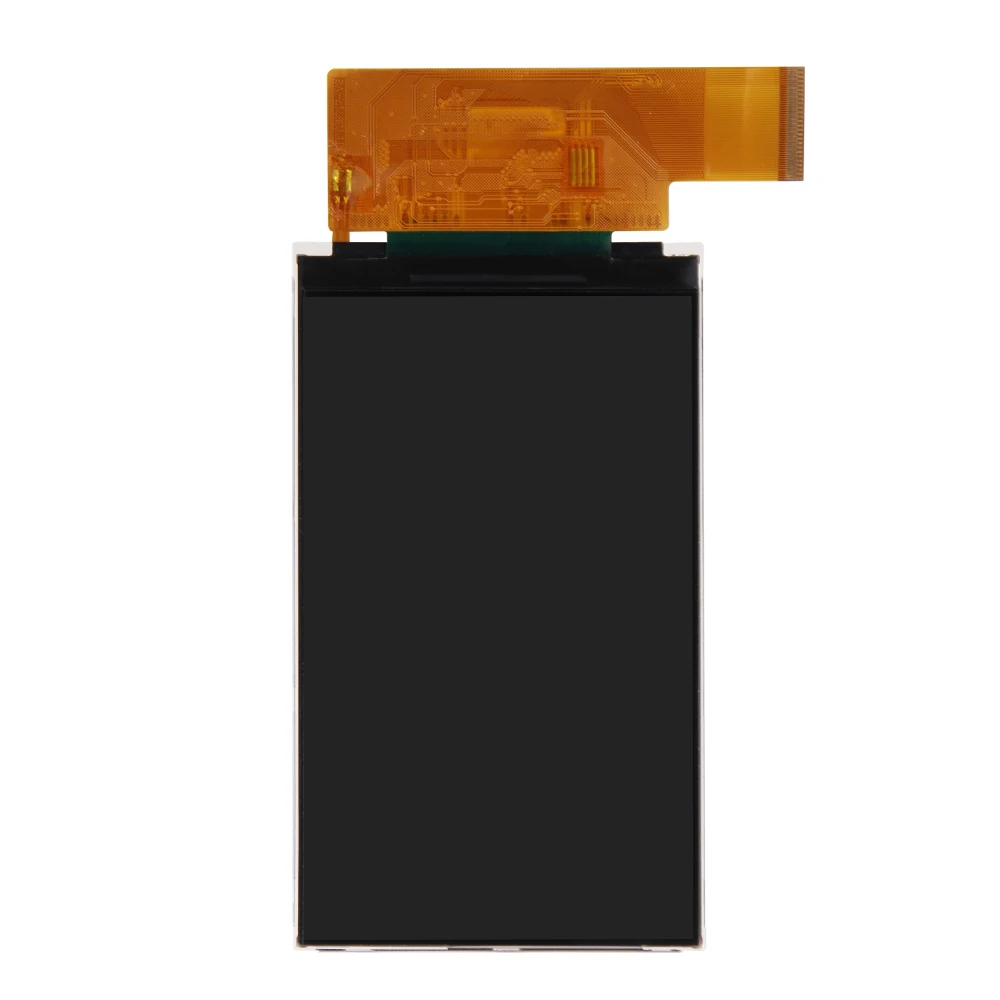

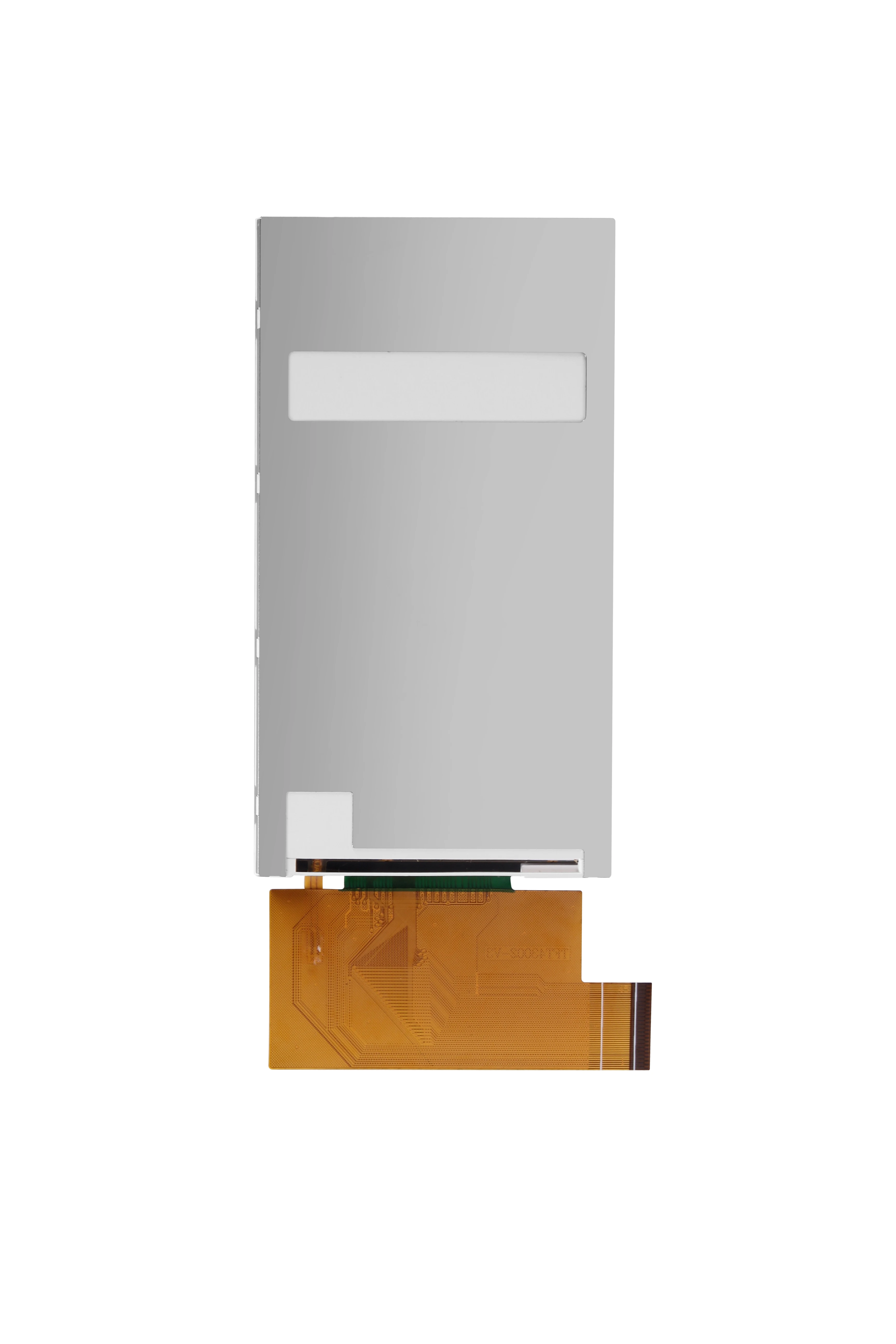

Sunlight Readable Full viewing 480*800 IPS TFT 4.3 inch TFT Display 45 pin
- Category: >>>
- Supplier: Dongguan Shineworld Innovations Co. Limited
Share on (62378141104):
Product Overview
Description
Display General Description
The TFT43002B is a high-quality 4.3-inch TN TFT LCD module manufactured by SWICN. It boasts a 480x800 RGB pixel resolution on a black background, delivering an exceptional visual experience.
Powered by the reliable ST7701S driver IC and supporting the SPI and 24 Bit RGB interfaces, the SWI TFT43002B guarantees consistent and dependable performance. It is designed to be compatible with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This extensive compatibility makes it suitable for diverse applications, such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
To simplify the integration process, SWICN has designed the TFT43002B for seamless connection. It features a 45-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring, saving valuable time during the integration process.
Shineworld Innovations Limited offers tailored solutions, allowing customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWICN can provide customized demo kits, further assisting in the evaluation and decision-making process. If you are interested in our product, you can contact echo.l@swi-cn.com directly.
Powered by the reliable ST7701S driver IC and supporting the SPI and 24 Bit RGB interfaces, the SWI TFT43002B guarantees consistent and dependable performance. It is designed to be compatible with a wide range of MCUs, including 8051, PIC, AVR, ARDUINO, ARM, and Raspberry Pi. This extensive compatibility makes it suitable for diverse applications, such as embedded systems, industrial devices, security systems, medical equipment, consumer electronics, and handheld devices.
To simplify the integration process, SWICN has designed the TFT43002B for seamless connection. It features a 45-pin Flexible Printed Circuit (FPC) and FPC-connector mode, enabling easy and reliable connections to your PCB's ZIF connector. This eliminates the need for complex wiring, saving valuable time during the integration process.
Shineworld Innovations Limited offers tailored solutions, allowing customers to customize the FPC, integrate cover lenses, add touch screens, or even customize driver boards. This flexibility ensures that customers receive an optimized display solution that perfectly aligns with their unique needs and preferences. Additionally, upon customer request, SWICN can provide customized demo kits, further assisting in the evaluation and decision-making process. If you are interested in our product, you can contact echo.l@swi-cn.com directly.
General Data
NO. | ITEM | SPECIFICATIONS | UNIT | ||
1 | Display Mode | TN TFT | |||
2 | Diagonal Size | 4.3 | Inch | ||
3 | Resolution | 480(RGB)x 800 | Dots | ||
4 | Active Area | 56.16(W) x 93.6(H) | mm | ||
5 | Outline Dimension | 60.66(W) x 104.25(H) | mm | ||
6 | Thickness | 2.3±0.2 | mm | ||
7 | Pixel Pitch | 0.117(W) x 0.117(H) | mm | ||
8 | Pixel Size | 0.117(W) x 0.117(H) | mm | ||
9 | Display Driver IC | ST7701S | - | ||
10 | Touch Driver IC | No Touch | - | ||
11 | Display Color | 262K | - | ||
12 | Gray Scale | 8 | Bit | ||
13 | Brightness | TBD | cd /m2 | ||
14 | Contrast Ratio | 800:1 | - | ||
15 | Interface | SPI+24 Bit RGB | - | ||
16 | IC Package Type | COG | - | ||
17 | Module Connecting Type | Connector | - | ||
18 | Weight | TBD | g | ||
19 | Pins | 45 | Pins | ||
20 | Operating Temperature | -20~70 | ℃ | ||
21 | Storage Temperature | -30~80 | ℃ | ||

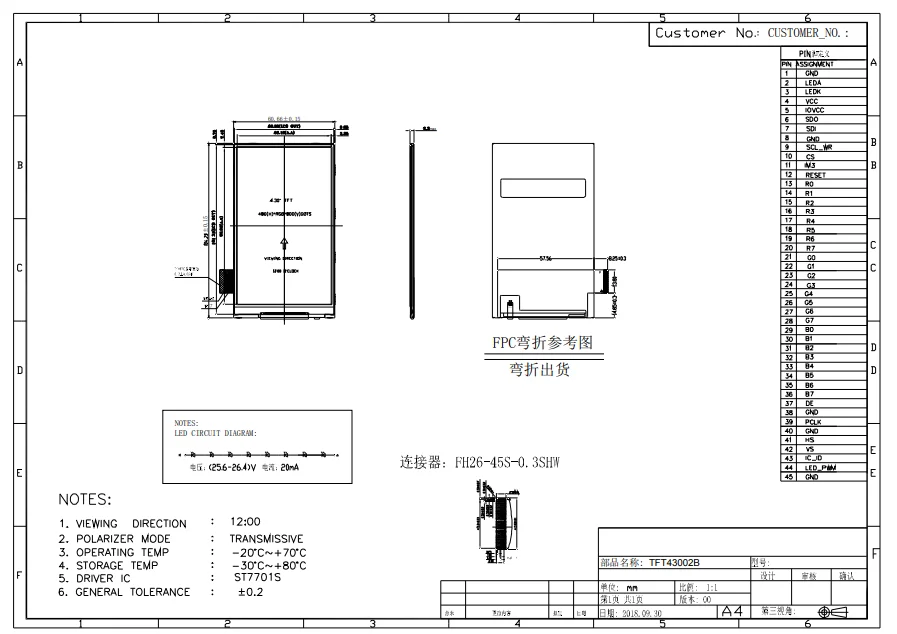

Drawing
Product Details
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
