Assured quality Feature China manufacturer hydraulic flow control valve DF

China manufacturer hydraulic flow control valve DF

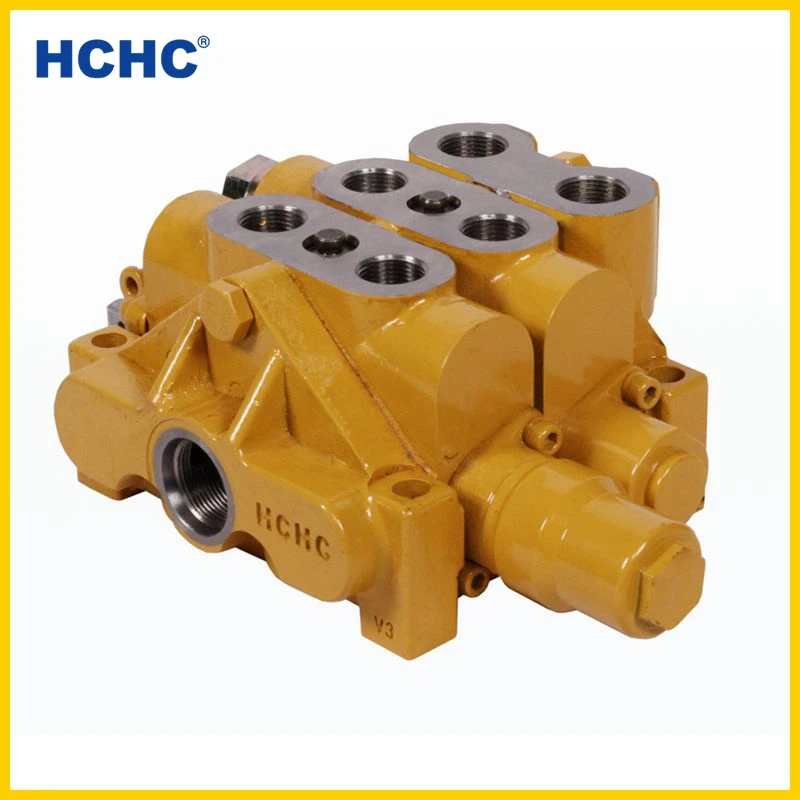

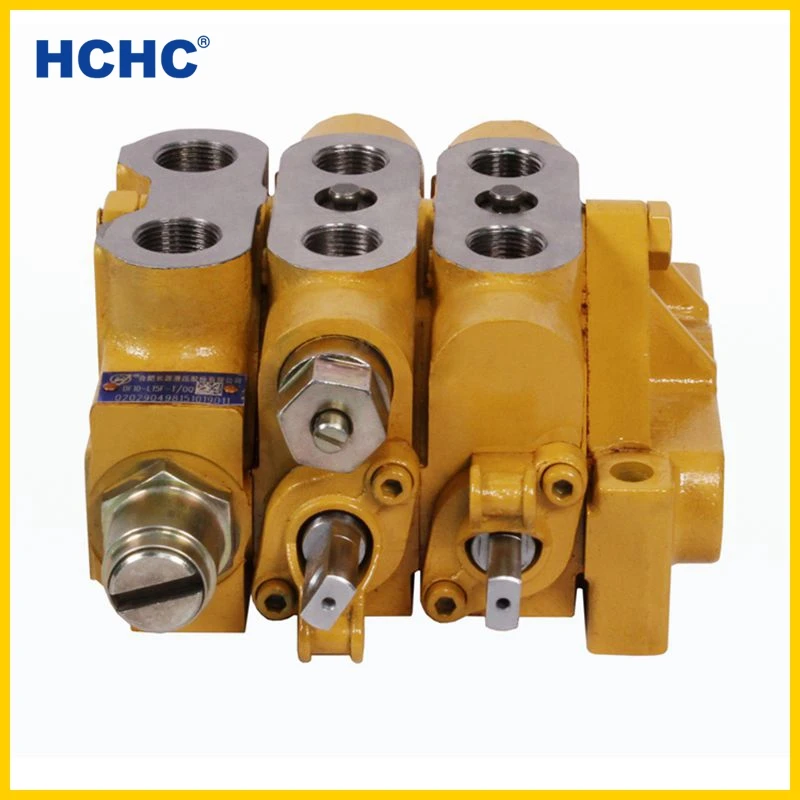

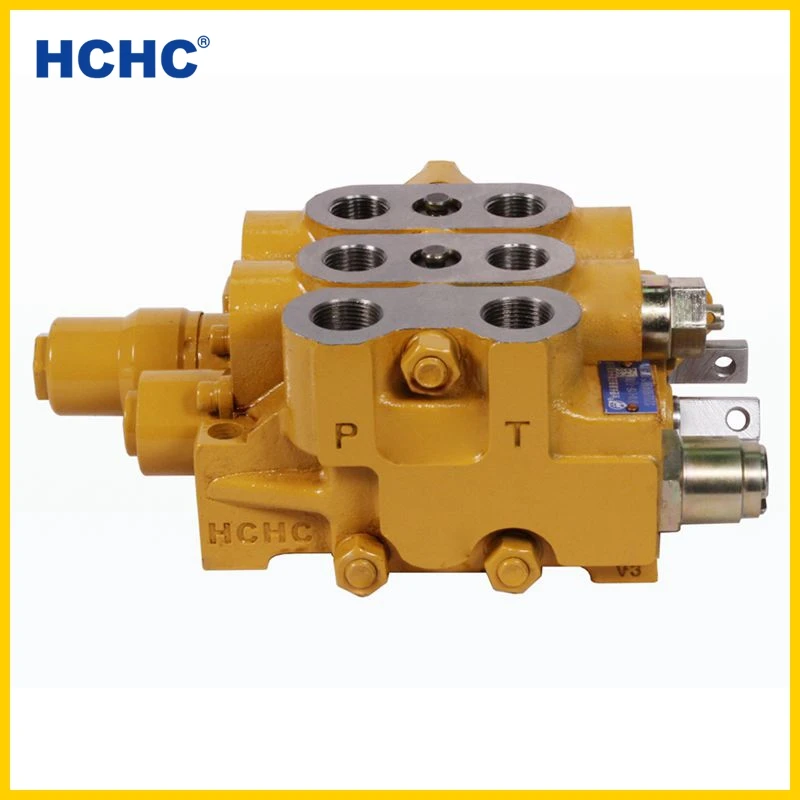

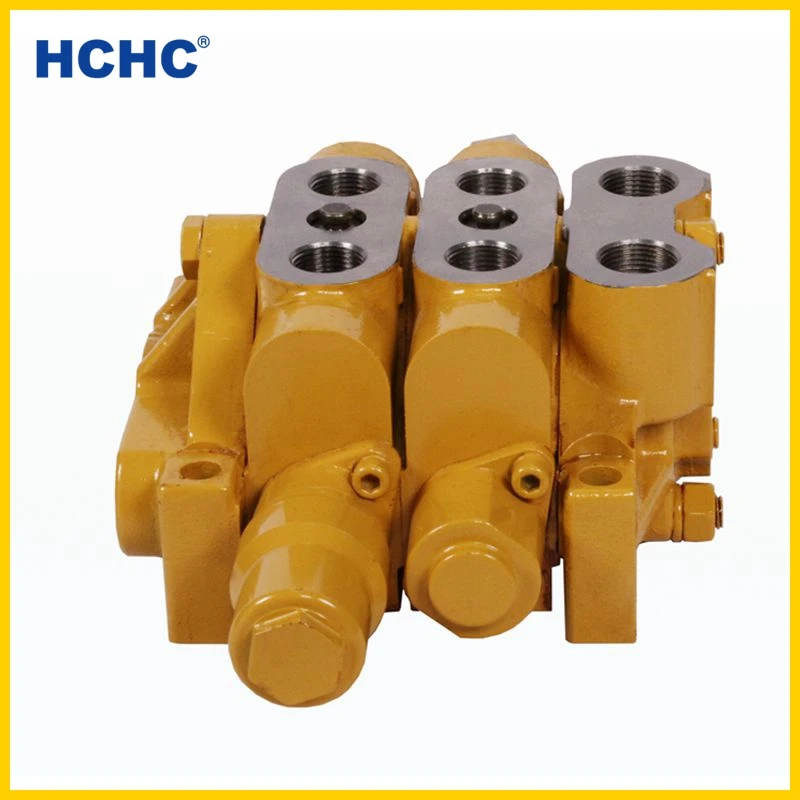

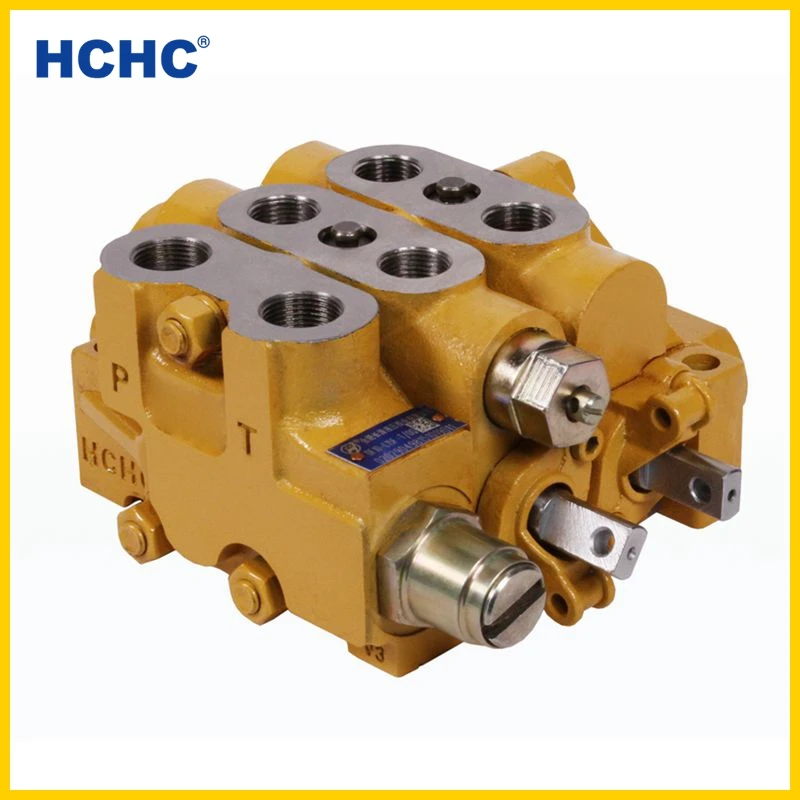

DF-L15E is a sectional type multi-directional valve with parallel oil circuit which consists of inlet valve plate and a number of commutator valve plates. There is a safety valve on the inlet valve plate. Each commutator is equipped with an independent one-way valve, which can also be loaded with an overload valve or a single-double acting conversion valve to load or unload the oil port of the side.

This valve has spring retain and steel ball positioning which can achieve A, O, Y and Q functions in accordance with according to user's needs and are widely used in engineering machinery and agricultural machinery industries.

Model Code

DF *－L 15 E－ * / *－ * / *

① ②  ③④ ⑤   ⑥ ⑦   ⑥ ⑧

① Product code
② Design code
1 means pressure output, if no pressure output, it will be omitted.
③ Joining port type: L=thread
④ Nominal size: 15mm
⑤ Pressure grade: E=160bar
⑥ Spool control type: T=spring, W=ball
⑦ Spool function type of block 1
⑧ Spool function type of block 2
