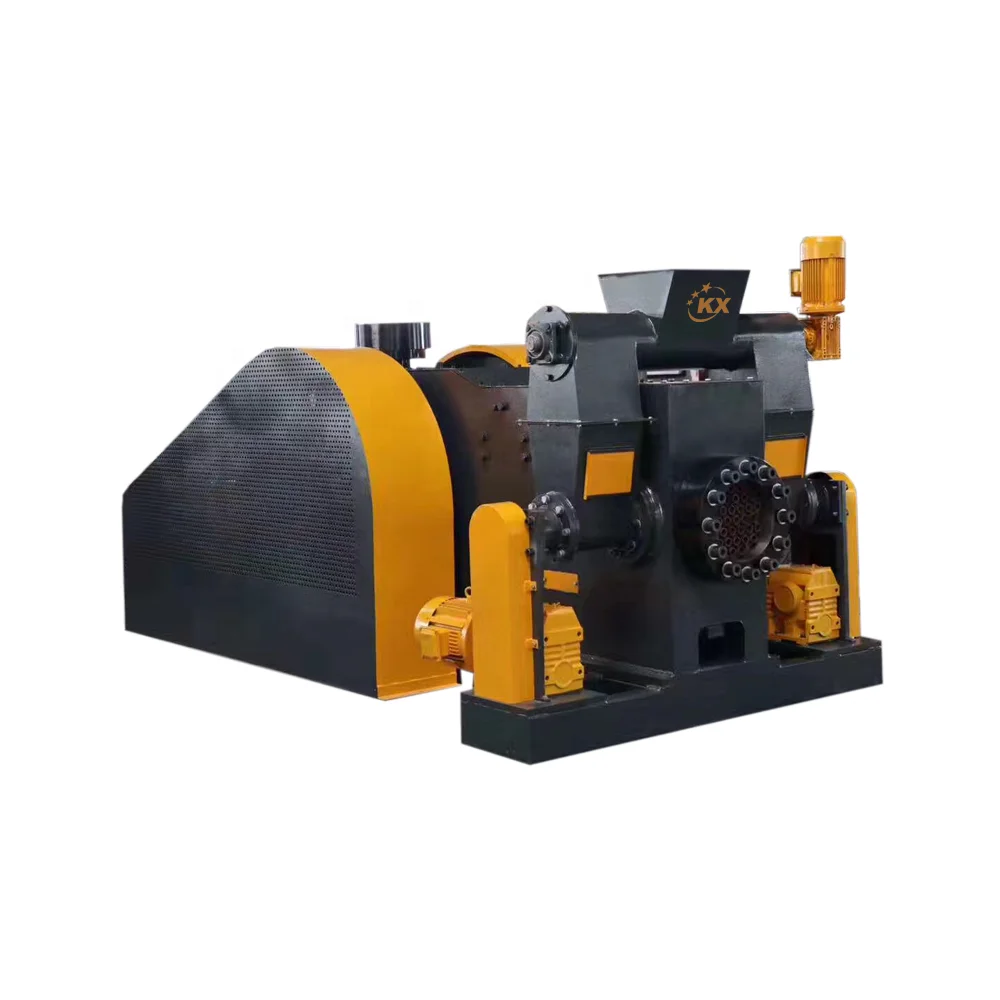

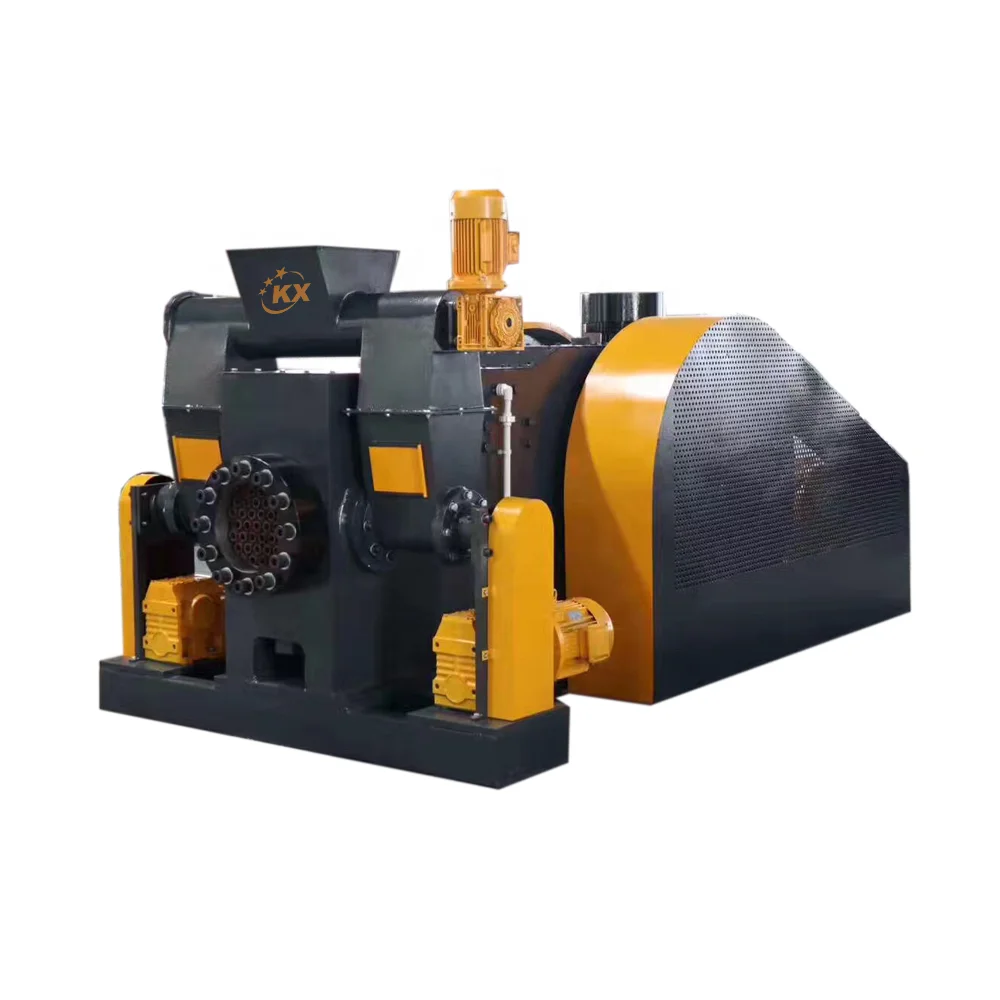

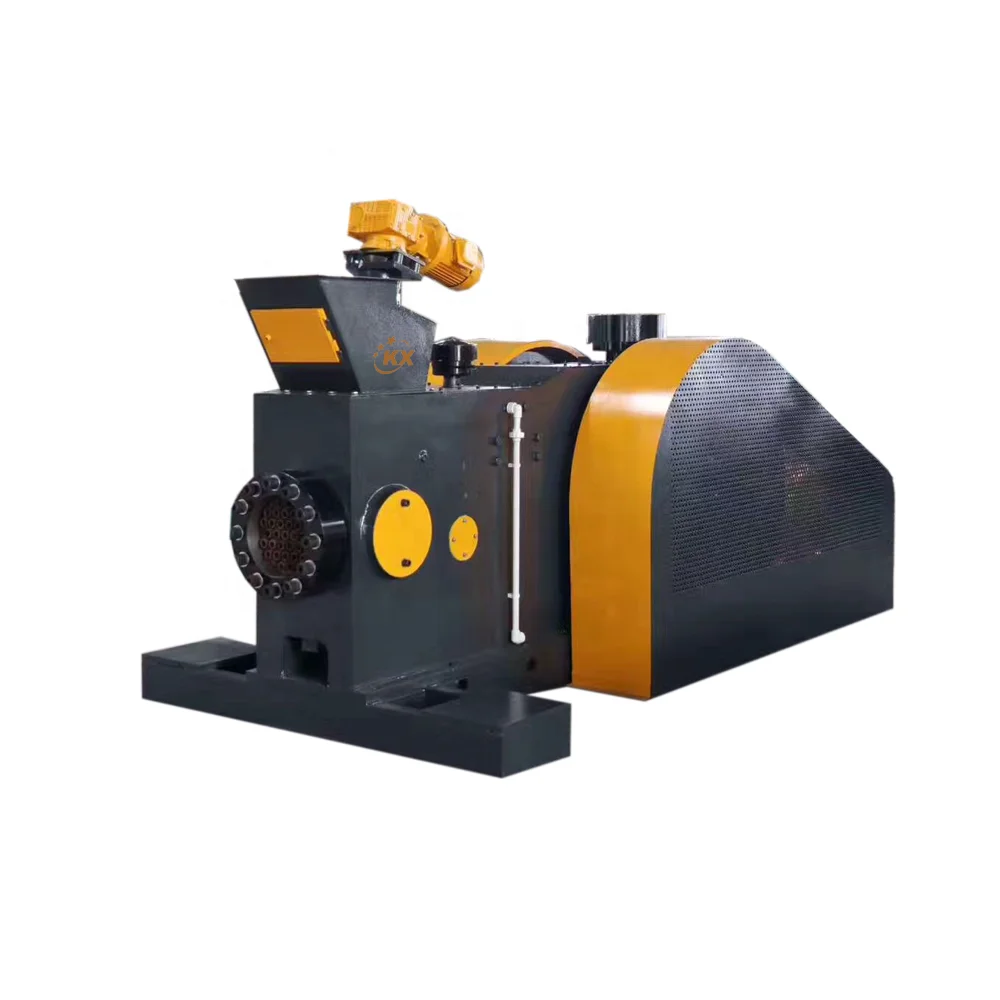

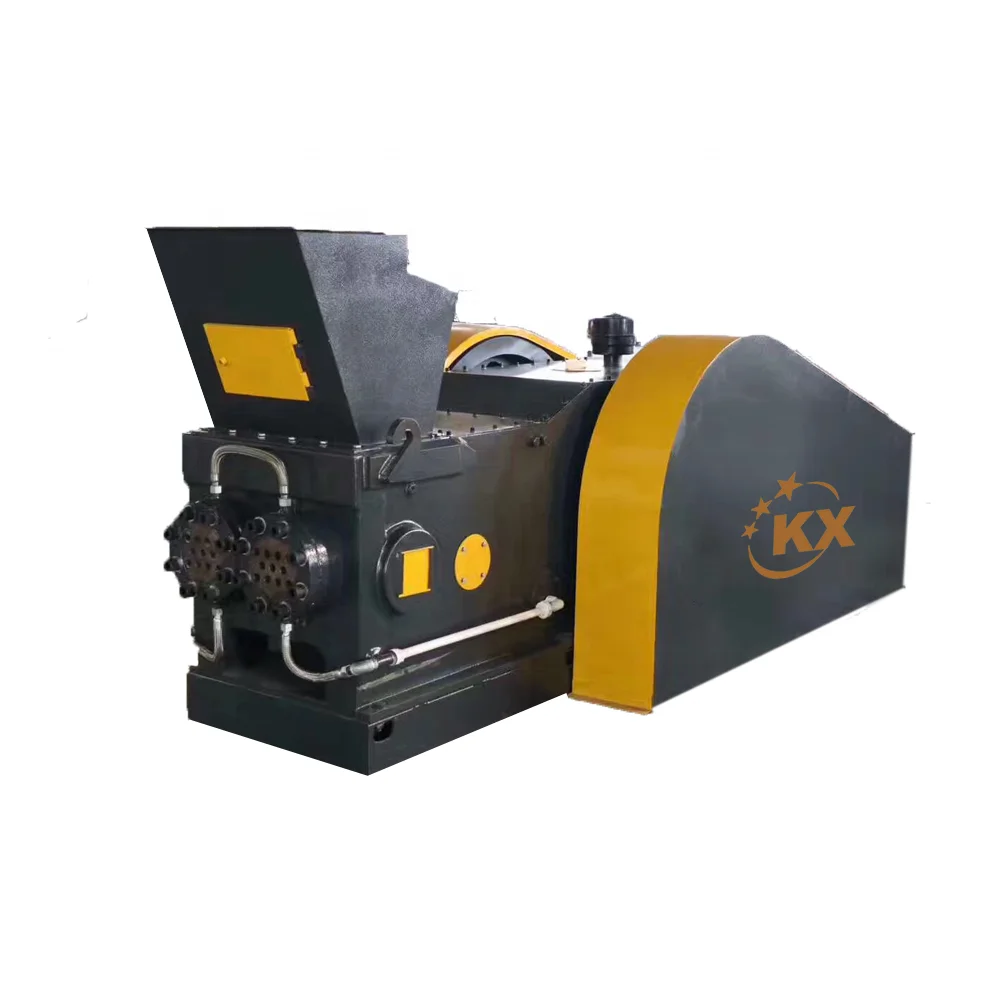

wood briquette machine or wood briquetting machine or biomass briquette machine
- Category: >>>
- Supplier: Huantai Kangxi Machinery Co. Ltd.
Share on (62378235022):
Product Overview
Description
Technical parameters
| No. | Name | Configuration |
| 1 | Structure | Screw conveyr |
| Main briquette machine | ||
| Control Panel | ||
| Distribution box | ||
| 2 | Working condition | Power : 380 V 50 or 60 HZ Temperature : -15-40 ℃ |
| 3 | Main power | 55 KW 45 KW |
| 4 | Capacity | Two head : 1.6-2.6 Ton /h One Head : 0.8-1.3Ton /h |
| 5 | Power consumption | 35KW/Ton |
| 6 | Feeding belt | VFD control |
| 7 | Moisture control | Below 18% |
| 8 | Briquette density | 1300kg/m3 |
| 9 | Die service time | 300-800 Ton /h |
| 10 | Briquette diameter | 18mm, 30mm, 40mm, 50mm , 70mm |
