ultra thin portable LCD display module EDP controller board mini HDMI Type C interface with HDR thickness 5mm 2560*1440
- Category: >>>
- Supplier: Shenzhen Jingxin Quartz Technology Co. Ltd.
Share on (62378368818):
Product Overview
Description
Support ODM/OEM ultra-thin portable LCD display EDP driver board MINI HD MI+Type-C interface first line with HDR
Support ODM/OEM Development Program
Product Description
Specifications of the Portable Type-C interface Controller Board:
1.General description
The product is positioned in the high-end EDP HDMI MONITOR solution, using Realtek single-chip TV processing IC, with good picture quality, multi-function, rich interface, mature system, etc. Support TYOE-C, EDP, 2256T up to 2K EDP Screen, mainly for 32" and below size monitoring / portable product design.
Analog audio amplifier: The maximum output power is 2X1W (8 ohms).
Input signal: HDMI (1.3).
Support screen resolution 1808P, 2560x1440, EDP signal output.
Multinational OSD menu language
TypeC both data and power function

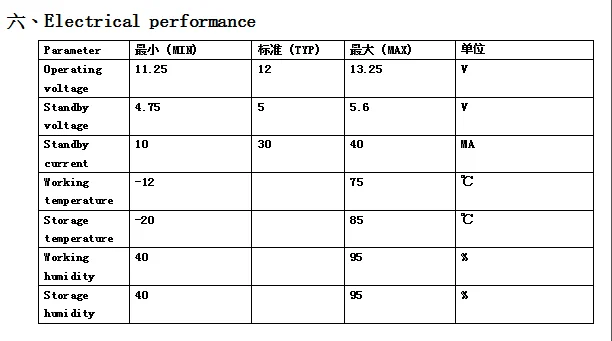

2. Main technical parameters
| HDMI1 | 480i,480p,576i,576p,720p,1080i, 1080p,2K | HDMI | ||||
| HDMI2 | 480i,480p,576i,576p,720p,1080i, 1080p,2K | |||||
| Audio frequency response | ±3dB | |||||
Sound | Left and right channel separation | 70dB | |||||
| distortion(THD) | 1.5~2% | |||||
| Signal to noise ratio(S/N) | 80 dB | |||||
Amplifier | 2 *1W(8Ω) |
| |||||
Power | Input voltage | 5V | |||||
| stand-by current | 10MA | |||||
OSDLanguage | Chinese English German French Russian Italian Spanish Arabic Persian and other optional languages | Low power consumption, standby power consumption<1W | |||||
Key Function | POWER/MENU/SOURCE/ LEFT/RIGHT | ||||||

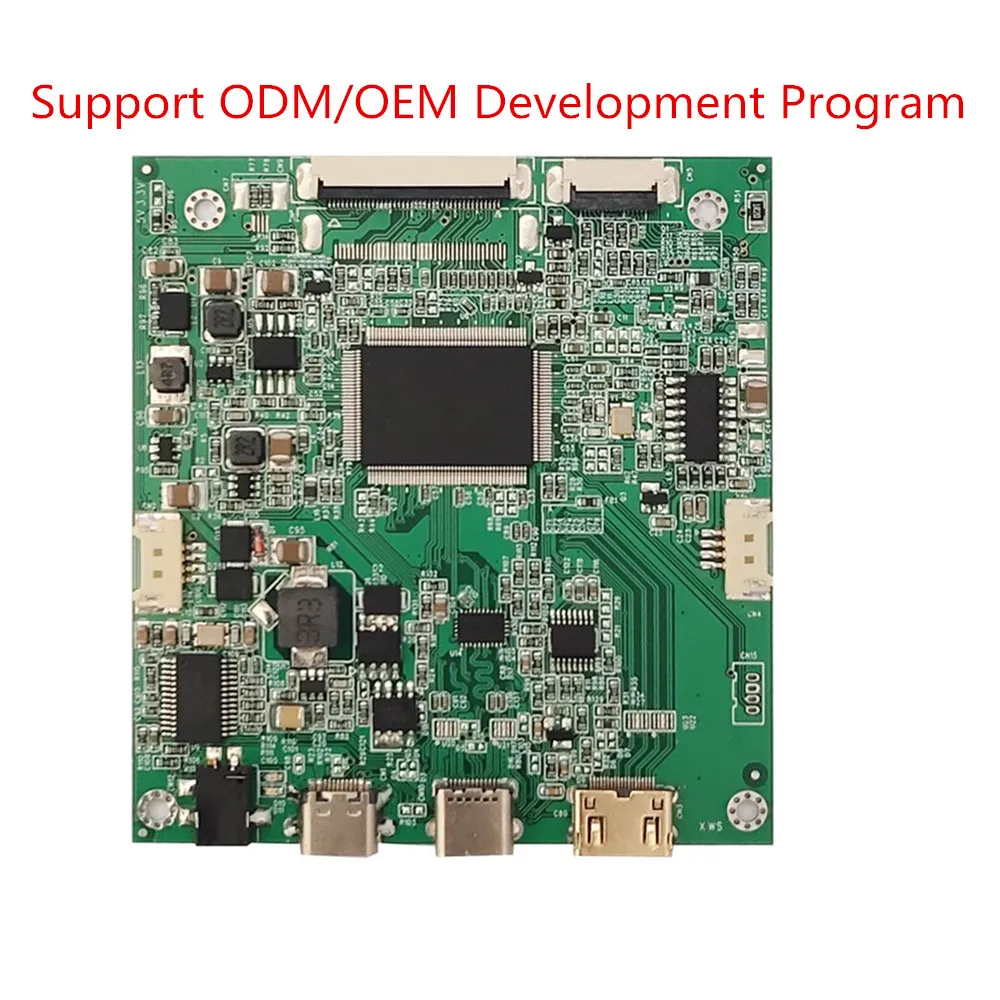

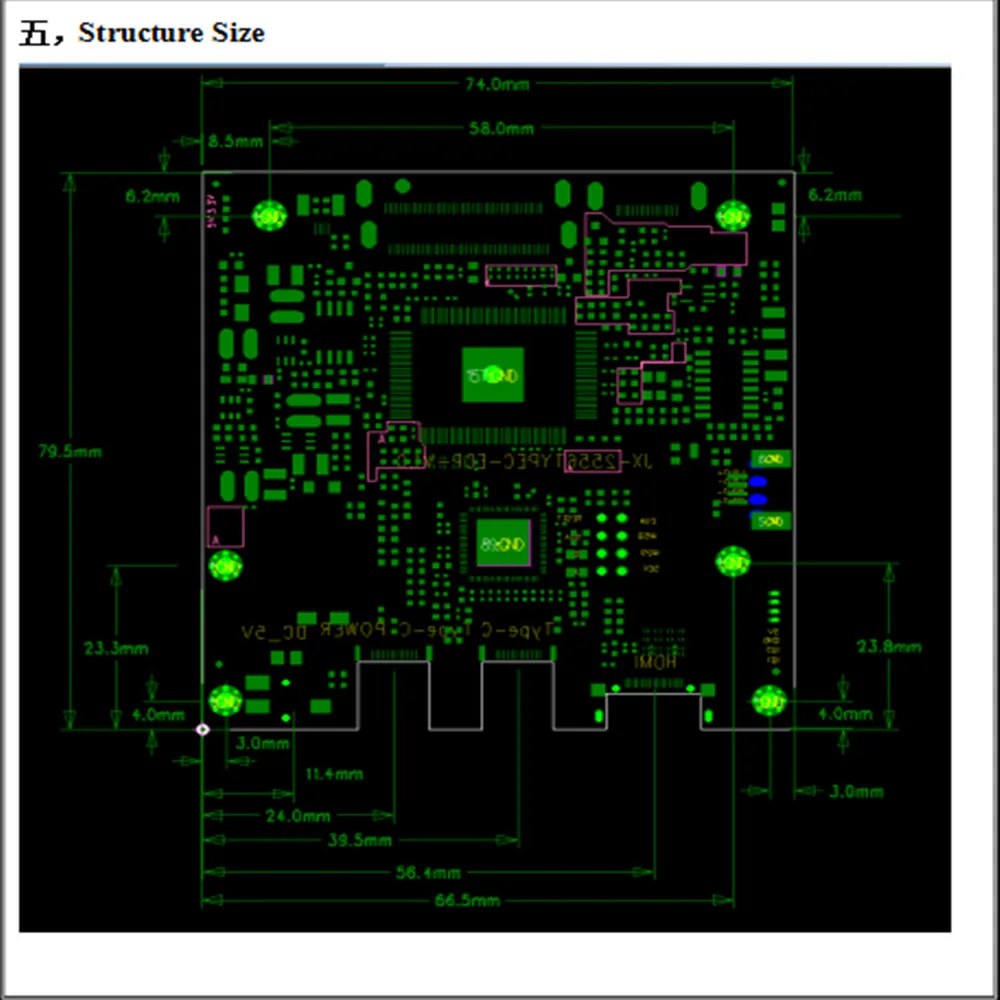

3.Appearance
4.Main connector defined description
No. | Describe | No. | Describe |
1 | DC Interface | 2 | TYPE-C/USB Interface |
3 | TYPE-C Interface | 4 | HD MI input interface |
5 | IO Interface | 6 | Speaker Interface |
7 | Key Interface | 8 | EDP Interface |
*Speaker sound output interface Number:CN4( SMD PH1.25/*4PIN)
Pin definition:
Foot number | Name | Description |
1 | ROUT+ | Right channel output + |
2 | ROUT- | Right channel output - |
3 | LOUT- | Left channel output - |
4 | LOUT+ | Left channel output + |
