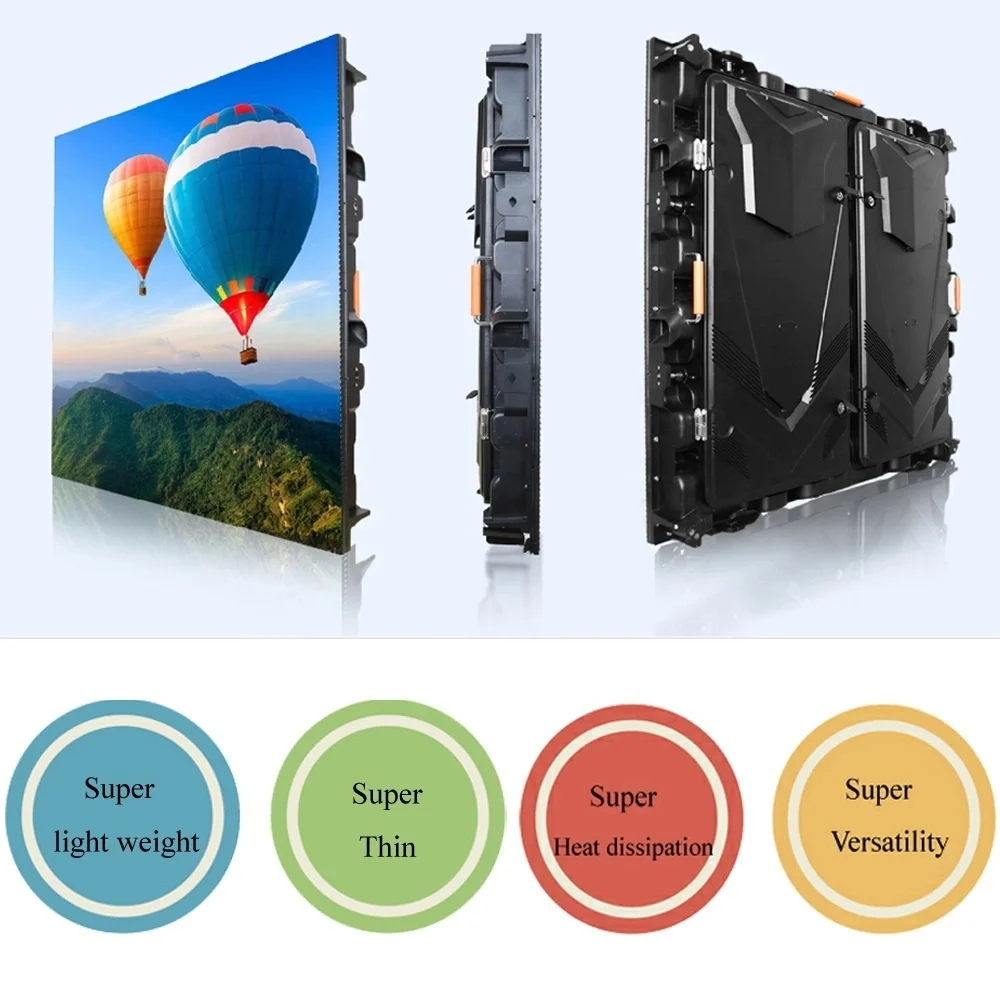

Outdoor P5 LED Display of 960x960mm Die Casting Aluminum Panel Cabinet for Fixed and Rental Use
- Category: >>>
- Supplier: Shenzhen Eachinled Optoelectronics Co. Ltd.
Share on (62378388446):
Product Overview
Description
Outdoor P5 LED Display of 960x960mm Die Casting Aluminum Panel Cabinet for Fixed and Rental Use

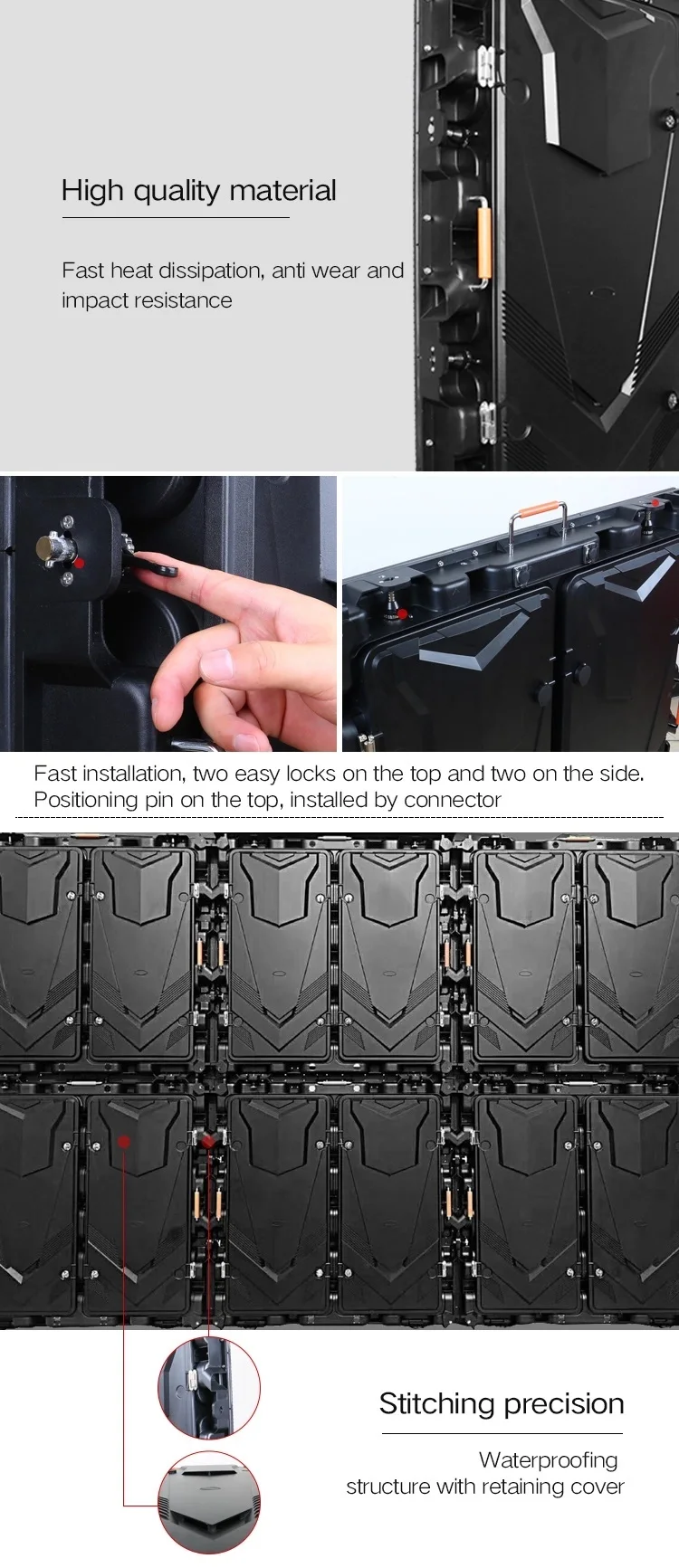

Well design inclined hole for passing cable inside, just like steel cabinet, for better waterproof

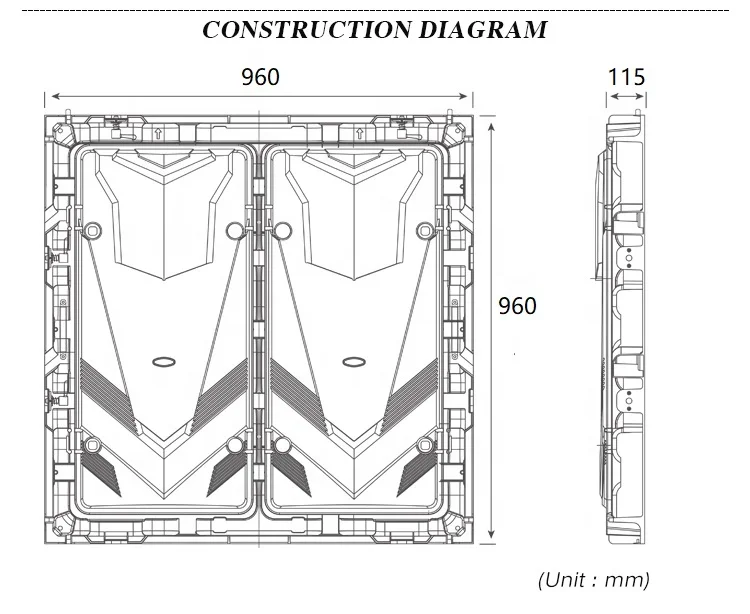

Standard dimension,module size 320*160mm,cabinet size:960*960mm,compatible model:PH5,PH8,PH10

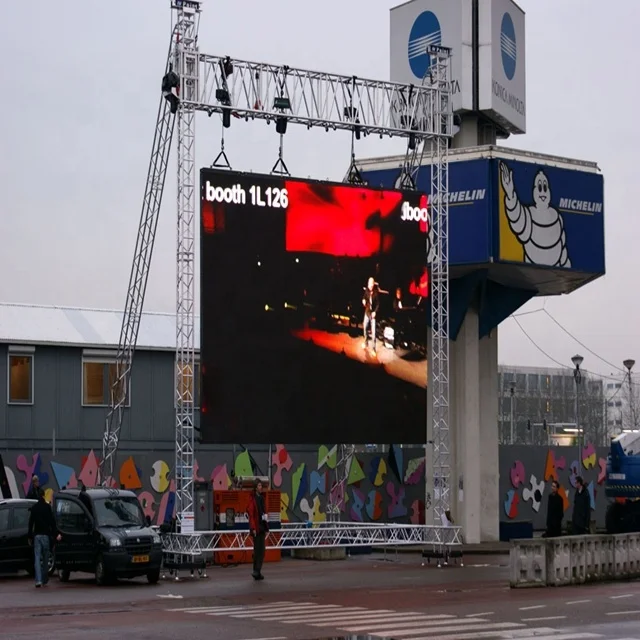

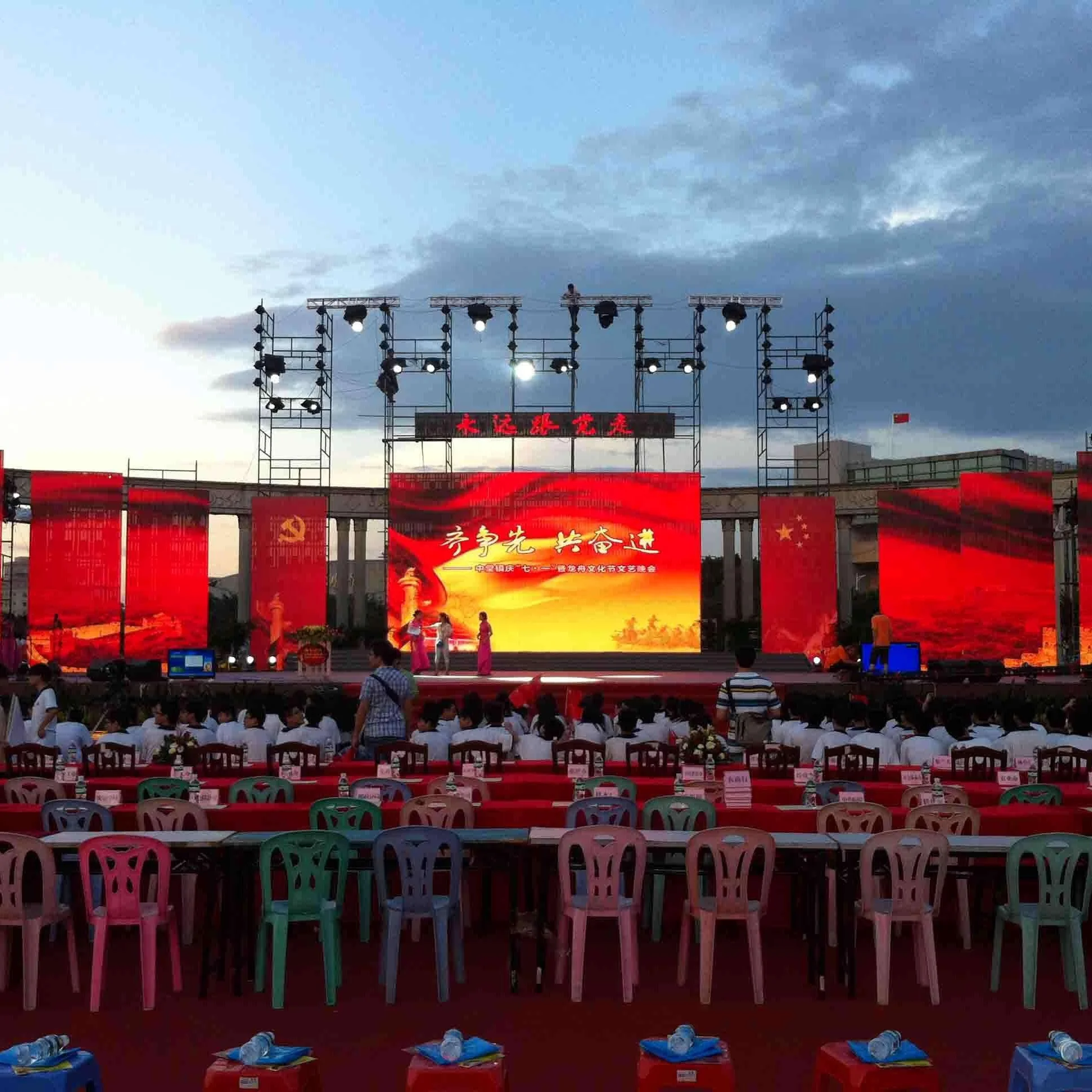

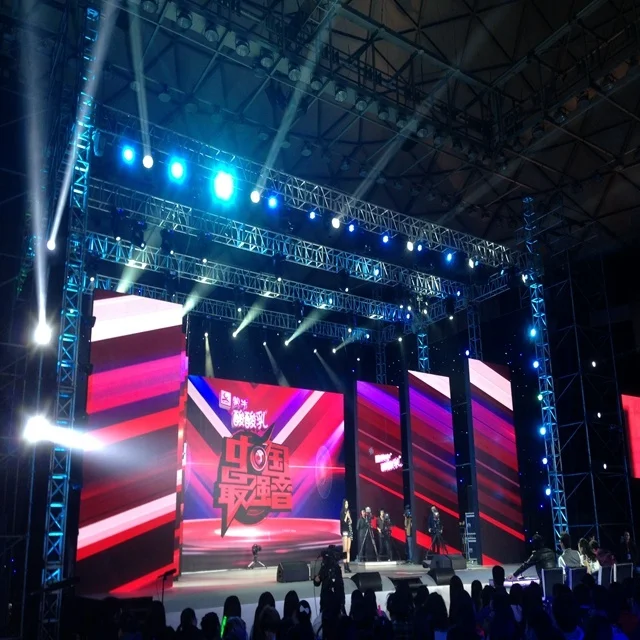

Excellent solution for both fixed installaiton and temporary installation.
High brightness and high refresh rate, ensuring good effect on photographing.
Parameters:
Pixel Pitch | 5mm |
Pixel Density(dots/sqm) | 40,000 |
Resolution(dots) | 64*32 |
Module Size(mm) | 320*160 |
LED Type | SMD2727(3 in 1) |
Brightness(cd/sqm) | ≤ 8000 |
Scan Mode | 1/8 |
Cabinet Size(mm) | 960*960 |
Ave/Max Power Consumption(W) | 300-750 |
Voltage | AC220v/50Hz Ac110v/60Hz |
Protection Level | IP65 |
Lifespan | 100000 Hours |
Refresh Rate | LED screen refresh frame frequency recommended is no less than 3000HZ(recommended) |
Color | 64g color( on the condition of 4096 gray scale) |
Gray Scale | 14 BIT Recommended |
Effective Communication Distance(without relay) | Unshielded twisted-pair (UTP) net line transmission distance is 100 meters, max transmission distance 130 meters |
