10043-11-5 High purity hexagonal boron nitride
- Category: Other Chemicals >>>
- Supplier: Tanyun,Junrong,(Liaoning),Chemical,Research,Institute,New,Materials,Incubator,Co.,Ltd.
Share on:
Product Overview
Description
· Executive standard: Q/TY.J08.04-2015
· English alias: Boron nitride, white graphite
· CAS RN: 10043-11-5
· 1. Physical and chemical properties:
· English alias: Boron nitride, white graphite
· CAS RN: 10043-11-5
· 1. Physical and chemical properties:
1.1 Molecular formula: BN
1.2 Molecular weight: 24.81 (on 1979 international atom weight)
1.3 Melting point: 3000℃
1.4 Mohs′ hardness: 1-2.
1.5 Density: 2.29 g/cm3
1.6 Solubility: Insoluble in water, slightly soluble in hot acid.
1.7 Properties:
1.2 Molecular weight: 24.81 (on 1979 international atom weight)
1.3 Melting point: 3000℃
1.4 Mohs′ hardness: 1-2.
1.5 Density: 2.29 g/cm3
1.6 Solubility: Insoluble in water, slightly soluble in hot acid.
1.7 Properties:
Hexagonal boron nitride-H type has good electrical insulation, thermal conductivity, chemical resistance and lubricity. And has a strong neutron absorption capacity. It is relatively stable to almost all organic solvents and corrosive chemicals. It is chemically inert to almost all molten metals. Below 1000°C in the air, various physical and chemical properties remain basically unchanged. The temperature of 3000℃ is still stable in nitrogen or argon. The hexagonal boron nitride-H type powder is hot-pressed and sintered into a white block shape, which is easy to machine and can withstand a temperature of up to 2000°C.
Item | H-BN-A | H-BN-B | H-BN-C | H-BN-D | H-BN-E | H-BN-F | |||||
BN, % | ≥98.5 | ≥98.5 | ≥99.0 | ≥99.0 | ≥99.0 | ≥99.0 | |||||
B2O3 ,% | <0.5 | <0.5 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | |||||
Particle size, μm | ~3 | ~ 5 | ~ 10 | ~ 14 | ~19 | ~30 | |||||
Appearance | White powder | ||||||||||
Application
The performance is close to the advanced level of similar foreign products.
H-BN-A, B, C:
It is a medium crystal. Because the particles are spherical, they are particularly suitable as a release agent for casting, casting and injection molding, and composite ceramics. They are also easy to hot press.
H-BN-D:
Due to its similar particle size to PTFE and uniform particle size, it is especially suitable for high-pressure switch nozzles; it is also suitable for heat-conductive plastics or heat-conductive rubber; and because of its low oxygen content (generally less than 0.5%) It is also especially suitable as a special ceramic raw material.
H-BN-E:
High crystallinity of hexagonal boron nitride has better performance than ordinary products. Can be used in a variety of high-end areas, including cosmetics and thermal materials.
H-BN-F:
Often used as an additive in the high-end electronics industry. Currently, other application areas of this product are being developed.
Popular areas of boron nitride applications
· Skin care products and makeup products
· Epoxy resin
· PVC plastic
· Silica gel heat conduction
· Lubricating oil
· Cubic boron nitride
· Used as the main raw material for vacuum aluminized evaporation boat
· Used for making hot-pressed ceramic parts
· Used as raw material for special ceramics
· mold release agent（boron nitride coating）
· Used for the preparation of cubic boron nitride
Certificate
CASC
AUDITED SUPPLIER
XS LC
Tanyun Junrong (Liaoning) Chemical Research Institute New Materials Incubator Co., Ltd. (hereinafter referred to as "Tanyun New Materials") is a provider of aerospace new material technology solutions and a global customization expert for fine chemical new materials. Tanyun New Materials is the few scientific and technological enterprises in the industry that take the genes of the research institute as the core and have basic research capabilities, pilot-level scientific research strength, industrialized production systems and global marketing layout, and strives to become a leader in the solid propellant industry.
Packing & Delivery

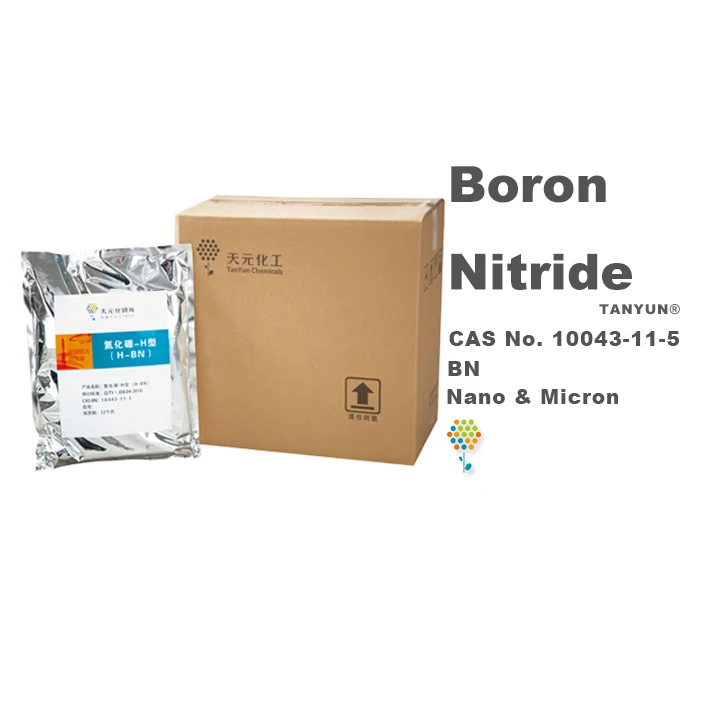

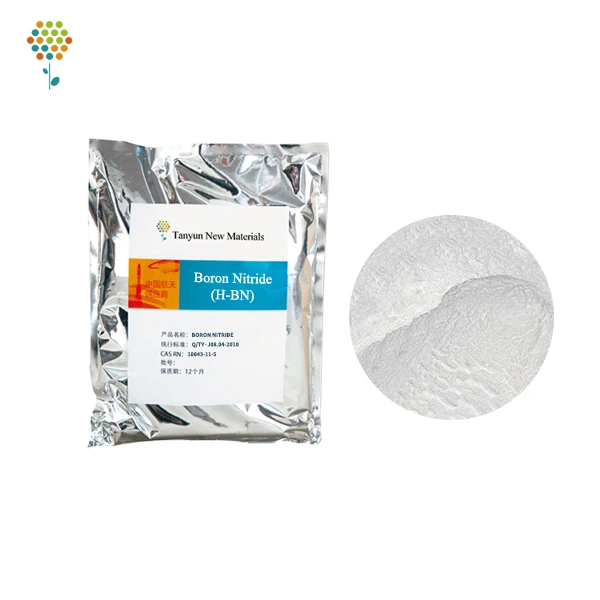

· Packing: Aluminum foil bag lined with plastic bag, net weight 1kg per bag.
· Storage: Stored in a cool and ventilated place. Keep sealed. The shelf life is 12 months after manufactured date. It is still available if the retest results of the properties are qualified after expired date.
· Transportation: Avoid water, sun-baked and violent collision.Do not transport with strong oxidizers.
In addition: We are able to develop custom-made products according to the clients’ requests.
In addition: We are able to develop custom-made products according to the clients’ requests.
Company Introduction
Founded in 1971, Tanyun Junrong (Liaoning) Chemical Research Institute New Materials Incubator Co., Ltd. (Original company name : Yingkou Tanyun Chemical Research Institute Co.,Ltd. Tanyun Chemicals for short) is the parent company of Tanyun Technology Group.
Currently covering an area of about 12000 square meters, Tanyun Chemicals is the first domestic technological platform company of ‘Chemical New Materials Production and Research Incubator’ and the first domestic custom-made research and production company of fine chemicals intermediate research and production company.
FAQ
1.Are you a manufacturer?
We're a professional manufacturer of fine chemicals, a premium aerospace supplier, with 49 years history and 5 R&D bases.
2.What is your payment term?
usual T/T in advance or as your requests.
usual T/T in advance or as your requests.
3.Delivery time?
ASAP after your payment, usually three to five working days.
ASAP after your payment, usually three to five working days.
4.What is your advantage?
High quality products, strict quality testing, OEM and Customization service.
Also we can supply one-stop service from sample, development and research, order, delivery, after-sale service.
High quality products, strict quality testing, OEM and Customization service.
Also we can supply one-stop service from sample, development and research, order, delivery, after-sale service.
5.What about TDS, COA and MSDS?
For TDS, kindly visit www.tanyunchem.com. COA and MSDS,please send inquiry to me.
For TDS, kindly visit www.tanyunchem.com. COA and MSDS,please send inquiry to me.
6. Any questions for our factory?
Welcome to visit our factory in Yingkou, Liaoning.
Welcome to visit our factory in Yingkou, Liaoning.
