2 Pole Electric Lock 4Ton Home Garage Car Lift

Product Overview

Description

2 Pole Electric Lock 4Ton Home Garage Car Lift



Sincerely looking for contracted distributor in different country ,thanks for kind contacting !



Main featur

1.  Floor plate design,more suitable for low ceiling workshop.

2.  Single side electric unlock release, more safe and easy to operate.

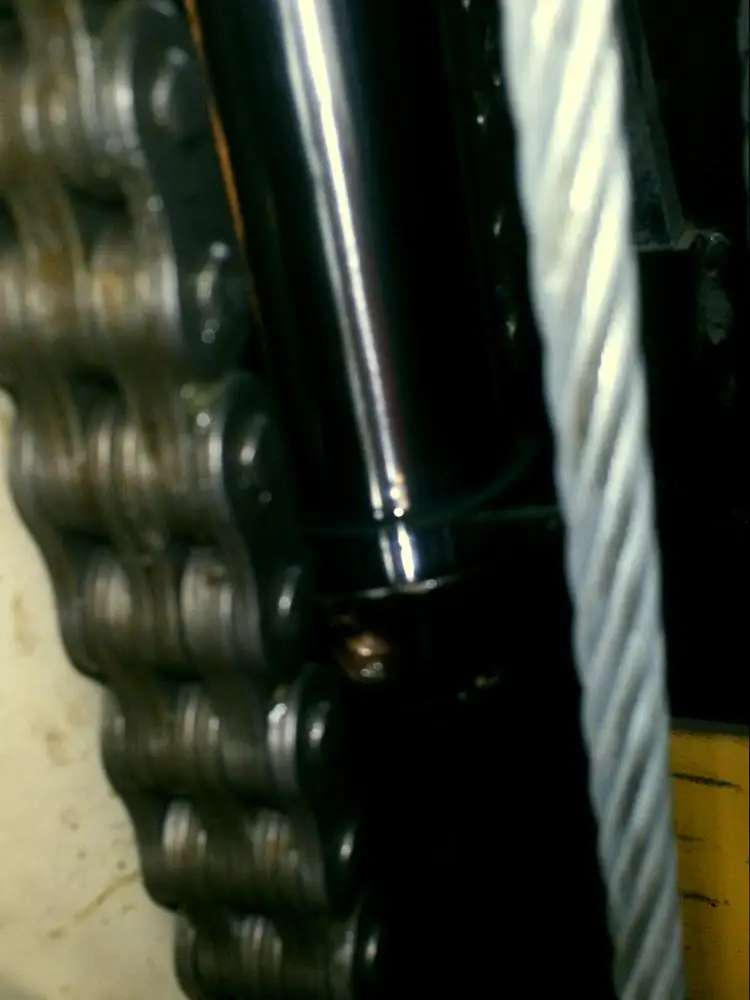

3.  Dual cylinder located in Master and slave column,high strength Chain drives system.

1. Adopt Italy made high quality seals.
2. Adopt qualitypower pack,more endurable,running safely and reliably.
3. Complete back plate design , elegant appearance.
4. Dynamic test:115% of the rated capacity.Static test 150% of rated capacity.
5. Dual anti-skidding safety device from column ladder safety to hydraulic seal protection to ensure double safe on the staying of the vehicle.Special hydraulic system design to avoid overload running.

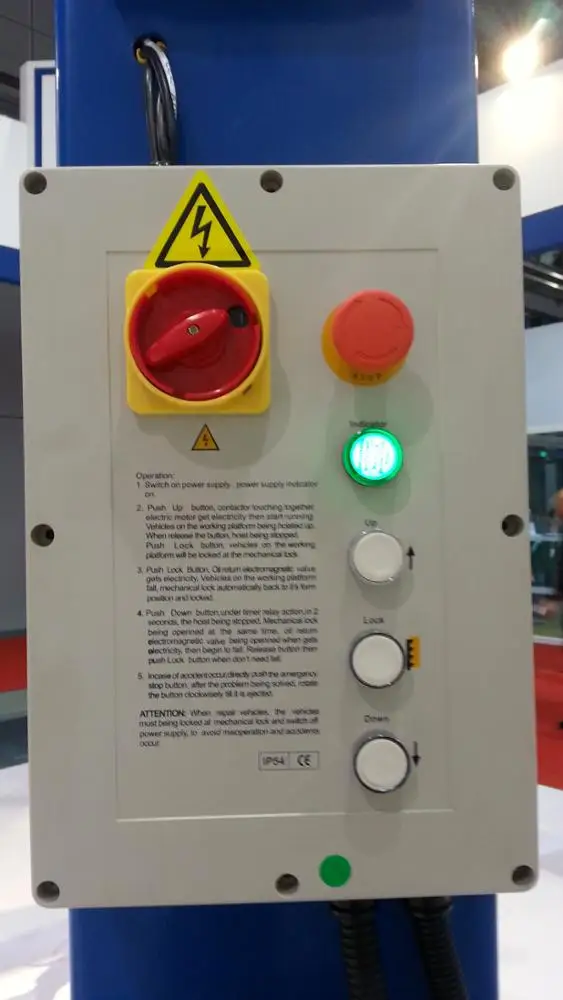

6. ABS control box, 24V low voltage control system .
7. CE required 24V simple control box (optional).

Technic data

Model	RS-240E
Lifting capacity	4000kg
Min Lifting height	100mm
Max. lifting height	1900mm
Lifting time	50s
Lowering time	40s
Power supply	220-240V/380-415V, 1/3PH,50HZ/60HZ
Oil pressure	18Mpa
Motor power	2.2kw
Overall width	3410mm
Opening width	2660mm
Overall height	2826mm

Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
    Free parts will be sent by courier or post  if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE

Company information
Rising Sun - Professional quality you can rely on !
This brand was founded aims for providing one-stop solution for vehicle works.



Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)18years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted

Honestly , we can give more safe of your business and money.
