Conveyor belt pulley lagging
- Category: Pulleys >>>
- Supplier: Zhengzhou Bai-Ott New Material Co. Ltd.
Share on (62378592668):
Product Overview
Description
Product Description

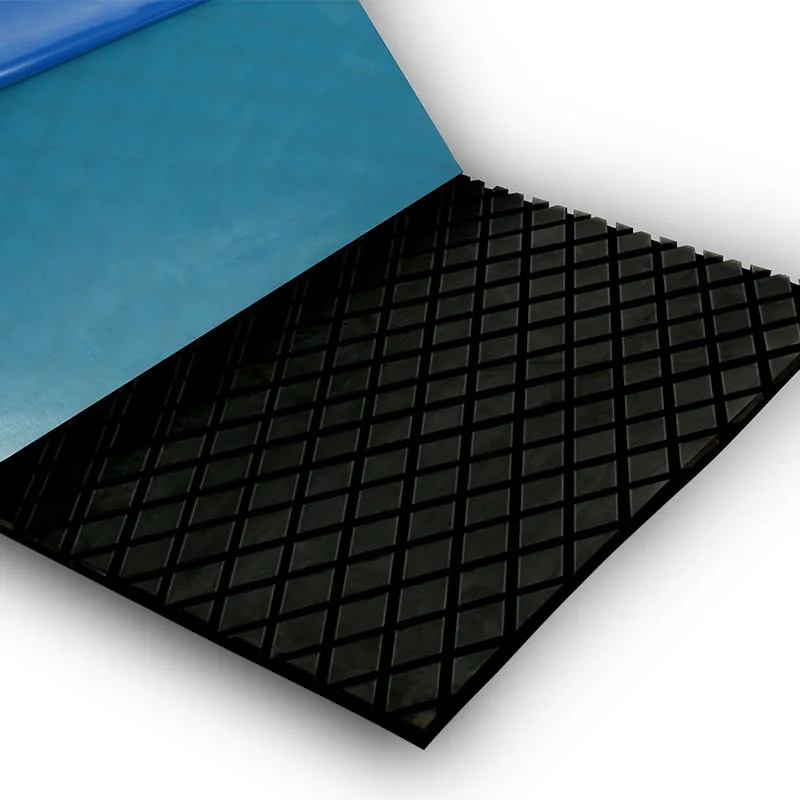

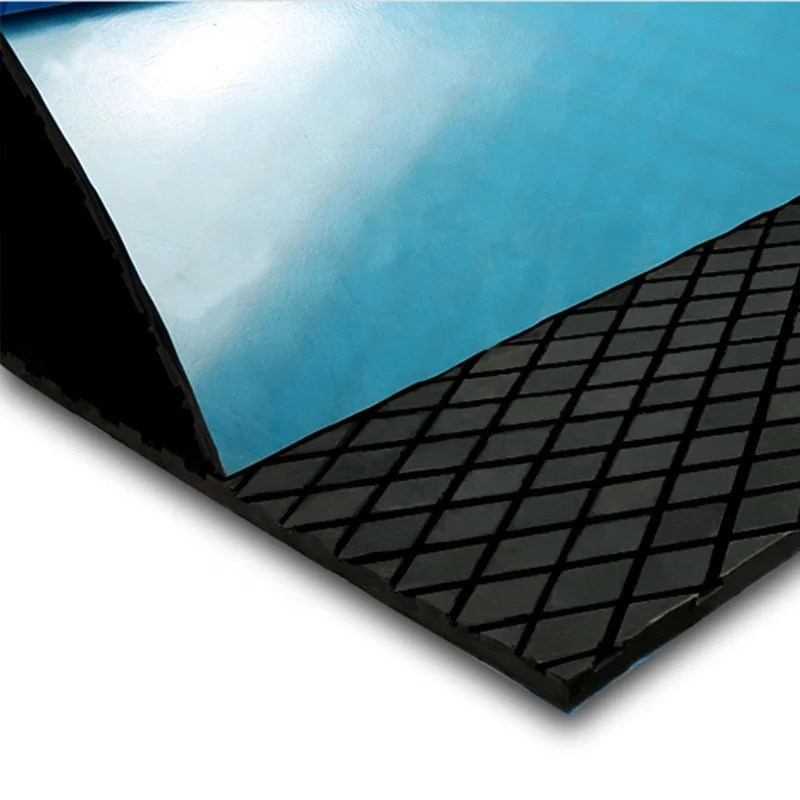

Conveyor belt drive drum rubber lagging plain pulley lagging sheet with bonding layer
BAI-OTT offers a comprehensive range of P Rubber Pulley Lagging Sheet to suit every conceivable conveyor installation. The Rubber Pulley Lagging offered by BAI-OTT are produced in different thicknesses, rubber qualities and patterns to ensure selection of the most appropriate type, to suit all application requirements.

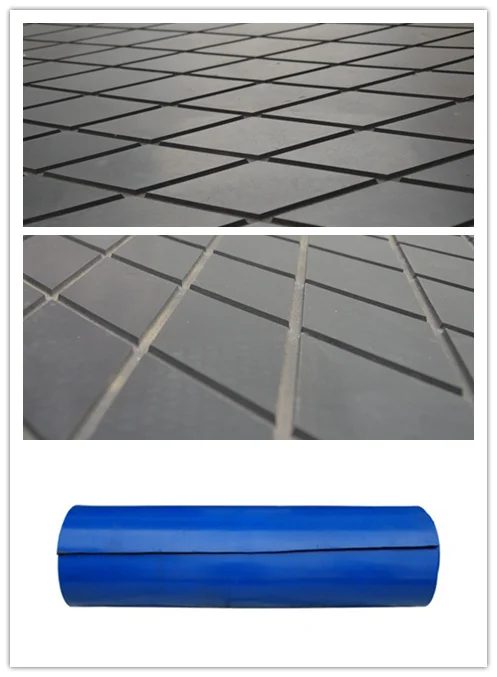

The Rubber Pulley Lagging Sheet offered by BAI-OTT come with CN Bonding Layers for better adhesion levels as also with buffed surface. The profiled patterns on the top surface, in diamond or square embossing improve belt grip and tracking on conveyors, while reducing belt wear. The Rubber Pulley Lagging sheet is available in various grades of rubber, including FRAS and oil resistant grades.
Technical Data
Polymer | BR/IR/SBR |
Specific Gravity | 1.1 g/cm³ |
Hardness | 60±5 Shore A |
Abrasion Loss | 80mm³AT 10N |
Tensile Strength | 20mn/m²(MIN) |
Elongation At Break | 450% (MIN) |
Length | 10 m/roll |
Color | Black |
Benefit
Rubber Pulley Lagging
1.Easy to install
2.Minimum wastage and economically priced
3.Reduced adhesive use due to Bonding Layer
4.Maintains friction grip under unfavourable drive conditions
5.Increased friction coefficient between the pulley and the conveyor belt
6.Extremely helpful while running in wet conditions
7.Prevents dirt build up in pulleys
8.Shorter lead times

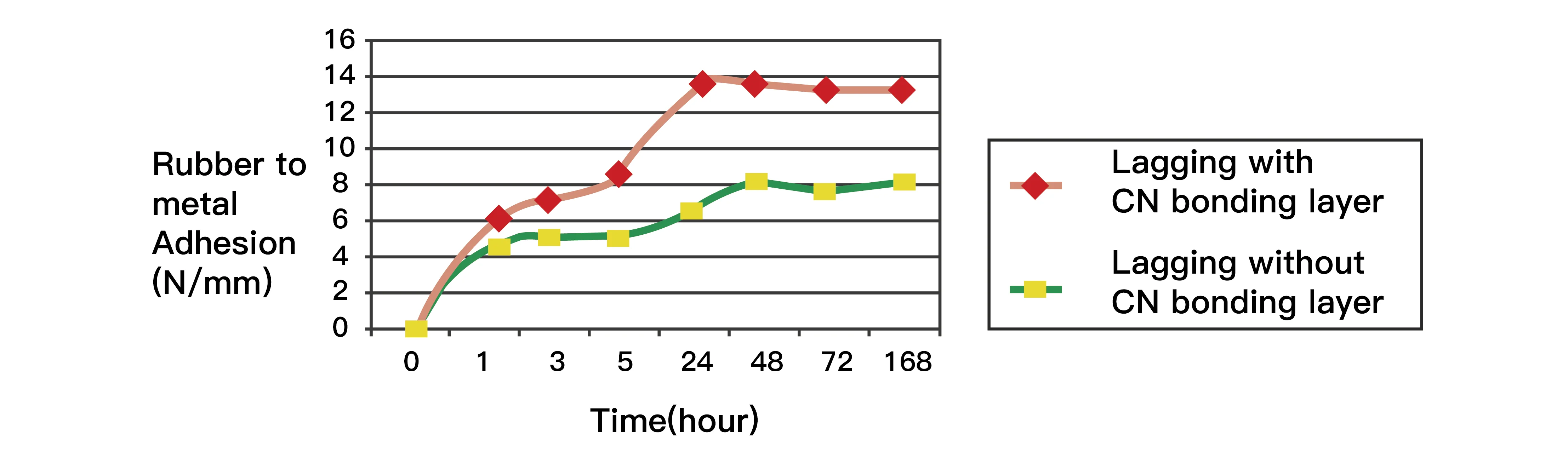

Adhesive Test
Selection Chart
Criteria | Plain Sheet Lagging | Diamond Sheet Lagging | Rubber Strip Lagging | Ceramic Strip Lagging |
Dry Performance | Very Good | Excellent | Excellent | Excellent |
Wet Performance | Average | Very Good | Very Good | Excellent |
Wear Life | Very Good | Very Good | Very Good | Excellent |
Ease of Installation | Good | Good | Excellent | Excellent |
Fire Resistance | Yes | Yes | Yes | Yes |
Drainage Grooves | No | Yes | Yes | Yes |
