45mm objective lens Microscope objective Long working distance flat field achromatic objective

MODLE

Magnification

Decomposition energy(μm)

numerical aperture(N.A)

Focus distance(mm)

Working distance(W.D)(mm)

Focus depth±D.F(μm)

Pupil diameter (mm)

field (1/2″)
(mm)

weight
(G)

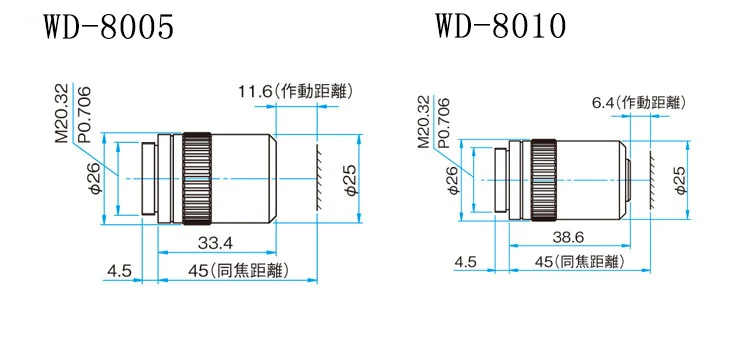

WD-8005

5X

2.1

0.13

40

11.6

16.3

Ø4.8

0.96×1.28

85

WD-8010

10X

0.9

0.3

20

6.4

3.1

Ø2.4

0.48×0.64

85

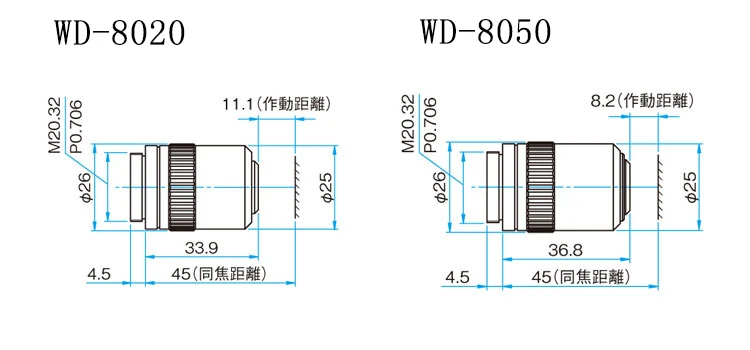

WD-8020

20X

0.7

0.4

10

11.1

1.7

Ø1.2

0.24×0.32

85

WD-8050

50X

0.5

0.55

4

8.2

0.9

Ø0.48

0.10×0.13

95

WD-8100

100X

0.3

0.8

2

2

0.4

Ø0.24

0.05×0.06

105
