Product Description:
Synmot servo motors are permanent magnet synchronous motors,the main features including :ultra energy-saving .high response and accuracy .low noise and low temperature rise.the rotor is made of high-performance rare-earth permanent magnet material .works reliably and tomaintain less.With low rotary inertia .it is easy to improve the rapidity of system .small volume.high speed and high torque.using the high-resilution encoder (17-bit .33-bit) to improve the position control accuracy.it control the current according to D-P principal axis transformation .which increase the torque control accuracy from 5% to 2% .Synmot servo motor have been widely used in injection molding machienry .textile machinery.CNC machinery etc
Product Parameter:
| Model | Rated torque | Rated voltage | Rated speed | Rated power | Rated current | Kt | Ke | Max speed | Max torque | Rotor intertia | Poles | weight | length |
| N.m | Vac | rpm | kW | A | N.m/A | V/krpm | Rpm | N.m | kg.cm2 | Poles | kg | mm | |
| 200H75C15C | 50 | 380 | 1500 | 7.5 | 7.5 | 3.1 | 192 | 2000 | 150 | 54 | 8 | 18 | 342 |
| 200H90C17C | 50 | 380 | 1700 | 9 | 9 | 2.7 | 165 | 2300 | 150 | 54 | 8 | 18 | 342 |
| 200H11D20C | 50 | 380 | 2000 | 11 | 11 | 2.3 | 144 | 2500 | 150 | 54 | 8 | 18 | 342 |
| 200H11D15C | 70 | 380 | 1500 | 11 | 11 | 3.2 | 195 | 2000 | 210 | 81 | 8 | 30 | 379 |
| 200H13D17C | 70 | 380 | 1700 | 13 | 13 | 2.8 | 175 | 2300 | 210 | 81 | 8 | 30 | 379 |
| 200H15D20C | 70 | 380 | 2000 | 15 | 15 | 2.3 | 144 | 2500 | 210 | 81 | 8 | 30 | 379 |
| 200H15D15C | 96 | 380 | 1500 | 15 | 15 | 3.1 | 192 | 2000 | 288 | 108 | 8 | 37 | 416 |
| 200H17D17C | 96 | 380 | 1700 | 17 | 17 | 2.9 | 178 | 2300 | 288 | 108 | 8 | 37 | 416 |
| 200H20D20C | 96 | 380 | 2000 | 20 | 20 | 2.4 | 151 | 2500 | 288 | 108 | 8 | 37 | 416 |
| 200H18D15C | 118 | 380 | 1500 | 18 | 18 | 3.2 | 197 | 2000 | 354 | 134 | 8 | 48 | 453 |
| 200H21D17C | 118 | 380 | 1700 | 21 | 21 | 2.8 | 171 | 2300 | 354 | 134 | 8 | 48 | 453 |
| 200H25D20C | 118 | 380 | 2000 | 25 | 25 | 2.4 | 146 | 2500 | 354 | 134 | 8 | 48 | 453 |
| 200H22D15C | 140 | 380 | 1500 | 22 | 22 | 3.2 | 195 | 2000 | 420 | 160 | 8 | 57 | 490 |
| 200H25D17C | 140 | 380 | 1700 | 25 | 25 | 2.8 | 175 | 2300 | 420 | 160 | 8 | 57 | 490 |
| 200H29D20C | 140 | 380 | 2000 | 29 | 29 | 2.5 | 154 | 2500 | 420 | 160 | 8 | 57 | 490 |
| 200H25D15C | 157 | 380 | 1500 | 25 | 25 | 3.2 | 195 | 2000 | 471 | 160 | 8 | 57 | 490 |
| 200H28D17C | 157 | 380 | 1700 | 28 | 28 | 2.8 | 175 | 2300 | 471 | 160 | 8 | 57 | 490 |
| 200H33D20C | 157 | 380 | 2000 | 3 | 33 | 2.5 | 154 | 2500 | 471 | 160 | 8 | 57 | 490 |

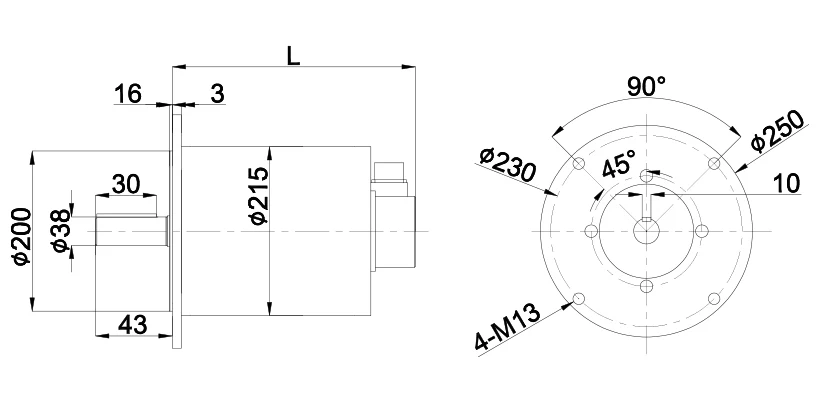

Mounting Dimensions :
