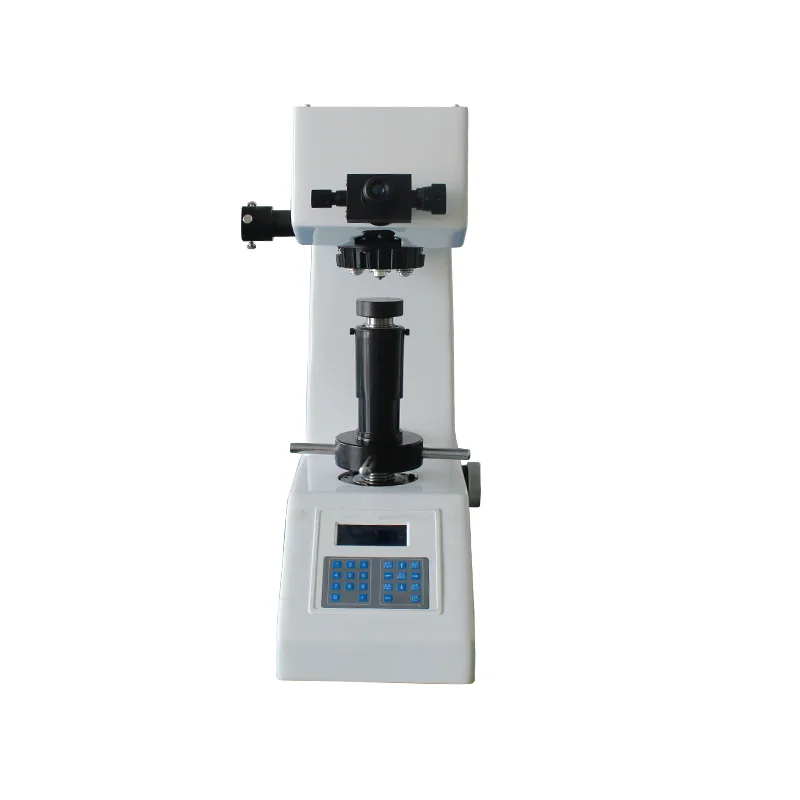

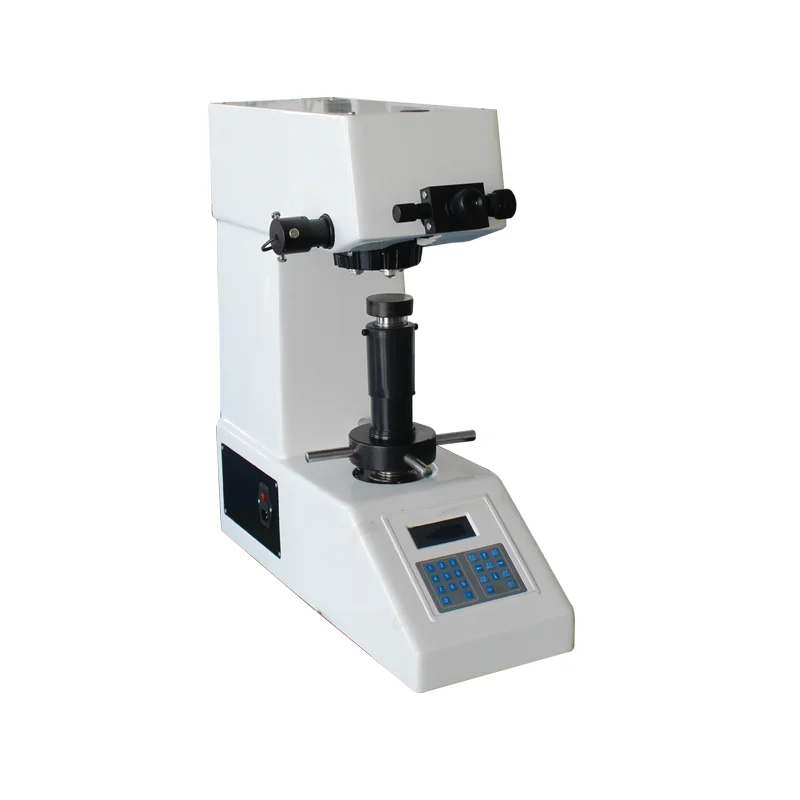

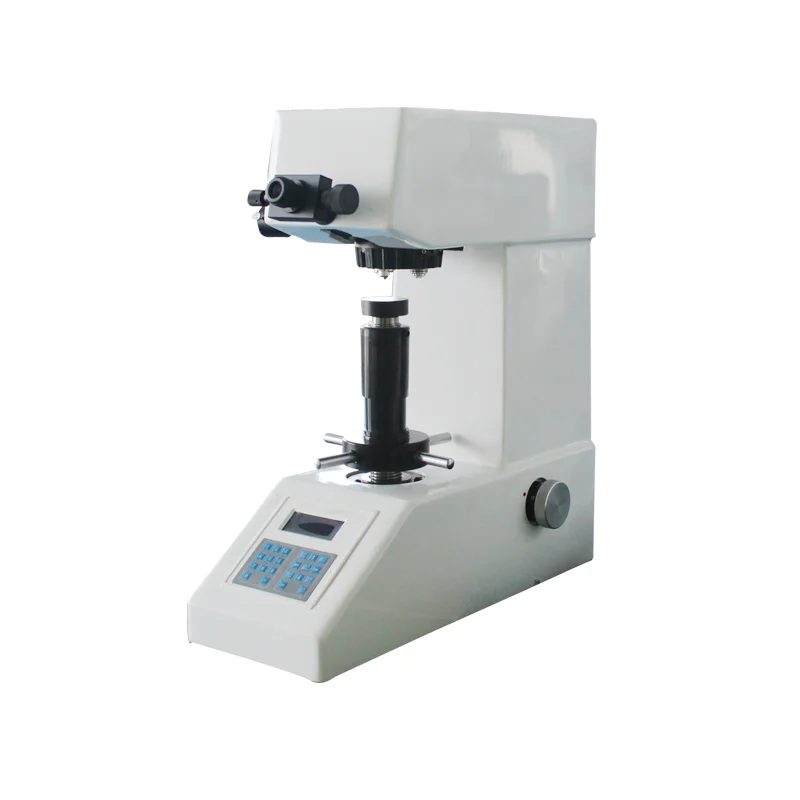

Micro Vickers Hardness Tester manual turret HV 30
Micro Vickers Hardness Tester manual turret HV-30
Micro Vickers Hardness Tester manual turret HV-30
Micro Vickers Hardness Tester manual turret HV-30
Micro Vickers Hardness Tester manual turret HV-30
Micro Vickers Hardness Tester manual turret HV-30
Micro Vickers Hardness Tester manual turret HV-30

Micro Vickers Hardness Tester manual turret HV 30

Share on (62378690835):


Price:$2,199.00 - $3,500.00

Quantity:


Product Overview

Description

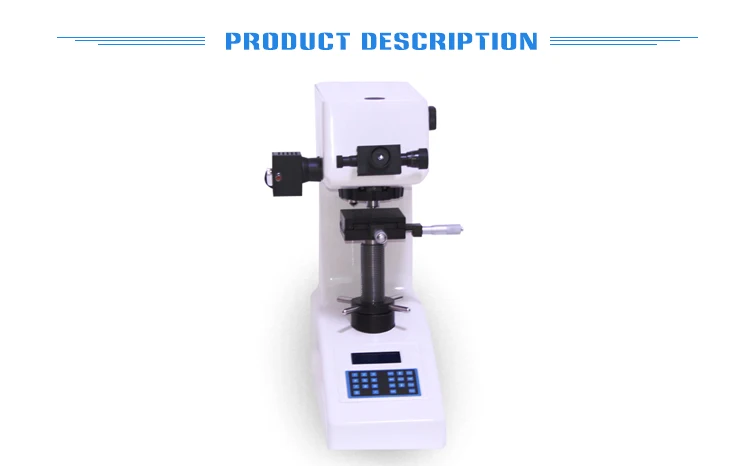

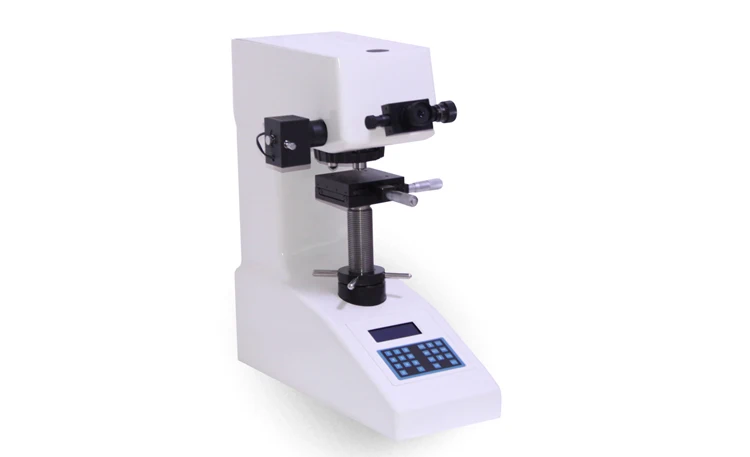

hr-150A-xiaotu_01HV-1000A_02HV-1000A_03



Product Features / Uses:

The HV-30 Micro Vickers Hardness Tester adopts a monolithically cast shell. The punching and alignment adopts a knife-type straight-through to ensure the concentricity of various hole positions, which is good for the high precision and high stability of the machine basis. The hardness tester light source adopts a special high-quality imaging light source system on the metallographic microscope, and the brightness of the light field is uniform and clear, thereby reducing the measurement error of the printing indentation. The operation interface adopts a menu-style humanized structure, and the hardness scale HV or HK can be selected on the operation panel, the hardness value of the test is input, and the display is manually input. Various hardness values can be converted to each other. The objective lens and the indenter are motorized converted and positioned.

product brand

Maetall

Product parameters

product name

 Micro Vickers Hardness Tester

Test force

1.0,3.0,5.0,10.0,20.0,30.0kgf

Hardness scale

Vickers hardness

Test force selection

Manual Turret

Product number

HV-30

Testing Range

5HV-3000HV

 Dwell time of the test force

1-99S(adjustable)

Load and unloade mode

Automatic

Lens/indenters with

With Manual turret

Loading method

 Autoloading, dwell, unloading

Quality Control

Advanced equipment and experienced QC team will check during processing and before packing

XY table (optional)

size(mm):100*100

range(mm):25*25

min. readout(mm):0.01

Delivery Term

7-30 working days after receiving T/T 100% deposit

Objective lens magnafication times

10X, 20X

Display

  • The automatic reading menu displays hardness value,diagonal length(D1,D2),test force, dwell time,testing times and back

Amplification of the microscope

            100X,200X

Eyepiece  magnafication times

10X

Optical system measurement range

800μm 400μm

Light source

Halogen light (brightnesss adjustable)

Optical system resolution

1 μm 0.5μm

Hardness conversion

Brinell, Rockwell,Surface Rockwell

Max. height of the testing piece

165mm

Depth from center line130mmDimension of XY worktable100*100mm
Movement fieldl of XY worktable25*25mmMin. movement of XY worktable0.01mm
Working temperature23±5 °CWorking humidity<65%
Dimension of machine530*290*490mmNet weight40KG
Power supply220V 2A 50-60Hz Data output

  • Reserved built-in micro printer interface (RS232) Optional




hr-150A-xiaotu_10HV-1000A_11_12_13_14_15
