PVC SJSZ65/132 pipe manufacturing machinery plastic making machine price

Product Overview

Description

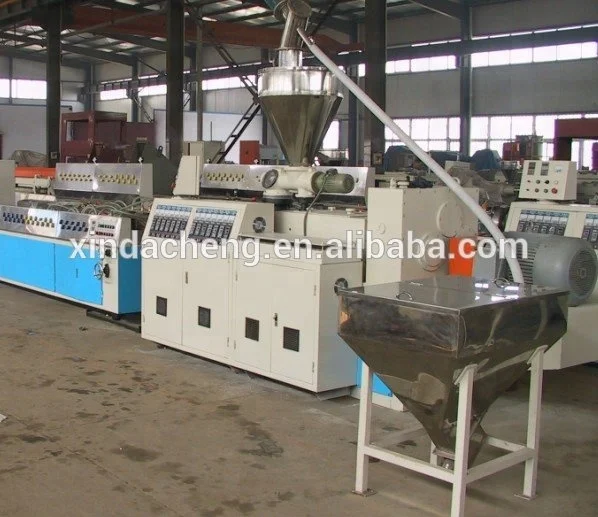

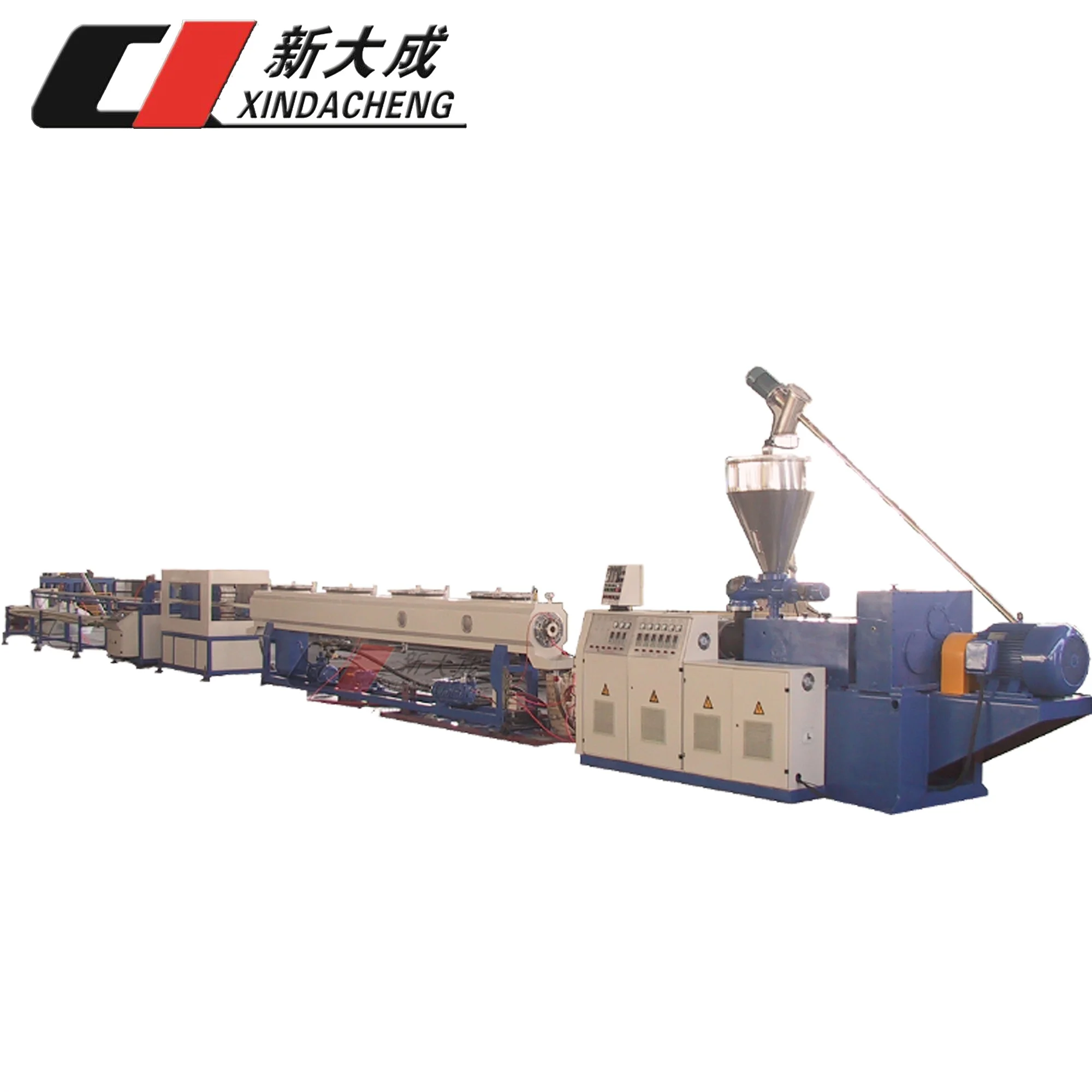

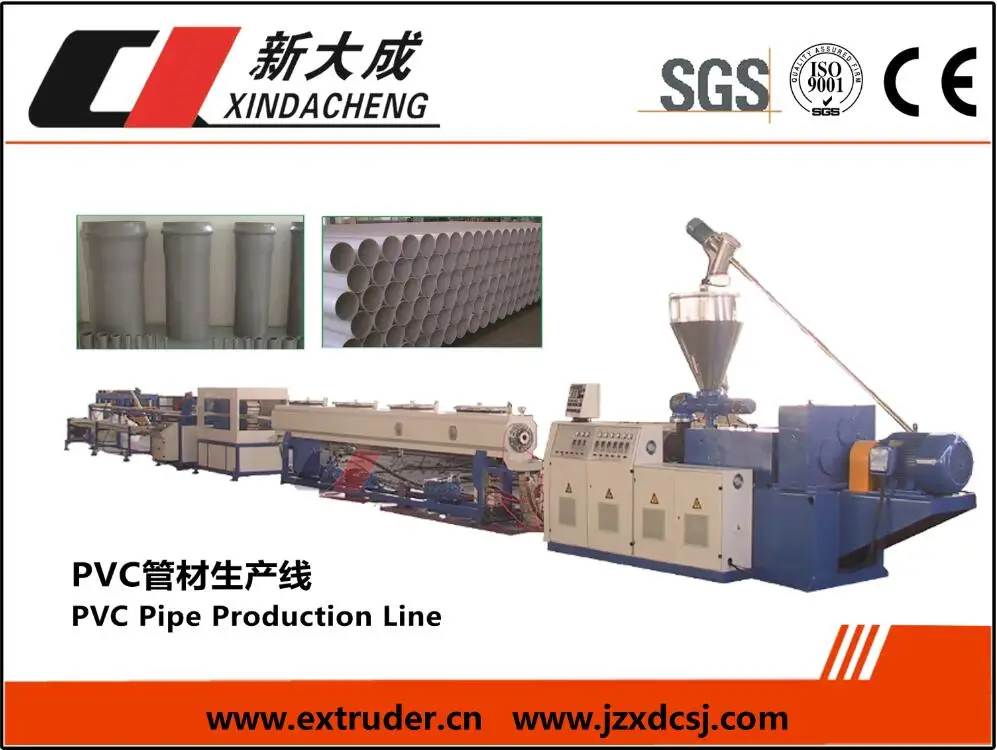

PVC Pipe Prodution line

Equipment Features Mainly used to produce U-PVC, C-PVC Huge Calibre Pipe for Supply and Drain Water. Composed of double screw extruder, pipe die, vacuum sizing device, multi-pedrails hauling machine, cutting machine and stacker; Choose conical or parallel double screw extruder according to different demands.





The main technical parameters:



Model,Paramter SJGF-63 SJGF-160 SJGF-250 SJGF-400 SJGF-630 Extuder  SJSZ51 SJSZ65 SJSZ80 SJSZ80 SJSZ92 Diameter range(mm) φ20-φ63 φ63-φ160 φ110-φ250 φ200-φ450 φ315-φ630 Haul-off Speed (m/min)  <10 <8 <5 <4 <3 Total Power(kW) 56 92 150 162 255 Total Length(mm) 19000 20000 20500 28000 30000



PVC tube die:

1.Standard series φ20mm--φ630mm.

2.Detained time on sextion of fluid divide  body distributes even.

3.Melting body temperature distributes even.

4.The special mouth piece design lowers the replacing time of the molding tool.



The PVC  tube sizing:

The sizing sleeve carries percooling equipment at its entrance is applicable to super-speed extrusion.





SJGF-160 model technical parameters
1	Power	380v/3P/60Hz
2	Material	UPVC granule
3	Extruding capacity	250kg
4	Product specification	φ63mm-φ160mm
5	Production Line Speed	0.5-3m/min
6	Mid-height of extruder	1000 mm
7	Operating direction	From right to left
8	Gross power	92kw(Power consumption:Appr.55kw)
9	Cooling cycling water	≤30℃ ≥0.3Mpa ~10T/h
10	Compressed air	0.6 Cubic meters/min >0.5MPa



Company Information

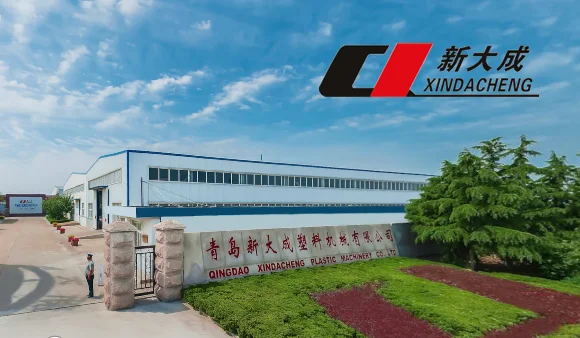

    Qingdao Xindacheng Plastic Machinery Co., Ltd, a high-tech join-stock enterprise, integrates scientific research development, technology transfer, production and sale. In addition, it is the unit for accomplishing key promotion projects of science and technology result in construction department.

    The company mainly engages in research, development, design, manufacture and sales service of new type plastic machinery, is able to provide “Turn-key project” of complete set of production line for many plastic product. It owns powerful technology strength, gathers professional scientific and research talents in top grade macromolecule material national wide, polymer processing, industrial automatization and marketing. Besides, it keeps closely contact with chemical design research institute and universities, so it is familiar with market trend and is able to transfer the latest science and technology achievements in the fastest speed so that to provide whole set of technology such as the most competitive equipment, technology and relevant technology consultation service.

    Oriented by human, Xindacheng considers that the innovation and credit is the most important. It will offer first-class product and considerate service to help you in accomplishing great business and cooperate with together to create new era in plastic machinery industry.

    Xindacheng always considers that customers’ interest is the first important. Over decades, Xindacheng’s product spreads all over the country and exported to more than 40 countries and regions such as, U.S. Italy, Canada, South Korea, Japan, Russia, Ukraine, Czech, Turkey, Mexico, Iran, Saudi Arabia, Egypt, Indonesia, Singapore, Taiwan, HK, Malaysia, and wins customers’ reputations.

Company board chairman and staff warmly welcome friends from all circles to visit us.











Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Set up reasonable production plan for customers to meet their needs.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Can be based on customer PVC material requirements, to provide customers with meet product quality, affordable raw material formula.

* Remote online technical guidance, timely solve customer problems.
