oil drum roll heat press heating touch screen control panel sublimation heat press machine for garment sportswear swimwear
- Category: >>>
- Supplier: Suzhou Mecanles Trading Co. Ltd.
Share on (62378875550):
Product Overview
Description
Product Description

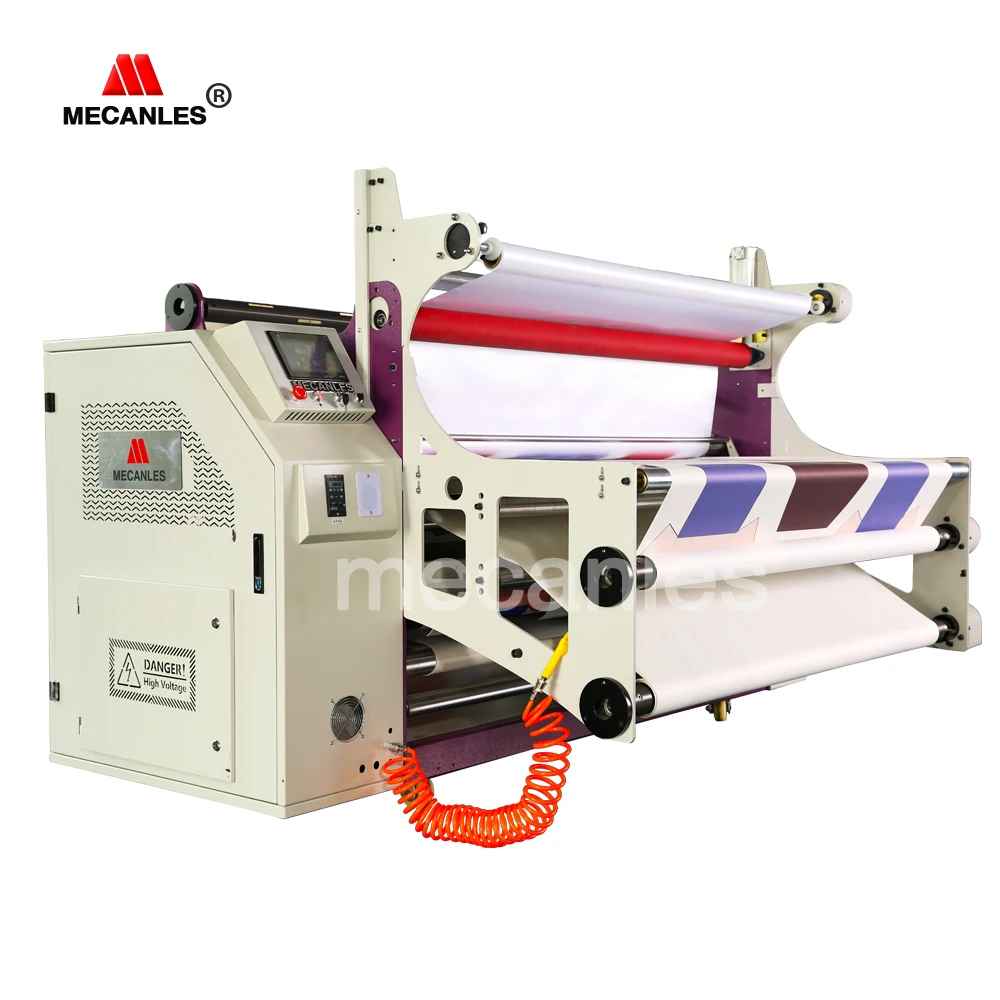

Oil heating touch screen control panel sublimation heat press machine for garment sportswear swimwear
Product Advantages:
1). Smart touch screen control panel. All information is shown on the panel clearly. Temperation controlling is more intelligent.
2). Ergonomic design and saving manpower. Feed materials standing in front of machine, collecting finished parts behind the machine. Scarely stoop.
3). This model is deluxe version. The configuration is the top, majority of the electrical parts are imported.
4). It is extremely good for high-end sportswear producers. More efficient and high quality transfer printing.
5). Oil heating. Stainless steel heating tube direct heats the oil, temperature raise rapidly. It can reach 200 °C in 45 mins.
6). Multifunction. It can work with roll to roll fabric, either cut piece fabrics.
7). Outstanding Drum. Oil drum is the core and key parts for rotary heat press machine. Our oil drum is unique, it's production technique, such as
advanced machining, bending, welding by presion machines, this makes it perfect quality and high security.
8). Supreme Blanket. Our machine use the best woollen material which from Dupont USA. It is excellent heat-proof materials and its life is better.

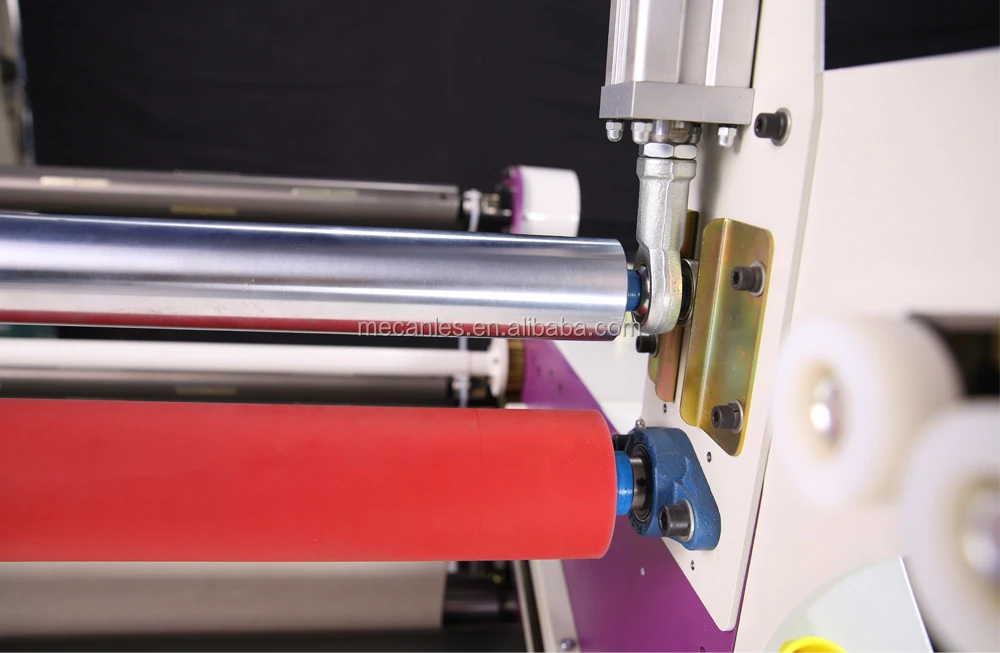

9). Three feeding rollers. It can also feed the tissue paper which protects the blanket clean.

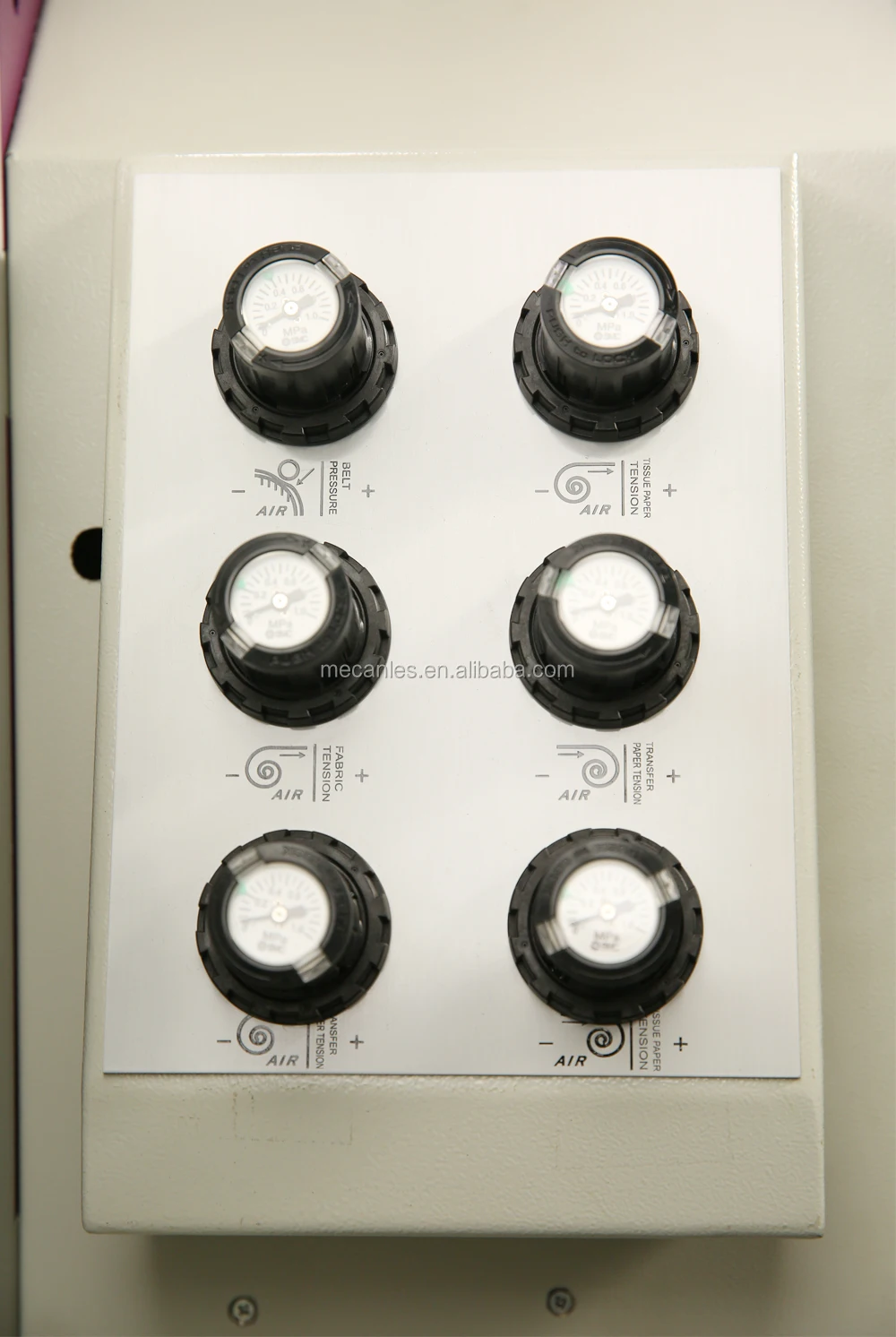

10). Air pression tighten system. The air cylinder can increase the tension between the drum and the blanket. Thus the printing quality is even and vivid.
12). High speed for production, 1 meter per minute.
12). Automatical conveyor belt behind the machine. It is convenient to collect the printed fabrics.
13). Printing quality far exceed other factories in China.
Attention: as we are leading and No.1 manufacturer in China, some irregular factories are always trying to copy our design and technology, so our machine internal structurer pictures won't be shown here. Kindly understand. If you are interested in our machine, please contact us.
Model | HG-6503 |
Machine Voltage | 220V (Optional: 380V) |
Working Current | 30A |
Maximum Printing Width | 170cm or 67’’ (Optional: 190, 220, 260,cm) |
Drum Diameter | 30cm or 11.81’’ (Optional: 42, 60cm) |
Heating Method | Oil Heating |
Oil Type | First-Grade Heat Transfer Oil |
Oil Qty | Half Drum |
Drum Safety Level | Supreme Explosion-Proof |
Heating Tubes Qty | 15pcs |
Working Temperature Range | 0~299°C |
Recommend Working Temperature | 220~230°C |
Pre-Heat Time | 45 mins |
Function | Roll to Roll Fabrics & Cut Piece |

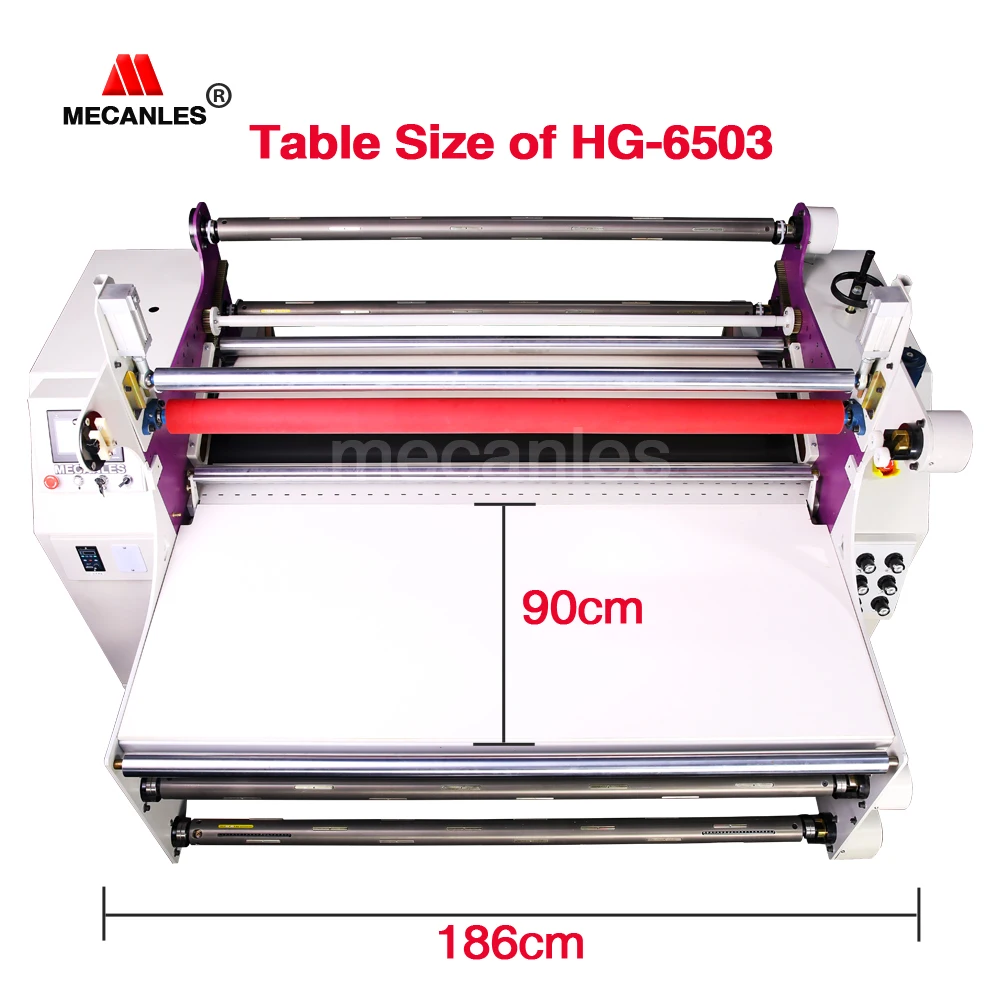

Table Size | (L)186 x (W) 90x (H)90cm |
Production Speed | 1 meter / min |
Speed Control | Infinite Variable Speed |
Main Motor Power | 5.0KW |
Fabric Feeding Roll Length | 210cm |
Max Fabric Feeding Width | 173cm |
Blanket Width | 176cm |
Blanket Thickness | 10mm |
Main Body Dimension | (L) 244 x (W) 240 x (H) 170cm |
Metal Plate Thickness | 3mm |
Feed Method | Up Feed, Bottom Collect |
Feeding Roller Qty | 3 Feeding Rollers |
Feeding Materials | Printed Paper, Blank Fabrics, Tissue Paper |
Fabric Feed | Plain Roller |

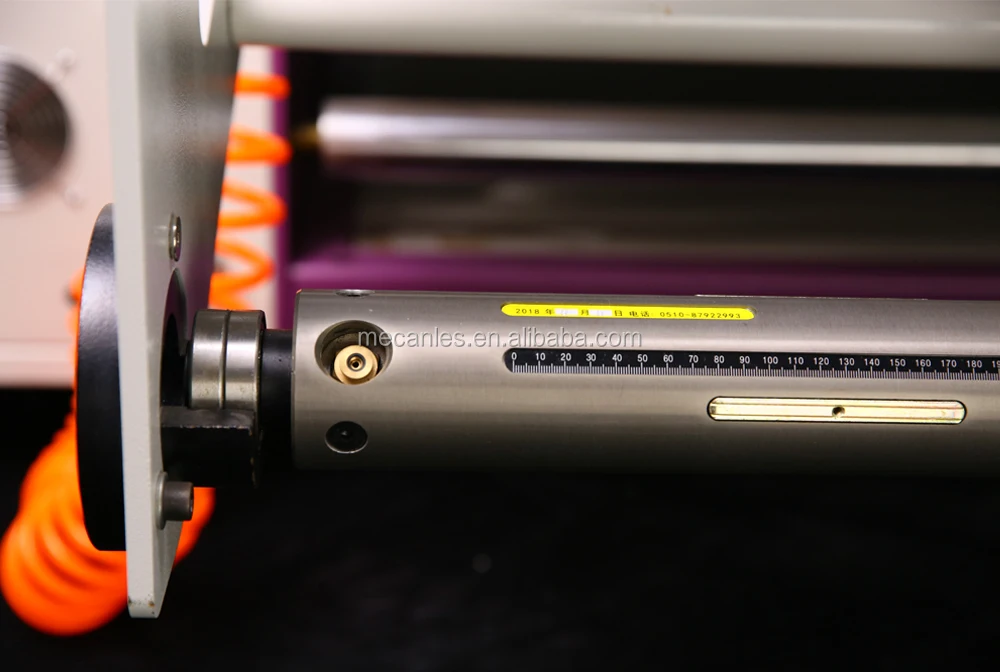

Printed Paper Feed | Air Inflatable Roller |
Tissue Paper Feed | Air Inflatable Roller |
Collect Roller Qty | 2 Collect Rollers |
Printed Paper Collect | Air Inflatable Roller |
Tissue Paper Collect | Air Inflatable Roller |
Printed Fabric Collect | Auto Conveyor Belt |
Printed Fabric Roller | Air Inflatable Roller (Optional) |
Total Power | 35KW |
Net Weight | 1700KGS |
Floor Area | (L)244 x (W)240 x (H)170cm |
Weight After Pack | 1850KGS |
Size After Pack | 270 x 205 x 190cm |
Packaging & Shipping
Our Services
1). We offer 7 * 24 online Service
2). Sending Technician to customer place
3). Video teaching
FAQ
Q: I am new in this field, can I use this machine?

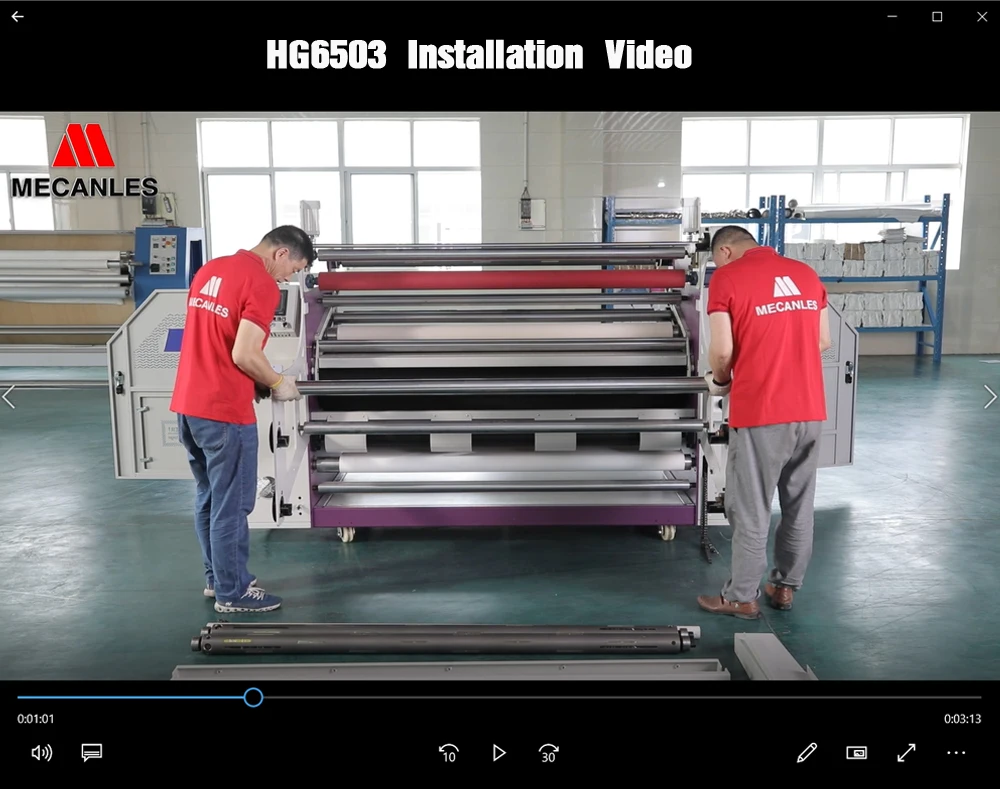

A: Yes. Our machine is user-friendly and easy to operate. We have full installation video and operation video to teach you step by step.
A: Yes. Our machine is user-friendly and easy to operate. We have full installation video and operation video to teach you step by step.

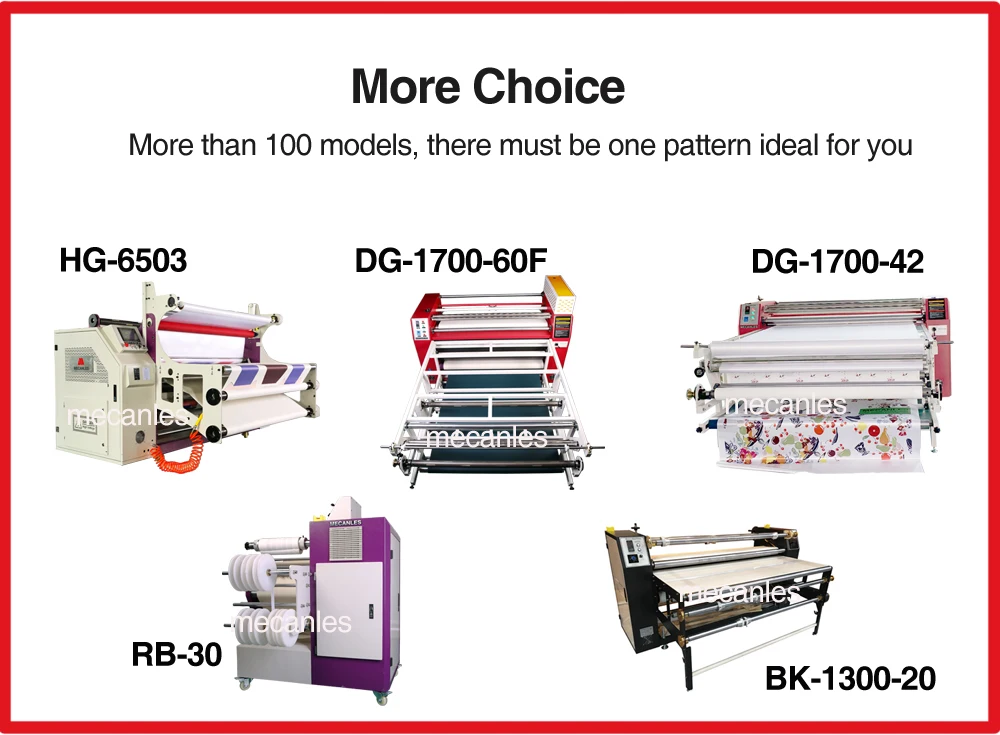

Q: Do you produce other models?
A: Yes. We are the largest and the most professional producer for heat transfer machine in China. We have full ranges of models with different series.
For machine width, we produce from 1.3 meter to 3.2meter. For drum, from 20cm to 100cm. We produce roll to roll heat transfer machine, multifuntion transfer machine,
ribbon heat press transfer machine, also flat heat press machine.
A: Yes. We are the largest and the most professional producer for heat transfer machine in China. We have full ranges of models with different series.
For machine width, we produce from 1.3 meter to 3.2meter. For drum, from 20cm to 100cm. We produce roll to roll heat transfer machine, multifuntion transfer machine,
ribbon heat press transfer machine, also flat heat press machine.

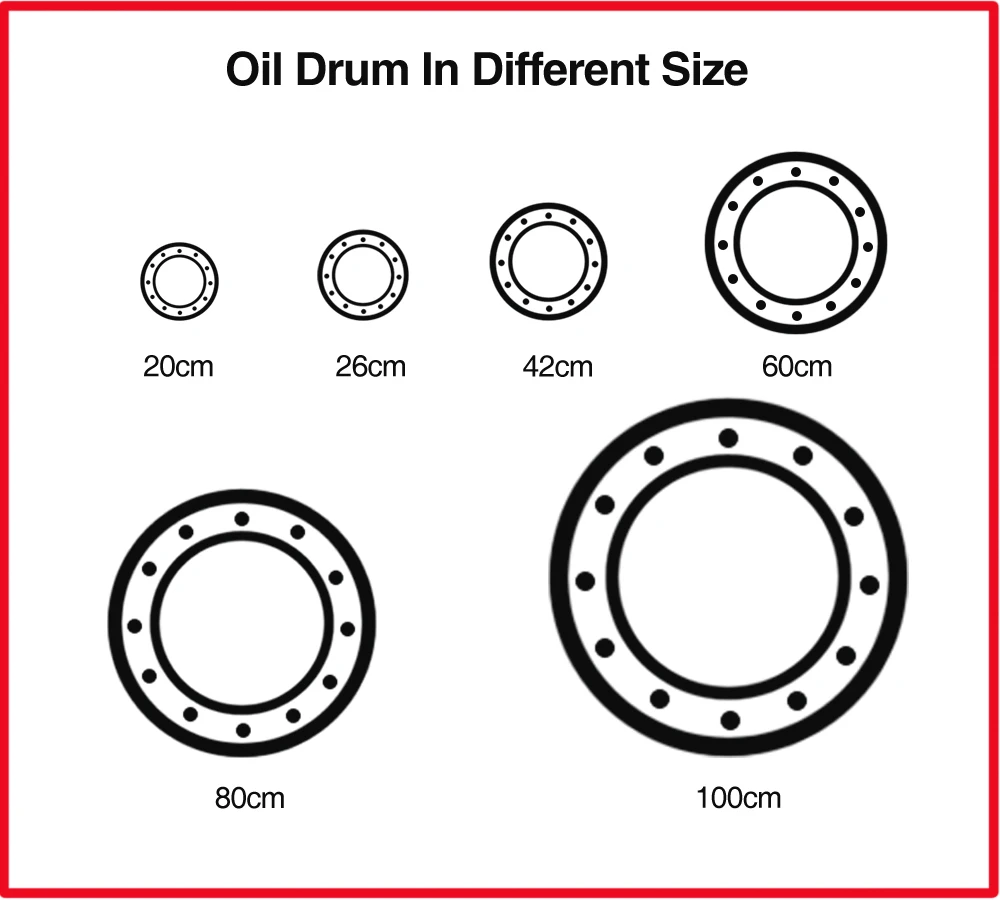

Q: I don't understand the drum in different diameter very well, what is the difference between a small drum and big drum?
A: The drum size almost decide the production speed. The bigger drum, the higher production speed.
A: The drum size almost decide the production speed. The bigger drum, the higher production speed.
Q: You have many models, speficiations, how can I choose?
A: Just let us know what exact application will you do with our machine, the materials, the width, the production speed you require. Then our professional sales person will recommend the best choice for you.
A: Just let us know what exact application will you do with our machine, the materials, the width, the production speed you require. Then our professional sales person will recommend the best choice for you.
Q: What kinds of fabrics the machine can do?
A: 100% Polyester, Chiffon, Silk Fabrics, Oxford Fabrics, Polyester-Cotton Fabrics (cotton≤15%), Spandex, Lycra, Satin, Dacron, Non-woven etc.The fabric must have good thermostability, can not contains much cotton. Can also do on Nylon, depends on specific ingredient, color fastness on Nylon is not ideal.
A: 100% Polyester, Chiffon, Silk Fabrics, Oxford Fabrics, Polyester-Cotton Fabrics (cotton≤15%), Spandex, Lycra, Satin, Dacron, Non-woven etc.The fabric must have good thermostability, can not contains much cotton. Can also do on Nylon, depends on specific ingredient, color fastness on Nylon is not ideal.
Q: Can you send technician to my place for installation and training if I buy your sublimation heat transfer machine?
A: Yes. We do can it. Our technician has the visa for many countries. We can send technician to your plant to help you install machine and teach you use the machine. This process usually needs 3~4 days in your place. You need to pay to us for the round airline tickets in advance. Also, you should be in charge of our technician's hotels, foods, personal safety,etc in your country.
A: Yes. We do can it. Our technician has the visa for many countries. We can send technician to your plant to help you install machine and teach you use the machine. This process usually needs 3~4 days in your place. You need to pay to us for the round airline tickets in advance. Also, you should be in charge of our technician's hotels, foods, personal safety,etc in your country.
Q: How's your warranty for the machine?
A: Two year warranty for our mecanles rotary heat press machine. The blanket and oil are not included, these due are consumables for this machine.
A: Two year warranty for our mecanles rotary heat press machine. The blanket and oil are not included, these due are consumables for this machine.
Q: If some parts damaged when I receive the machine, what shall I do?
A: Generally, our package is the best, the machine will arrive at your place in good condition. In case, some parts damages during transportation, please contact us and send us the pictures of the damage parts, we will send you the replacement immediately.
A: Generally, our package is the best, the machine will arrive at your place in good condition. In case, some parts damages during transportation, please contact us and send us the pictures of the damage parts, we will send you the replacement immediately.
Q: What is the consumables for this machine?
A: The consumable of the machine is the oil, you need to add oil one time per year, like 15~20 kgs every year. The oil cost is like 50 us dollars per year.The blanket usually can be used for two years, depends on workload too. Other parts, not easy to be damaged.
A: The consumable of the machine is the oil, you need to add oil one time per year, like 15~20 kgs every year. The oil cost is like 50 us dollars per year.The blanket usually can be used for two years, depends on workload too. Other parts, not easy to be damaged.
Q: I am a dealer. Can I be your distributor in my country?
A: Yes. It is possible. We welcome global dealers to build cooperation with us. For specific markets, please contact our sales person to negotiate details.
A: Yes. It is possible. We welcome global dealers to build cooperation with us. For specific markets, please contact our sales person to negotiate details.
Q: Do you supply printer, consumables?
A: Yes. We offer complete heat transfer solutions, so we offer printer, inks, sublimation paper too. All these products are at high level, high quality.
A: Yes. We offer complete heat transfer solutions, so we offer printer, inks, sublimation paper too. All these products are at high level, high quality.
Company Information
We are the leader, the most professional manufacturer for rotary heat press machine in China, with more than 20 years experience. Our products are exported to more than 90 countries, thanks to our high quality, and perfect service. We are the quality supplier that you are looking for. If you are interested in our products, please contact us.
