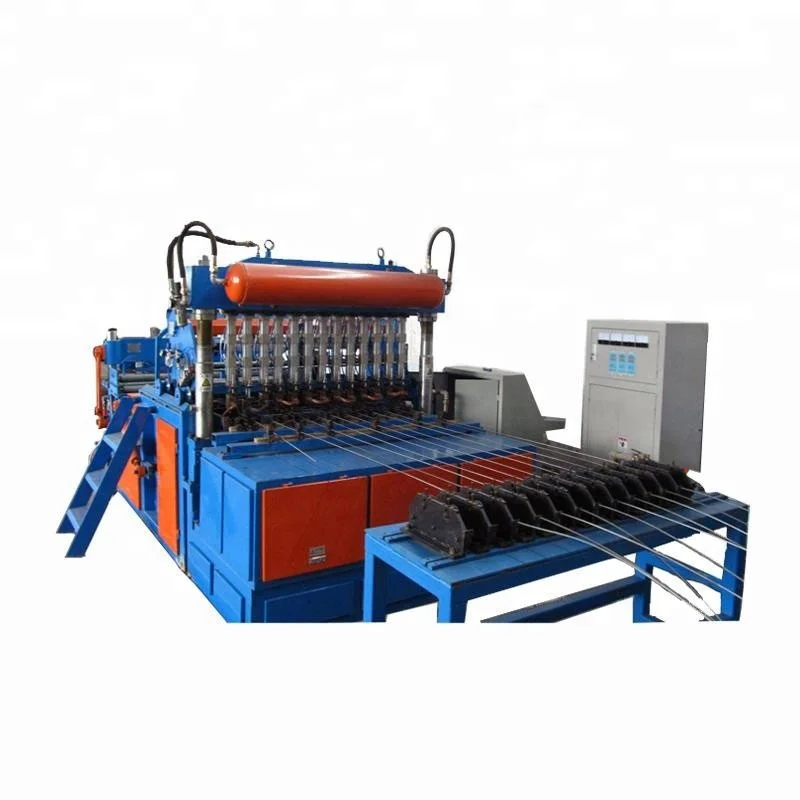

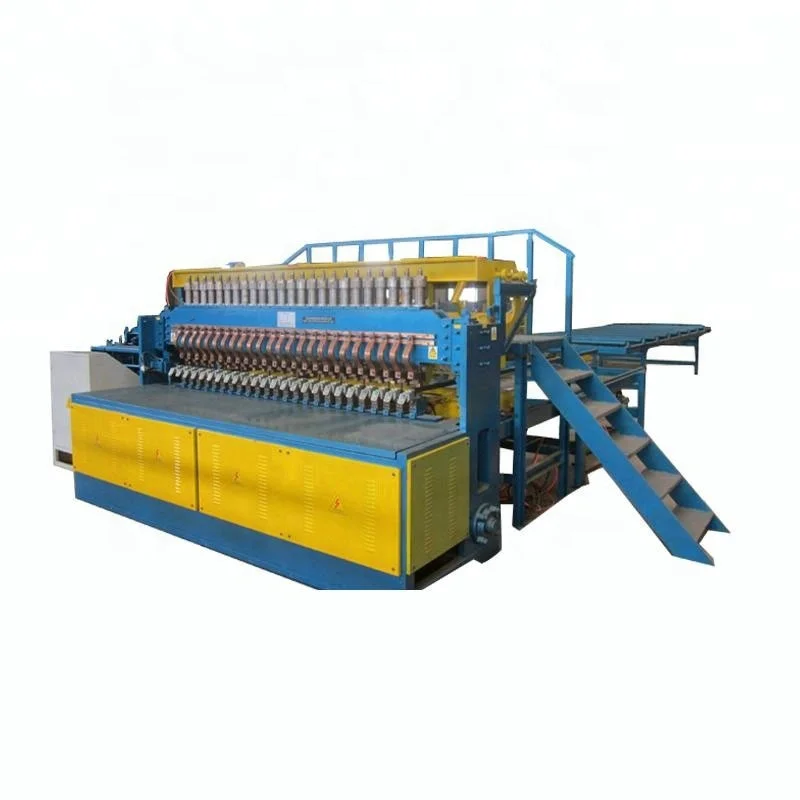

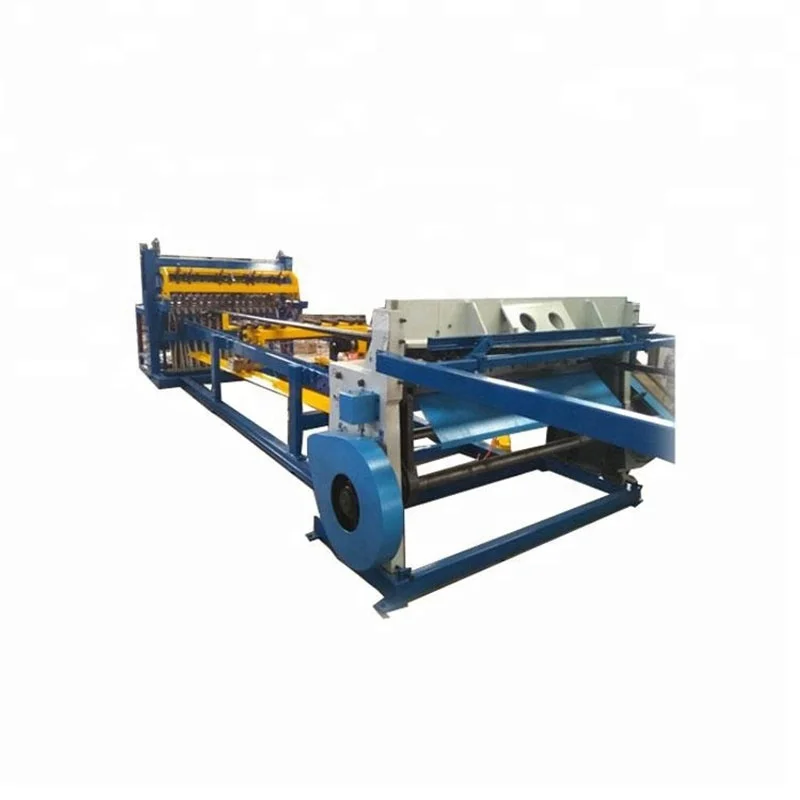

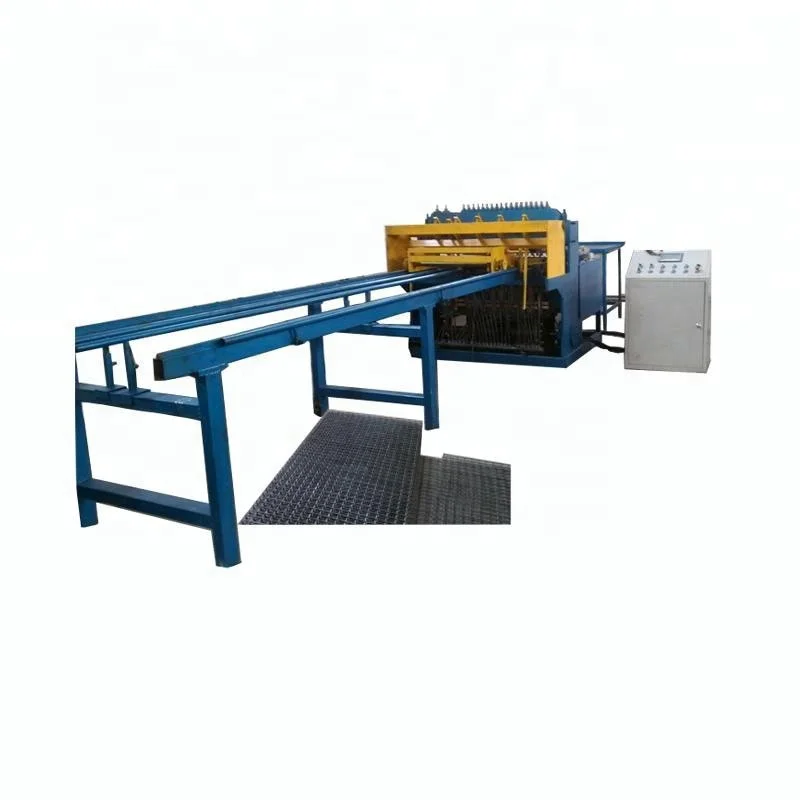

The CNC Wire Mesh Welding Machine is a complete equipment for wire mesh welding, which is manufactured by Dongfeihong based onlearning foreign advanced experiences, technologies and actual production demands in the international market. This series equipment can perform high quality cross-welding for hot-rolled ribbed rebar, cold-rolled ribbed rebar and round rebar. It has many favorable features, such as high output, high precision, easy modification, low operation failure rate, strong capability in energy saving, low consumption and high quality.
Technical Data
Model
DFHM2500
DFHM1500
Rated voltage
3phase 380V 50Hz
3phase 380V 50Hz
Longitudinal wire space
100-300mm
100-300mm
Welding diameter
5-12mm
3-10mm
Number of solder joints
24
8
welding speed
40-65rows/min
40-75rows/min
welding width
≤2500mm
≤1500mm
Spiral wire space
50-300mm
25-300mm
Rated capacity
150Kva*13
150Kva*2
Spiral wire feeding
Straightening and cutting wire
Straightening and cutting wire
Motor power
11Kw
11Kw
Overall dimension(L*W*H)
14000mm*3100mm*2300mm
14000mm*2100mm*2300mm
Overall weight
6500Kg
3000Kg
Feature
1. Low noise and efficient with integral frequency conversion motor and helical gear reducer directly connect the main shaft. 2. Epoxy-cast water-cooled welding transformers can work continuously and prolong working life. 3. Panasonic servo motor plus planetary reducer drive pulling mechanism to continue pulling the net circularly ,which achieve high quality and accuracy in size of the net. 4. Unique funnel control solution: In case of no steel wire or abnormal steel wire doffing in funnel, the equipment would be suspended until it get normal. 5. Automatic landing, finished product output (Optional): Each welding net automatically falls into the output mechanism, then output after a certain number of stacks. Easy transportation and labor saving. 6. Adopt advanced brand in the world to ensure the machine operate with high quality and reliability. Panasonic used in PLC, servo motor driver; Weinview used in touch screen; JAPAN SMC used in the original pneumatic components, and other famous brand such as Schneider, Tianzheng used in other electrical appliances of the machine.

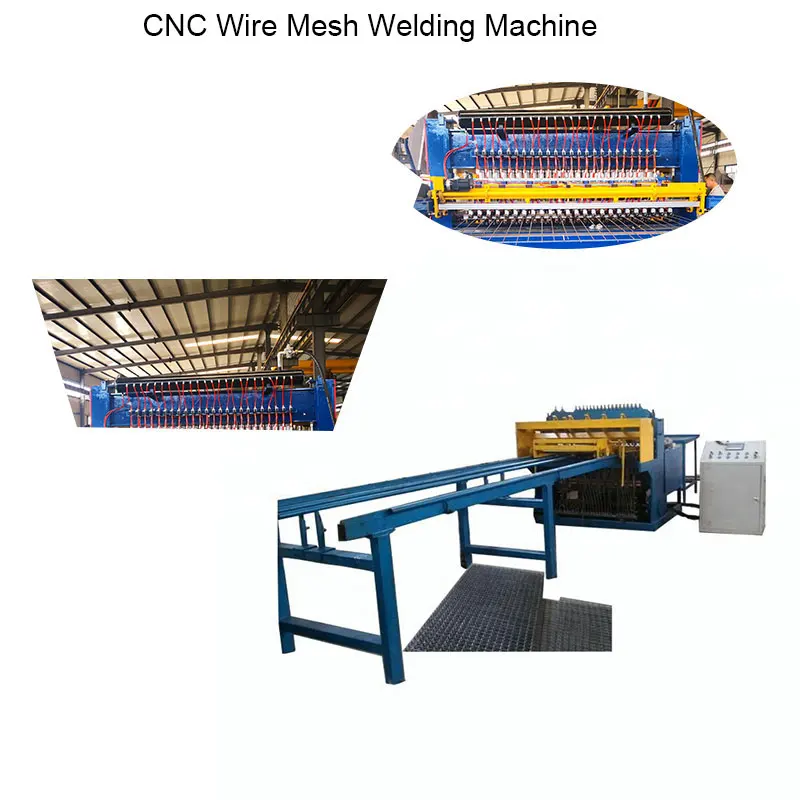

Components & Structure:
Product packaging
mesh welding machinewill be nude packed in container, the parts and tool will be packed in wooden case.suitable for long distance sea shipment.
our service
♦pre-sale Service
Quality & Price is built on each transaction's satisfaction
Customized Design Reasonable Equipment based on your request,our team's hard research & existing project proposal
♦Sale Service
Strict QC Inspection---8-Level Quality Assurance System off the production line
Details & Video Sent to help your workers know how the device works
OEM&ODM Service with Professional R&D and Design Team
♦After-Sales Service
Maintenance Response in 24 hours After-Sales Service Team
Oversea Technical Support Experience
Customer Reviews Satisfaction is nearly 100%
Company Profile
Qingdao Dongfeihong Intelligent Technology Co., Ltd, a leading numerical control steel processing equipment manufacturer, provides practical “automatic numerical control steel processing services program” for the steel processing field and construction site in the fields of highway, high-speed railway and housing construction areas in over 20 countries and regions around the world.
