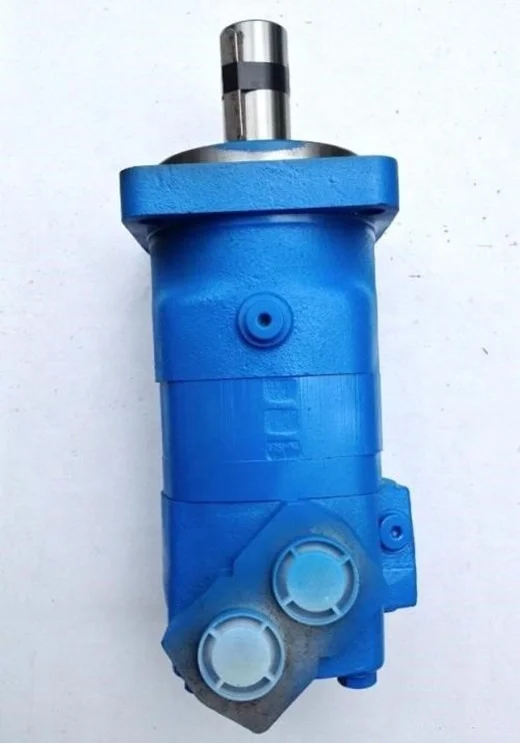

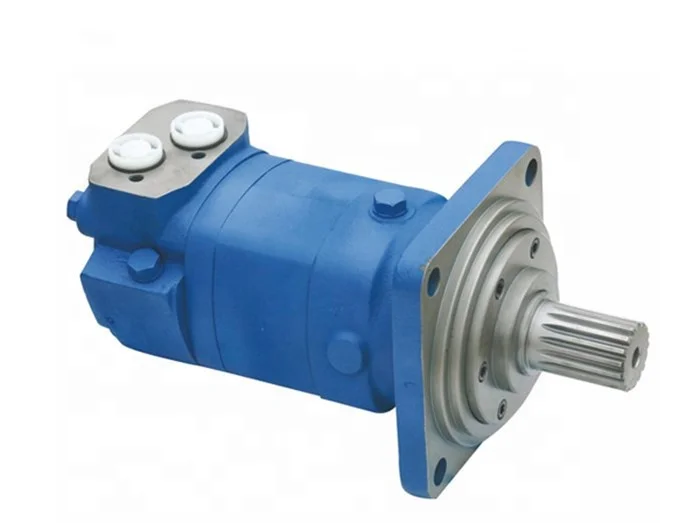

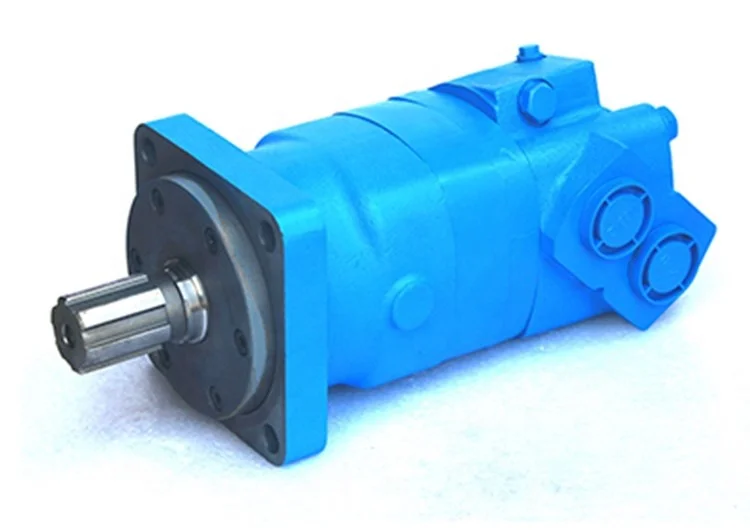

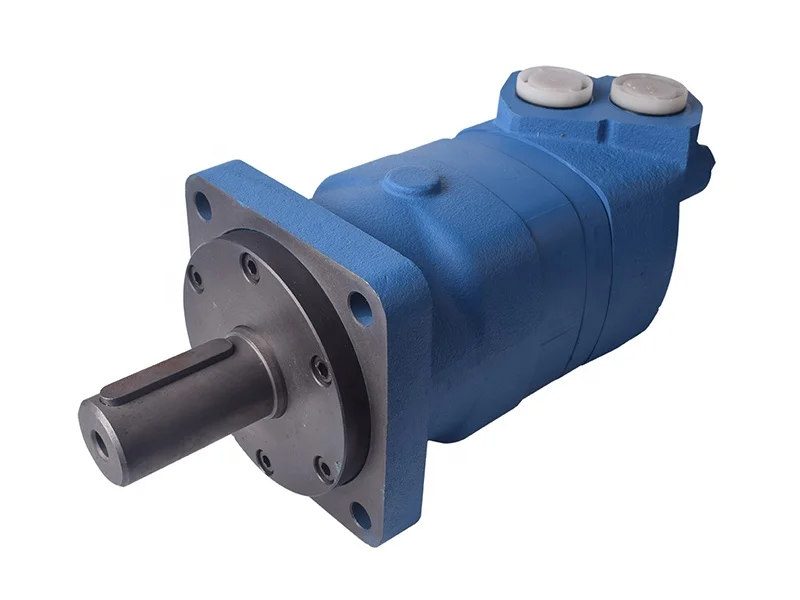

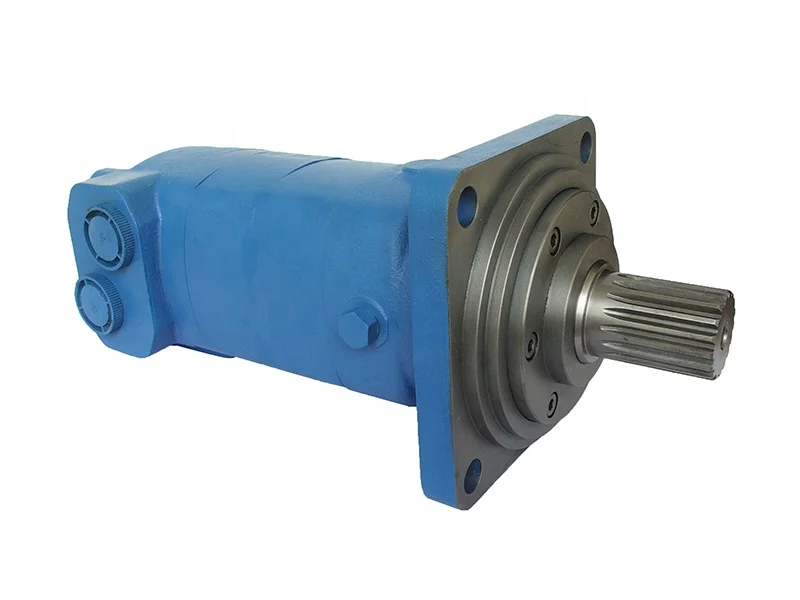

BUY YUANSHENG bmt omt smt bm6 490 Hydraulic Motor wholesale

Product Overview

Description



Introduction

• Max. pressure is the allowed pressure at the inlet port. Rated pressure is the working pressure difference between inlet and outlet port.
• A simultaneous maximum RPM and maximum pressure NOT recommended.
• Maximum pressure or maximum RPM operation: 10% of very minute.
• Recommended fluids: Anti-wear type of hydraulic oil. Viscosity recommended 37-73cSt. Recommended filtration ISO18/13. Maximum operating temperature recommended 80°C.
• Special high pressure capacity shaft seal ensures back pressure up to 10 Mpa.Recommended preferable back pressure 5 Mpa. Case drain line is recommended when back pressure higher than 5 Mpa. When case drain line is used, make sure the motor is always filled with oil. The motor life is benefited from a case drain line.
• It is highly recommended thar the motor runs at 30% of rated pressure for at least one our before application of full load. Be sure the motor is filled with fluid prior to any load applications.



Feature

• Compact in design with disc valving and Geroler
• High pressure capacity shaft seal
• Design and manufacture of the spline and drives give the motor durability
• Wide variety of mounting flanges,shafts,ports and speed provides design flexibility
• Direction of shaft rotation and speed can be controlled easily and smoothly
• Best combination of high efficiency and economy in medium duty applications

Advantages

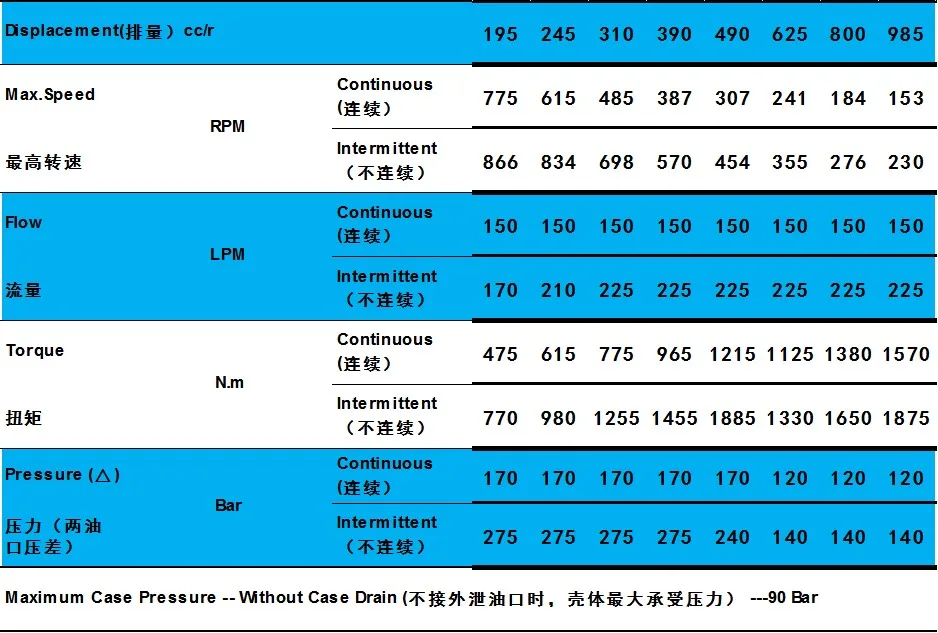

• Displacement ranges from 195cc/r to 985cc/r.
• Advanced gear set parameter design, low start- up  pressure, high efficiency and steady low rotation.
• High operate pressure and output torque.
• Advanced shaft seal design, high backpressure abaility.
• Advanced driver-linker design, prolong operating life.
• Advanced distribution system design which canautomatically compensate in operation.
• Motor can be used in parellel or in series, outer drain pipes when in series linkaged.
• Compact volume and easy installation
• Adapt tapered roller bearings that permit high axial and radial force. The case can offer capacities of high pressure  and high torque in the wide of applications.



Jining Yuansheng Electromechanical Co., Ltd.We're proffessional hydraulic motor supplier in China,Located in Jining city ,Shandong province,China.Our main products including BM1,BM2,BM3,BM4 ,BM5,BM6 series,can replace EATON,DANFOSS,WHITE,M+S different brand motors, meet different requirements of customers.
Our business also involves hydraulic brake, mining accessories,industrial & mining machinery, hydraulic winchs, hydraulic pumps, steering control units,hydraulic valves,hydraulic system components, construction equipment.
