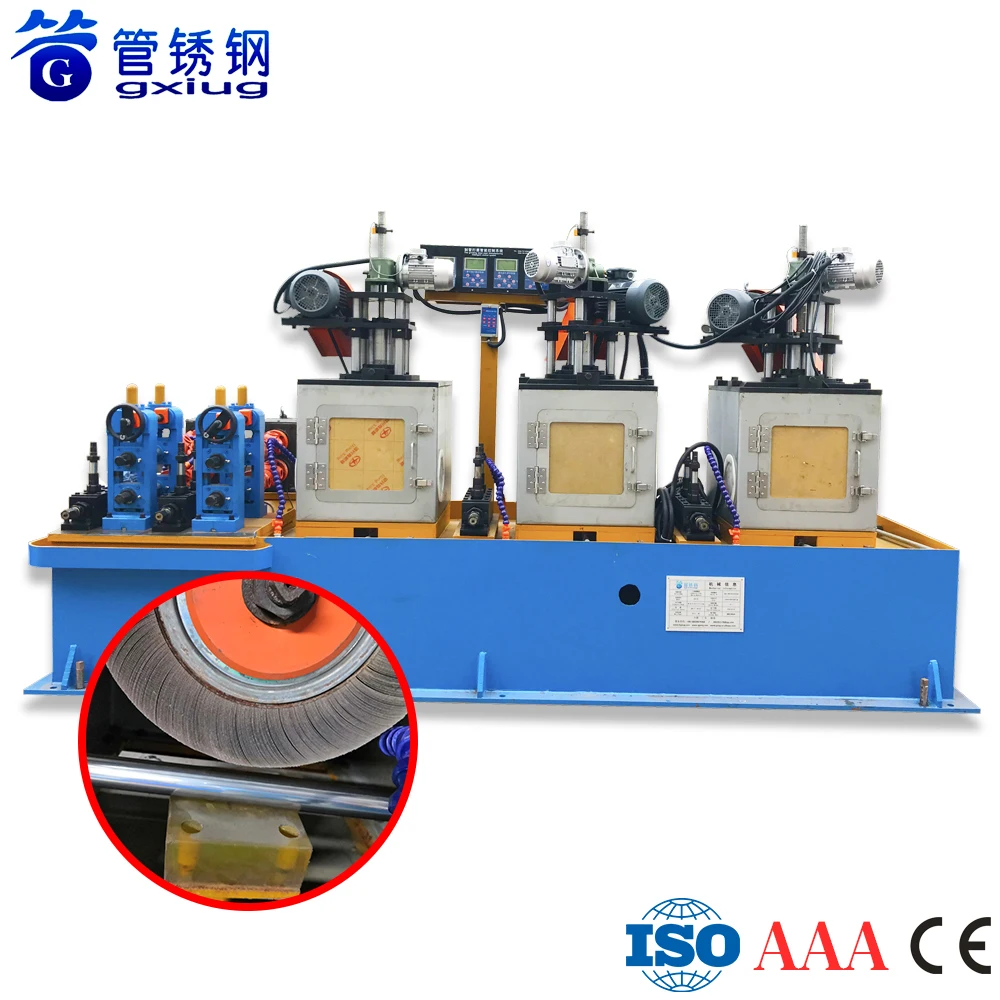

Производственная линия для производства труб из нержавеющей стали

Product Overview

Description



TUBE MATERIAL:Stainless Steel 304/316L / Titanium Etc

PIPE SHAPE:Round Etc

USDAGE:Water pipe / Fluid pipe / Titanium pipe / Petrochemical pipe / Aerospace Automobile pipe /Drinking food grade pipe/Hygienic grade pipes Etc

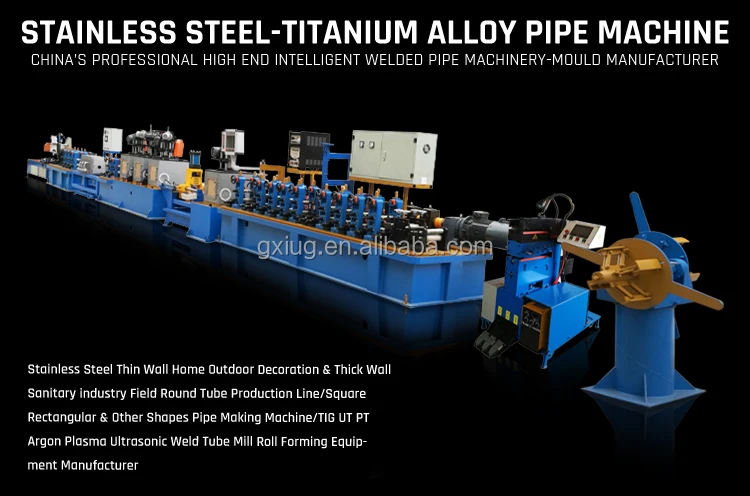

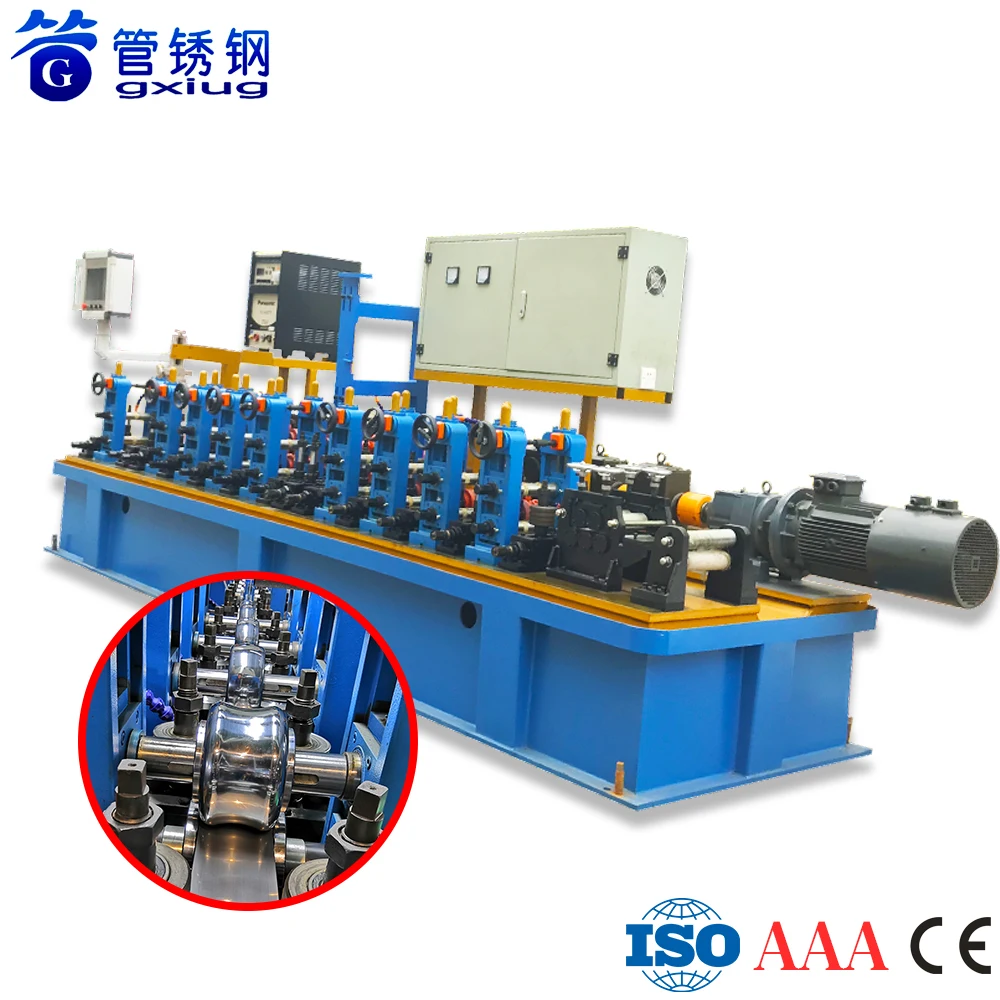

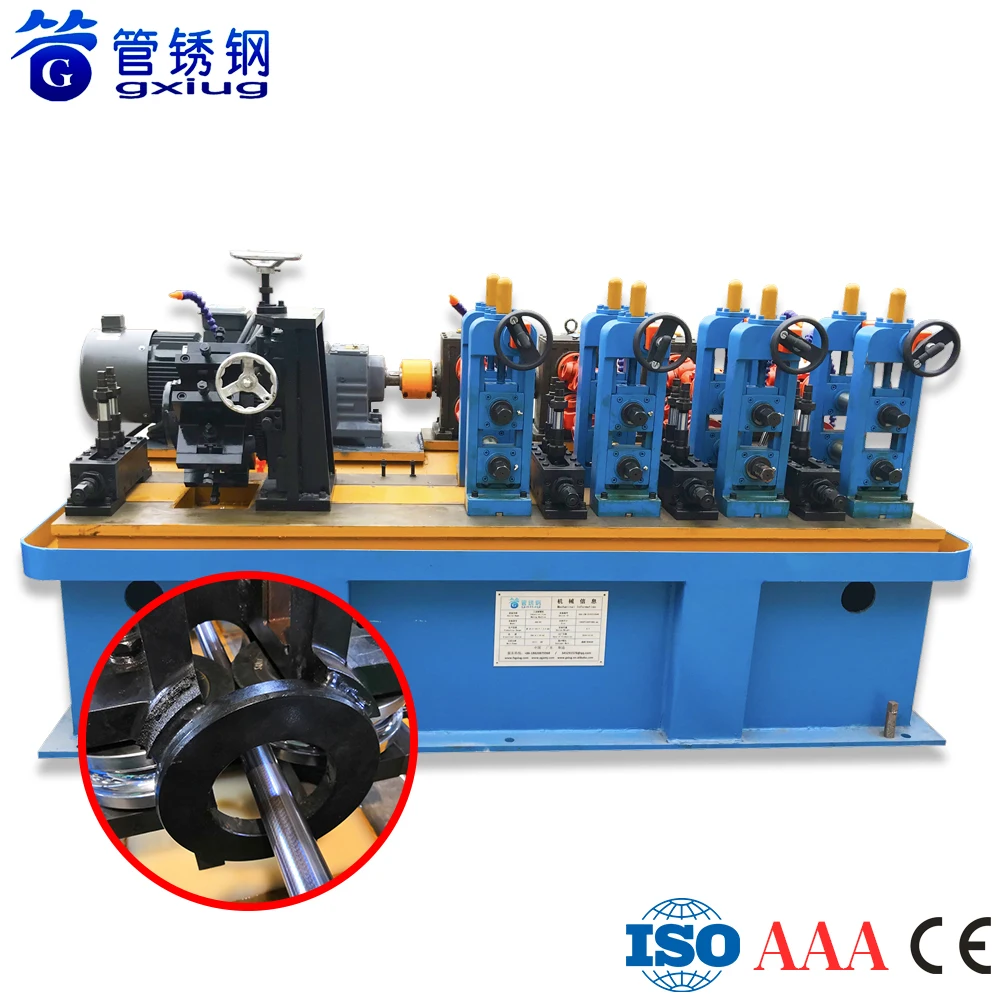

Precision industrial metal steel pipe making machine tube mill is a metal pipe processing equipment specializing in the production of industrial pipes. It can be used in petrochemical, paper-making, food, beverage, medicine and other industries which require high fluid medium. For example, the production of drinking water pipes, food hygiene pipes, building pipes, automotive exhaust pipes, etc., industrial welded pipes with their easy access to raw materials, easy manufacturing process, simplified processing technology and other advantages can replace seamless steel pipes in a wider range.

MODEL	GXG-20	GXG-30	GXG-40	GXG-50	GXG-60
Round Tube Range (mm)	Ø5-20	Ø15-32	Ø25-51	Ø38-76	Ø63-114
Square Tube Range (mm)	——	——	10*10-40*40	20*20-60*60	40*40-90*90
Wall Thickness Range (mm)	0.2-1.0	0.3-1.5	0.3-2.0 / 1.5	0.5-2.5 / 1.8	0.5-3.0 / 2.2
Horizontal Shaft Diameter(mm)	Ø40	Ø40	Ø40	Ø50	Ø60
Vertical Shaft Diameter(mm)	Ø20	Ø25	Ø25	Ø30	Ø35
Main Motor Power(kw)	5.5*2	5.5+7.5	7.5*2	11*2	15*2
Installation Dimension(L*W  m)	20*1	21*1	22*1.3	24*1.4	26*1.5
Rated Voltage(v)	220 / 380/ 415 / 440



MODEL	GXG-70	GXG-80	GXG-90	GXG-100	GXG-120
Round Tube Range (mm)	Ø89-168	Ø114-219	Ø168-273	Ø219-325	Ø168-325
Square Tube Range (mm)	70*70-130*130	90*90-170*170	130*130-210*210	170*170-250*250	130*130-250*250
Wall Thickness Range (mm)	0.8-4.0 / 3.0	1.0-6.0 / 4.0	2.0-7.0 / 5.0	2.0-8.0 / 6.0	3.0-12.0 / 8.0
Horizontal Shaft Diameter(mm)	Ø70	Ø80 / 90	Ø90 / 100	Ø100 / 110	Ø120
Vertical Shaft Diameter(mm)	Ø40	Ø50 / 60	Ø60 / 70	Ø70 / 80	Ø90
Main Motor Power(kw)	18.5*2	22*2 / 30*2	37*2 /45*2	45*2 / 55*2	55+75
Installation Dimension(L*W  m)	32*2.2	36*2.6/40*2.8	38*2.8 / 50*4	40*3 / 55*4.5	60*5
Rated Voltage(v)	220 / 380/ 415 / 440
