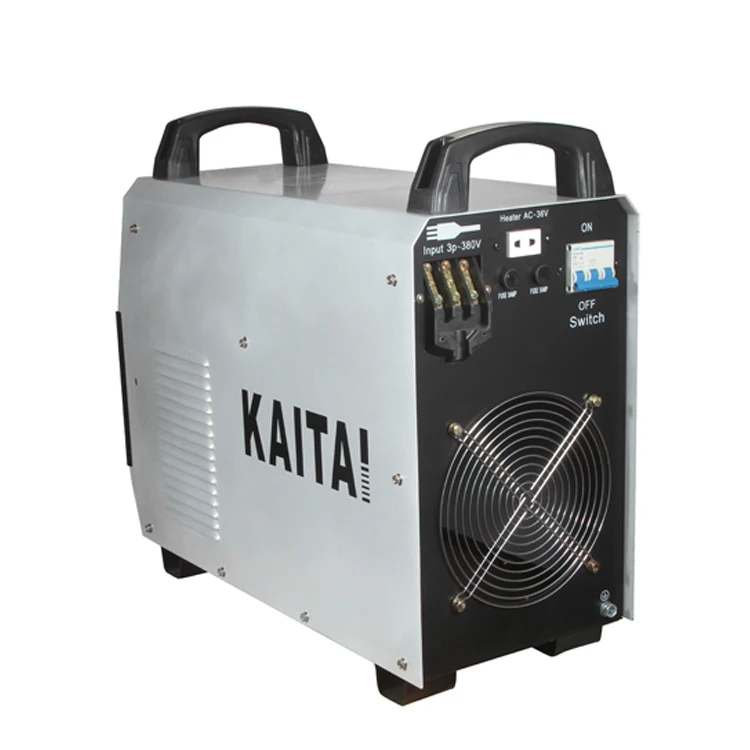

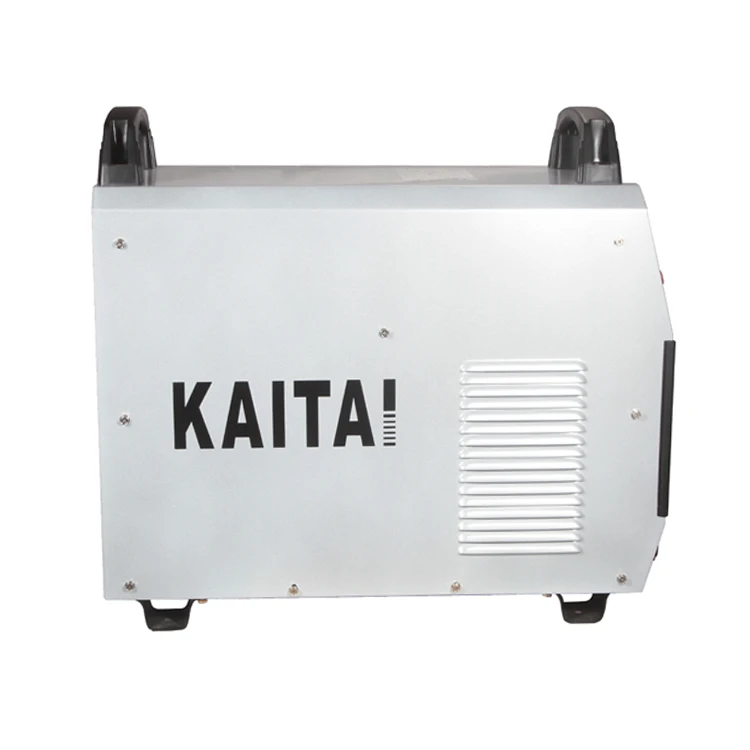

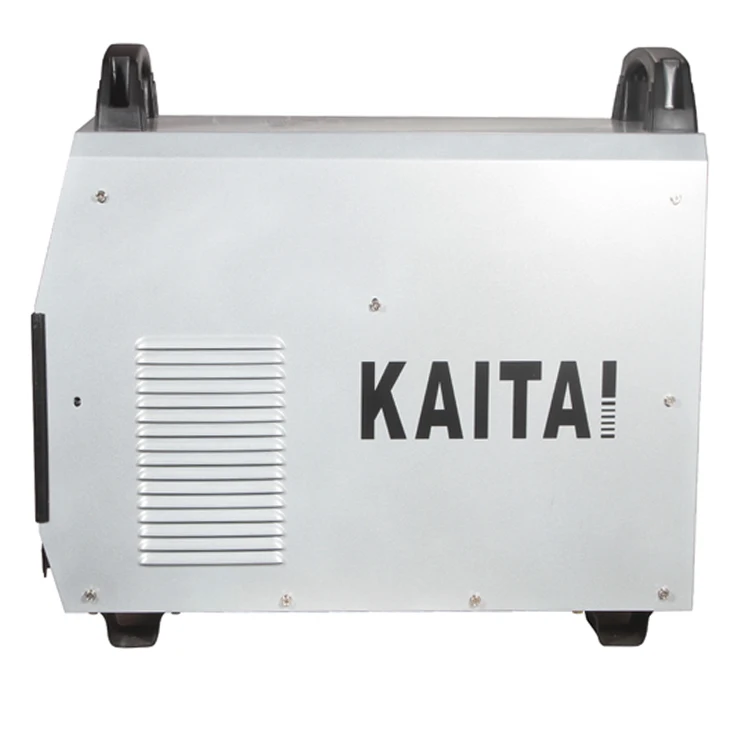

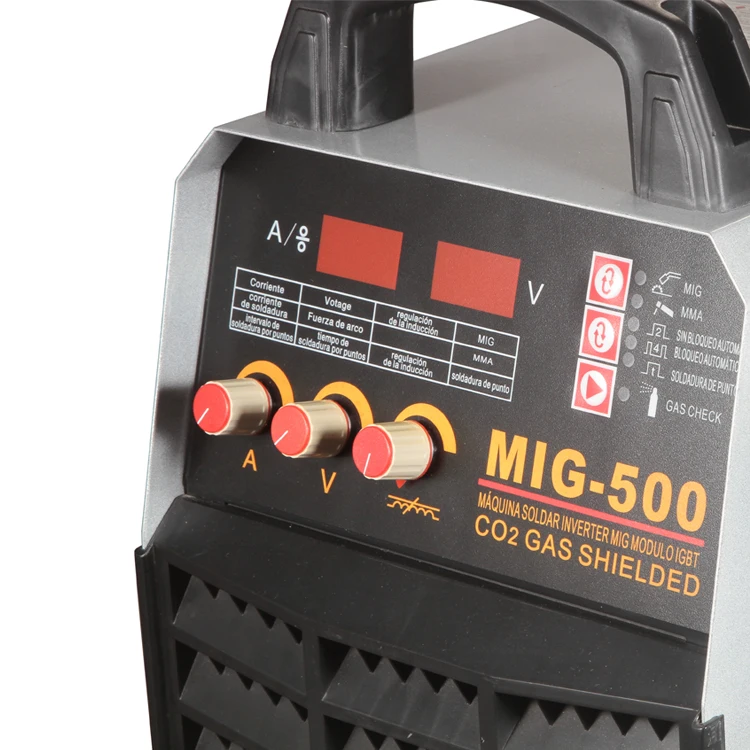

MIG Industry Welder Equipment Gas Shield CO2 Welding Machine MIG 500F
- Category: >>>
- Supplier: ZHEJIANG KAITAI AMPEREX TECHNOLOGY CO. LTD
Share on (62379223504):
Product Overview
Description
Product Description
Industrial Use High quality Inverter DC Heavy MIG MAG ARC Welding MIG MMA Gas Shielded Welder NBC-500 MIG-500F
Multifunction for MMA welding and MIG/MAG welding
process.seperated strong wire feeder.
Wire feeder and main machine are separted
Technical Specs. | MMA-500F |

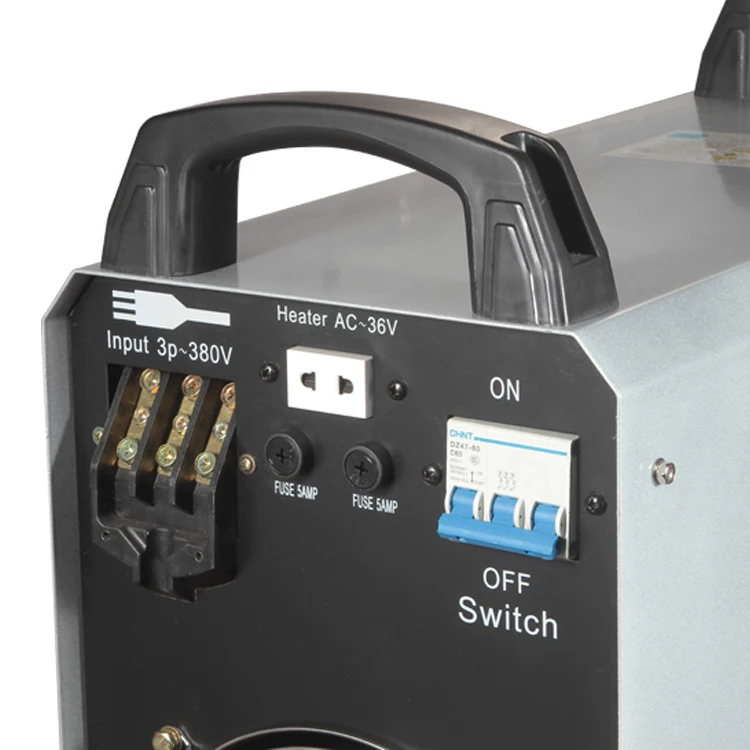

Input Voltage(V) | 3Phase 380V |
Frequency(Hz) | 50/60 |
Input Capacity(KVA) | 27 |
Output Current Range(A) | 60-500 |
Duty Cycle(%) | 60% |
Rated Zero-load Voltage(V) | 75 |
Arc ending Current Range(A) | 60-500 |
Arc ending Current Range(A) | 17-39 |
Usable Wire Diameter(mm) | 1.0/1.2/1.4/1.6 |
Cooling Way | Forced Cooling |
Protection Class | IP21S |
Insulation Class | F |
Power Factor | 0.93 |
Machine Size(mm) | 625*325*560 |
Packing Size(mm) | 640*335*640 |
Weight(Kg) | 35 |
PRODUCT APPLICATION
MIG torch,Electrode holder,earth clamp,welding cable.
Suitable material:
All kings of materials,such as carbon steel,alloy steel,cast iron and stainless steel etc.
Application:
Building Material Shops, Machinery Repair Shops, Manufacturin

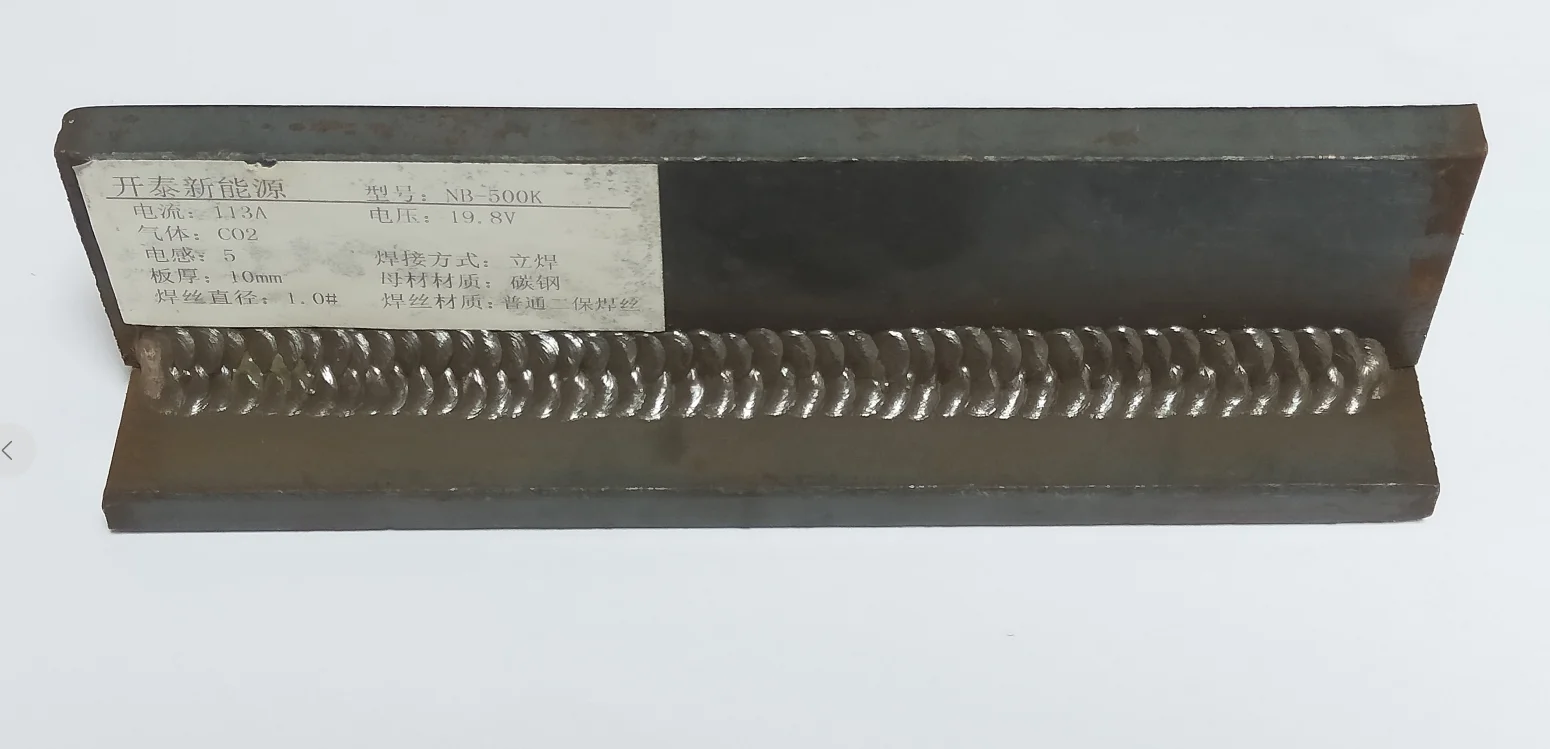

Model: NB-500/MIG-500
Welding Current:113A
Welding Wire Diameter:1.0mm
Voltage:19.8V
Protective Gas:CO2
Wire Feeding Speed:60cm/min
Plate thickness:10mm
Base material: carbon steel
Welding method: vertical welding
Welding wire material: ordinary CO2 welding wire
Welding Current:113A
Welding Wire Diameter:1.0mm
Voltage:19.8V
Protective Gas:CO2
Wire Feeding Speed:60cm/min
Plate thickness:10mm
Base material: carbon steel
Welding method: vertical welding
Welding wire material: ordinary CO2 welding wire
PRODUCT ADVANTAGE
Easy Operation Welding Equipment MIG NBC-500 Inverter CO2 Protective Welder Mig Mag Welding MIG-500F
1.Full bridge inversion soft-switching technology to effectively reduce IGBT working loss. 2.DSP+CPLD microcomputer control technology to realize full digital control. 3.Multifunction for MMA welding and MIG/MAG welding process.seperated strong wire feeder.\t
4.Burn back time IDautomatically adjusted according to the wire used.\t
5.With 2T/4T gun switch latching,moving wheels.\t
6.Rolls Wire feeder Seperated(MIG-350 500 630)\t
7.With good water-proof and dust-proof.\t
8.Can work uder high temperature enviroment.\t
9.Closed-loop control system ensure the welding voltage highly stable while network voltage is unstable and arc length is changing .ARC with good self-adjustment,and stable welding.\t
10.ARC with good self-adjustment,and stable welding.\t
11.Output cable can lengthen to 50 meters in order to meet the long-distance welding.\t
12.Wire-feeding staby.\t
4.Burn back time IDautomatically adjusted according to the wire used.\t
5.With 2T/4T gun switch latching,moving wheels.\t
6.Rolls Wire feeder Seperated(MIG-350 500 630)\t
7.With good water-proof and dust-proof.\t
8.Can work uder high temperature enviroment.\t
9.Closed-loop control system ensure the welding voltage highly stable while network voltage is unstable and arc length is changing .ARC with good self-adjustment,and stable welding.\t
10.ARC with good self-adjustment,and stable welding.\t
11.Output cable can lengthen to 50 meters in order to meet the long-distance welding.\t
12.Wire-feeding staby.\t

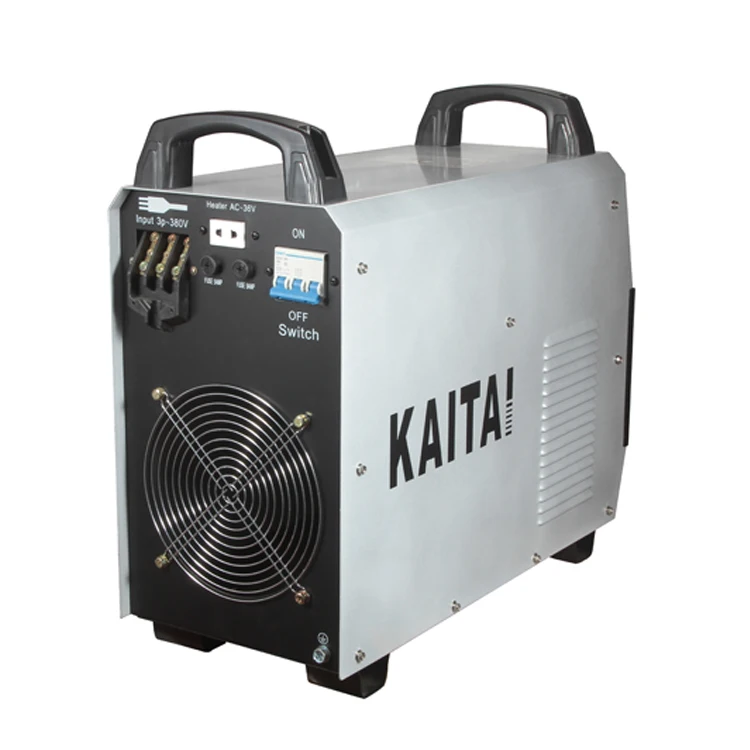

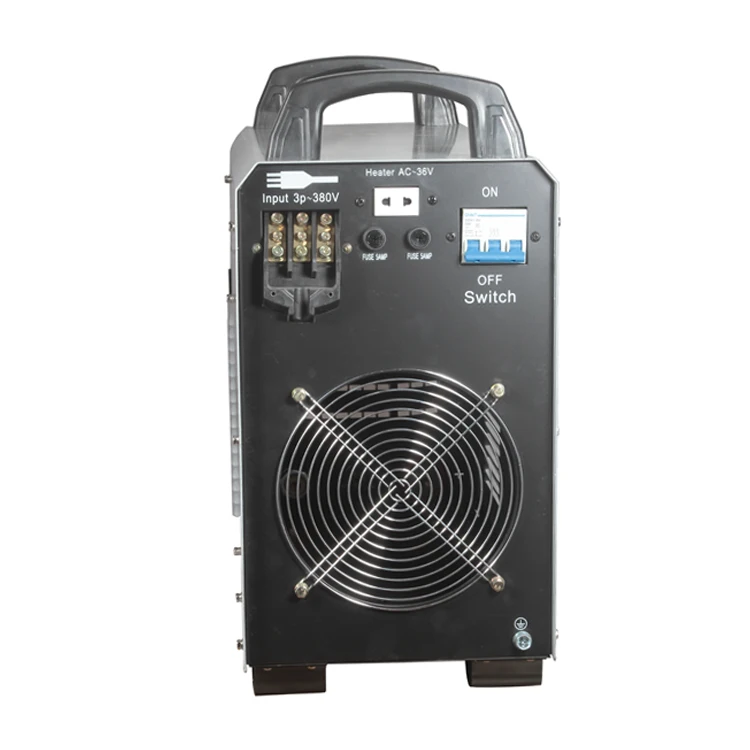

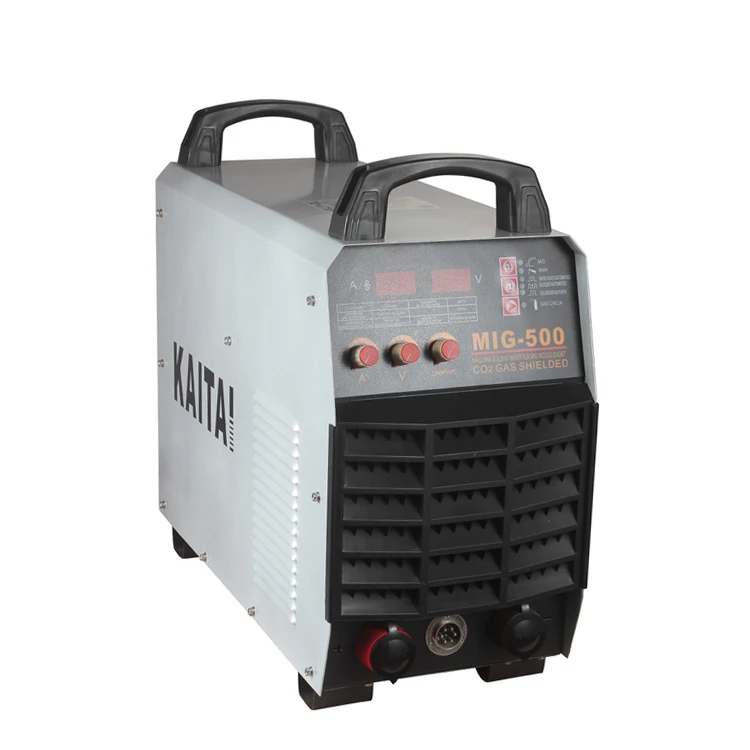

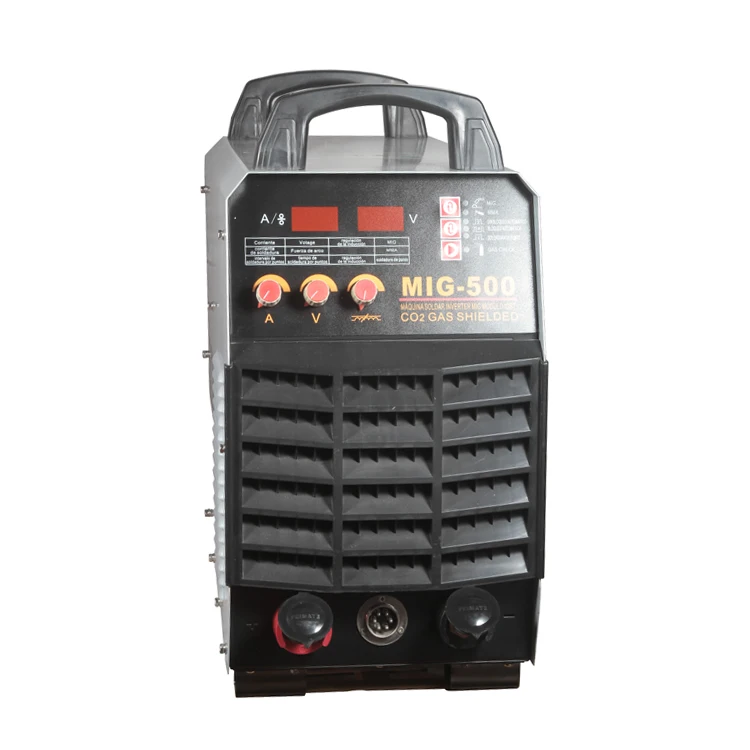

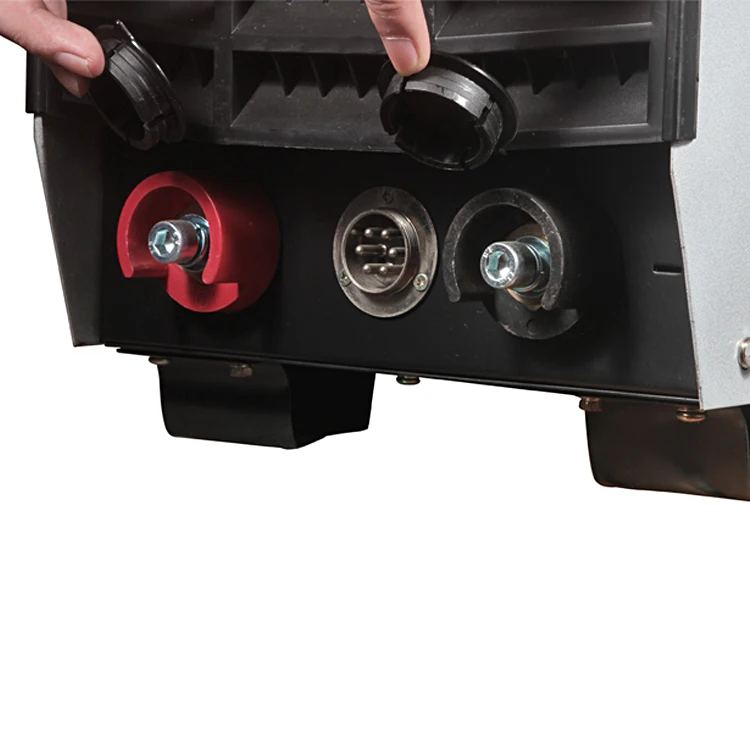

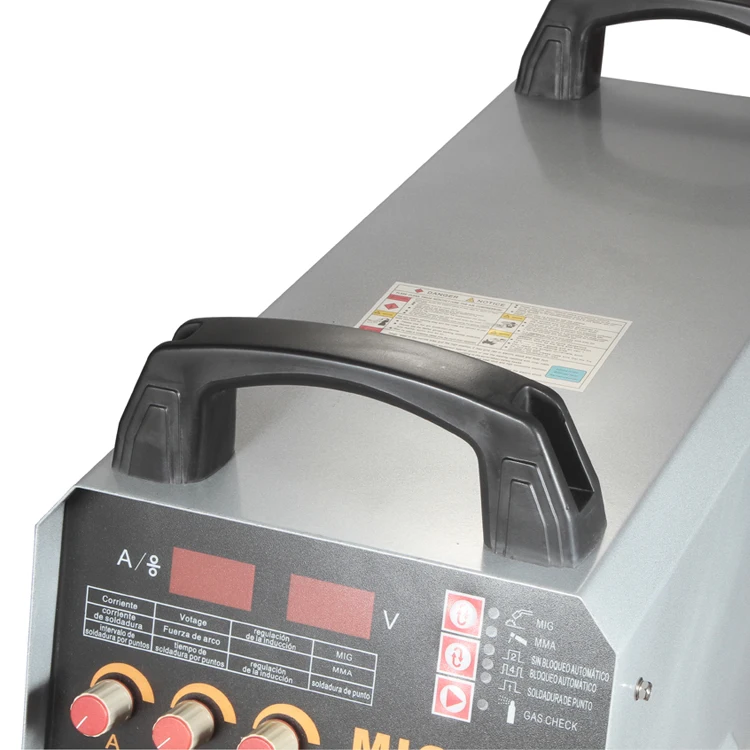

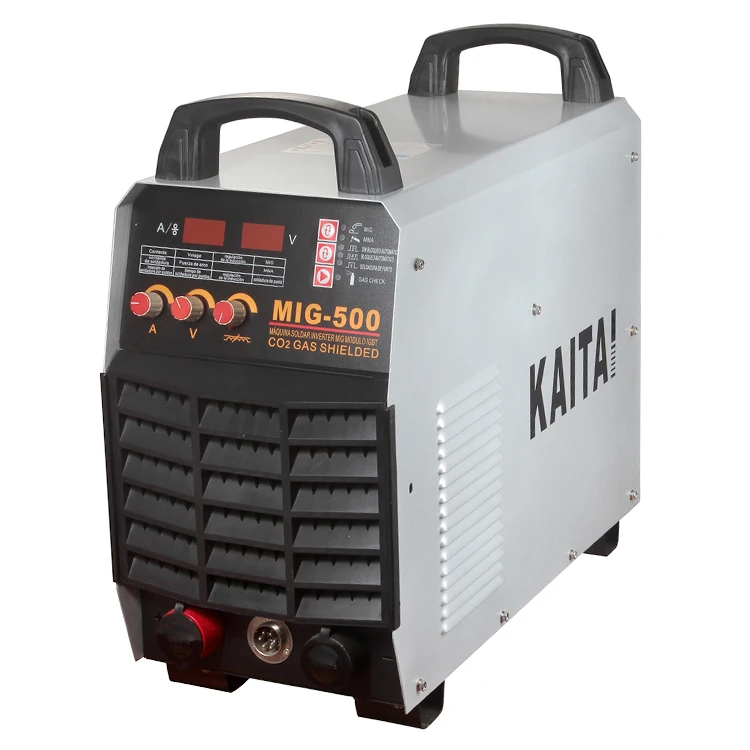

Detailed Images
Packing&Shipping
Included:
1 x Welding machine

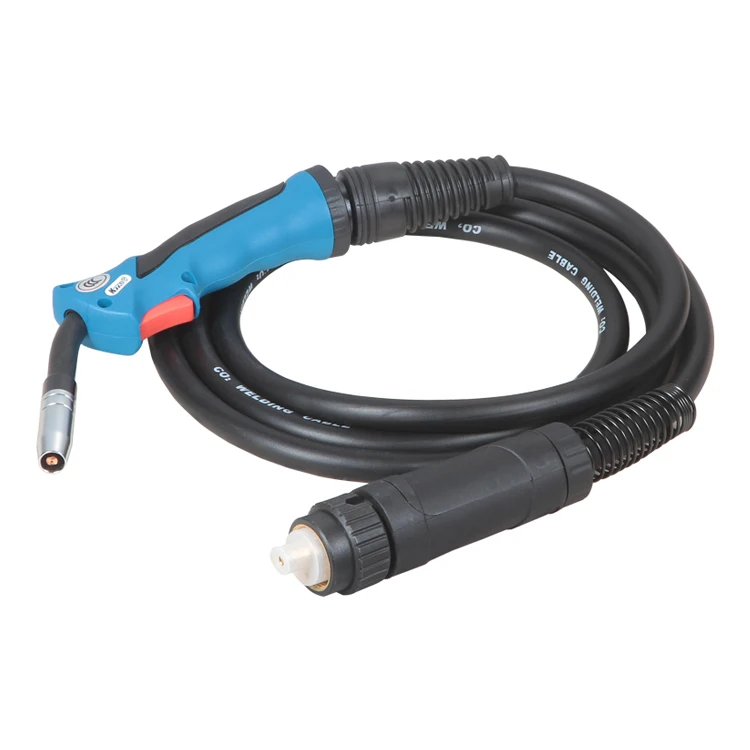

1 x 3m 36KD MIG Torch
1 x Co2 Gas Regulator
1 x2m Electrode holder

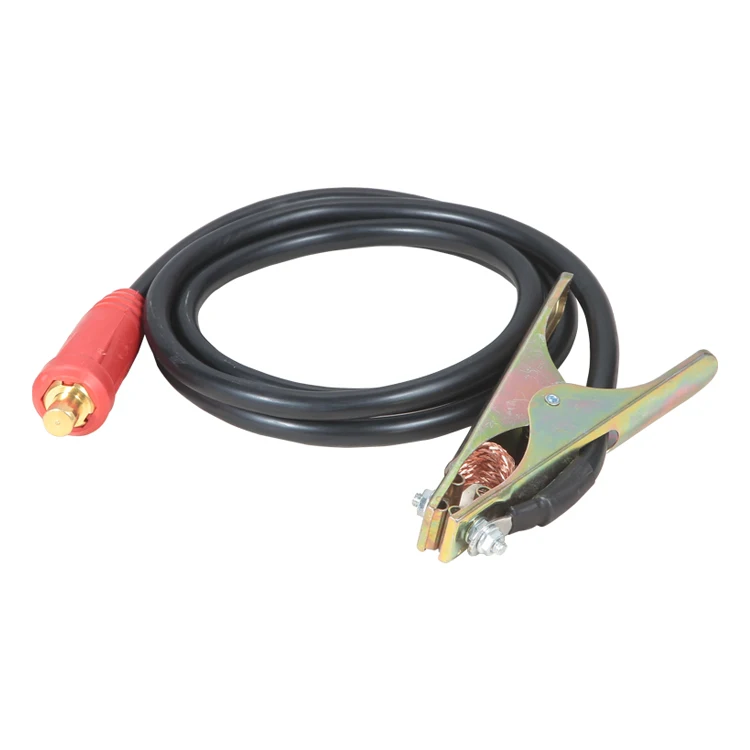

1 x 1.5m Earth clamp
1 x English Manual
After Sales Service
Our advantage:
1.Competitive price
2. Good quality
3. Timely delivery
4. New model launch yearly
5. Own manufacturing
6. Own quality control
Our Services & Strength
We stand behind all our machines and with nearly 20 years experience selling and maintaining these machines you can be assured of outstanding after sales support.
FAQ
1.Q: Are you a factory or trading company?
A: We are factory with 3 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
2. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
3 Payment:
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C, Western Union is fine .
4.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.
5.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
6.Q:Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
A: We are factory with 3 assembly product line and strict QC system and equipment, so we can meet both your quantity and quality demands.
2. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
3 Payment:
Acturally, payment would be preferred: Normally we choose in T/T, usually is 30% deposit and pay the balance before shipment.L/C, Western Union is fine .
4.Q: When can I get the products?
A: You products will be arrived your the nearest domestic port after order confirmed, it's about 30 days.
5.Q: How does your factory do regarding quality control?
A: Our factory has gained SAA certificate and EMC certificate and ISO9002 authentication. Quality makes us who we are today. We focus on the quality from the very beginning to the end.
6.Q:Can I buy other factory's products directly from you?
A: Yes, of course. There are already many customers cooperating with us in this way. We have over 10 years .in the business with extensive knowledge of technology and market.Our good reputation in China has been awarded by Alibaba Group as its seleced business partner.
Related Products
Certifications
Company Introduction
Compress the distance of the world and weld more possibilities. Zhejiang kaitai is a professional factory specializing in R & D, manufacturing all kinds of inverter welding , cutting equipment and air compressors.Founded in 2001, it is located in Zeguo Town, Wenling City, and now has an excellent R&d, production, sales and service team of more than 200 people.Company adhering to the advanced management concept, information network management process, in strict accordance with the ISO9000 quality management system and ISO14000 environmental protection system, fully implement of 6S management, and strive to provide all customers with high quality products, competitive prices, good after-sales service and timely delivery. The core team of Zhejiang Kaitai has more than 20 years of industry technology and experience.In addition to providing superior performance of conventional products, can also according to user specific requirements design and manufacture all kinds of special welding equipment, and ensure that all products are with beautiful appearance and good quality, in line with the European CE, EMC and Rohs control standards. More than 2,000 sets of daily output, 70% of the export volume, and an annual output value of 170 million RMB, the products are exported to European, South American, Middle East and southeast Asian markets, and are committed to the global market, and have been widely recognized by the industry. Kaitai has always been in the leading position in the industry on scale sales. Zhejiang kaitai Amperex technology co., LTD sincerely welcomes friends all over the world to establish long-term cooperative partnership on the basis of win-win cooperation.
