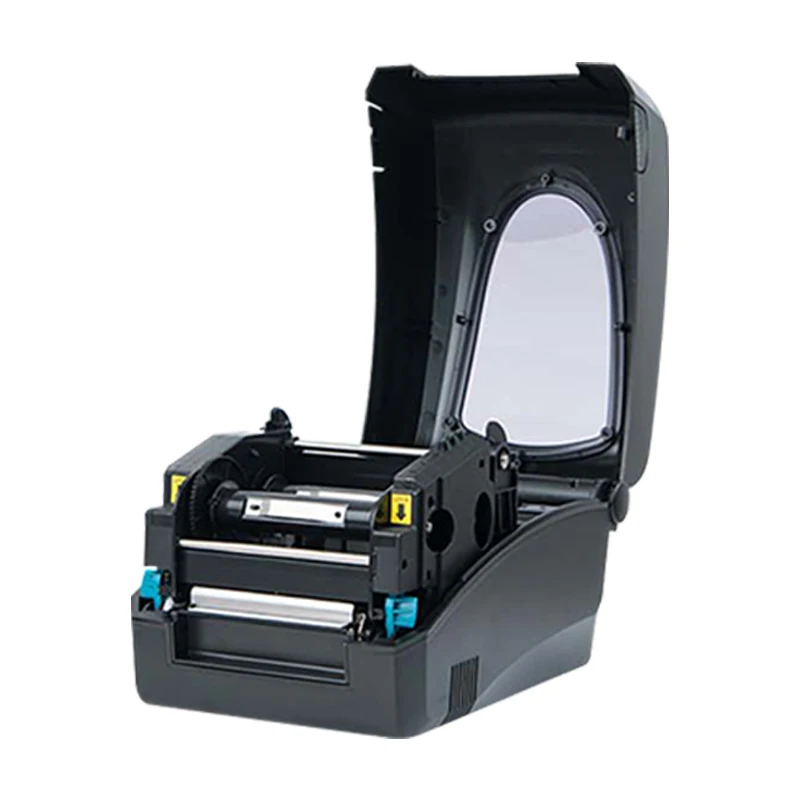

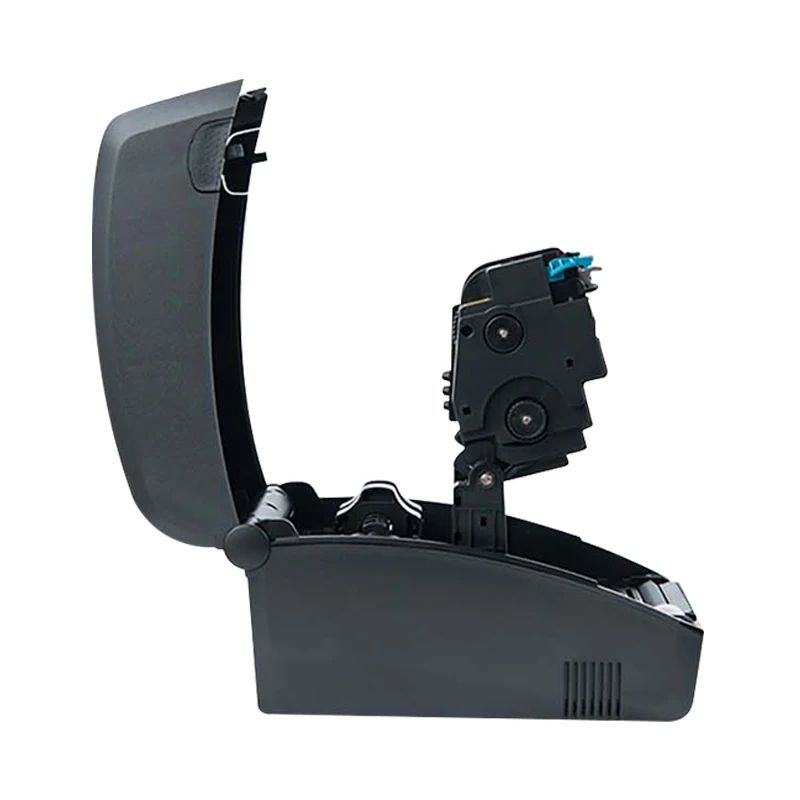

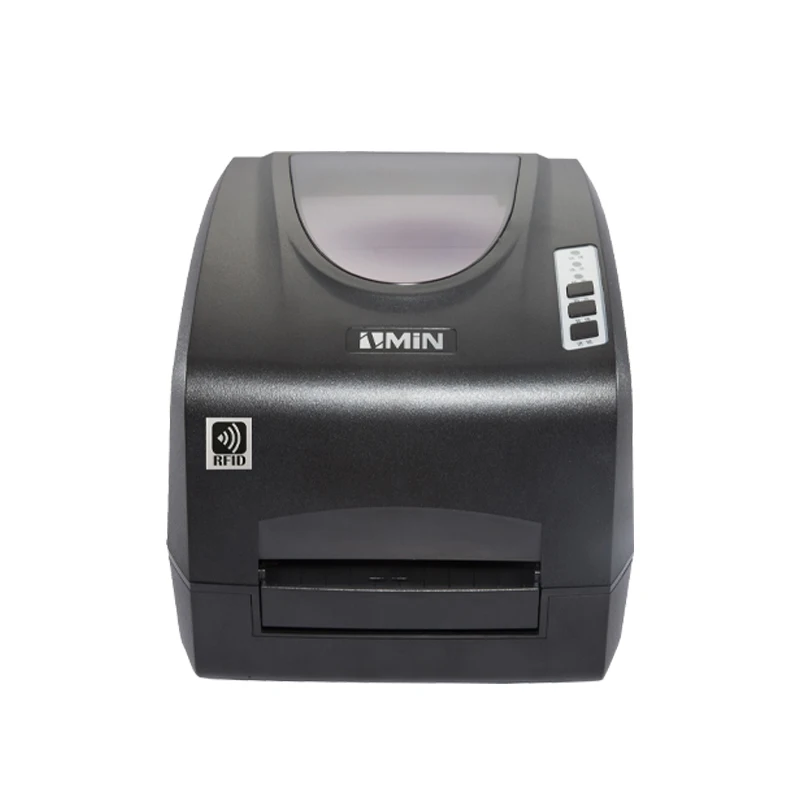

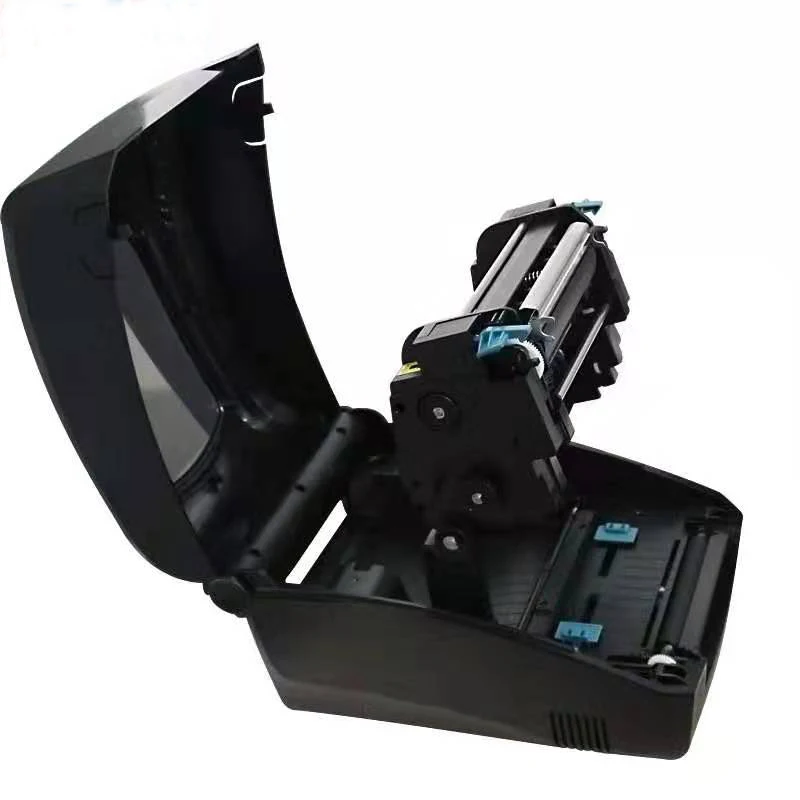

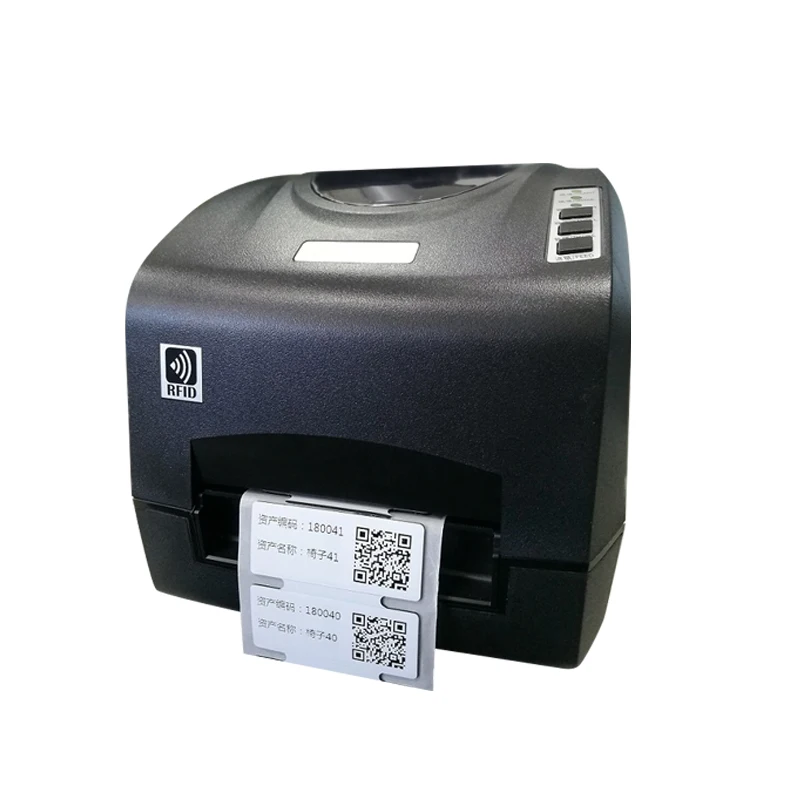

High quality Zmin X1D uhf nfc rfid reader label printer
- Category: >>>
- Supplier: Shenyang Winbo Rommer Electronic Technology Co. Ltd.
Share on (62379235711):
Product Overview
Description
Model | X1 | X1i |
Resolution | 203 DPI (8 points / mm) | 300 DPI (11.8 points / mm) |
Maximum print speed | 8 IPS (203.2 mm/s) | 6 IPS (152.4 mm/s) |
Maximum print width | 4.25″(108 mm) | 4.15″ (105.6 mm) |
Maximum print length | 157.5″（4000mm） | 78.7″（2000mm） |
Model | X1iC |
Resolution | 300 DPI(11.8point/mm) |
Maximum print speed | 6 IPS(152.4 mm/s) |
Maximum print width | 4.15″ (105.6 mm) |
Maximum print length | 78.7″（2000mm） |
RFID function | Working frequency: 13.56MHz Working mode: printing simultaneous RFID reading and writing, printing only, RFID reading and writing, acquiring TID, etc. |
Model | X1D | X1iD | |
Resolution | 203 DPI (8 points / mm) | 300 DPI (8 points / mm) | |
Maximum print speed | 8 IPS (203.2 mm/s) | 6 IPS (152.4 mm/s) | |
Maximum print speed | 4.25″ (108 mm) | 4.15″ (105.6 mm) | |
Maximum print length | 157.5″ （4000mm） | 78.7″ （2000mm） | |
RFID function | Working frequency: 902MHz-928MHz Working mode: printing simultaneous RFID reading and writing, printing only, RFID reading and writing, acquiring TID, etc. | ||
Product parameters
Model | X1D | X1iD | |
printing method | Thermal/thermal transfer | ||
Resolution | 203 DPI (8 points / mm) | 300 DPI (11.8 points / mm) | |
Maximum print speed | 8 IPS (203.2 mm/s) | 6 IPS (152.4 mm/s) | |
Maximum print width | 4.25′′ (108 mm) | 4.15′′ (105.6 mm) | |
Maximum print length | 157.5′′ (4000mm) | 78.7" (2000mm) | |
RAM | 8 MB Flash ROM，16 MB SDRAM | 16 MB SDRAM | |
Label roll size | Width: up to 4.5′′ (116 mm), minimum 0.8′′ (20 mm) Outer diameter: up to 5′′ (127 mm) Inner diameter: minimum 1′′ (25.4 mm) | ||
Label thickness | 0.06 to 1.5 m (0.002" to 0.006"), Includes backing paper thickness for flexible metal tags | ||
Ribbon size | Outer diameter (maximum): 2.75" (70 mm) Inner diameter: 1" (25.4 mm) or 0.5" (12.7 mm) Maximum width: 4.3′′ (110 mm) Maximum length: 300 m | ||
Paper detection method | Movable reflective and fixed transmissive | ||
RFID function | Integrated high performance RFID reader/encoder with tags compatible with UHF EPC Gen 2/ISO 18000-6C. Working frequency:902MHz-928MHz 1. Support the printing mode of reading and writing data, printing only or reading and writing data; 2. SupportTID, EPC, TID+EPC data for reading tags; 3, support USB and network two-way communication, real-time feedback of printer status. | ||
Bar code | One-dimensional barcodes such as Code 39, Code 93, Code 128, Codabar, EAN-8/13/128, Interleave 2 of 5, UCC-128, UPC A/E 2 and 5 add-on; Data Matrix, MaxiCode, PDF417, QR and other 2D barcodes | ||
interface | RS-232 serial port, USB interface, Ethernet port (optional) | ||
Input power | 24 VDC, 2.5 A | ||
weight | 2.62 KGS | ||
Dimensions | 208mmx310mm x195 mm | ||
working environment | Temperature: 0° C ~ 40° C (32° F ~ +104° F) Relative humidity: 5% ~ 85% without condensation | ||
Storage environment | Temperature: -40° C ~ 60° C (-40° F ~ +140° F) Relative humidity: 5% ~ 85% without condensation | ||
Optional accessory | Wired network card, wireless (Wifi) network card, automatic paper stripper, Bluetooth (4.0) | ||

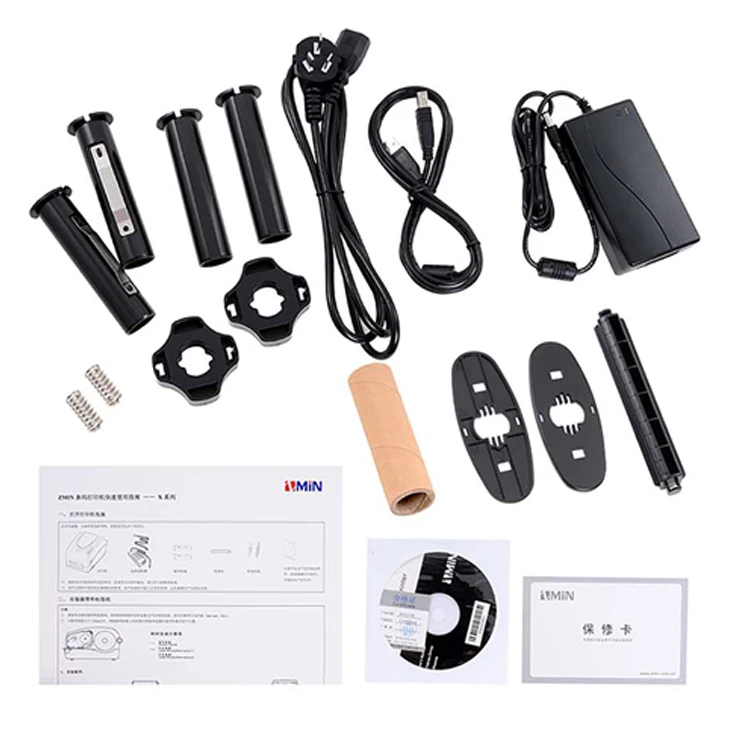

Spare parts

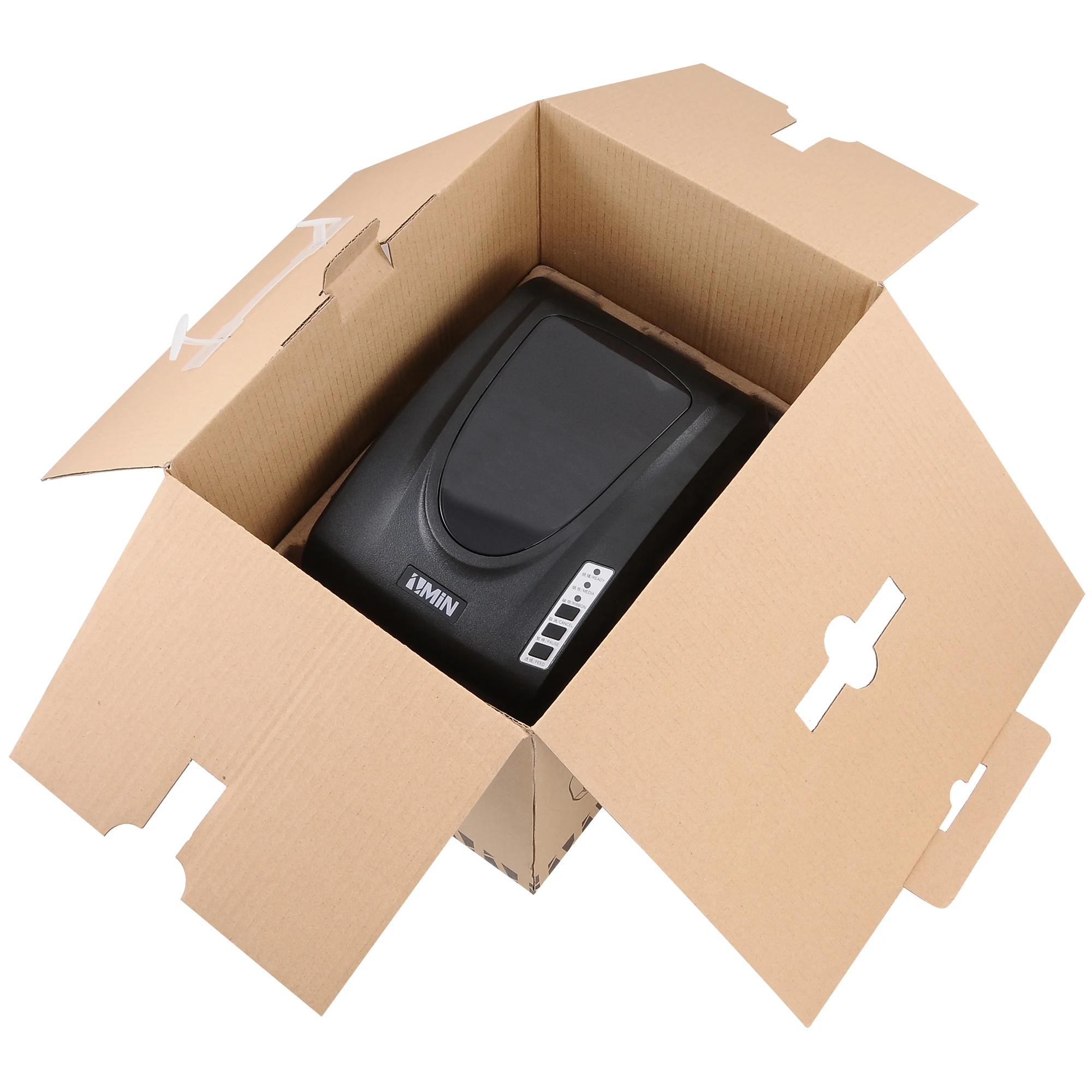

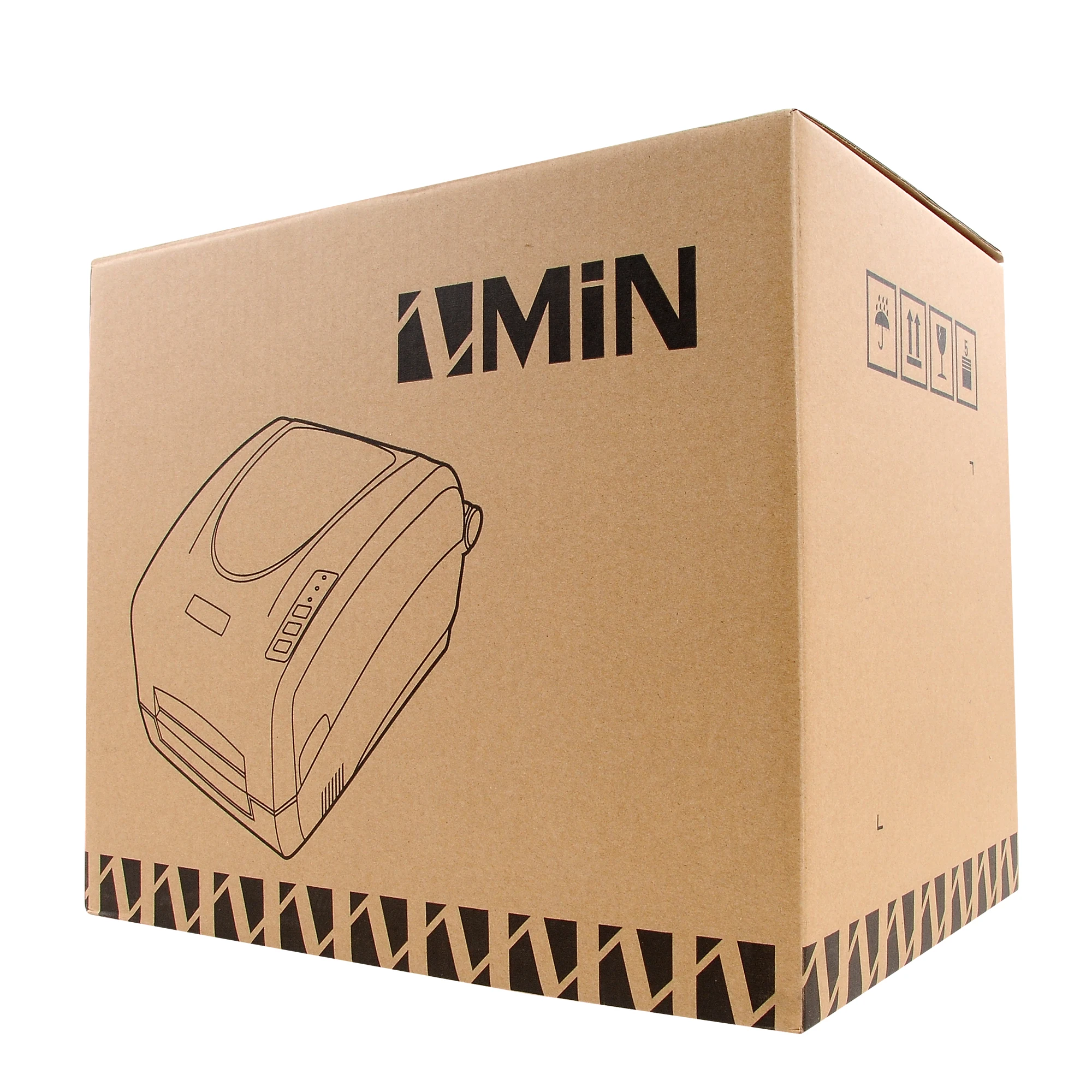

Product packaging
Application Field
1. the manufacturing field:
For real-time monitoring of production data, quality tracking and automated production.
2. the field of logistics:
Used for cargo tracking, automatic information collection, warehousing applications, port applications and postal delivery.
3.the retail sector:
Used for real-time monitoring of merchandise sales data, anti-theft, self-service shopping for unmanned supermarkets, etc.
4. the medical field:
For medical device management, patient identification and baby theft.
5. Identification field:
It is used for various electronic documents such as e-passports, ID cards and student ID cards.
6. Military field:
Used for ammunition management, gun management, material management, personnel management, and vehicle identification and tracking.
7. anti-counterfeiting security areas:
Mainly used for valuables (smoke, alcohol, drugs) anti-counterfeiting, ticket security, car anti-theft and car positioning.
8. asset management areas:
Used for valuable, risky, large and similar asset management.
9. Transportation:
Mainly used for non-stop payment, taxi management, bus hub management, railway locomotive identification, air traffic control, passenger ticket identification and baggage parcel tracking.
10. Food field:
It is used for fruit and vegetable growth and fresh food preservation and traceability.
11. Book field:
Used for book data management in bookstores, libraries and publishing houses.
12. Animal fields:
Used for animal domestication, pet identification management and wildlife tracking.
13. Agricultural fields:
It is used for monitoring and traceability of livestock animals and agricultural products to ensure green agriculture and ensure the safety of agricultural products.
14. Power management field:
It is used for real-time monitoring of power running status, real-time monitoring of power load, power check and line loss, etc., to achieve efficient and integrated management.
15. the field of electronic payment:
For banking and retail departments, payment methods such as bank cards or recharge cards are used.
16. Smart home field:
It is used for the interconnection and intercommunication of various electronic products, communication products and information appliances in the home to realize smart home.
For real-time monitoring of production data, quality tracking and automated production.
2. the field of logistics:
Used for cargo tracking, automatic information collection, warehousing applications, port applications and postal delivery.
3.the retail sector:
Used for real-time monitoring of merchandise sales data, anti-theft, self-service shopping for unmanned supermarkets, etc.
4. the medical field:
For medical device management, patient identification and baby theft.
5. Identification field:
It is used for various electronic documents such as e-passports, ID cards and student ID cards.
6. Military field:
Used for ammunition management, gun management, material management, personnel management, and vehicle identification and tracking.
7. anti-counterfeiting security areas:
Mainly used for valuables (smoke, alcohol, drugs) anti-counterfeiting, ticket security, car anti-theft and car positioning.
8. asset management areas:
Used for valuable, risky, large and similar asset management.
9. Transportation:
Mainly used for non-stop payment, taxi management, bus hub management, railway locomotive identification, air traffic control, passenger ticket identification and baggage parcel tracking.
10. Food field:
It is used for fruit and vegetable growth and fresh food preservation and traceability.
11. Book field:
Used for book data management in bookstores, libraries and publishing houses.
12. Animal fields:
Used for animal domestication, pet identification management and wildlife tracking.
13. Agricultural fields:
It is used for monitoring and traceability of livestock animals and agricultural products to ensure green agriculture and ensure the safety of agricultural products.
14. Power management field:
It is used for real-time monitoring of power running status, real-time monitoring of power load, power check and line loss, etc., to achieve efficient and integrated management.
15. the field of electronic payment:
For banking and retail departments, payment methods such as bank cards or recharge cards are used.
16. Smart home field:
It is used for the interconnection and intercommunication of various electronic products, communication products and information appliances in the home to realize smart home.
